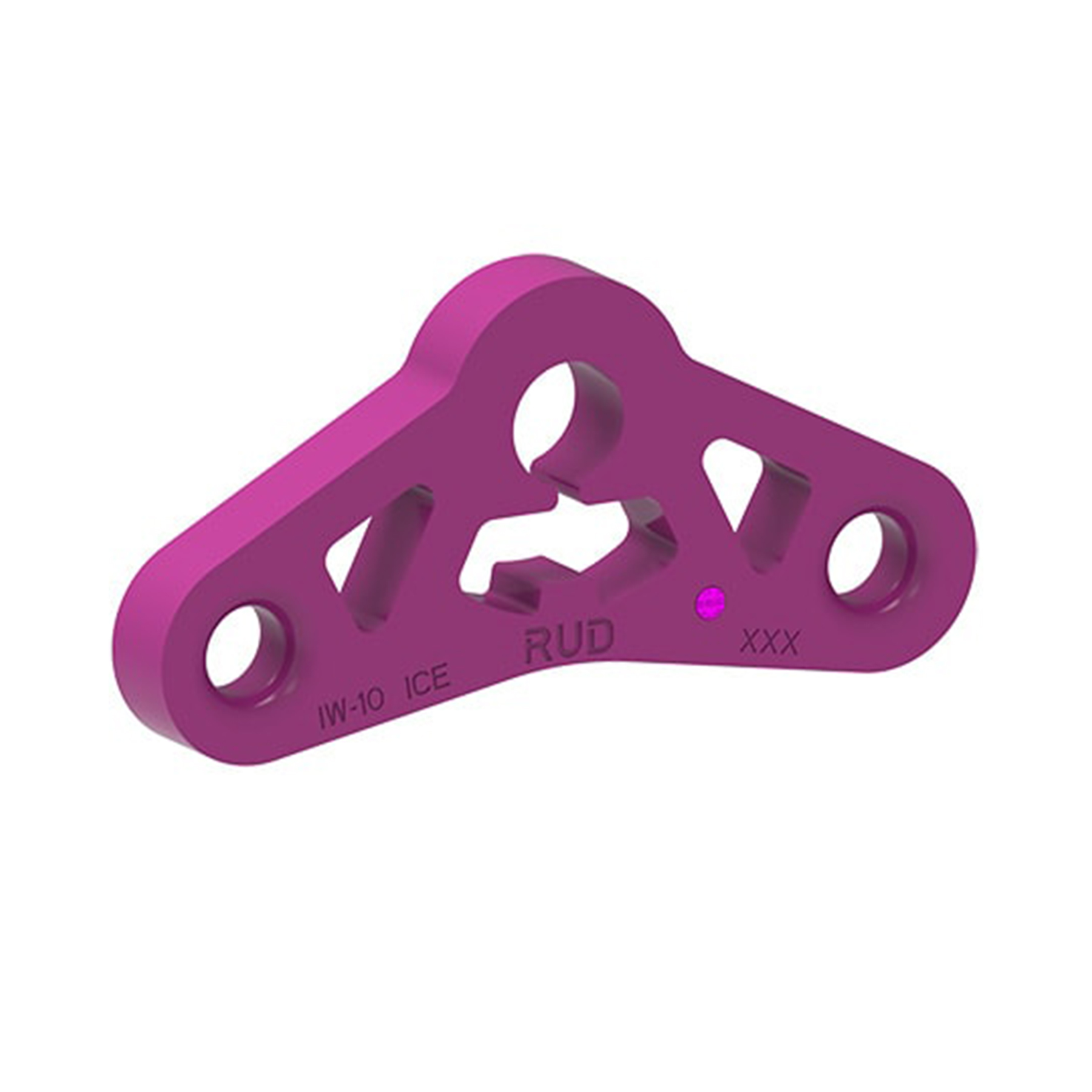

ICE-Balancers are installed into 4-leg sling assemblies (2x 2-leg), to achieve an equal load distribution to all 4 legs. The length tolerances of the single legs will be compensated.
You can calculate with 4 load bearing strands if the following criteria are fulfilled (BGR 500/DGUV Regel 100-500):
- Two 2-leg slings, therof one sling with a balancer.
- Both 2-leg slings will be attached to one hook (single or double crane hook)
- Symmetrical load spreading
- Max. inclination angle ß 45°
Other important RUD specific information on our ICE-Balancers can be found in our user instructions
