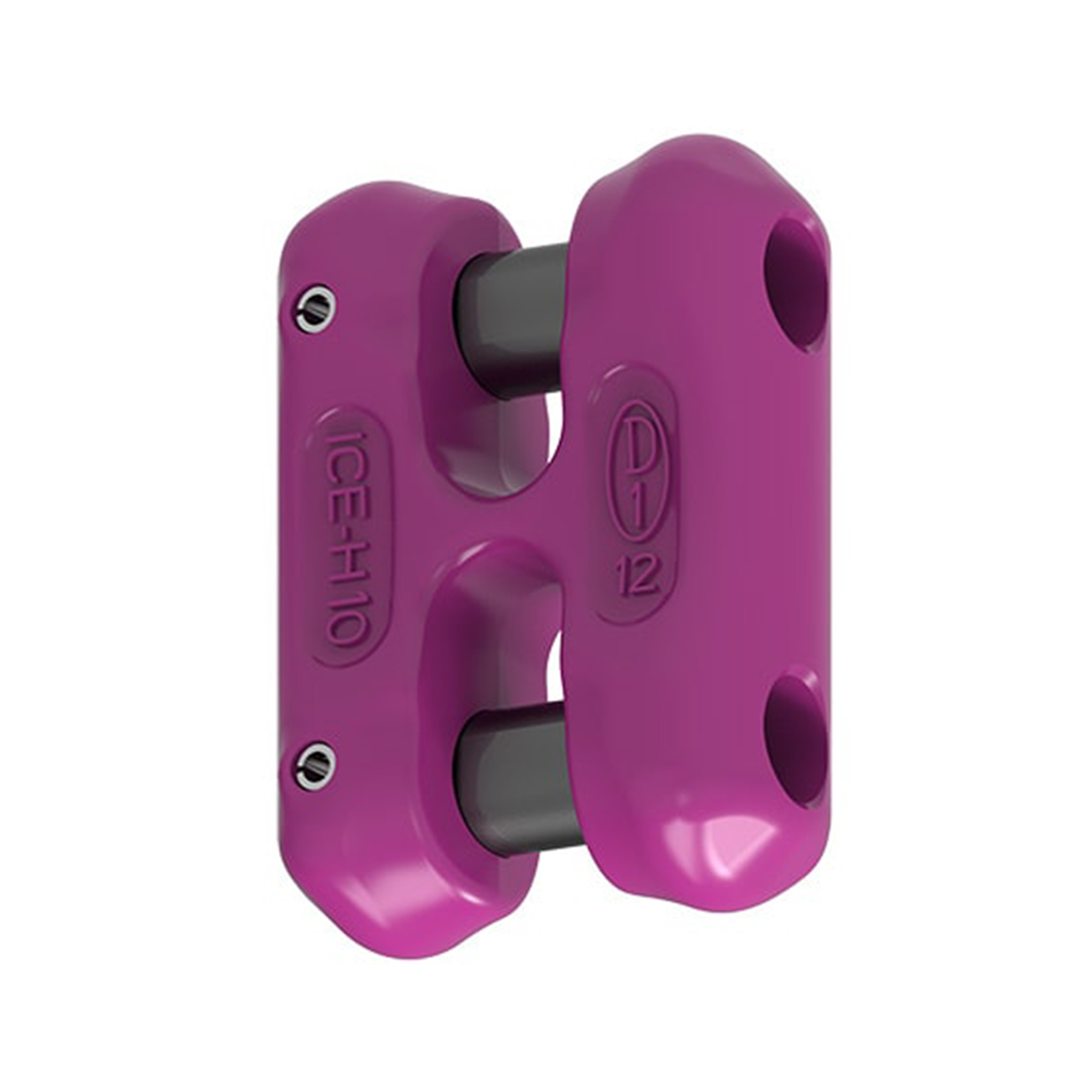

IH- ICE Chain connector

Fast, easy and economical endless-making of endless chains
Pitch of the H-Connector analogue Chain pitch
Compacter and easier to handle than conventional chain locks
Heat-treated body, therefore more wear resistant
Economically formed
Enhanced slide over corners
Very jointed: adapts to the chain as well as to the component
ICE-Chain connector IH is marked by the RUD-ID-TAG® (RFID chip) and with the clear identification number distinguished.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (6)

ICE-Chain connector IH-6 (7901922)

Technical Information

Product number: 7901922

Technical Downloads

IH-6 - DXF 2D CAD File Download File

IH-6 - IGES 3D CAD File Download File

IH-6 - STEP 3D CAD File Download File

ICE-Chain connector IH-6 Download File

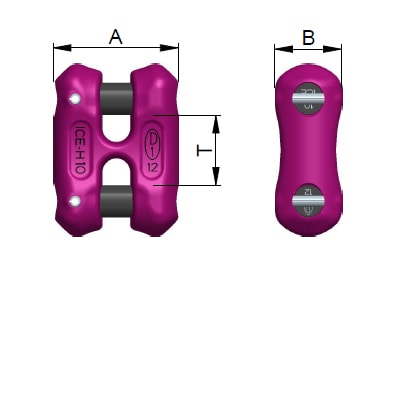

Attribute	Value	Value
weight	0.14 kg	0.31 lbs
Nominal WLL	1800 kg	3960 lbs
T	18 mm	23/32"
A	34 mm	1-11/32"
B	19.6 mm	25/32"

ICE-Chain connector IH-8 (7901453)

Technical Information

Product number: 7901453

Technical Downloads

IH-8 - DXF 2D CAD File Download File

IH-8 - IGES 3D CAD File Download File

IH-8 - STEP 3D CAD File Download File

ICE-Chain connector IH-8 Download File

Attribute	Value	Value
weight	0.26 kg	0.57 lbs
Nominal WLL	3000 kg	6600 lbs
T	24 mm	15/16"
A	45 mm	1-25/32"
B	25.5 mm

ICE-Chain connector IH-10 (7901454)

Technical Information

Product number: 7901454

Technical Downloads

IH-10 - DXF 2D CAD File Download File

IH-10 - IGES 3D CAD File Download File

IH-10 - STEP 3D CAD File Download File

ICE-Chain connector IH-10 Download File

Attribute	Value	Value
weight	0.55 kg	1.21 lbs
Nominal WLL	5000 kg	11000 lbs
T	30 mm	1-3/16"
A	56 mm	2-3/16"
B	31.5 mm

ICE-Chain connector IH-13 (7901455)

Technical Information

Product number: 7901455

Technical Downloads

IH-13 - DXF 2D CAD File Download File

IH-13 - IGES 3D CAD File Download File

IH-13 - STEP 3D CAD File Download File

ICE-Chain connector IH-13 Download File

Attribute	Value	Value
weight	1.16 kg	2.56 lbs
Nominal WLL	8000 kg	17600 lbs
T	39 mm	1-9/16"
A	73 mm	2-7/8"
B	40 mm	1-9/16"

ICE-Chain connector IH-16 (7901924)

Technical Information

Product number: 7901924

Technical Downloads

IH-16 - DXF 2D CAD File Download File

IH-16 - IGES 3D CAD File Download File

IH-16 - STEP 3D CAD File Download File

ICE-Chain connector IH-16 Download File

Attribute	Value	Value
weight	2.16 kg	4.76 lbs
Nominal WLL	12500 kg	27500 lbs
T	48 mm	1-7/8"
A	89 mm	3-1/2"
B	49 mm	1-15/16"

ICE-Chain connector IH-4 (7906659)

Technical Information

Product number: 7906659

Technical Downloads

ICE-Chain connector IH-4 Download File

Attribute	Value	Value
weight	0.04 kg	0.09 lbs
Nominal WLL	800 kg	1760 lbs
T	12 mm	15/32"
A	24 mm	15/16"
B	12 mm	15/32"
