IAK 1/2-4

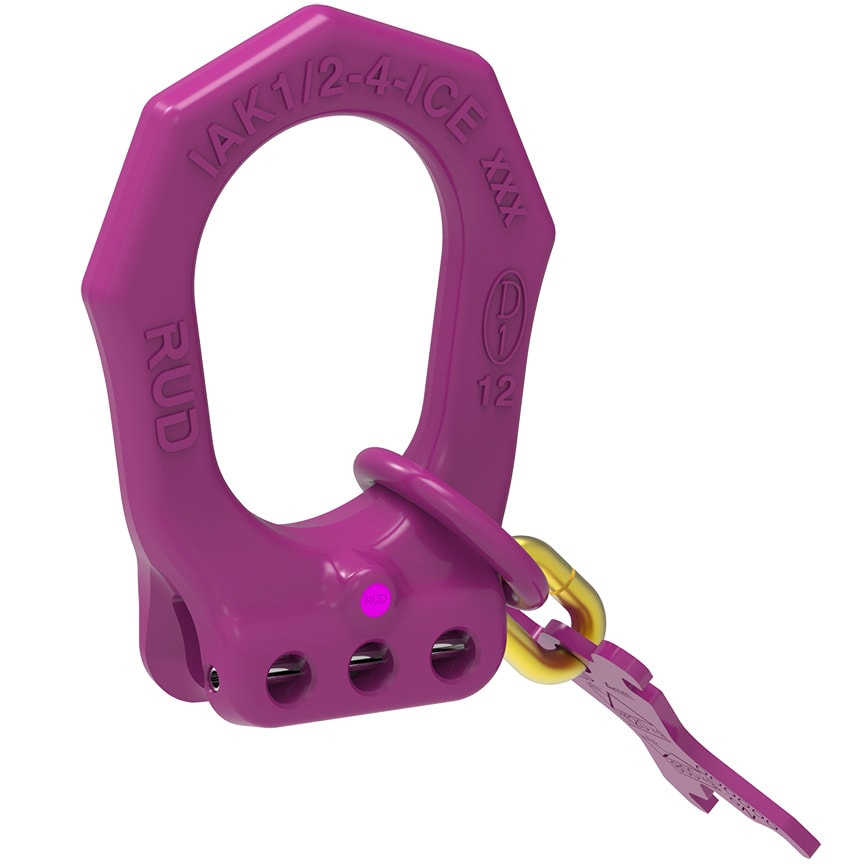

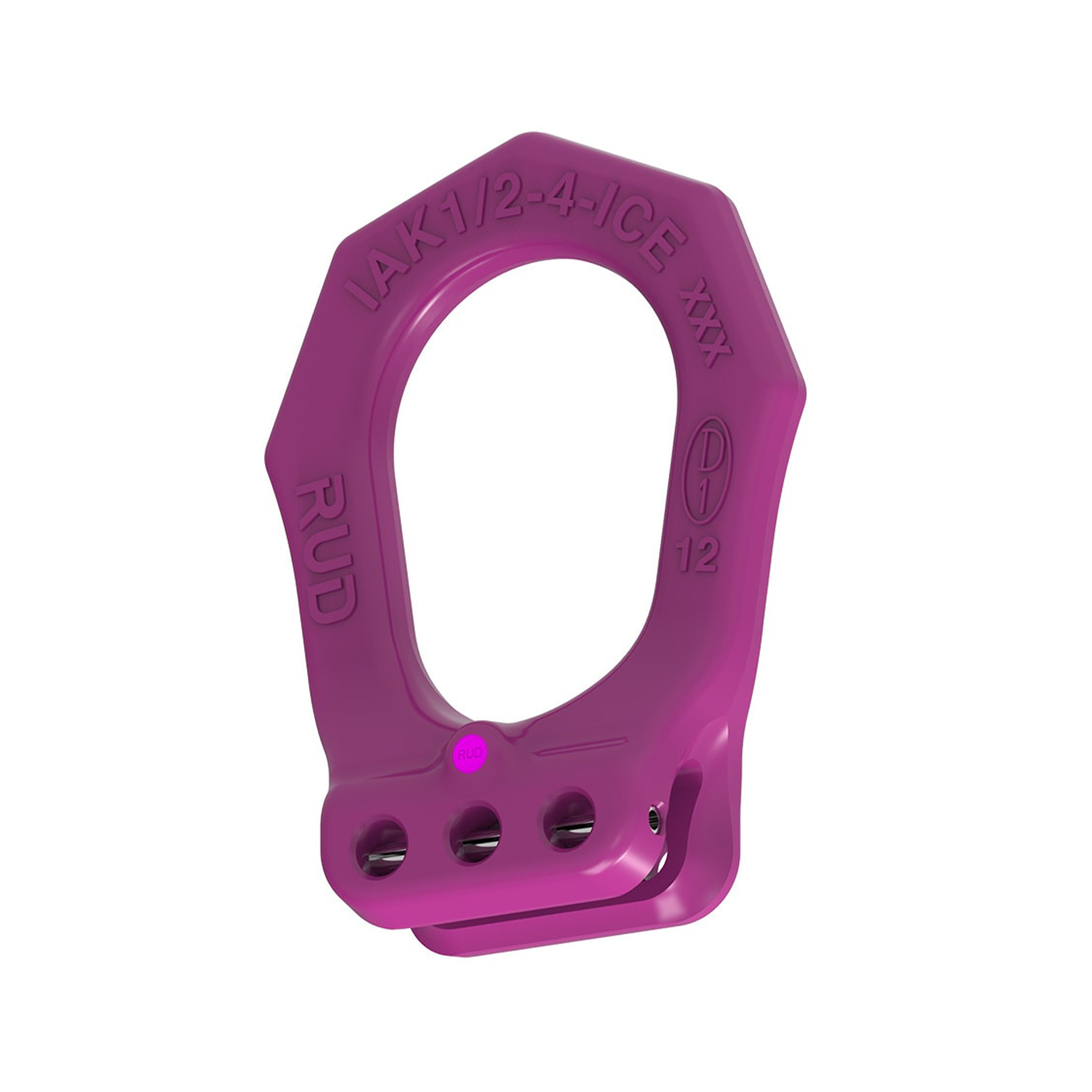

ICE 2-leg master link with 2 all direction, movable welded IRG connectors. Thus ensuring that only the correct chain diameter and number of legs can be connected. The ICE load and retaining pins are preassembled

Surface: ICE-Pink powder coated Measurements correspond to the master link A according to DIN 5688 but one chain diameter larger. Manufactured according to DIN EN 1677-4.

Product Variants (1)

ICE-Master link for 2 strands IAK 1/2-4 (7905031)

Technical Information

Product number: 7905031

Technical Downloads

IAK-1/2-4 - Picture Download File

IAK-1/2-4 - Picture Download File

IAK 2-4 - DXF 2D CAD File Download File

IAK 2-4 - IGES 3D CAD File Download File

IAK 2-4 - STEP 3D CAD File Download File

ICE-Master link for 2 strands IAK 1/2-4 Download File

Attribute	Value	Value
weight	0.20 kg	0.44 lbs
Nominal WLL	1120 kg	2464 lbs

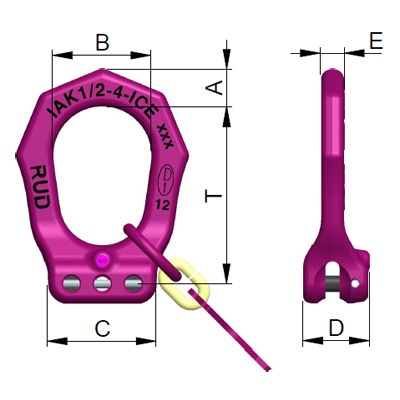

T	58 mm	2-9/32"
A	13 mm	1/2"
B	34 mm	1-11/32"
C	38 mm	1-1/2"
D	22.5 mm	7/8"
E	8 mm	5/16"
