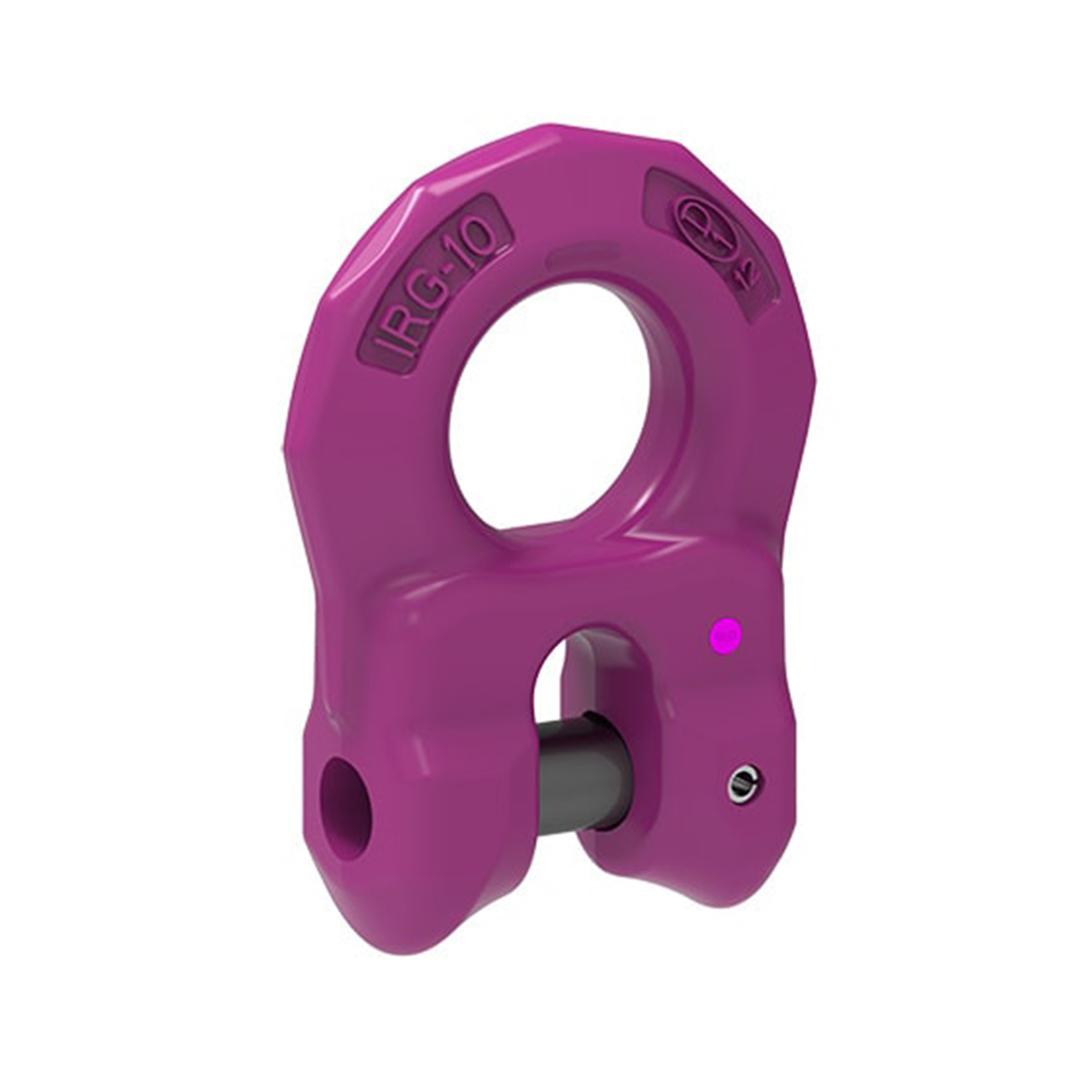

ICE IRG Connector
- A connecting part for foolproof connections with forkheads, flanges, etc.
- Comes preassembled with connecting bolt and tensioning sleeve
- ICE IRG Connector is marked by RUD-ID-TAG® (RFID chip) and stamped with a clear identification number
Product Variants (5)
ICE-Connector IRG 6 (7902998)
| Attribute | Value | Value |
|---|
| weight | 0.12 kg | 0.26 lbs |
| Nominal WLL | 1800 kg | 3960 lbs |

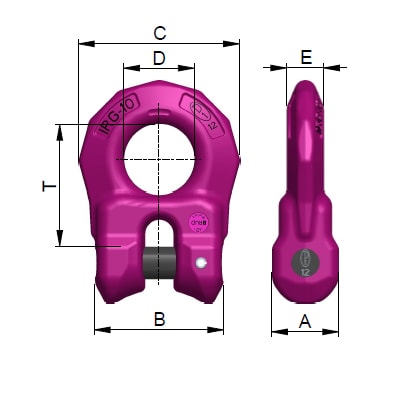

| T | 36 mm | 1-27/64"
|
| A | 19 mm | 3/4" |
| B | 34 mm | 1-11/32" |
| C | 44 mm | 1-3/4" |
| D | 21 mm | 13/16" |
| E | 10 mm | 3/8" |
| F | 12 mm | 15/32" |
ICE-Connector IRG 8 (7902999)
| Attribute | Value | Value |
|---|
| weight | 0.25 kg | 0.55 lbs |
| Nominal WLL | 3000 kg | 6600 lbs |
| T | 43 mm | 1-11/16"
|
| A | 24 mm | 15/16" |
| B | 45 mm | 1-25/32" |
| C | 56 mm | 2-3/16" |
| D | 26 mm | 1" |
| E | 12.5 mm | 15/32"
|
| F | 15 mm | 19/32" |
ICE-Connector IRG 10 (7903000)
| Attribute | Value | Value |
|---|
| weight | 0.53 kg | 1.17 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 53 mm | 2-3/32"
|
| A | 30 mm | 1-3/16" |
| B | 56 mm | 2-3/16" |
| C | 70 mm | 2-3/4" |
| D | 31 mm | 1-7/32" |
| E | 16 mm | 5/8" |
| F | 19 mm | 3/4" |
ICE-Connector IRG 13 (7903001)
| Attribute | Value | Value |
|---|
| weight | 1.04 kg | 2.29 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 67 mm | 2-5/8"
|
| A | 38 mm | 1-1/2" |
| B | 73 mm | 2-7/8" |
| C | 88 mm | 3-15/32" |
| D | 37 mm | 1-7/16" |
| E | 19 mm | 3/4" |
| F | 25 mm | 63/64" |
ICE-Connector IRG 16 (7903002)
| Attribute | Value | Value |
|---|
| weight | 2.08 kg | 4.59 lbs |
| Nominal WLL | 12500 kg | 27500 lbs |
| T | 83 mm | 3-1/4"
|
| A | 47 mm | 1-7/8" |
| B | 90 mm | 3-17/32" |
| C | 109 mm | 4-5/16" |
| D | 46 mm | 1-13/16" |
| E | 24 mm | 15/16" |
| F | 32 mm | 1-1/4" |
