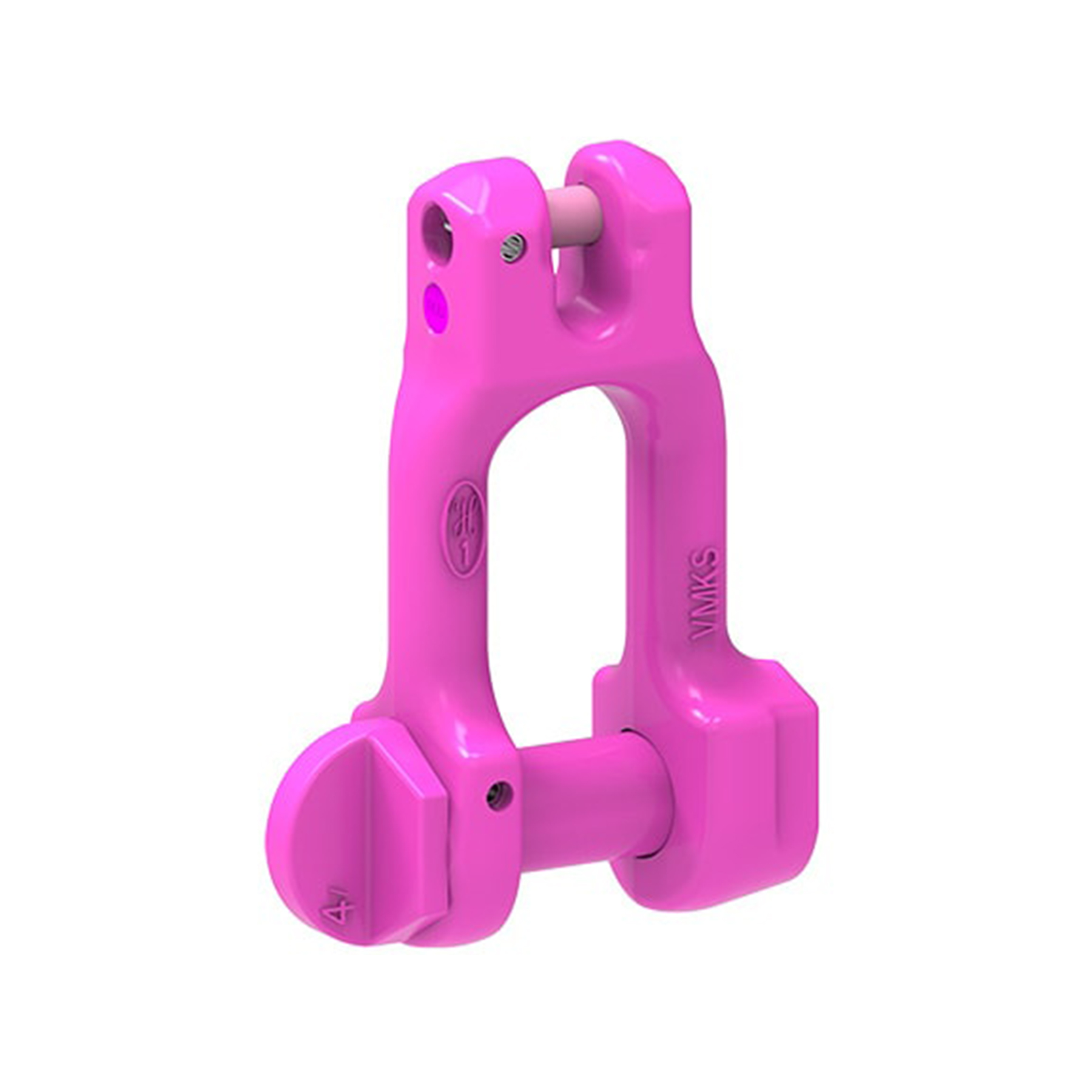

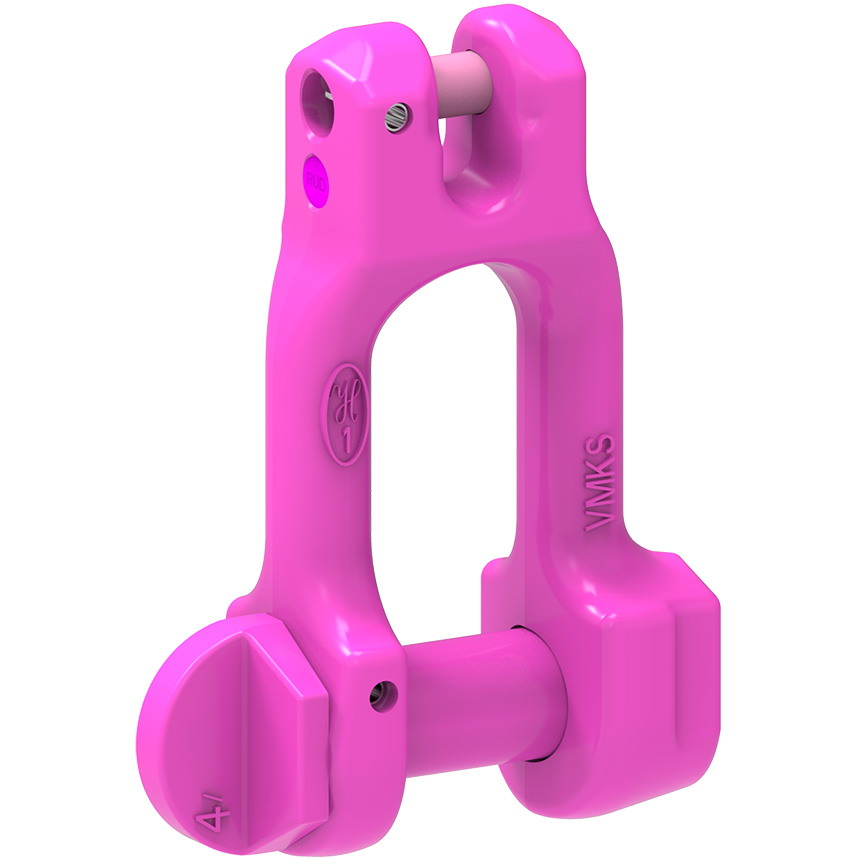

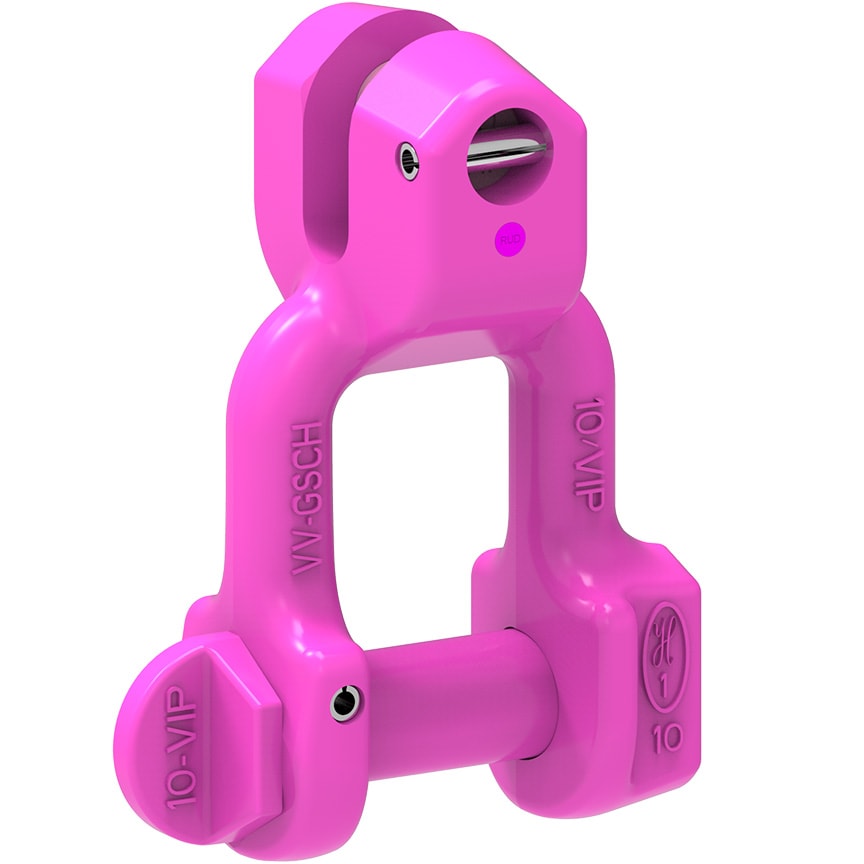

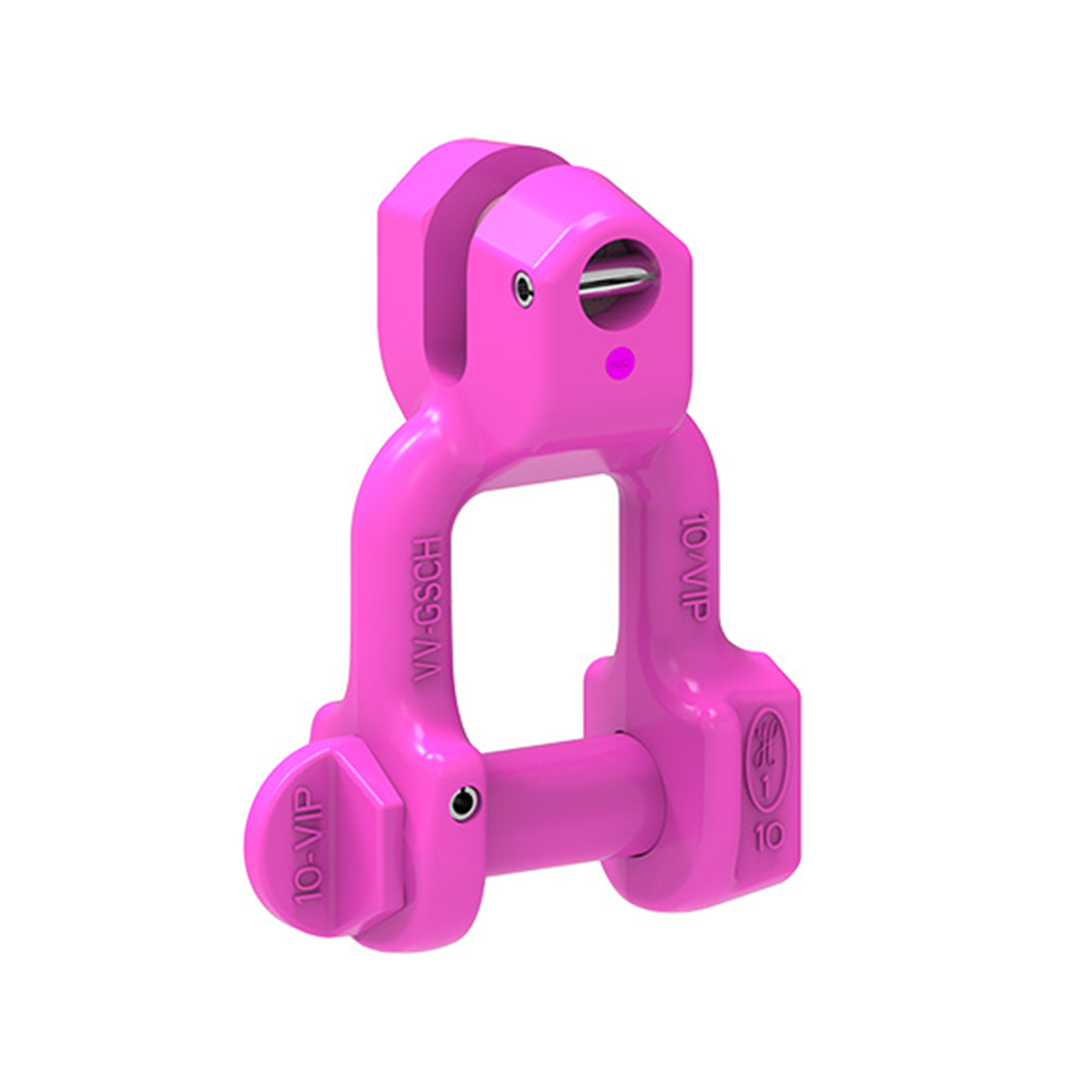

VIP Foolproof High Dynamic Shackle

High tensile version with an integrated safety thread in the shackle bracket. Smooth bolt support in the shackle on both sides. The bolt can be rotated. No bending strength in the thread (only a securing function). Optimal adaptation - max. mouth width with the smallest shackle bolt. Owing to the turned clevis connection, it is extensively resistant to bending. Long term securing by driving in the pre-assembled tensioning sleeve. Special thread, thus distinctive in comparison to other shackle bolts. Pre-assembled connecting bolt and tensioning sleeve.

  • Inspection and documentation made easy! By the RUD-ID-System (equipped with own RFID chip).
  • 4:1 min. safety factor for lifting and 2:1 safety factor for lashing capacity.
  • 380 C Max
  • -40 - 200 C

Product Variants (8)
