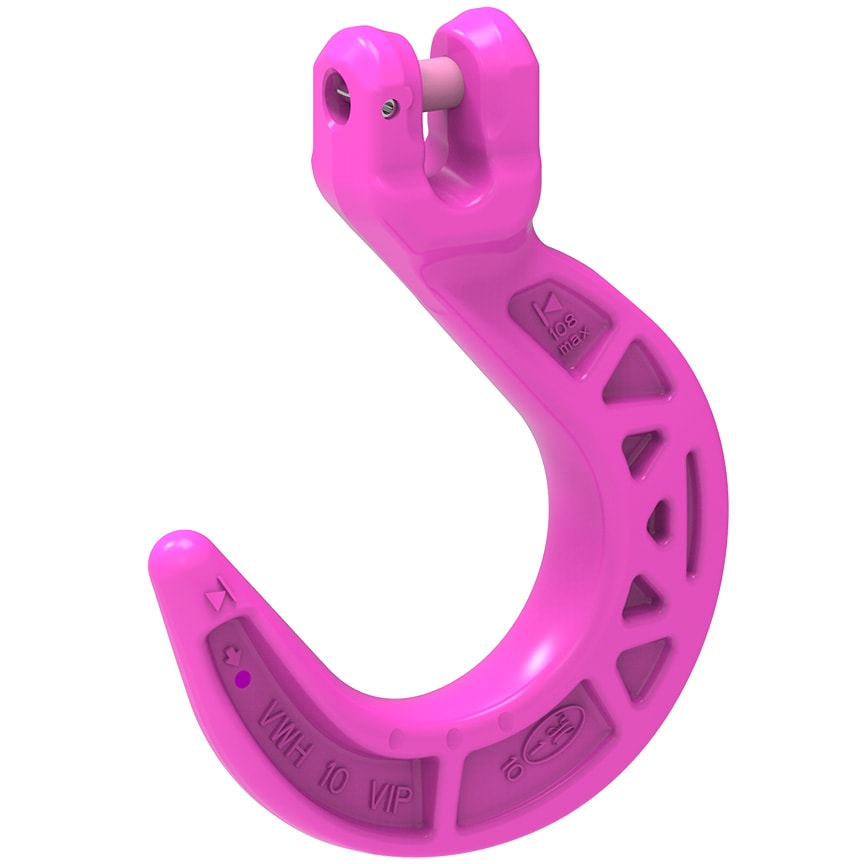

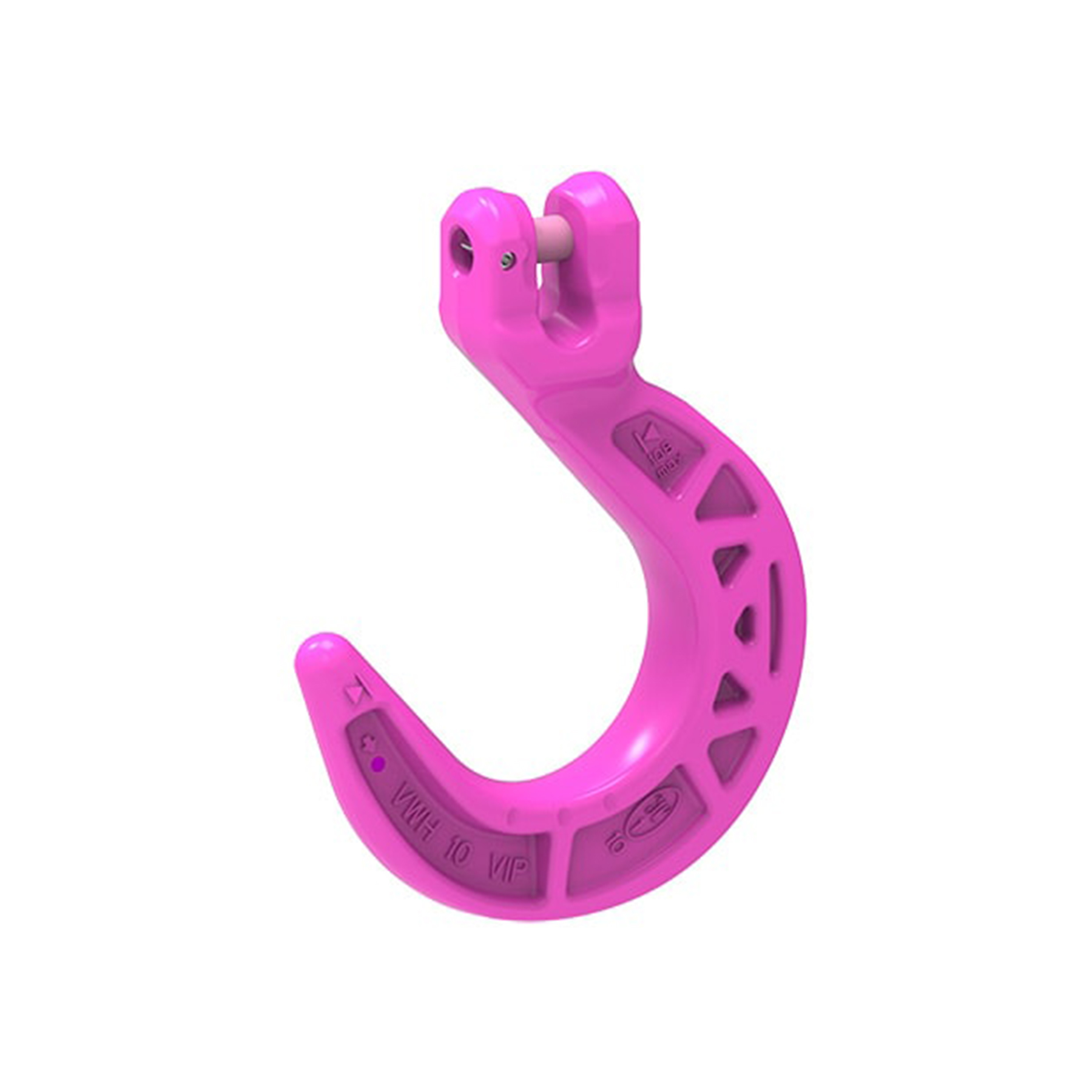

VIP Foundry hook

Often referred to as the container hook. Considerably larger mouth width than VCGH but without a safety latch.

Use only where unintentional unhooking is impossible. Inappropriate for overhead lifting! When using foundry hooks, special attention must be paid and a risk assessment must be carried out before using.

  • Robust cross section (Size C/G) is resistant against increased lateral forces.

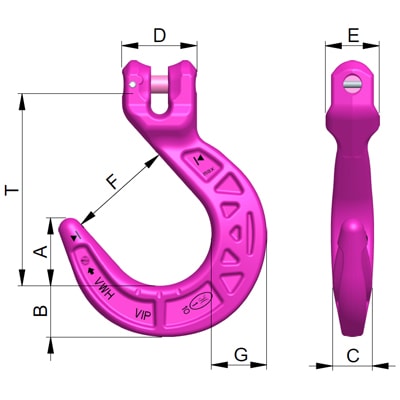

  • Specially designed wearing edges to protect the chain link, compare the dimension “E”.
  • Gauge marks for measuring the width of the hook opening .
  • Connecting bolt and tensioning sleeve are pre-assembled.
  • Inspection and documentation made easy! By the RUD-ID-System (equipped with own RFID chip).
  • 4:1 min. safety factor for lifting and 2:1 safety factor for lashing capacity.
  • 380 C Max
  • -40 - 200 C
