Special chain suspension

Special chain suspension

Special chain suspension

Special chain suspension for lifting systems.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (4)

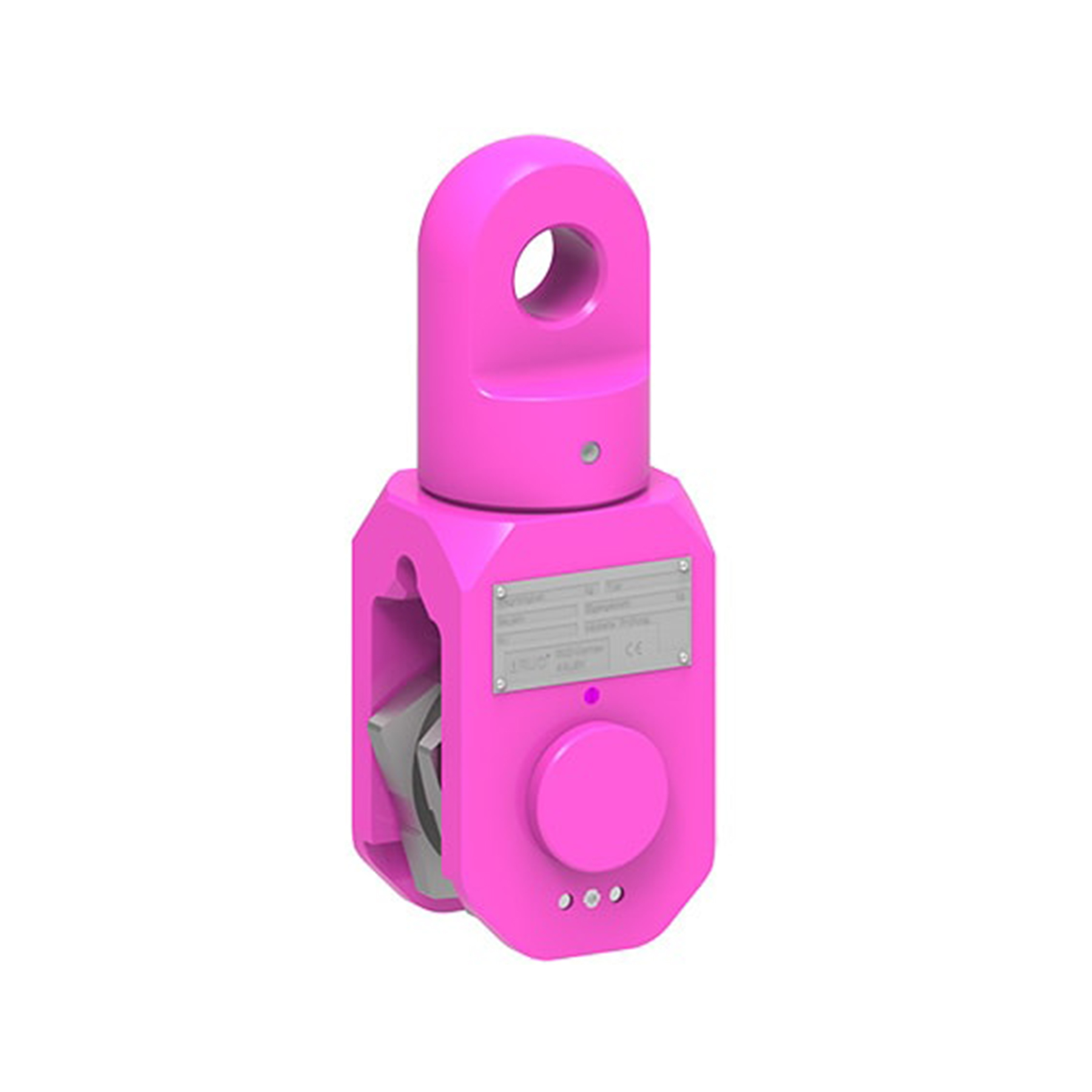

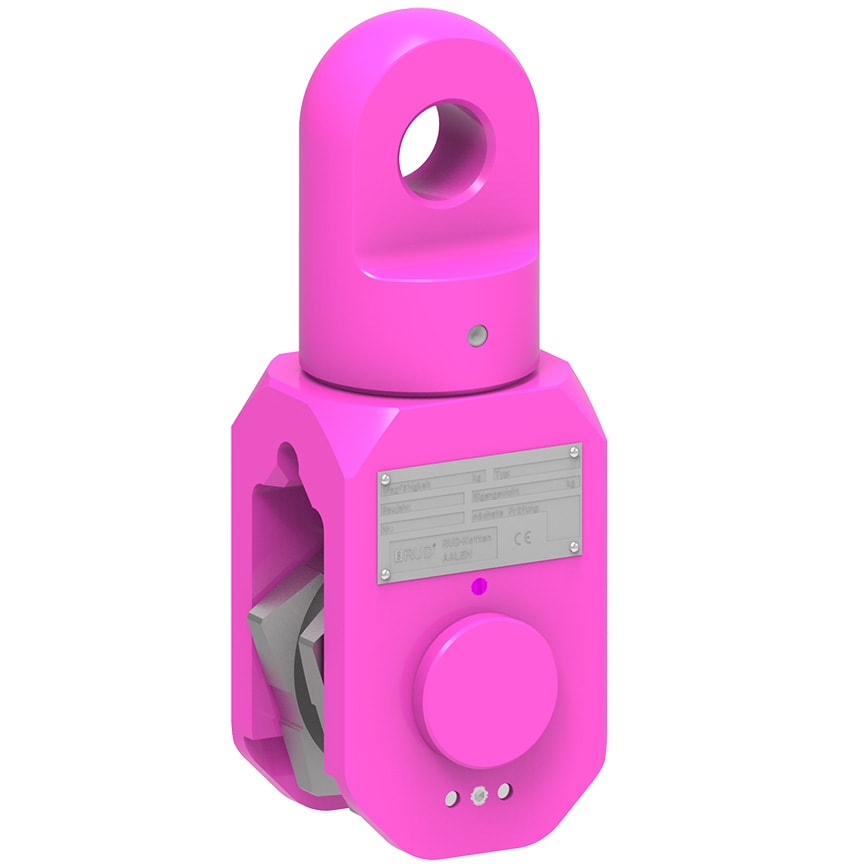

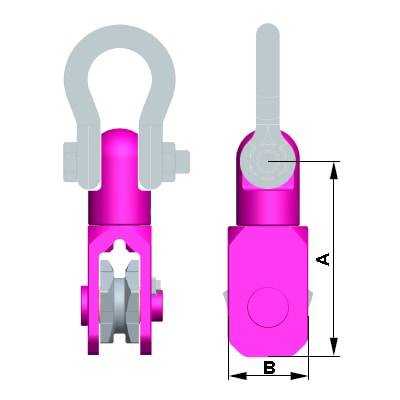

Chain block VCB-16 20t (7903925)

Technical Information

Product number: 7903925

Technical Downloads

VCB - Picture Download File

VCB - Picture Download File

Attribute	Value	Value
weight	25.35 kg	55.89 lbs
Nominal WLL	20000 kg	44000 lbs
A	318 mm	12-1/2"
B	135 mm	5-5/16"

Chain block VCB-22 40t (7900835)

Technical Information

Product number: 7900835

Technical Downloads

VCB - Picture Download File

VCB - Picture Download File

Attribute	Value	Value
weight	56.60 kg	124.78 lbs
Nominal WLL	40000 kg	88000 lbs
A	436 mm	17-3/16"
B	175 mm	6-7/8"

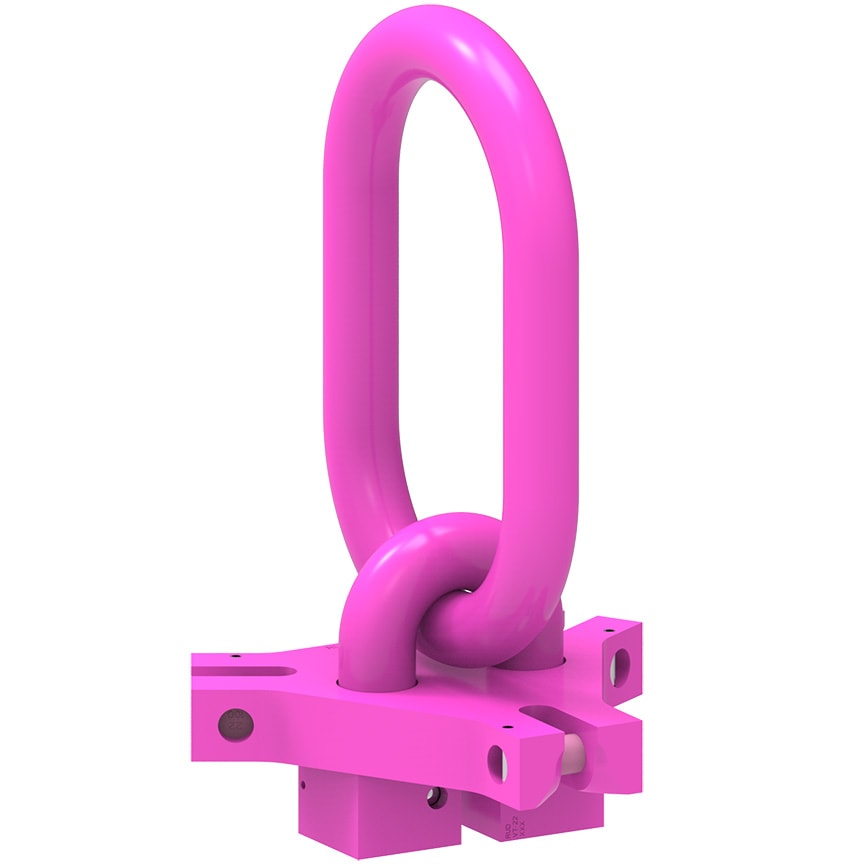

RUD-Equalizer VT-22 (59078)

Technical Information

Product number: 59078

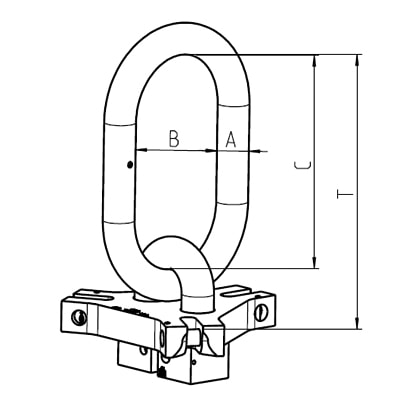

Special chain suspension, ECS 10990 7

Technical Downloads

RUD-Equalizer picture Download File

RUD-Equalizer picture Download File

VT 22 - DXF 2D CAD File Download File

VT 22 - IGES 3D CAD File Download File

VT 22 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	46.99 kg	103.60 lbs
Nominal WLL	32000 kg	70400 lbs
A	51 mm	2"
B	190 mm	7-1/2"
T	418 mm	16-7/16"
C	350 mm	13-3/4"

Chain block VCB-28 63t (7906959)

Technical Information

Product number: 7906959

Technical Downloads

VCB - Picture Download File

VCB - Picture Download File

VCB-28 - DXF 2D CAD File Download File

VCB-28 - IGES 3D CAD File Download File

VCB-28 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	99.90 kg	220.24 lbs
Nominal WLL	63000 kg	138600 lbs
A	527 mm	20-3/4"
B	220 mm	8-11/16"
