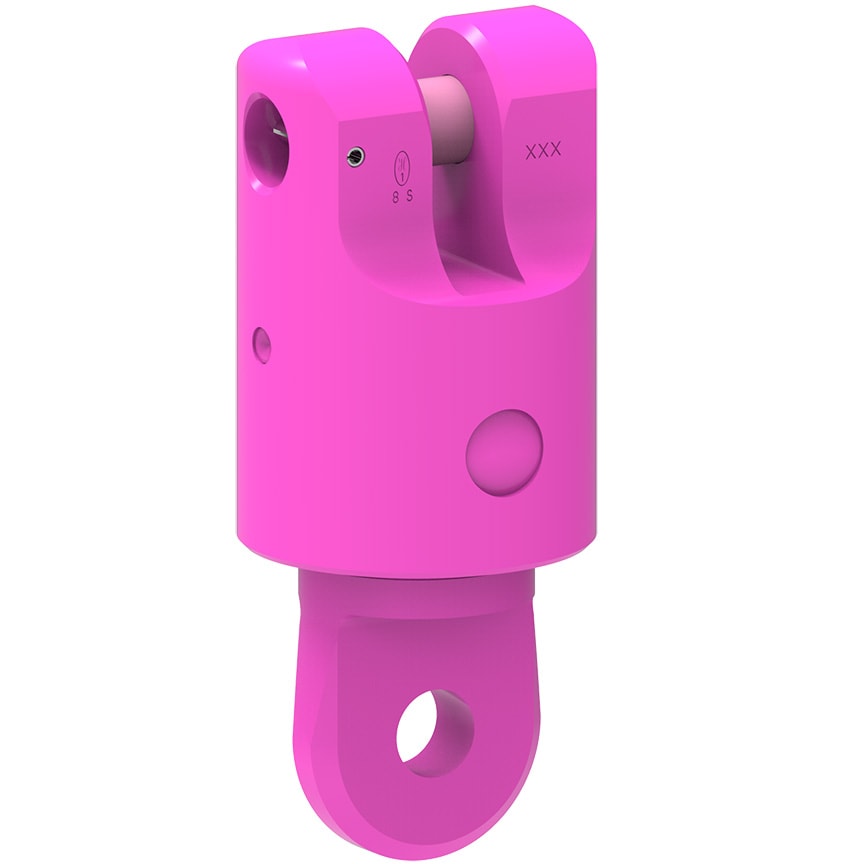

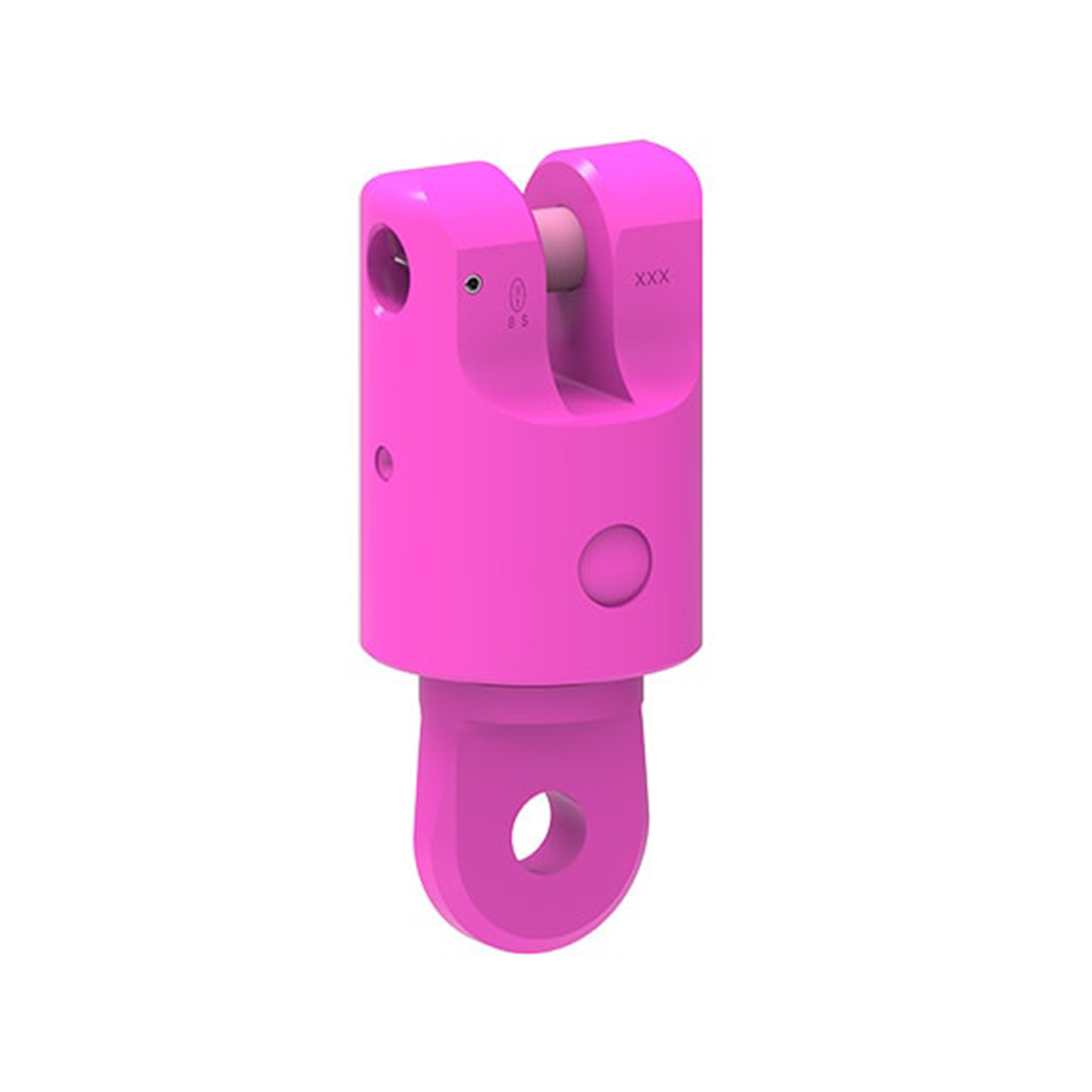

VIP Swivel Connector

  • Complete with a ball bearing which enables pivoting under load
  • Can be combined with all VIP components by means of the clevis connection using an adapter link
  • Insensitive to dirt owing to the sealed body
  • Connecting bolt and tensioning sleeve are pre-assembled
  • The BGR 500/DGUV-Regel 100-500 states that lifting means never be used while in a twisted condition. This requirement is automatically met by the VWA because of the integrated ball bearing
  • Hint: Install the VWA in such a way that the bending of the adapter link is not possible while in use
  • Not suitable for permanent use and pivoting under full load
  • Avoid bending of the appliance
  • Inspection and documentation made easy! By the RUD-ID-System (equipped with own RFID chip).
  • 4:1 min. safety factor for lifting and 2:1 safety factor for lashing capacity.
  • 380 C Max
  • -40 - 200 C

Product Variants (2)
