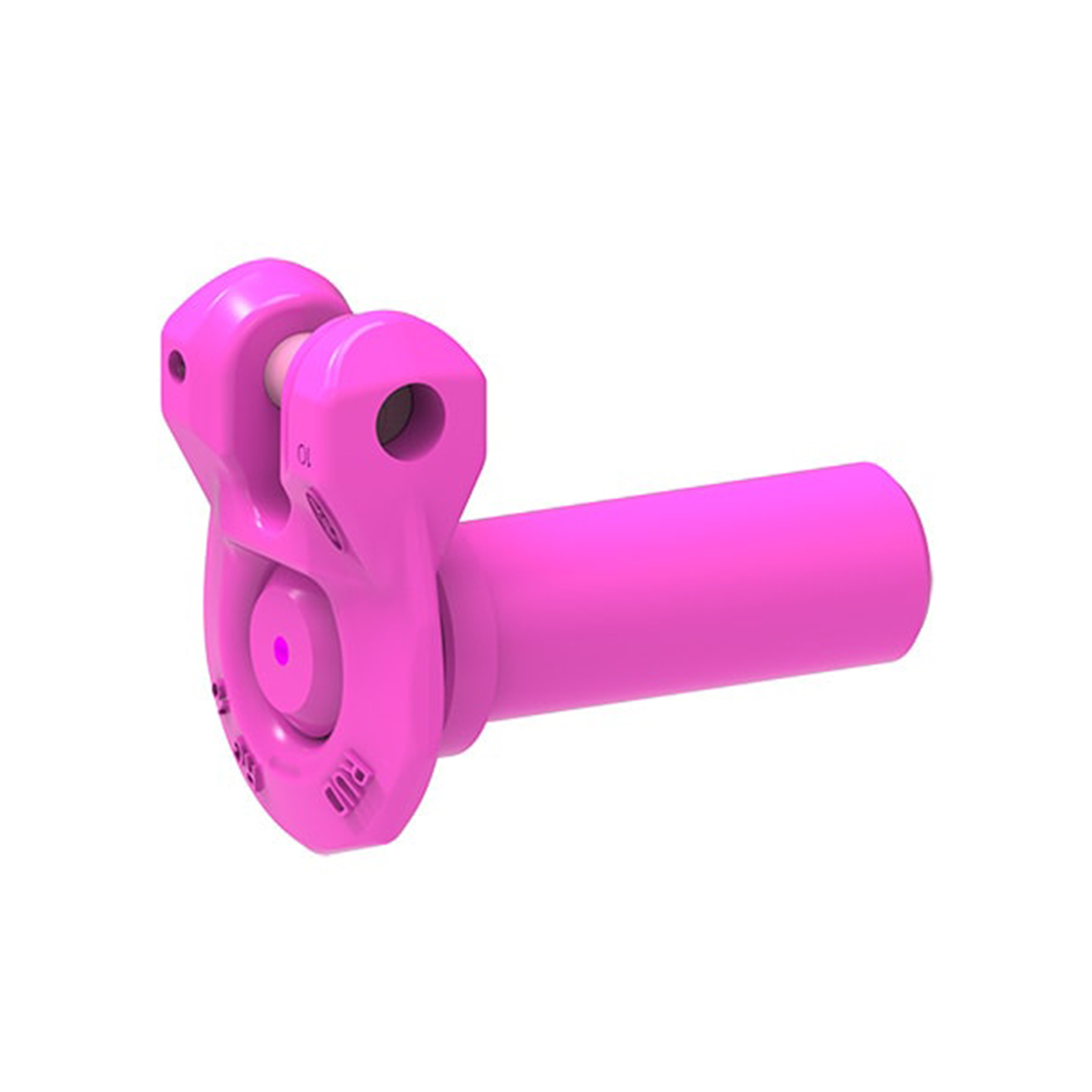

VIP plug in connector

VERG, a plug- in bolt used for transportation or similiar lifting purposes, when bores are the specified lifting points avaliable.

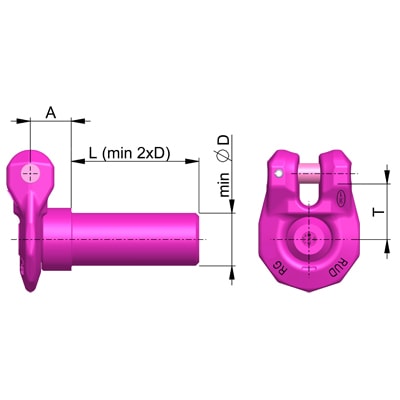

Always indicate length L and diameter size D of the plug-in connector when ordering.

  • Maximium Ø D = 48mm
  • Bore diameter = D+ 1mm
  • Minimium bolt length L = 2xD

For vertical lifting purposes, we recommend that a RUD spreader bar or cross beam be used. Attention: Attach the load as close as possible to the fork head when lifting. VIP-Plug-in connectors are non stock items. Production is subject to customer demand. Bear in mind the respective delivery periods.

  • Inspection and documentation made easy! By the RUD-ID-System (equipped with own RFID chip).
  • 4:1 min. safety factor for lifting and 2:1 safety factor for lashing capacity.
  • 380 C Max
  • -40 - 200 C
