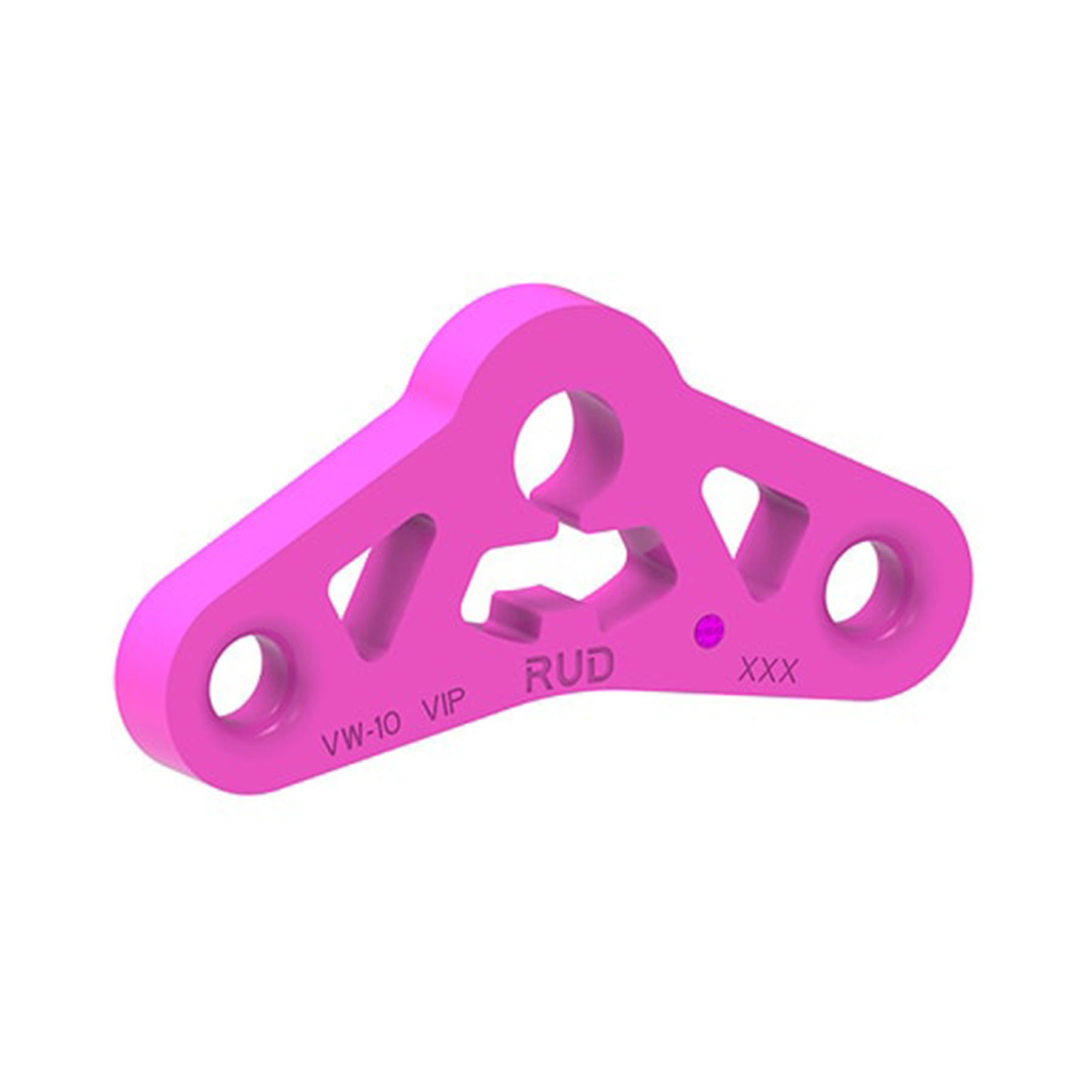

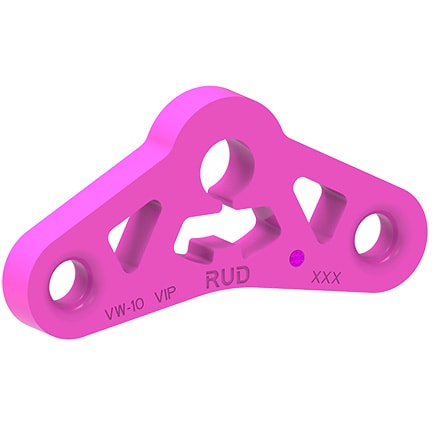

VIP Balancer

VIP-Balancers will be installed into 4-leg sling assemblies (2x 2-leg), to achieve an equal load distribution to all 4 legs. The length tolerances of the single legs will be compensated. You can calculate with 4 load bearing strands if the following criteria are fulfilled (BGR 500/DGUV-Regel 100-500):

  • Two 2-leg slings, therof one sling with a balancer.
  • Both 2-leg slings will be attached to one hook (single or double crane hook)
  • Symmetrical load spreading
  • Max. inclination angle ß 45°

Other important RUD specific information and specialities to our VIP-Balancers can be found in the specific user instruction !

ENQUIRE ABOUT THIS PRODUCT
  • Inspection and documentation made easy! By the RUD-ID-System (equipped with own RFID chip).
  • 4:1 min. safety factor for lifting and 2:1 safety factor for lashing capacity.
  • 380 C Max
  • -40 - 200 C

Product Variants (8)
