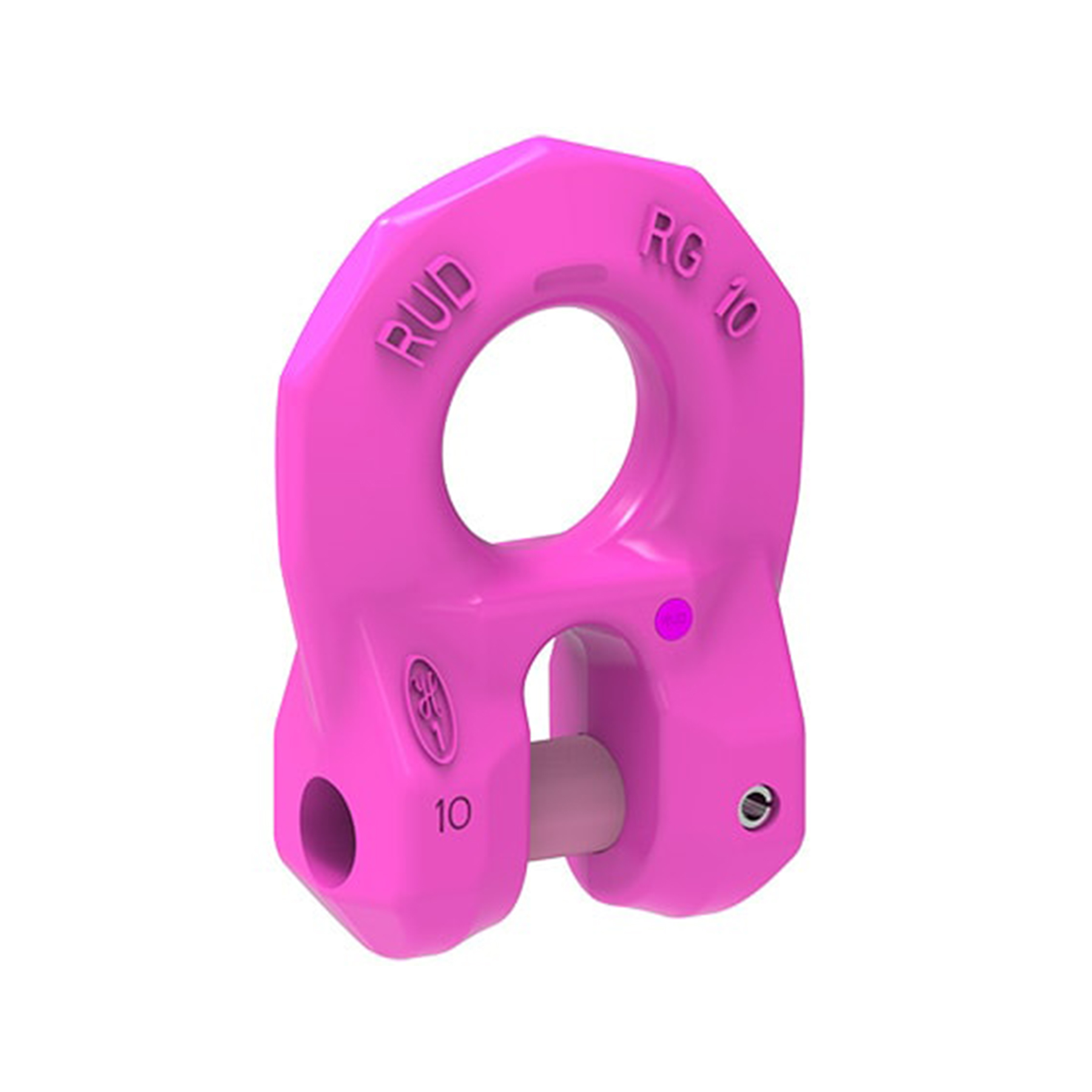

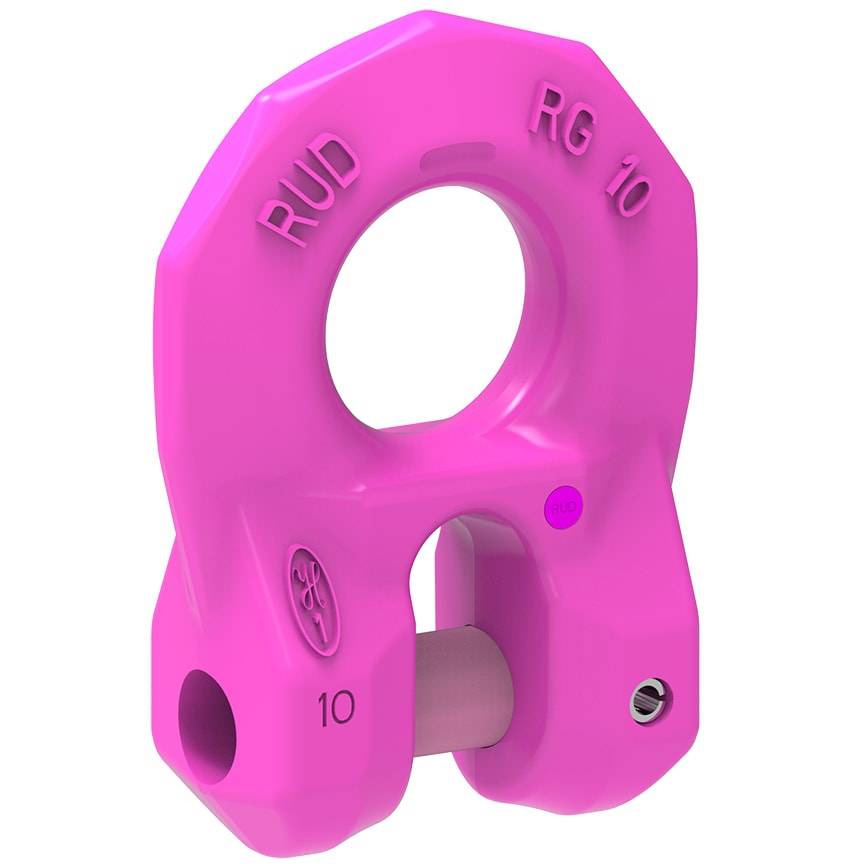

VIP Connector
- A connecting part for non-foolproof connections with fork heads, flanges, etc
- Comes pre-assembled with a connecting bolt and tensioning sleeve
Product number: 7100469

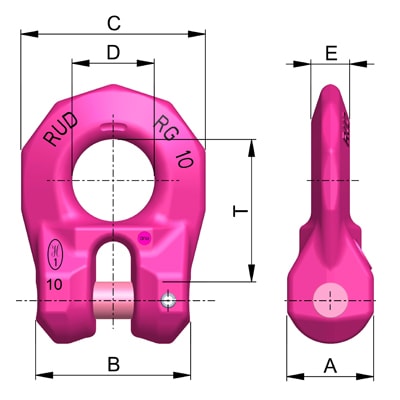

Attribute | Value | Value |
---|---|---|
weight | 0.09 kg | 0.20 lbs |
Nominal WLL | 1500 kg | 3300 lbs |
A | 17 mm | 43/64" |
B | 30 mm | 1-3/16" |
T | 28 mm | 1-1/8" |
C | 37 mm | 1-7/16" |
D | 16 mm | 5/8" |
E | 9 mm | 11/32" |
Product number: 7100470
Attribute | Value | Value |
---|---|---|
weight | 0.20 kg | 0.44 lbs |
Nominal WLL | 2500 kg | 5500 lbs |
A | 23 mm | 29/32" |
B | 40 mm | 1-9/16" |
T | 37 mm | 1-7/16" |
C | 50 mm | 1-31/32" |
D | 22 mm | 7/8" |
E | 11 mm | 7/16" |
Product number: 7100471
Attribute | Value | Value |
---|---|---|
weight | 0.36 kg | 0.79 lbs |
Nominal WLL | 4000 kg | 8800 lbs |
A | 28 mm | 1-1/8" |
B | 50 mm | 1-31/32" |
T | 46 mm | 1-13/16" |
C | 60 mm | 2-3/8" |
D | 26 mm | 1" |
E | 14 mm | 9/16" |
Product number: 7100472
Attribute | Value | Value |
---|---|---|
weight | 0.79 kg | 1.74 lbs |
Nominal WLL | 6700 kg | 15000 lbs |
A | 36 mm | 1-27/64" |
B | 64 mm | 2-1/2" |
T | 58 mm | 2-9/32" |
C | 75 mm | 2-15/16" |
D | 32 mm | 1-1/4" |
E | 18 mm | 23/32" |
Product number: 7100473
Attribute | Value | Value |
---|---|---|
weight | 1.45 kg | 3.20 lbs |
Nominal WLL | 10000 kg | 22000 lbs |
A | 45 mm | 1-25/32" |
B | 75 mm | 2-15/16" |
T | 76 mm | 3" |
C | 92 mm | 3-5/8" |
D | 40 mm | 1-9/16" |
E | 22 mm | 7/8" |
Product number: 7103384
Attribute | Value | Value |
---|---|---|
weight | 3.05 kg | 6.72 lbs |
Nominal WLL | 16000 kg | 35300 lbs |
A | 58 mm | 2-9/32" |
B | 92 mm | 3-5/8" |
T | 94 mm | 3-11/16" |
C | 118 mm | 4-5/8" |
D | 52 mm | 2-1/16" |
E | 29 mm | 1-5/32" |
Product number: 7101611
Attribute | Value | Value |
---|---|---|
weight | 3.80 kg | 8.38 lbs |
Nominal WLL | 20000 kg | 44000 lbs |
A | 62 mm | 2-7/16" |
B | 102 mm | 4" |
T | 96 mm | 3-25/32" |
C | 124 mm | 4-7/8" |
D | 52 mm | 2-1/16" |
E | 35 mm | 1-3/8" |
