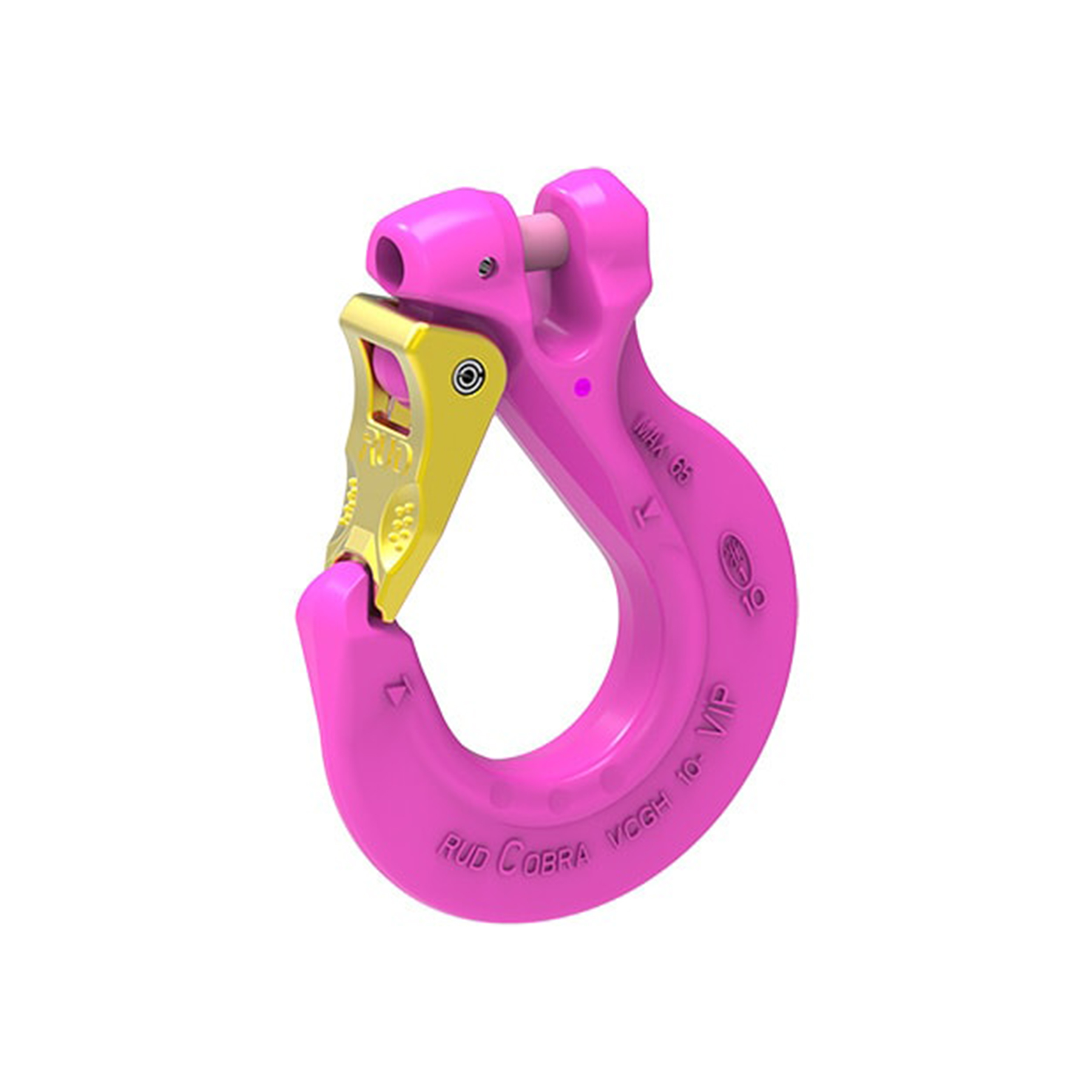

VIP Cobra hook

A robust improved version without a protruding hook tip.
The forged safety latch engages in the tip of the hook and is thus protected against lateral bending.
With a triple coiled corrosion protected double leg spring.
Thickened tip of the hook to prevent misuse.
Wear marks on both sides.
Gauge marks for measuring the width of the hook opening .
Connecting bolt and tensioning sleeve are pre-assembled.

Product Variants (9)

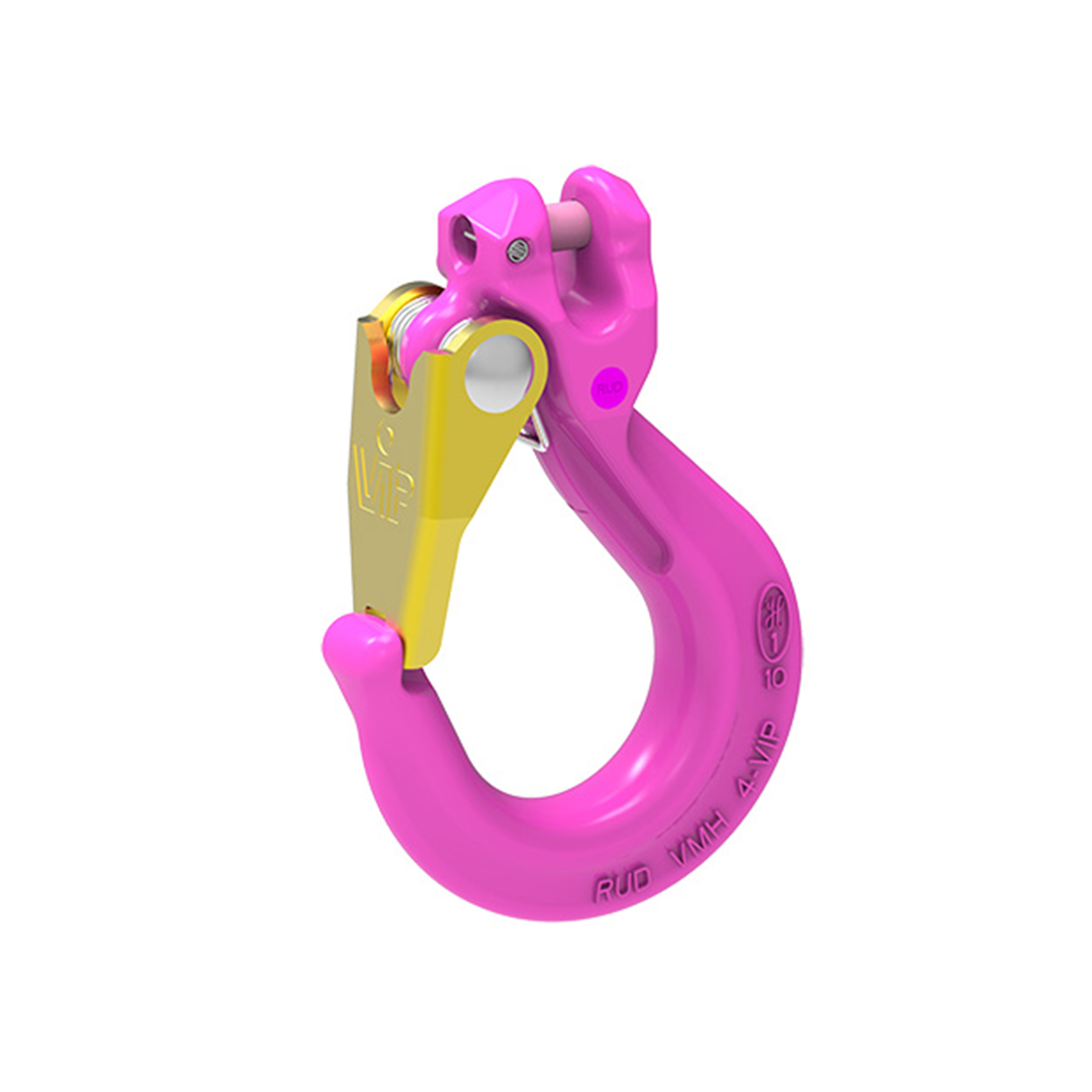

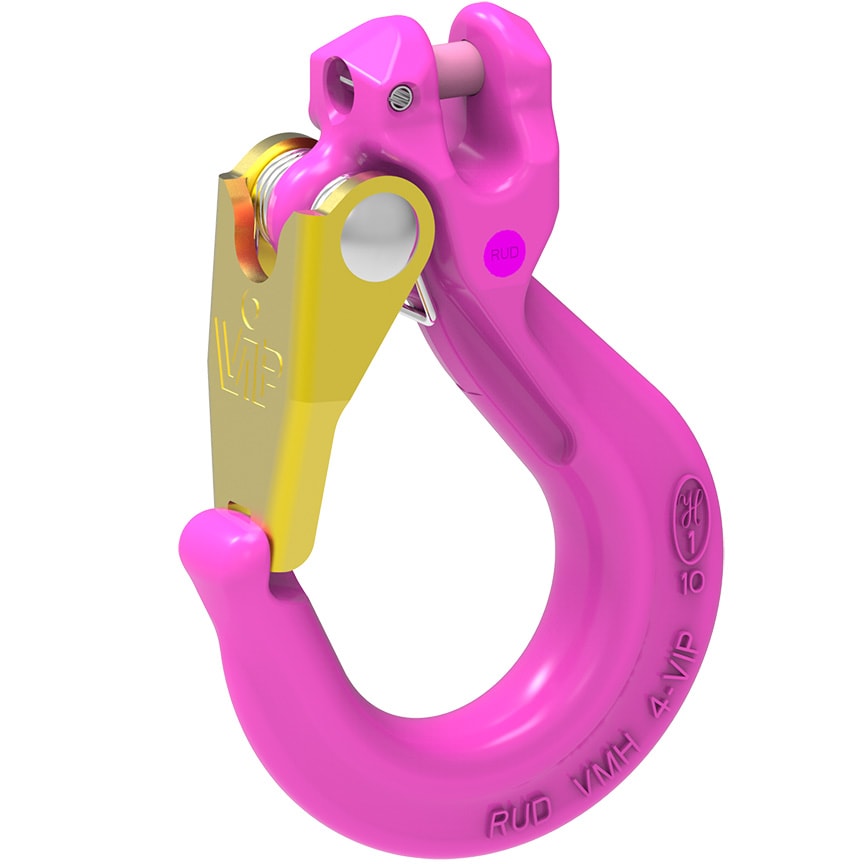

VIP-Mini-hook VMH-4 (7984439)

Technical Information

Product number: 7984439

Technical Downloads

VMH-4 - DXF 2D CAD File Download File

VMH-4 - IGES 3D CAD File Download File

VMH-4 - STEP 3D CAD File Download File

VMH-4 - Picture Download File

VIP-Mini-hook VMH-4 Download File

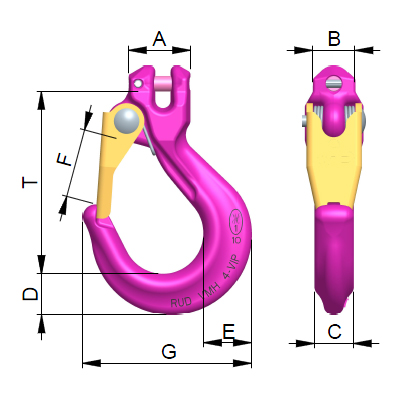

Attribute	Value	Value
weight	0.12 kg	0.26 lbs
Nominal WLL	630 kg	1385 lbs
A	20 mm	3/4"
B	14 mm	9/16"
T	56 mm	2-3/16"
C	12,5 mm	1/2"
D	13 mm	1/2"
E	14 mm	9/16"
F	18 mm	23/32"
G	52 mm	2-1/16"

VIP-COBRA-hook VCGH 6 (7100498)

Technical Information

Product number: 7100498

Technical Downloads

VCGH - Picture Download File

VCGH-6 - DXF 2D CAD File Download File

VCGH-6 - IGES 3D CAD File Download File

VCGH-6 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 6 Download File

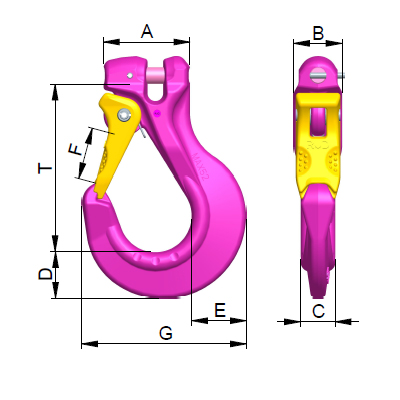

Attribute	Value	Value
weight	0.39 kg	0.86 lbs
Nominal WLL	1500 kg	3300 lbs
A	38 mm	1-1/2"
B	22 mm	7/8"
T	76 mm	3"
C	16 mm	5/8"
D	20 mm	3/4"
E	24 mm	15/16"
F	25 mm	63/64"
G	72 mm	2-2/32"

VIP-COBRA-hook VCGH 8 (7100499)

Technical Information

Product number: 7100499

Technical Downloads

VCGH - Picture Download File

VCGH-8 - DXF 2D CAD File Download File

VCGH-8 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 8 Download File

Attribute	Value	Value
weight	0.78 kg	2.03 lbs
Nominal WLL	2500 kg	5500 lbs
A	50 mm	1-31/32"
B	28 mm	1-1/8"
T	97 mm	3-13/16"
C	20 mm	3/4"
D	28 mm	1-1/8"
E	32 mm	1-1/4"
F	30 mm	1-3/16"
G	95 mm	3-3/4"

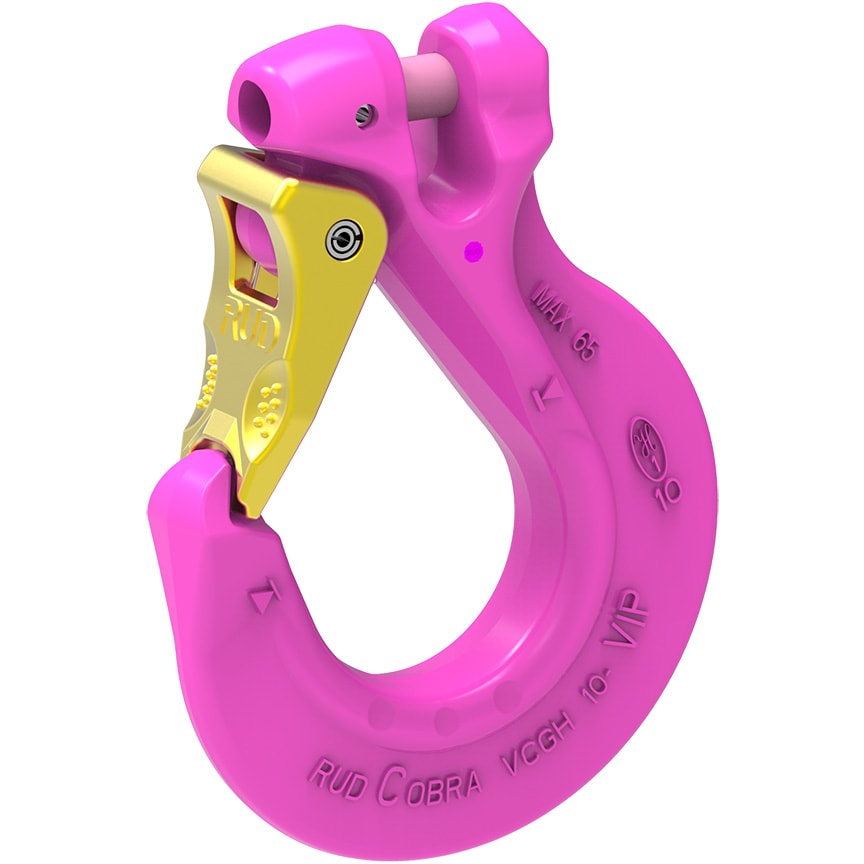

VIP-COBRA-hook VCGH 10 (7100500)

Technical Information

Product number: 7100500

Technical Downloads

VCGH - Picture Download File

VCGH-10 - DXF 2D CAD File Download File

VCGH-10 - IGES 3D CAD File Download File

VCGH-10 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 10 Download File

Attribute	Value	Value
weight	1.50 kg	3.53 lbs
Nominal WLL	4000 kg	8800 lbs
A	60 mm	2-3/8"
B	36 mm	1-27/64"
T	108 mm	4-1/4"
C	26 mm	1"
D	36 mm	1-27/64"
E	39 mm	1-9/16"
F	35 mm	1-3/8"
G	118 mm	4-5/8"

VIP-COBRA-hook VCGH 13 (7100501)

Technical Information

Product number: 7100501

Technical Downloads

VCGH - Picture Download File

VCGH-13 - DXF 2D CAD File Download File

VCGH-13 - IGES 3D CAD File Download File

VCGH-13 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 13 Download File

Attribute	Value	Value
weight	2.84 kg	5.67 lbs
Nominal WLL	6700 kg	15000 lbs
A	76 mm	3"
B	46 mm	1-13/16"
T	126 mm	5"
C	30 mm	1-3/16"
D	37 mm	1-7/16"
E	48 mm	1-7/8"
F	40 mm	1-9/16"
G	135 mm	5-5/16"

VIP-COBRA-hook VCGH 16 (7100502)

Technical Information

Product number: 7100502

Technical Downloads

VCGH - Picture Download File

VCGH-16 - DXF 2D CAD File Download File

VCGH-16 - IGES 3D CAD File Download File

VCGH-16 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 16 Download File

Attribute	Value	Value
weight	4.69 kg	10.36 lbs
Nominal WLL	10000 kg	22000 lbs
A	83 mm	3-1/4"
B	56 mm	2-3/16"
T	152 mm	6"
C	36 mm	1-27/64"
D	49 mm	1-15/16"
E	58 mm	2-9/32"
F	48 mm	1-7/8"
G	161 mm	6-11/32"

VIP-COBRA-hook VCGH 20 (7103385)

Technical Information

Product number: 7103385

Technical Downloads

VCGH - Picture Download File

VCGH-20 - DXF 2D CAD File Download File

VCGH-20 - IGES 3D CAD File Download File

VCGH-20 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 20 Download File

Attribute	Value	Value
weight	9.26 kg	20.5 lbs
Nominal WLL	16000 kg	35300 lbs
A	112 mm	4-1/2"
B	68 mm	2-11/16"
T	195 mm	7-11/16"
C	50 mm	1-15/16"
D	69 mm	2-11/16"
E	78 mm	3-1/16"
F	63 mm	2-1/2"
G	218 mm	8-9/16"

VIP-COBRA-hook VCGH 22 (7101603)

Technical Information

Product number: 7101603

Technical Downloads

VCGH - Picture Download File

VCGH-22 - DXF 2D CAD File Download File

VCGH-22 - IGES 3D CAD File Download File

VCGH-22 - STEP 3D CAD File Download File

VIP-COBRA-hook VCGH 22 Download File

Attribute	Value	Value
weight	11.98 kg	26.2 lbs
Nominal WLL	20000 kg	44000 lbs
A	117 mm	4-5/8"
B	78 mm	3-1/16"
T	198 mm	7-7/8"
C	50 mm	2"
D	74 mm	2-15/16"
E	83 mm	3-1/4"
F	63 mm	2-1/2"
G	223 mm	8-3/4"

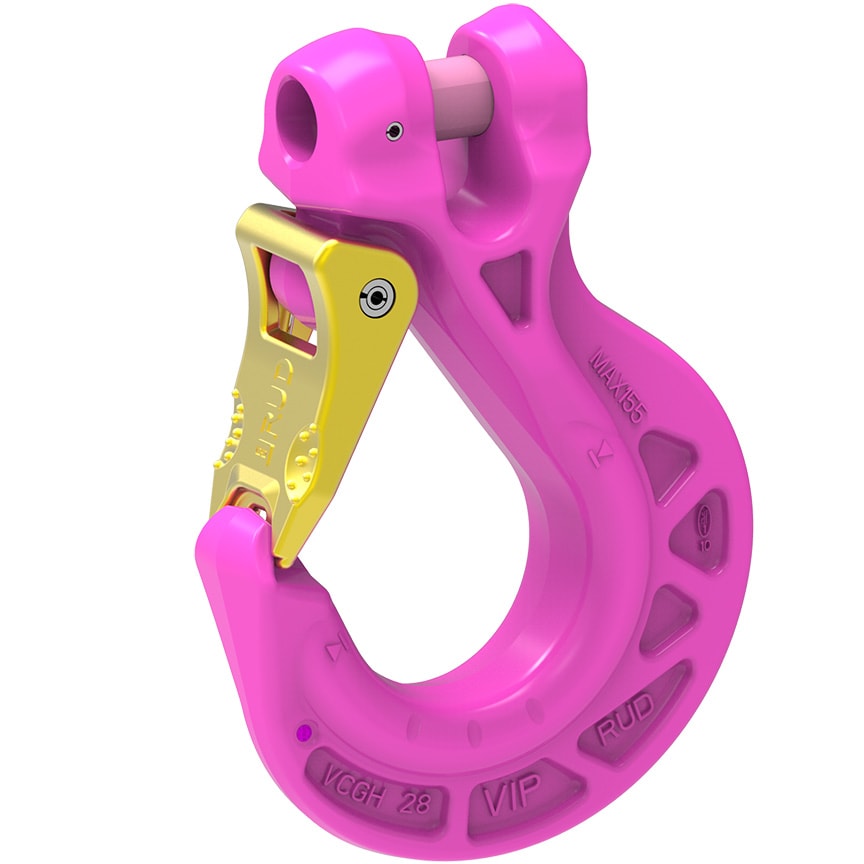

VIP-MAXI-COBRA-hook complete VCGH 28 (7900638)

Technical Information

Product number: 7900638

Technical Downloads

VCGH-28 - IGES 3D CAD File Download File

VCGH-28 - STEP 3D CAD File Download File

VCGH-28 - DXF 2D CAD File Download File

VCGH-28 - Picture Download File

VIP-MAXI-COBRA-hook complete VCGH 28 Download File

Attribute	Value	Value
weight	26.40 kg	58.20 lbs
Nominal WLL	31500 kg	69400 lbs
A	150 mm	5-7/8"
B	101 mm	3-31/32"
T	275 mm	10-13/16"
C	69 mm	2-23/32"
D	88 mm	3-15/32"
E	109 mm	4-5/16"
F	90 mm	3-17/32"
G	295 mm	11-5/8"
