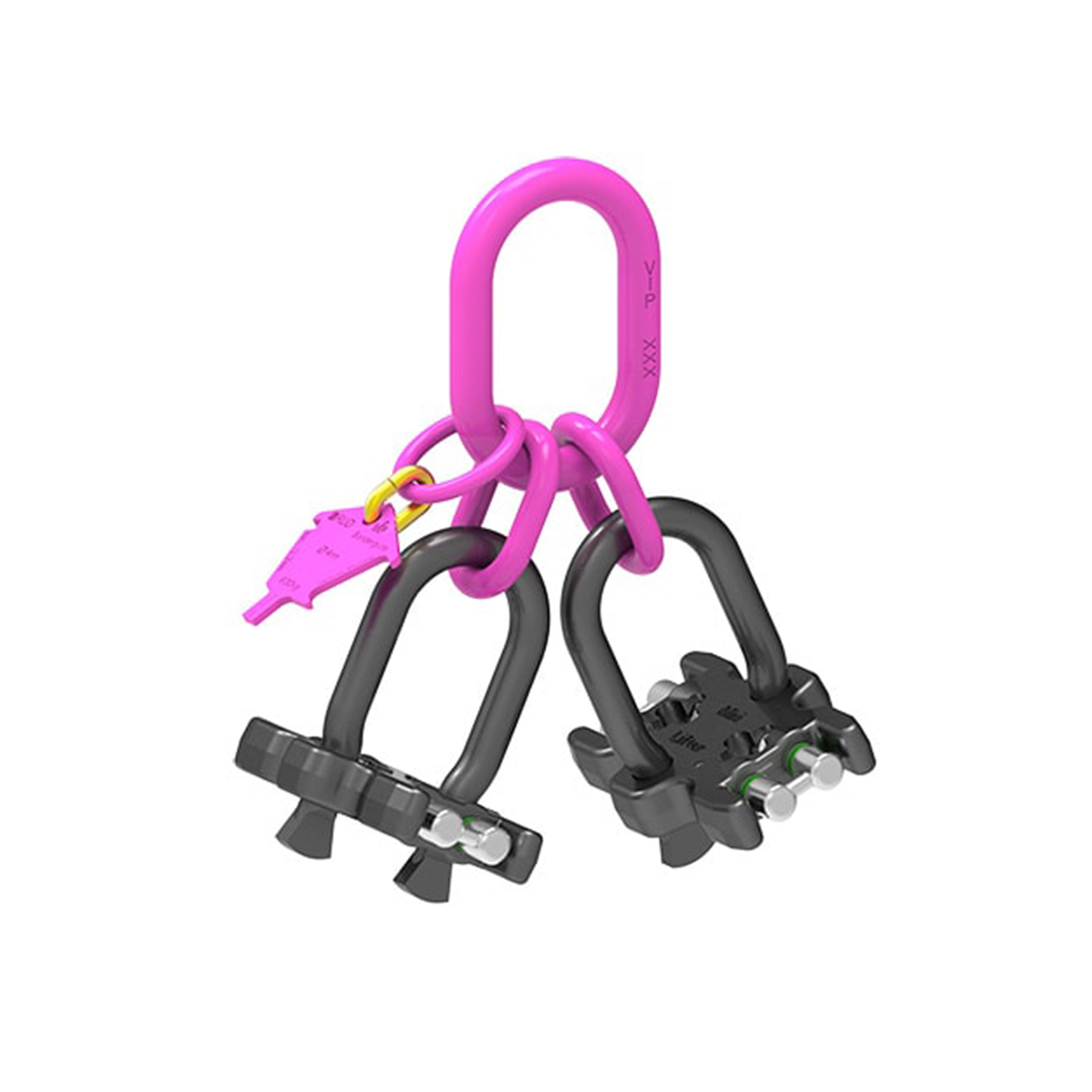

VIP Mini-Lifter

Master link with an integrated shortening option specially developed for the 4mm VIP lifting chain. With the pressing of the locking bolt the chain crucifix is freed and the chain can be mounted and respectively be adjusted to the desired length. Ideal for small loads up to 880 kg (in a 2- leg application).

VIP Mini-Lifter is marked by the RUD-ID-TAG® (RFID chip) and with A clear identification number.

Product Variants (3)

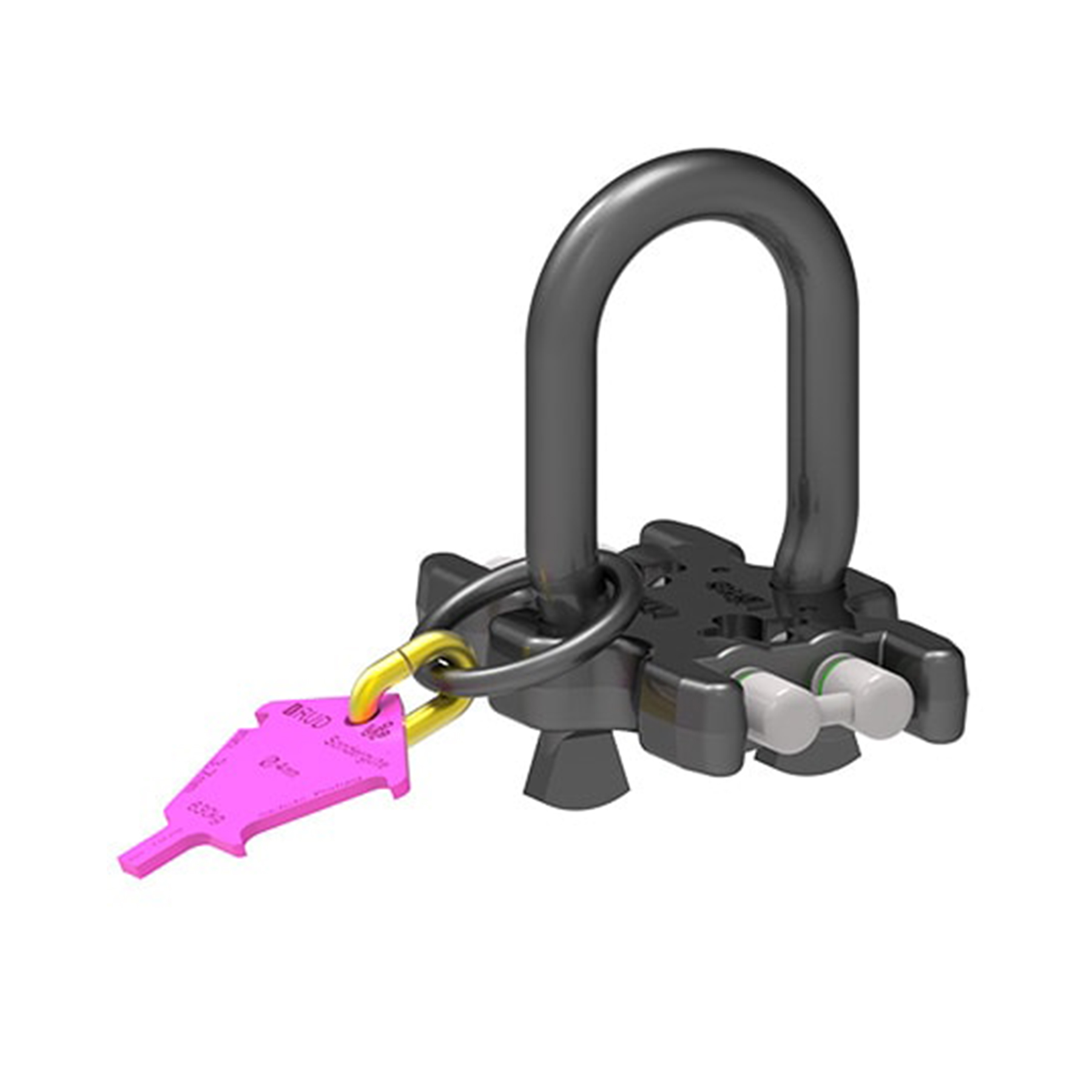

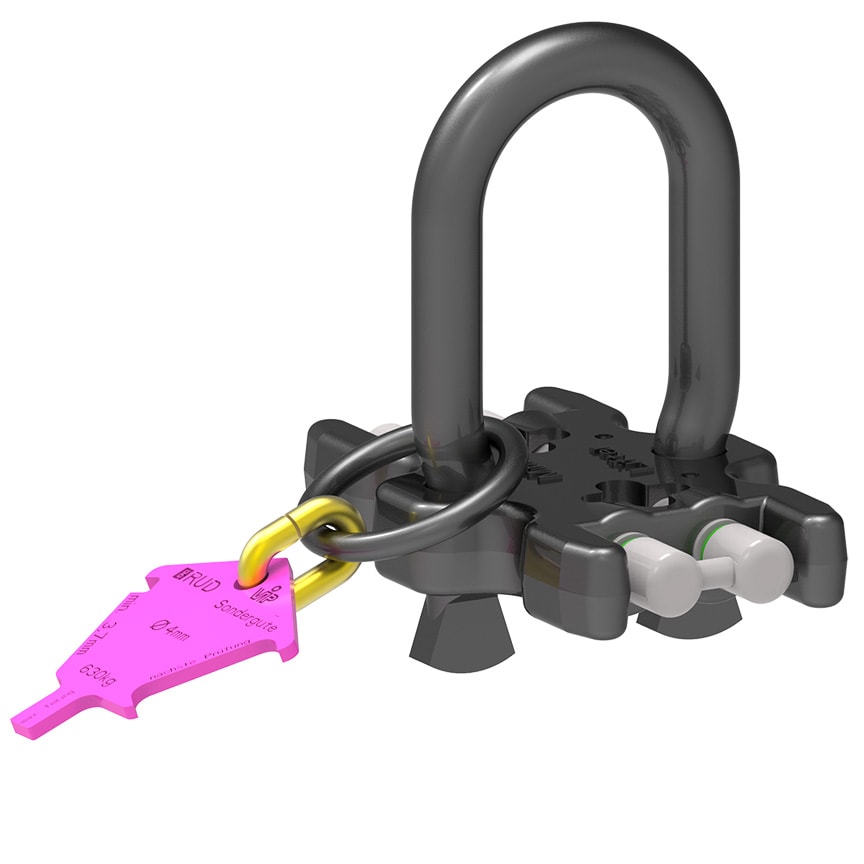

VIP-Mini-lifter VML 2-4 with shortening device (7984478)

Technical Information

Product number: 7984478

Technical Downloads

VML 2-4 - Picture Download File

VML 2-4 - Picture Download File

VML 2-4 - STEP 3D CAD File Download File

VML 2-4 - IGES 3D CAD File Download File

VML 2-4 - DXF 2D CAD File Download File

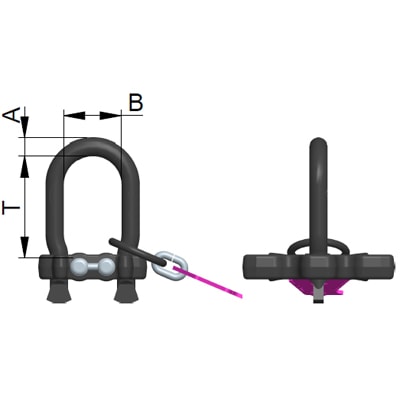

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	880 kg	1930 lbs
A	10.0 mm	3/8"
B	30.0 mm	1-3/16"
T	66.0 mm	2-5/8"

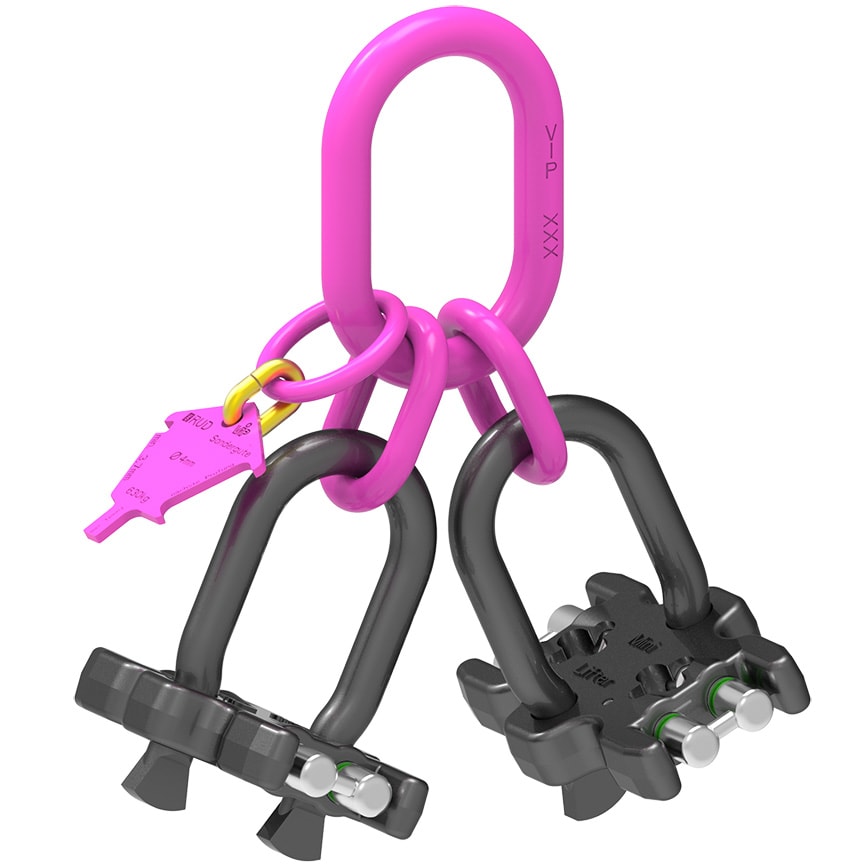

VIP-Mini-lifter VML 4-4 with shortening device (7984479)

Technical Information

Product number: 7984479

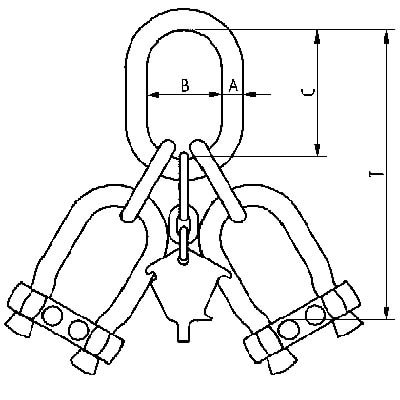

VIP Mini Lifter, 16 12257v53 7

Technical Downloads

VML 4-4 - Picture Download File

VML 4-4 - Picture Download File

VML 4-4 - IGES 3D CAD File Download File

VML 4-4 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.87 kg	1.92 lbs
Nominal WLL	1320 kg	2900 lbs
A	10 mm	3/8"
B	35 mm	1-3/8"
T	150 mm	5-7/8"
C	60 mm	2-3/8"

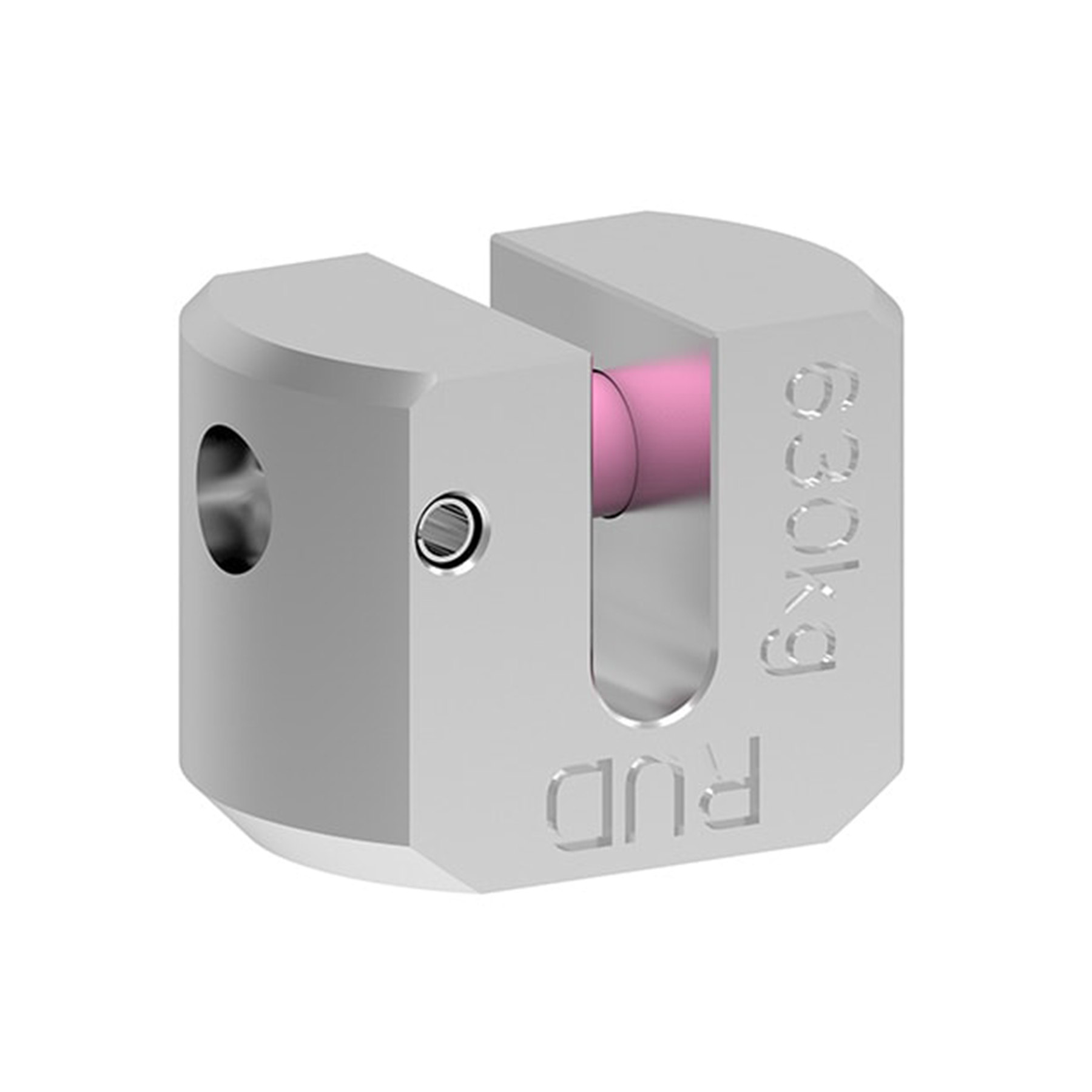

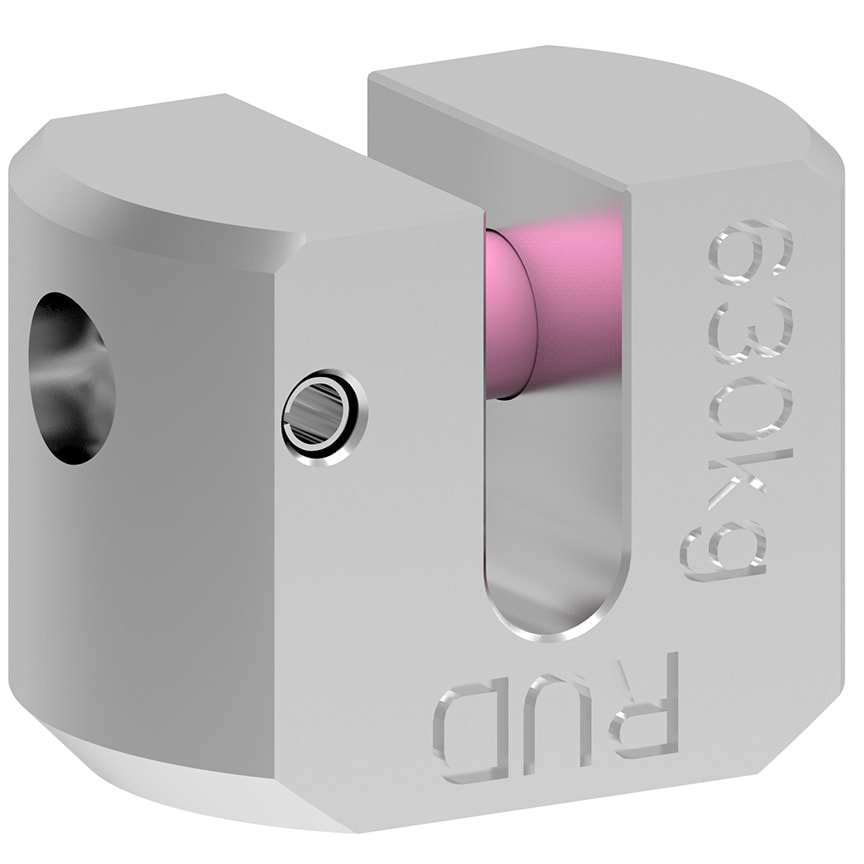

End-closelink for 4mm Chain (7990215)

Technical Information

Product number: 7990215

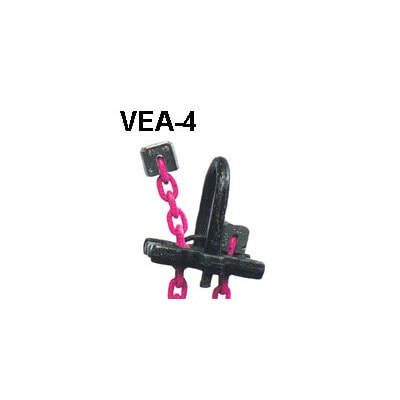

VIP Mini Lifter, 583 MA 7

Technical Downloads

VEA - Picture Download File

VEA - Picture Download File

VEA-4 - DXF 2D CAD File Download File

VEA-4 - IGES 3D CAD File Download File

VEA-4 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.04 kg	0.09 lbs
Nominal WLL	630 kg	0 lbs
T	12 mm	15/32"
