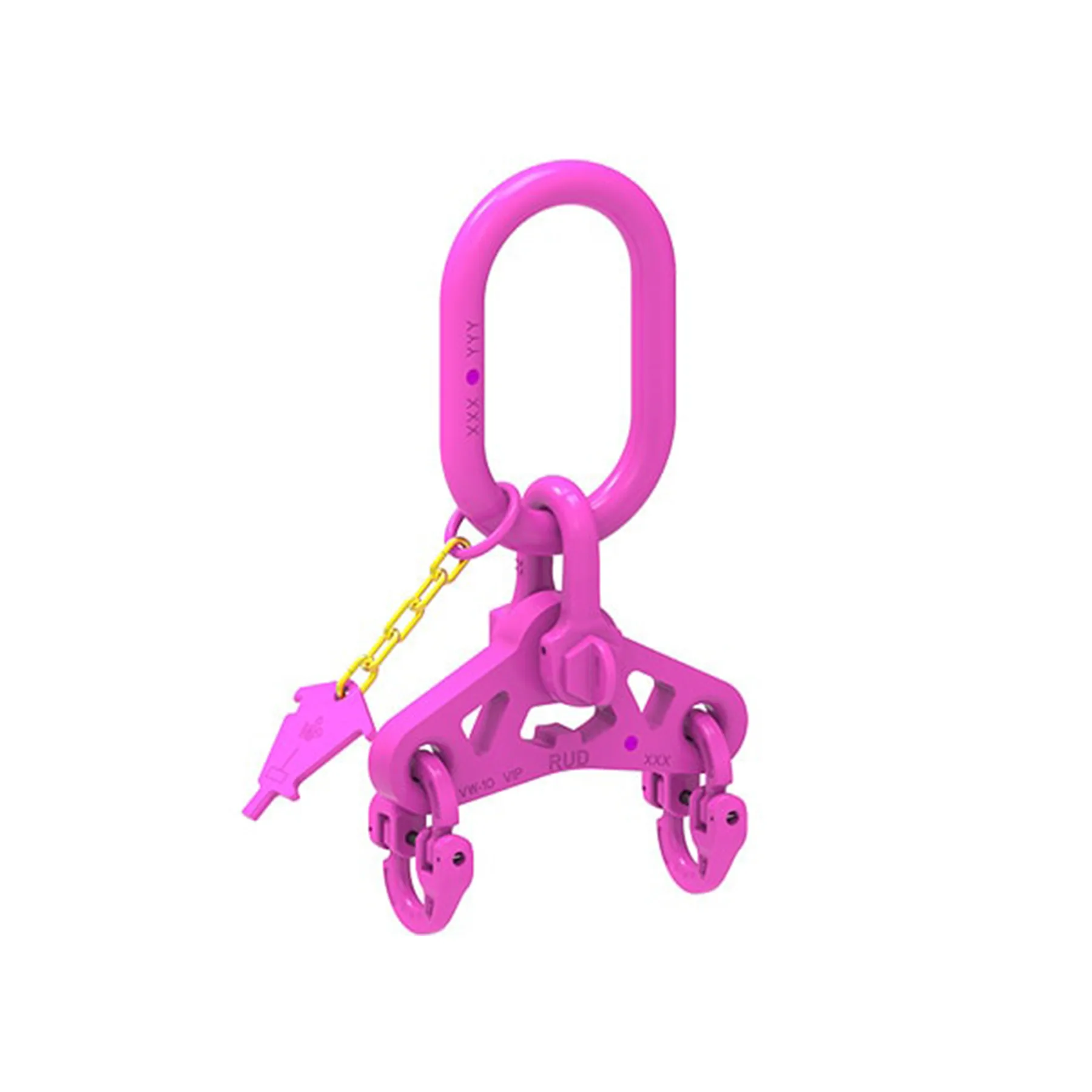

VIP Balancing Master Link VWK-2S / VAK-2S

VIP Master Link for assemblies with VIP Balancers. When using 2 units of 2 leg slings, where one is equipped with a balancer (VWK-2S) and both master links are in the crane hook, the calculation of the capacity can be based on 4 bearing slings (DGUV-rule 109-017) provided the load is symmetrical and the inclination angle is max 45°. Hence an increment of the WLL.

Chain slings, end fittings and a second VIP 2 Leg sling with VAK-2S needs to be ordered separately.

Product Variants (28)

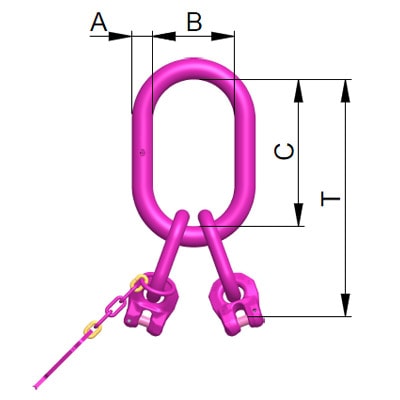

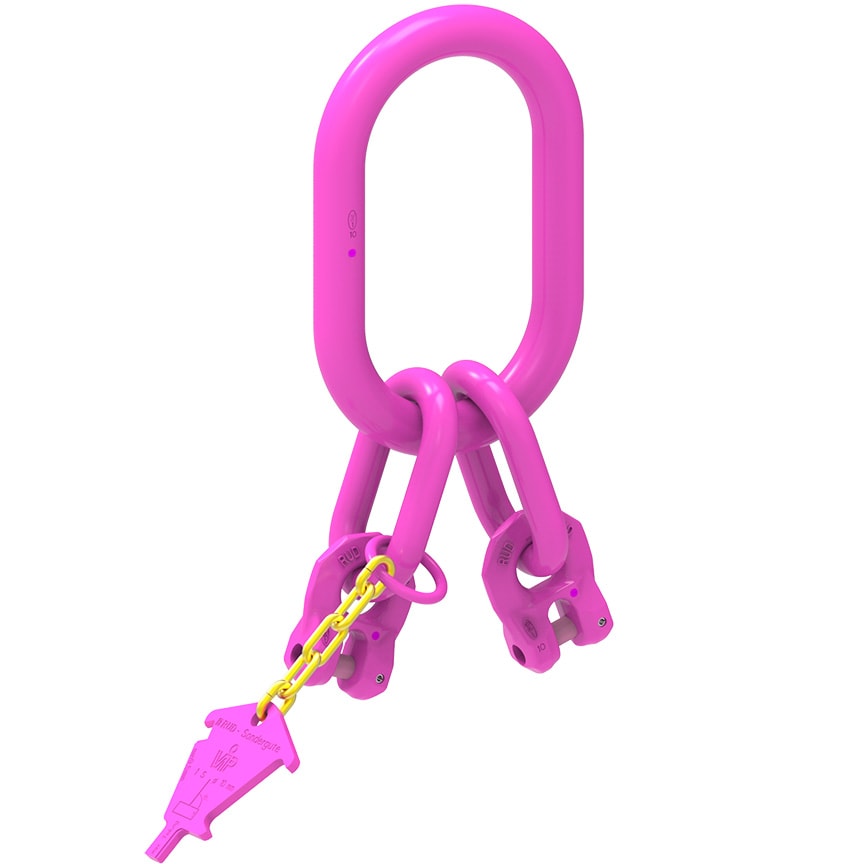

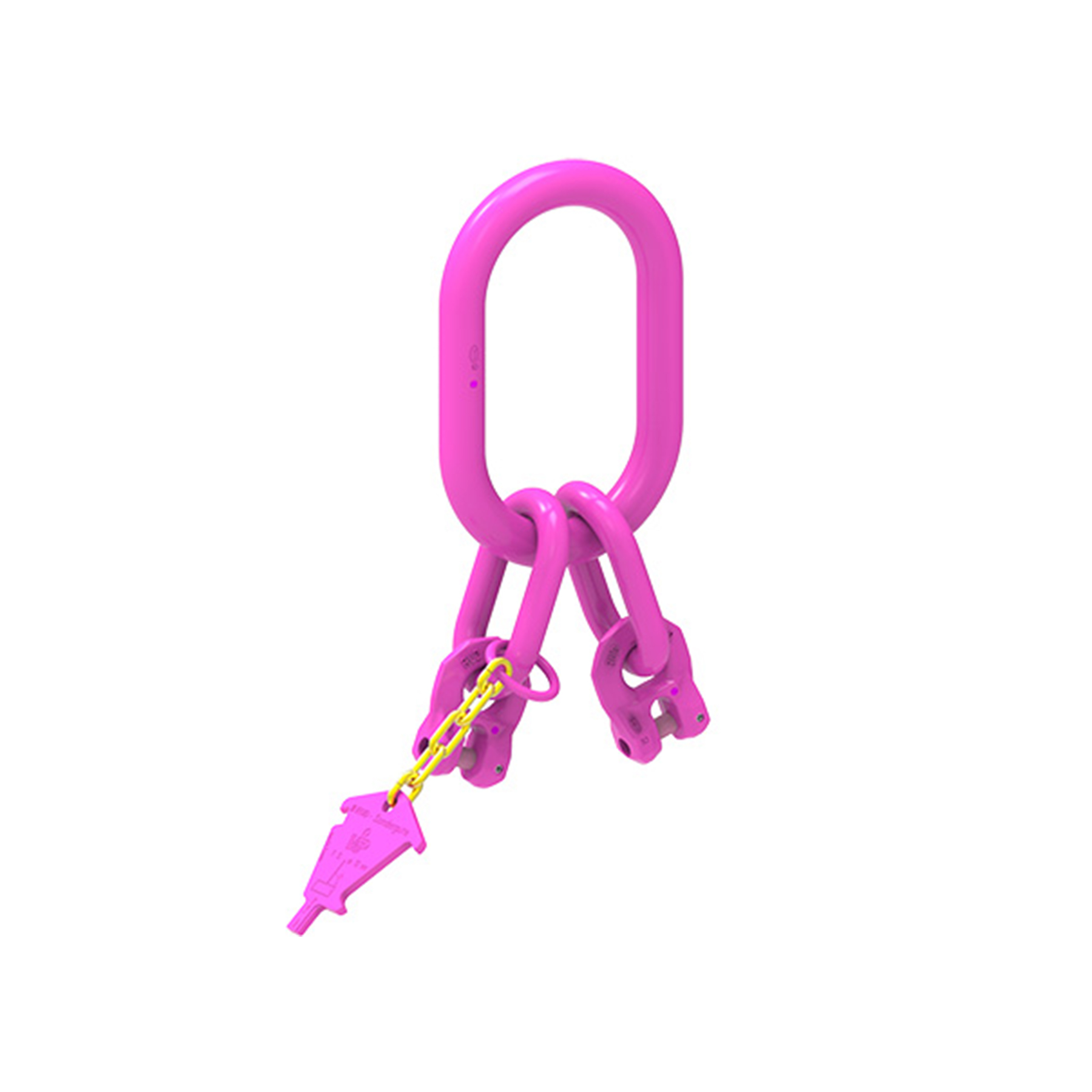

VIP-Master link for balancer 2-strand VAK-2S-22 (7904515)

Technical Information

Product number: 7904515

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	35.00 kg	77.16 lbs
A	51 mm	2"
B	190 mm	7-1/2"
T	644 mm	25-3/8"
C	350 mm	13-3/4"

VIP-Master link for balancer 2-strand VSAK-2S-6/190 (7906338)

Technical Information

Product number: 7906338

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	3.53 kg	7.78 lbs
A	22 mm	7/8"
B	190 mm	7-1/2"
T	432 mm	17"
C	350 mm	13-3/4"

VIP-Master link for balancer 2-strand VSAK-2S-8/190 (7906339)

Technical Information

Product number: 7906339

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	5.10 kg	11.24 lbs
A	26 mm	1"
B	190 mm	7-1/2"
T	457 mm	18"
C	350 mm	13-3/4"

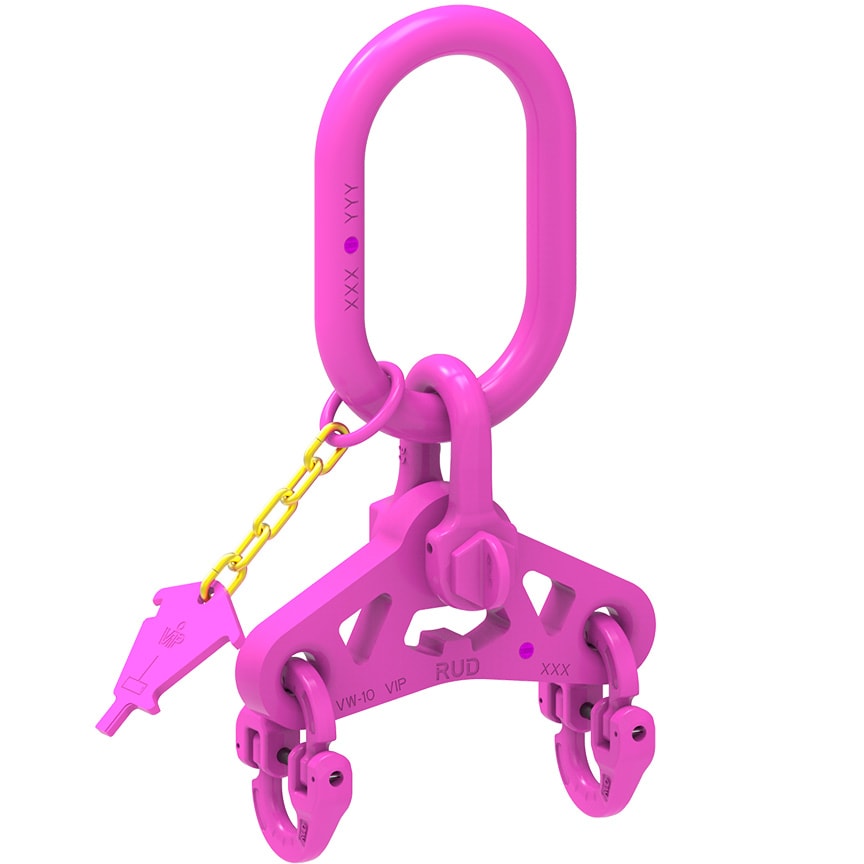

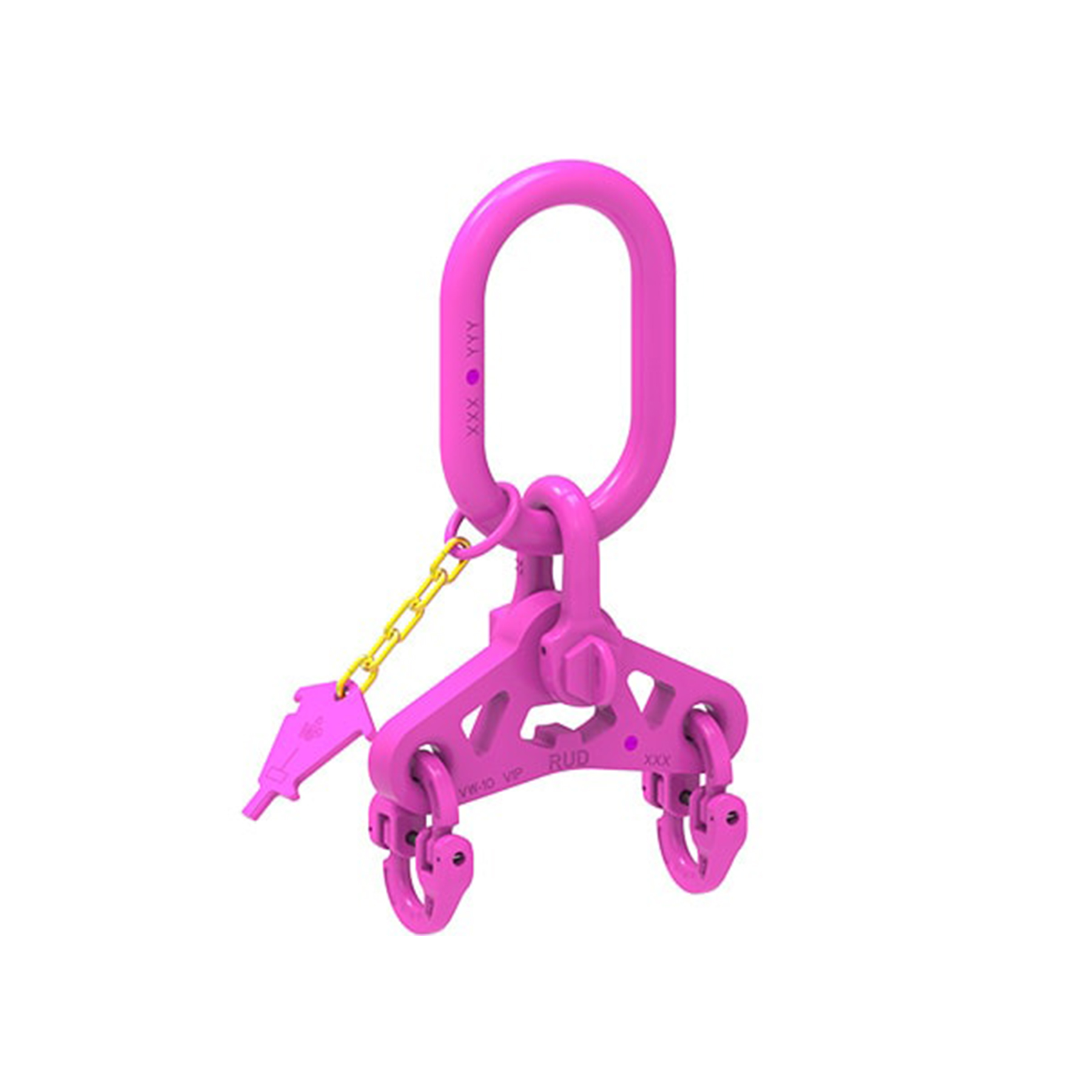

VIP-Master link with balancer 2-strand VWK-2S-6 (7904502)

Technical Information

Product number: 7904502

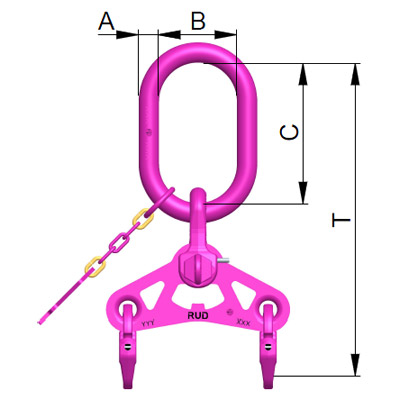

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	1.95 kg	4.30 lbs
A	18 mm	23/32"
B	75 mm	2-15/16"
T	276 mm	10-7/8"
C	135 mm	5-5/16"

VIP-Master link with balancer 2-strand VWK-2S-8 (7904503)

Technical Information

Product number: 7904503

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	4.00 kg	8.82 lbs
A	22 mm	7/8"
B	90 mm	3-17/32"
T	343 mm	13-1/2"
C	160 mm	6-13/32"

VIP-Master link with balancer 2-strand VWK-2S-10 (7904504)

Technical Information

Product number: 7904504

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	7.35 kg	16.20 lbs
A	26 mm	1"
B	100 mm	3-15/16"
T	403 mm	15-7/8"
C	180 mm	7-1/16"

VIP-Master link with balancer 2-strand VWK-2S-16 (7904506)

Technical Information

Product number: 7904506

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	23.53 kg	51.87 lbs
A	36 mm	1-27/64"
B	140 mm	5-1/2"
T	599 mm	23-19/32"
C	260 mm	10-1/4"

VIP-Master link with balancer 2-strand VWK-2S-13 (7904505)

Technical Information

Product number: 7904505

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	13.42 kg	29.59 lbs
A	32 mm	1-1/4"
B	110 mm	4-11/32"
T	475 mm	18-11/16"
C	200 mm	7-7/8"

VIP-Master link with balancer 2-strand VWK-2S-20 (7904507)

Technical Information

Product number: 7904507

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	35.33 kg	77.89 lbs
A	51 mm	2"
B	190 mm	7-1/2"
T	717 mm	28-7/32"
C	350 mm	13-3/4"

VIP-Master link with balancer 2-strand VWK-2S-22 (7904508)

Technical Information

Product number: 7904508

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	49.98 kg	110.19 lbs
A	51 mm	2"
B	190 mm	7-1/2"
T	823 mm	32-13/32"
C	350 mm	13-3/4"

VIP-Master link with balancer 2-strand VWSAK-2S-6/190 (7906331)

Technical Information

Product number: 7906331

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	4.62 kg	10.19 lbs
A	22 mm	7/8"
B	190 mm	7-1/2"
T	505 mm	19-7/8"
C	350 mm	13-3/4"

VIP-Master link with balancer 2-strand VWSAK-2S-8/190 (7906332)

Technical Information

Product number: 7906332

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	6.82 kg	15.04 lbs
A	26 mm	1"
B	190 mm	7-1/2"
T	533 mm	21"
C	350 mm	13-3/4"

VIP-Master link with balancer 2-strand VWSAK-2S-10/250 (7906333)

Technical Information

Product number: 7906333

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	17.40 kg	38.36 lbs
A	36 mm	1-27/64"
B	250 mm	9-13/16"
T	701 mm	27-19/32"
C	460 mm	18-1/8"

VIP-Master link with balancer 2-strand VWSAK-2S-13/250 (7906334)

Technical Information

Product number: 7906334

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	23.22 kg	51.19 lbs
A	40 mm	1-9/16"
B	250 mm	9-13/16"
T	735 mm	28-15/16"
C	460 mm	18-1/8"

VIP-Master link with balancer 2-strand VWSAK-2S-16/250 (7906335)

Technical Information

Product number: 7906335

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	41.43 kg	91.34 lbs
A	51 mm	2"
B	250 mm	9-13/16"
T	808 mm	31-13/16"
C	460 mm	18-1/8"

VIP-Master link with balancer 2-strand VWSAK-2S-20/250 (7906336)

Technical Information

Product number: 7906336

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	50.67 kg	111.71 lbs
A	54 mm	2-1/8"
B	250 mm	9-13/16"
T	865 mm	34-1/16"
C	460 mm	18-1/8"

VIP-Master link with balancer 2-strand VWSAK-2S-22/250 (7906337)

Technical Information

Product number: 7906337

VIP Balancing master link VWK-2S / VIP Master link for balancing unit VAK-2S, ECS 17714 7

Technical Downloads

VWK - Picture Download File

VWK - Picture Download File

Attribute	Value	Value
weight	59.28 kg	130.69 lbs
A	56 mm	2-3/16"
B	250 mm	9-13/16"
T	926 mm	36-7/16"
C	460 mm	18-1/8"

VIP-Master link for balancer 2-strand VAK-2S-6 (7904509)

Technical Information

Product number: 7904509

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	1.36 kg	3.00 lbs
A	18 mm	23/32"
B	75 mm	2-15/16"
T	217 mm	8-9/16"
C	135 mm	5-5/16"

VIP-Master link for balancer 2-strand VAK-2S-8 (7904510)

Technical Information

Product number: 7904510

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	2.40 kg	5.29 lbs
A	22 mm	7/8"
B	90 mm	3-17/32"
T	268 mm	10-9/16"
C	160 mm	6-13/32"

VIP-Master link for balancer 2-strand VAK-2S-10 (7904511)

Technical Information

Product number: 7904511

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	4.00 kg	8.82 lbs
A	26 mm	1"
B	100 mm	3-15/16"
T	311 mm	12-1/4"
C	180 mm	7-1/16"

VIP-Master link for balancer 2-strand VAK-2S-13 (7904512)

Technical Information

Product number: 7904512

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	6.90 kg	15.21 lbs
A	32 mm	1-1/4"
B	110 mm	4-11/32"
T	373 mm	14-11/16"
C	200 mm	7-7/8"

VIP-Master link for balancer 2-strand VAK-2S-16 (7904513)

Technical Information

Product number: 7904513

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	11.50 kg	25.35 lbs
A	36 mm	1-27/64"
B	140 mm	5-1/2"
T	470 mm	18-1/2"
C	350 mm	13-3/4"

VIP-Master link for balancer 2-strand VAK-2S-20 (7904514)

Technical Information

Product number: 7904514

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	32.80 kg	72.31 lbs
A	51 mm	2"
B	190 mm	7-1/2"
T	614 mm	24-3/16"
C	350 mm	13-3/4"

VIP-Master link for balancer 2-strand VSAK-2S-10/250 (7906340)

Technical Information

Product number: 7906340

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	14.20 kg	31.31 lbs
A	36 mm	1-27/64"
B	250 mm	9-13/16"
T	591 mm	23-1/4"
C	460 mm	18-1/8"

VIP-Master link for balancer 2-strand VSAK-2S-13/250 (7906341)

Technical Information

Product number: 7906341

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	19.00 kg	41.89 lbs
A	40 mm	1-9/16"
B	250 mm	9-13/16"
T	634 mm	24-15/16"
C	460 mm	18-1/8"

VIP-Master link for balancer 2-strand VSAK-2S-16/250 (7906342)

Technical Information

Product number: 7906342

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	32.30 kg	71.21 lbs
A	51 mm	2"
B	250 mm	9-13/16"
T	671 mm	26-13/32"
C	460 mm	18-1/8"

VIP-Master link for balancer 2-strand VSAK-2S-20/250 (7906343)

Technical Information

Product number: 7906343

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	38.10 kg	84.00 lbs
A	54 mm	2-1/8"
B	250 mm	9-13/16"
T	754 mm	29-11/16"
C	460 mm	18-1/8"

VIP-Master link for balancer 2-strand VSAK-2S-22/250 (7906344)

Technical Information

Product number: 7906344

Technical Downloads

VAK 2S VWK - Picture Download File

VAK 2S VWK - Picture Download File

Attribute	Value	Value
weight	44.00 kg	97.00 lbs
A	56 mm	2-3/16"
B	250 mm	9-13/16"
T	763 mm	30"
C	460 mm	18-1/8"
