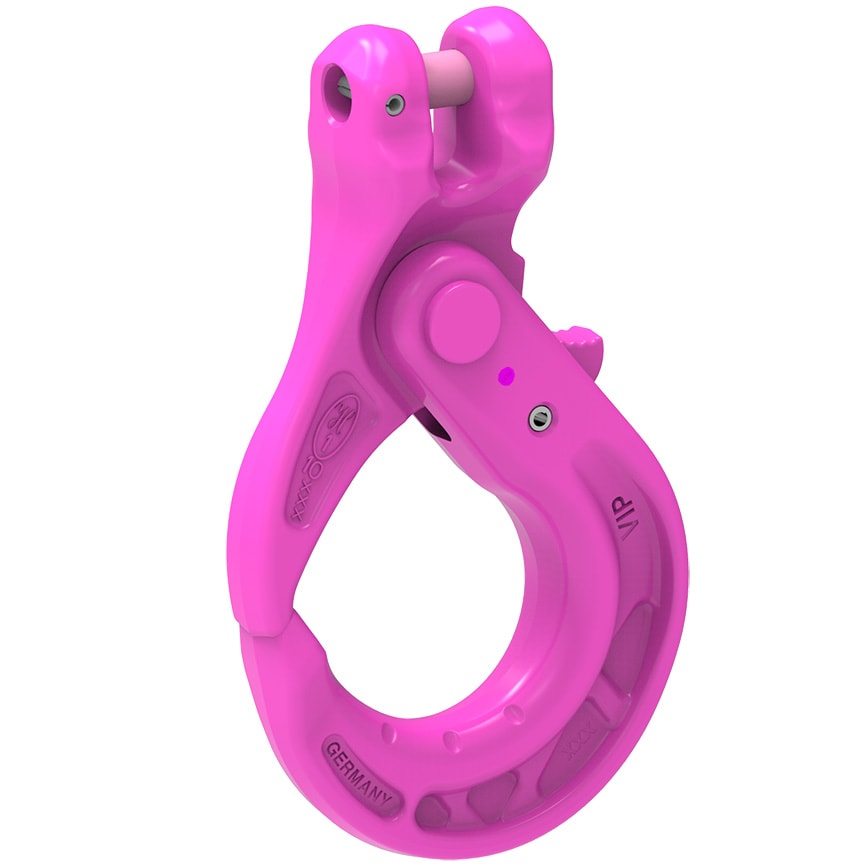

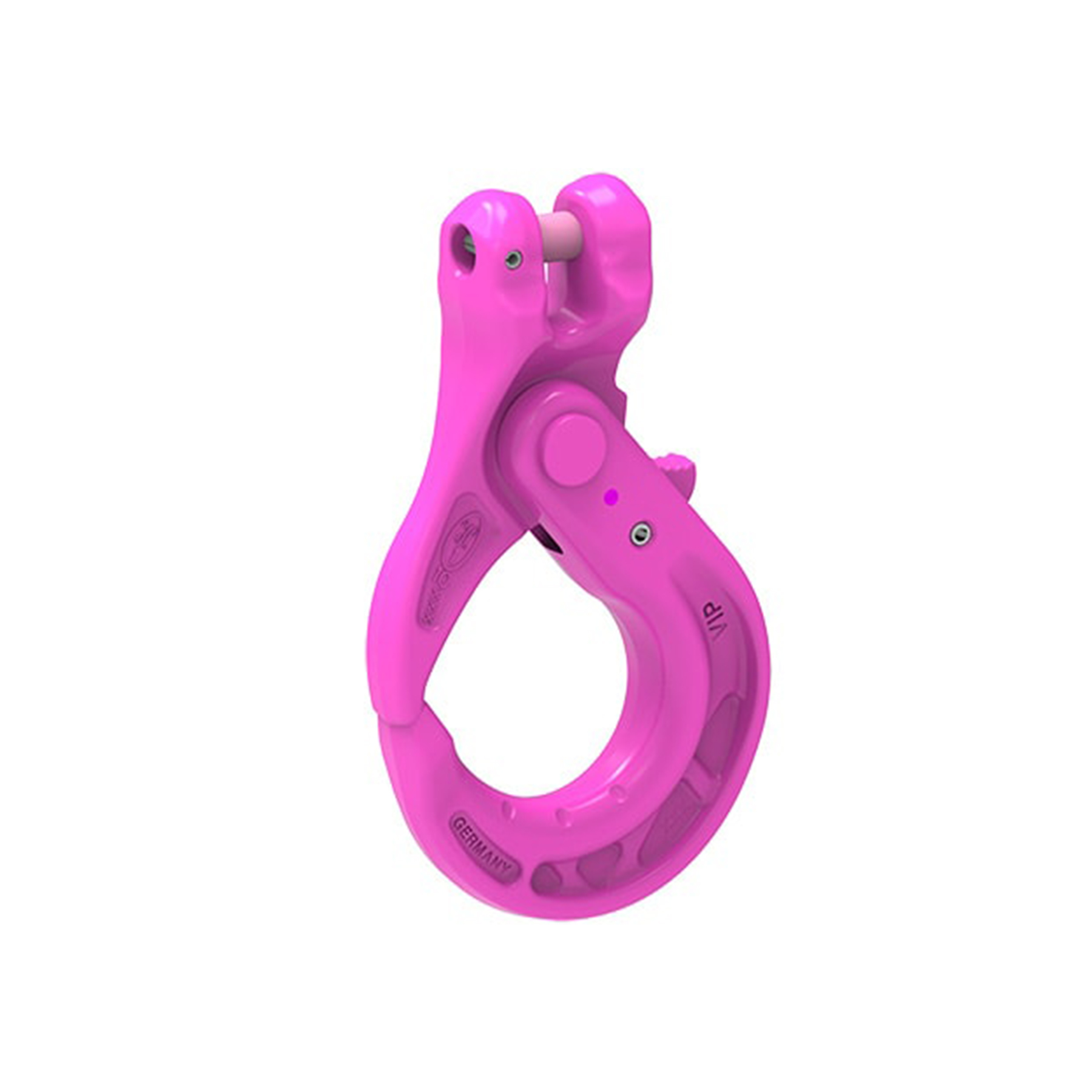

VIP Self locking hook

Optimised weight by innovative structure design
Anti-slip locking mechanism – no squeezing hazard
Wear distance ridges protect the first chain link
Thickened tip of hook, patented wear marks and measuring points for checking the width of hook

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (3)

VIP-Self locking hook VAGH(S) 8 (7900046)

Technical Information

Product number: 7900046

Technical Downloads

VAGH - Picture Download File

VAGH(S) 8 - IGES 3D CAD File Download File

VAGH(S) 8 - STEP 3D CAD File Download File

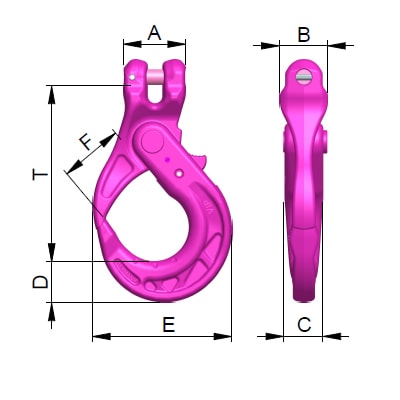

Attribute	Value	Value
weight	1.09 kg	2.40 lbs
Nominal WLL	2500 kg	5700 lbs
A	40 mm	1-9/16"
B	30 mm	1-3/16"
T	121 mm	4-3/4"
C	27 mm	1-1/16"
D	28 mm	1-1/8"
E	97 mm	3-13/16"
F	44 mm	1-3/4"

VIP-Self locking hook VAGH(S) 10 (7900047)

Technical Information

Product number: 7900047

Technical Downloads

VAGH - Picture Download File

VAGH(S) 10 - IGES 3D CAD File Download File

VAGH(S) 10 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	1.51 kg	3.33 lbs
Nominal WLL	4000 kg	8800 lbs
A	49 mm	1-15/16"
B	37 mm	1-7/16"
T	135 mm	5-5/16"
C	30 mm	1-3/16"
D	31 mm	1-7/32"
E	107 mm	4-7/32"
F	48 mm	1-7/8"

VIP-Self locking hook VAGH(S) 13 (7900048)

Technical Information

Product number: 7900048

Technical Downloads

VAGH - Picture Download File

VAGH(S) 13 - IGES 3D CAD File Download File

VAGH(S) 13 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	2.90 kg	6.39 lbs
Nominal WLL	6700 kg	15000 lbs
A	61 mm	2-13/32"
B	48 mm	1-7/8"
T	169 mm	6-21/32"
C	36 mm	1-27/64"
D	40 mm	1-9/16"
E	133 mm	5-15/64"
F	61 mm	2-13/32"

ENQUIRE ABOUT THIS PRODUCT

Lifting and Lashing Points

VIP Self locking hook

Enquire About This Product

Product Variants (3)

VIP-Self locking hook VAGH(S) 8 (7900046)

Technical Information

Technical Downloads

VIP-Self locking hook VAGH(S) 10 (7900047)

Technical Information

Technical Downloads

VIP-Self locking hook VAGH(S) 13 (7900048)

Technical Information

Technical Downloads

VIP Master links, 2-leg

VIP Connecting link

VIP Master links

VIP Overload control

VIP round steel link chain (grade 100)

VIP Mini-Lifter

VIP Swivel adapter for DEMAG hoists

VIP Bale hook

VIP Cobra hook

VIP Spreader bar fixed

VIP End link

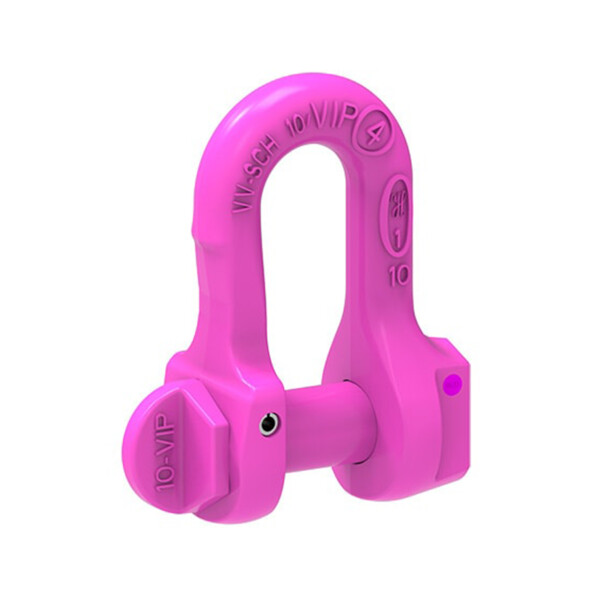

VIP Shackle foolproof
