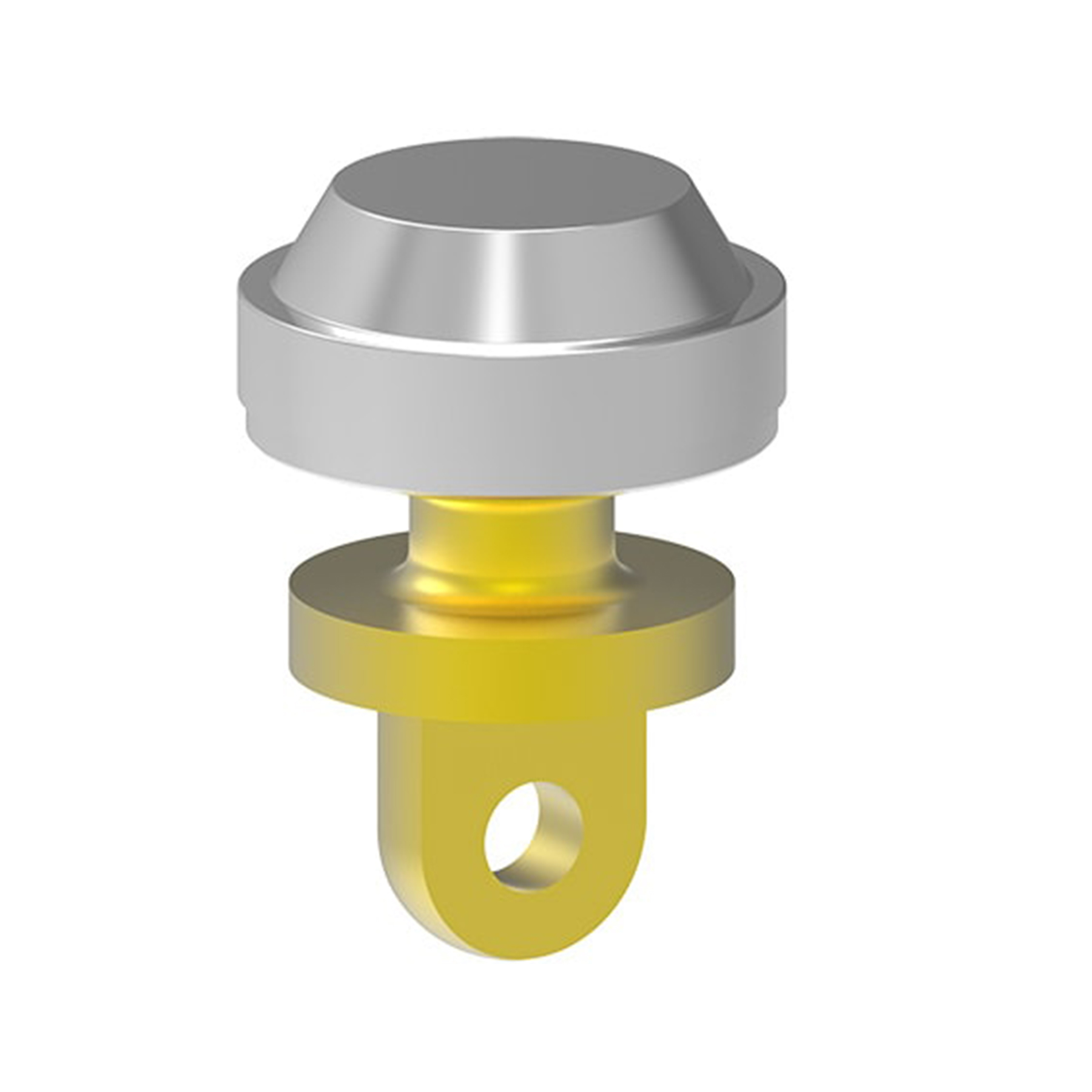

VIP Swivel adapter for DEMAG hoists

Complete with the original Demag ball bearing.
Made of high tensile, quenched and tempered special steel.
Tested acc. to EN 1677-1 and DGUV Regel 100-500 / BGR 500.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (11)

Swivel Adapter for Hoists HWA 6 - DK 400 (7985570)

Technical Information

Product number: 7985570

Technical Downloads

Hebezeug-Wirbeladapter HWA 6 - DK 400 Download File

Swivel Adapter for Hoists HWA 6 - DK 400 Download File

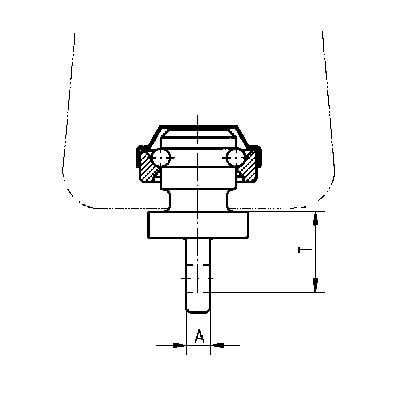

Attribute	Value	Value
weight	0.12 kg	0.26 lbs
Nominal WLL	400 kg	880 lbs
T	22 mm	7/8"
A	6 mm	15/64"

Swivel Adapter for Hoists HWA 6 - DK 800 (7985571)

Technical Information

Product number: 7985571

Technical Downloads

Hebezeug-Wirbeladapter HWA 6 - DK 800 Download File

Swivel Adapter for Hoists HWA 6 - DK 800 Download File

Attribute	Value	Value
weight	0.20 kg	0.44 lbs
Nominal WLL	800 kg	1760 lbs
T	22 mm	7/8"
A	6 mm	15/64"

Swivel Adapter for Hoists HWA 8 - DK 800 (7985572)

Technical Information

Product number: 7985572

Technical Downloads

Hebezeug-Wirbeladapter HWA 8 - DK 800 Download File

Swivel Adapter for Hoists HWA 8 - DK 800 Download File

Attribute	Value	Value
weight	0.16 kg	0.44 lbs
Nominal WLL	800 kg	1760 lbs
T	26 mm	1"
A	8 mm	5/16"

Swivel Adapter for Hoists HWA 8 - DK 1250 (7985573)

Technical Information

Product number: 7985573

Technical Downloads

Hebezeug-Wirbeladapter HWA 8 - DK 1250 Download File

Swivel Adapter for Hoists HWA 8 - DK 1250 Download File

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	1250 kg	2750 lbs
T	26 mm	1"
A	8 mm	5/16"

Swivel Adapter for Hoists HWA 10 - DK 2500 (7985574)

Technical Information

Product number: 7985574

Technical Downloads

Hebezeug-Wirbeladapter HWA 10 - DK 2500 Download File

Swivel Adapter for Hoists HWA 10 - DK 2500 Download File

Attribute	Value	Value
weight	0.80 kg	1.76 lbs
Nominal WLL	2500 kg	5500 lbs
T	36 mm	1-13/32"
A	10 mm	3/8"

Swivel Adapter for Hoists HWA 13 - DK 5000 (7985575)

Technical Information

Product number: 7985575

Technical Downloads

Hebezeug-Wirbeladapter HWA 13 - DK 5000 Download File

Swivel Adapter for Hoists HWA 13 - DK 5000 Download File

Attribute	Value	Value
weight	0.80 kg	2.2 lbs
Nominal WLL	5000 kg	11000 lbs
T	42 mm	1-21/32"
A	13 mm	1/2"

Swivel Adapter for Hoists HWA 6 - PK 250 (51287)

Technical Information

Product number: 51287

Technical Downloads

Hebezeug-Wirbeladapter HWA 6 - PK 250 Download File

Swivel Adapter for Hoists HWA 6 - PK 250 Download File

Attribute	Value	Value
weight	0.12 kg	0.26 lbs
Nominal WLL	250 kg	550 lbs
T	23 mm	29/32"
A	6 mm	15/64"

Swivel Adapter for Hoists HWA 6 - PK 500 (51288)

Technical Information

Product number: 51288

Technical Downloads

Hebezeug-Wirbeladapter HWA 6 - PK 500 Download File

Swivel Adapter for Hoists HWA 6 - PK 500 Download File

Attribute	Value	Value
weight	0.15 kg	0.33 lbs
Nominal WLL	500 kg	1100 lbs
T	23 mm	29/32"
A	6 mm	15/64"

Swivel Adapter for Hoists HWA 8 - PK 500 (51293)

Technical Information

Product number: 51293

Technical Downloads

Hebezeug-Wirbeladapter HWA 8 - PK 500 Download File

Swivel Adapter for Hoists HWA 8 - PK 500 Download File

Attribute	Value	Value
weight	0.28 kg	0.66 lbs
Nominal WLL	500 kg	1100 lbs
T	26 mm	1"
A	8 mm	5/16"

Swivel Adapter for Hoists HWA 8 - PK 1000 (51294)

Technical Information

Product number: 51294

Technical Downloads

Hebezeug-Wirbeladapter HWA 8 - PK 1000 Download File

Swivel Adapter for Hoists HWA 8 - PK 1000 Download File

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	1000 kg	2200 lbs
T	26 mm	1"
A	8 mm	5/16"

Swivel Adapter for Hoists HWA 10 - PK 2000 (51295)

Technical Information

Product number: 51295

Technical Downloads

Hebezeug-Wirbeladapter HWA 10 - PK 2000 Download File

Swivel Adapter for Hoists HWA 10 - PK 2000 Download File

Attribute	Value	Value
weight	0.45 kg	1.0 lbs
Nominal WLL	2000 kg	4400 lbs
T	36 mm	1-13/32"
A	10 mm	3/8"
