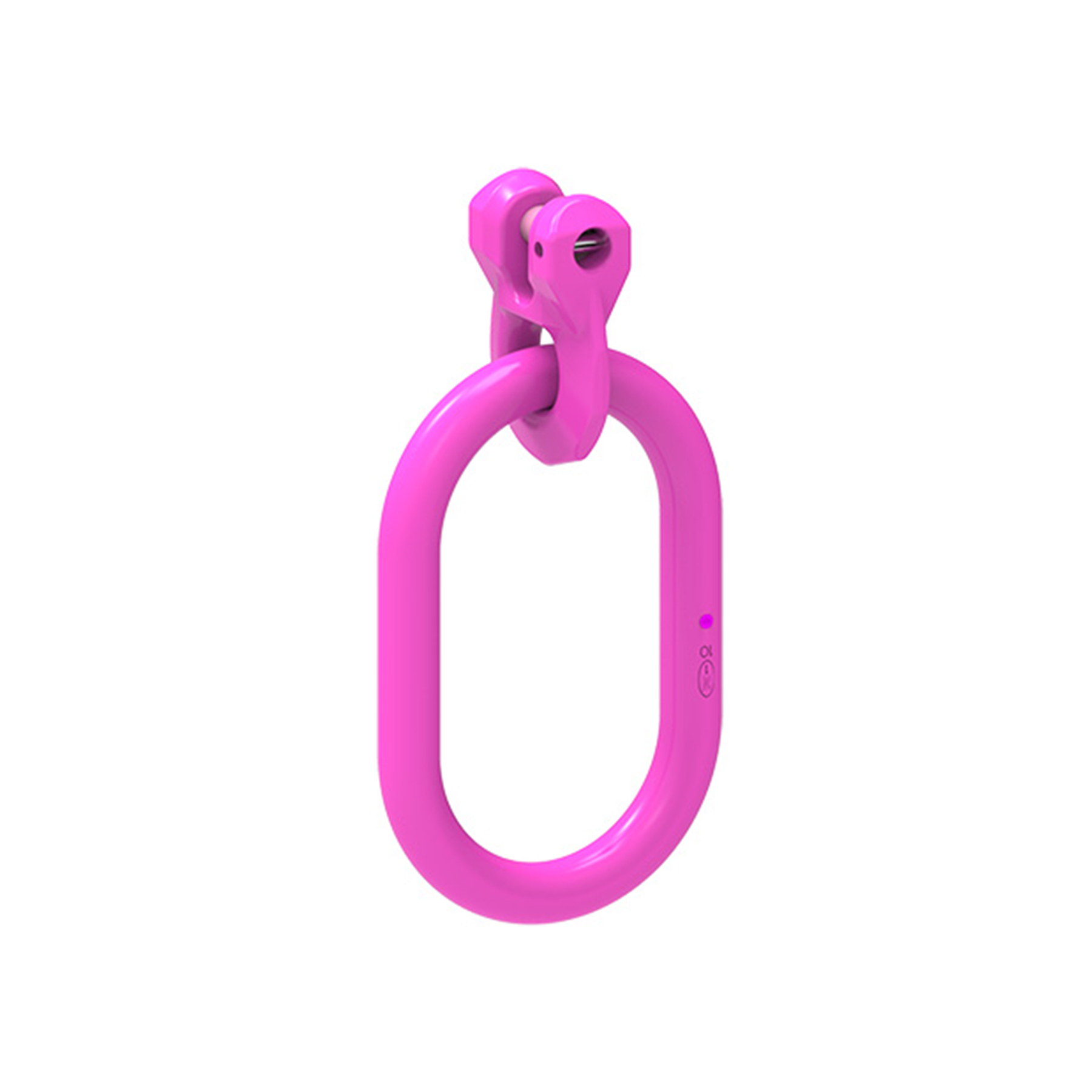

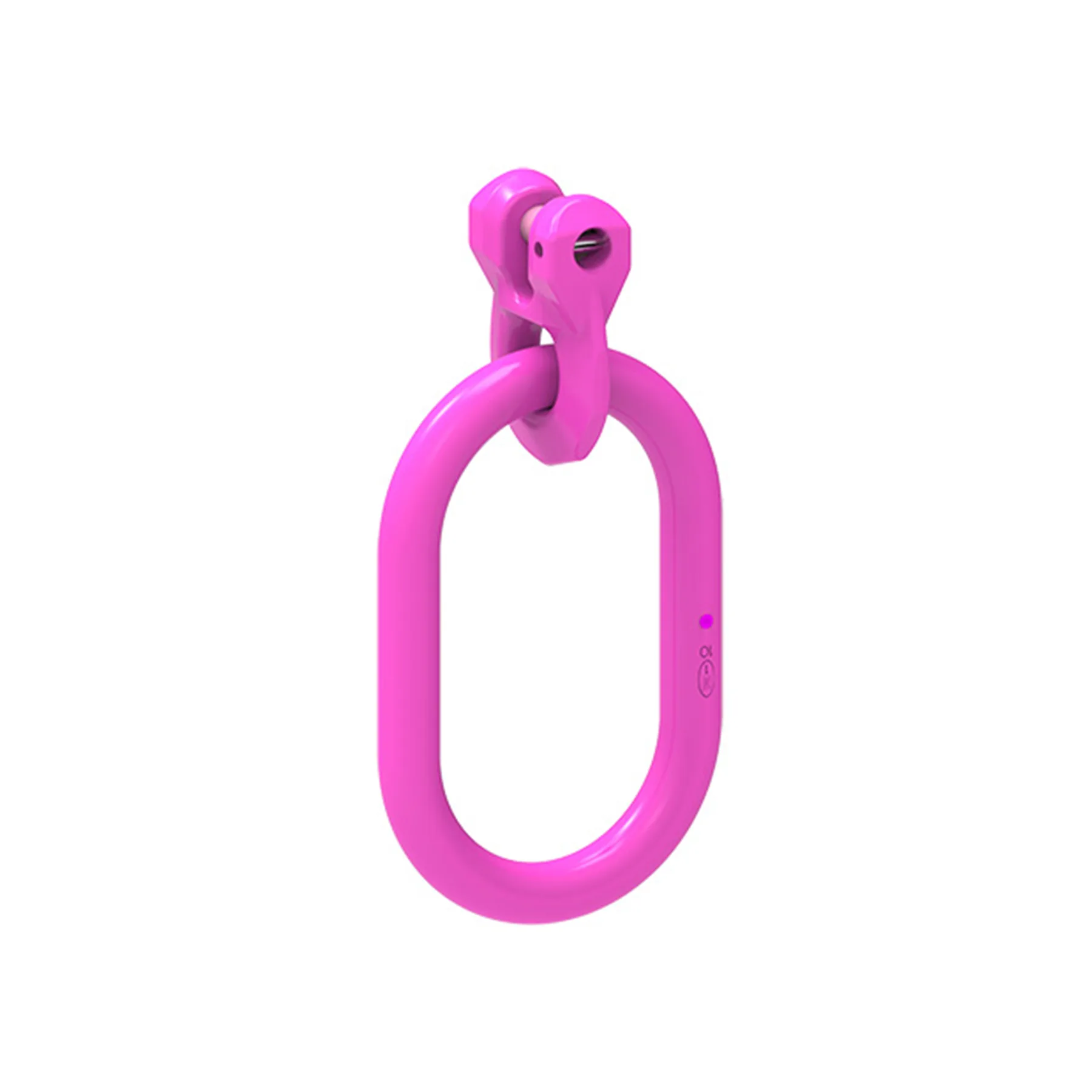

VIP End Link
- VIP End Link for mounting of ring chains
- Also all SAK special master links can be used for the same purpose, without the identification tag KZA
- Pre-assembled with connecting bolt and tensioning sleeve
Product Variants (19)

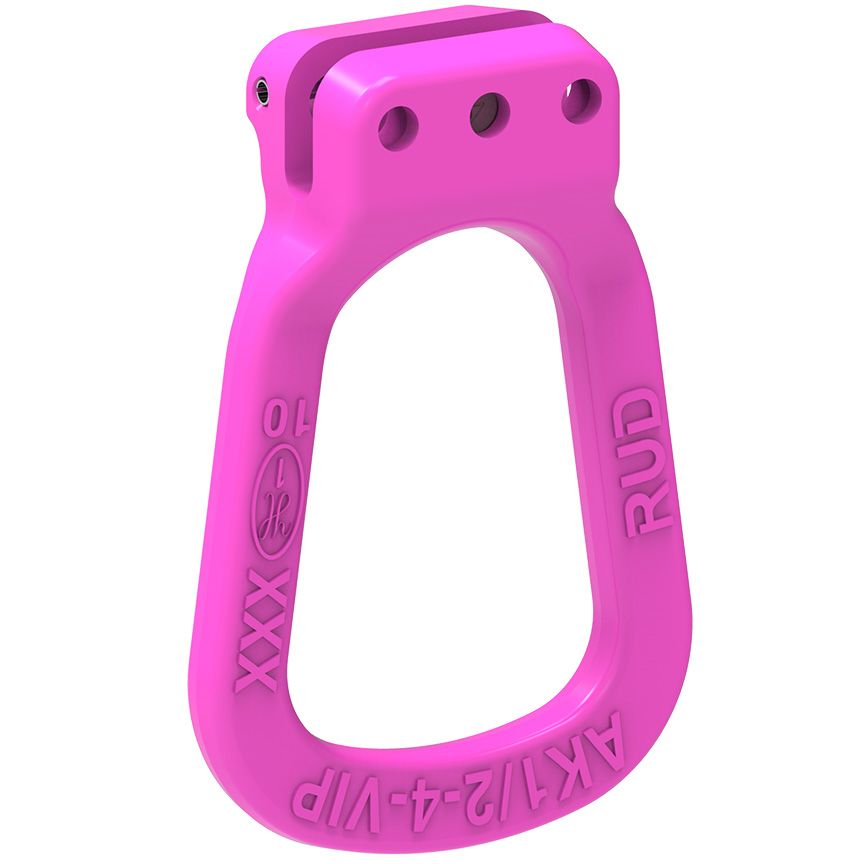

VIP-Master link VAK 1/2-4 (as endlink) (7984445)
| Attribute | Value | Value |
|---|
| weight | 0.1 kg | 0.22 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 9.0 mm | 11/32" |
| B | 30.0 mm | 1-3/16" |
| T | 55.0 mm | 2-5/32"
|
| C | 28 mm | 1-1/8" |
| D | 20 mm | 3/4" |
| E | 6 mm | 15/64" |

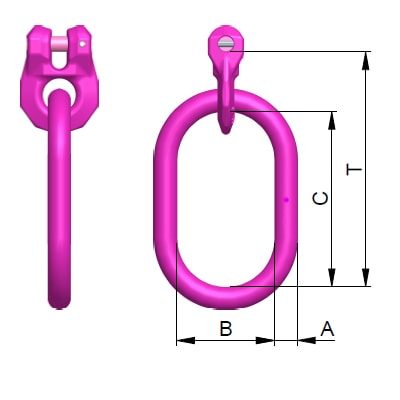

VIP-End link VA 1-6 (7100237)
| Attribute | Value | Value |
|---|
| weight | 0.47 kg | 1.03 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 13.0 mm | 1/2" |
| B | 60.0 mm | 2-3/8" |
| T | 138.0 mm | 5-7/16"
|
| C | 110 mm | 4-5/16" |
VIP-End link VA 1-8 (7100238)
| Attribute | Value | Value |
|---|
| weight | 0.77 kg | 1.69 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 16.0 mm | 5/8" |
| B | 60.0 mm | 2-3/8" |
| T | 147.0 mm | 5-13/16"
|
| C | 110 mm | 4-5/16" |
VIP-End link VA 1-10 (7100239)
| Attribute | Value | Value |
|---|
| weight | 1.24 kg | 2.73 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 18.0 mm | 11/16" |
| B | 75.0 mm | 2-15/16" |
| T | 181.0 mm | 7-1/8"
|
| C | 135 mm | 5-5/16" |
VIP-End link VA 1-13 (7100240)
| Attribute | Value | Value |
|---|
| weight | 2.31 kg | 5.08 lbs |
| Nominal WLL | 6700 kg | 15000 lbs |
| A | 22.0 mm | 7/8" |
| B | 90.0 mm | 3-9/16" |
| T | 218.0 mm | 8-5/8"
|
| C | 160 mm | 6-5/16" |
VIP-End link VA 1-16 (7100241)
| Attribute | Value | Value |
|---|
| weight | 3.87 kg | 8.5 lbs |
| Nominal WLL | 10000 kg | 22000 lbs |
| A | 26.0 mm | 1" |
| B | 100.0 mm | 3-15/16" |
| T | 250.0 mm | 9-13/16"
|
| C | 180 mm | 7-1/16" |
VIP-End link VA 1-20 (7104090)
| Attribute | Value | Value |
|---|
| weight | 14.0 kg | 30.8 lbs |
| Nominal WLL | 16000 kg | 35300 lbs |
| A | 40.0 mm | 1-5/8" |
| B | 180.0 mm | 7-1/16" |
| T | 434.0 mm | 17-1/16"
|
| C | 340 mm | 13-3/8" |
VIP-End link VA 1-22 (7102092)
| Attribute | Value | Value |
|---|
| weight | 17.2 kg | 37.8 lbs |
| Nominal WLL | 20000 kg | 44000 lbs |
| A | 45.0 mm | 1-3/4" |
| B | 180.0 mm | 7-1/16" |
| T | 434.0 mm | 17-1/16"
|
| C | 340 mm | 13-3/8" |

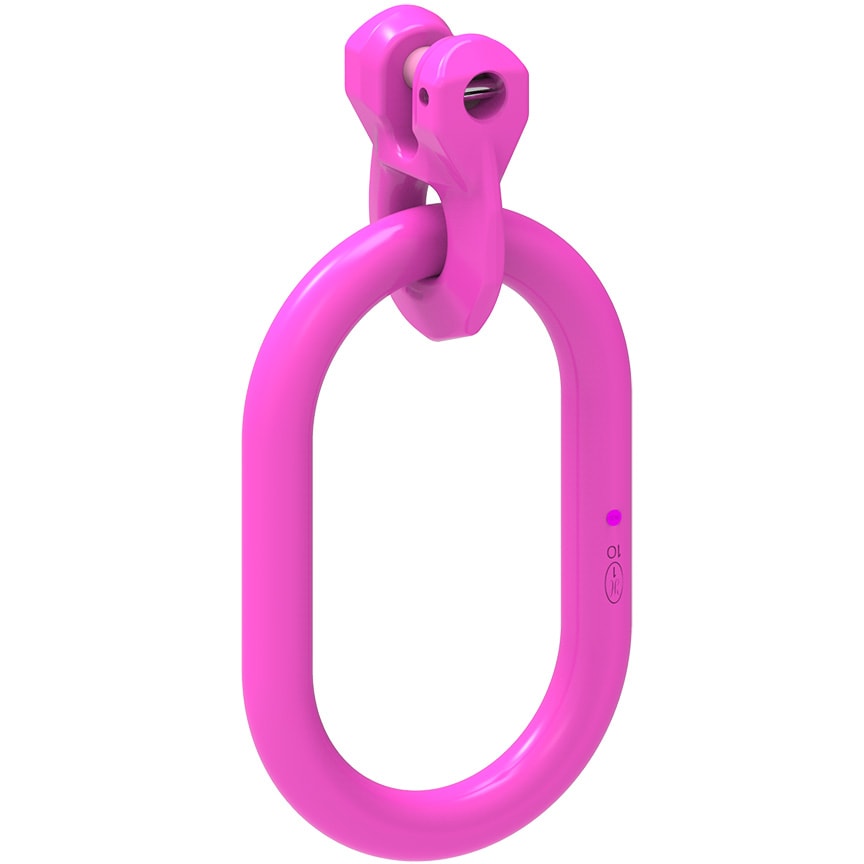

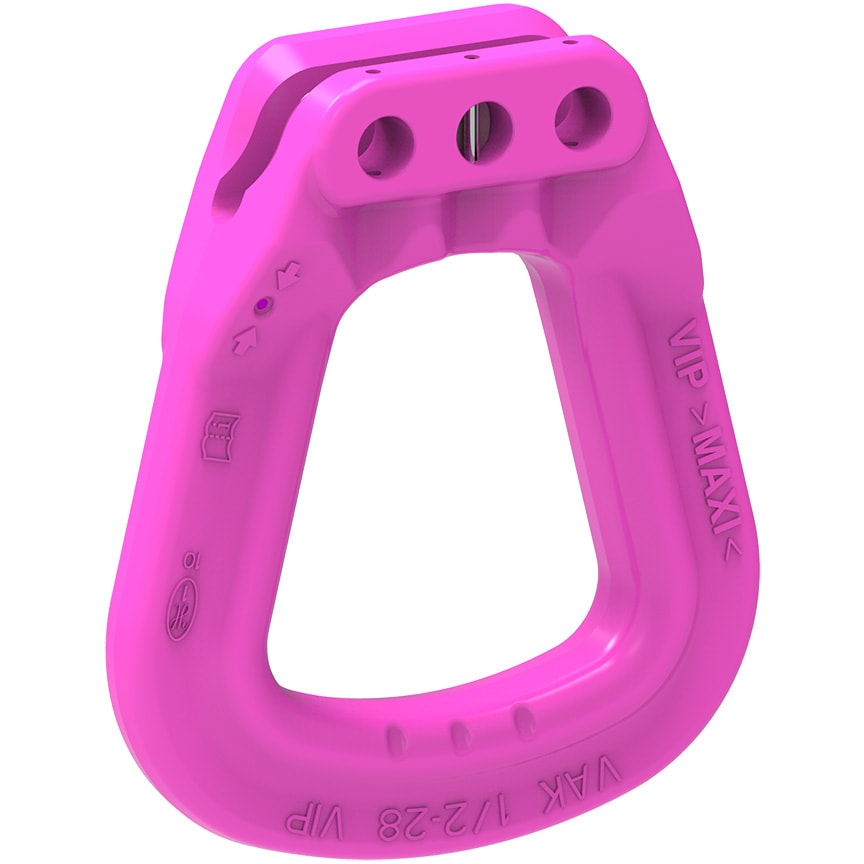

VIP-MAXI-Master link 1-strand VAK 1/2-28 (as endlink) (7900642)
| Attribute | Value | Value |
|---|
| weight | 64.30 kg | 141.76 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| A | 100 mm | 3-15/16" |
| B | 250 mm | 9-13/16" |
| T | 360 mm | 14-5/32"
|
| C | 280 mm | 11" |
| D | 208 mm | 8-3/16" |
| E | 120 mm | 4-3/4" |
| F | 76 mm | 3" |
VIP-End link VB 1-6 (7100220)
| Attribute | Value | Value |
|---|
| weight | 0.31 kg | 0.68 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 13.0 mm | 1/2" |
| B | 25.0 mm | 1" |
| T | 82.0 mm | 3-1/4"
|
| C | 54 mm | 2-1/8" |
VIP-End link VB 1-8 (7100221)
| Attribute | Value | Value |
|---|
| weight | 0.6 kg | 1.32 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 16.0 mm | 5/8" |
| B | 34.0 mm | 1-5/16" |
| T | 107.0 mm | 4-3/16"
|
| C | 70 mm | 2-3/4" |
VIP-End link VB 1-10 (7100222)
| Attribute | Value | Value |
|---|
| weight | 1.0 kg | 2.2 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 18.0 mm | 11/16" |
| B | 40.0 mm | 1-9/16" |
| T | 131.0 mm | 5-3/16"
|
| C | 85 mm | 3-3/8" |
VIP-End link VB 1-13 (7100223)
| Attribute | Value | Value |
|---|
| weight | 1.9 kg | 4.18 lbs |
| Nominal WLL | 6700 kg | 15000 lbs |
| A | 22.0 mm | 7/8" |
| B | 50.0 mm | 1-15/16" |
| T | 174.0 mm | 6-7/8"
|
| C | 115 mm | 4-1/2" |
VIP-End link VB 1-16 (7100224)
| Attribute | Value | Value |
|---|
| weight | 3.4 kg | 7.5 lbs |
| Nominal WLL | 10000 kg | 22000 lbs |
| A | 26.0 mm | 1" |
| B | 65.0 mm | 2-9/16" |
| T | 211.0 mm | 8-5/16"
|
| C | 140 mm | 5-1/2" |
VIP-End link VB 1-20 (7104093)
| Attribute | Value | Value |
|---|
| weight | 6.9 kg | 1.38 lbs |
| Nominal WLL | 16000 kg | 35300 lbs |
| A | 32.0 mm | 1-1/4" |
| B | 75.0 mm | 2-15/16" |
| T | 264.0 mm | 10-3/8"
|
| C | 170 mm | 6-3/4" |
VIP-End link VB 1-22 (7102060)
| Attribute | Value | Value |
|---|
| weight | 8.2 kg | 18.0 lbs |
| Nominal WLL | 20000 kg | 44000 lbs |
| A | 36.0 mm | 1-13/32" |
| B | 110.0 mm | 4-11/32" |
| T | 294.0 mm | 11-9/16"
|
| C | 200 mm | 7-7/8" |

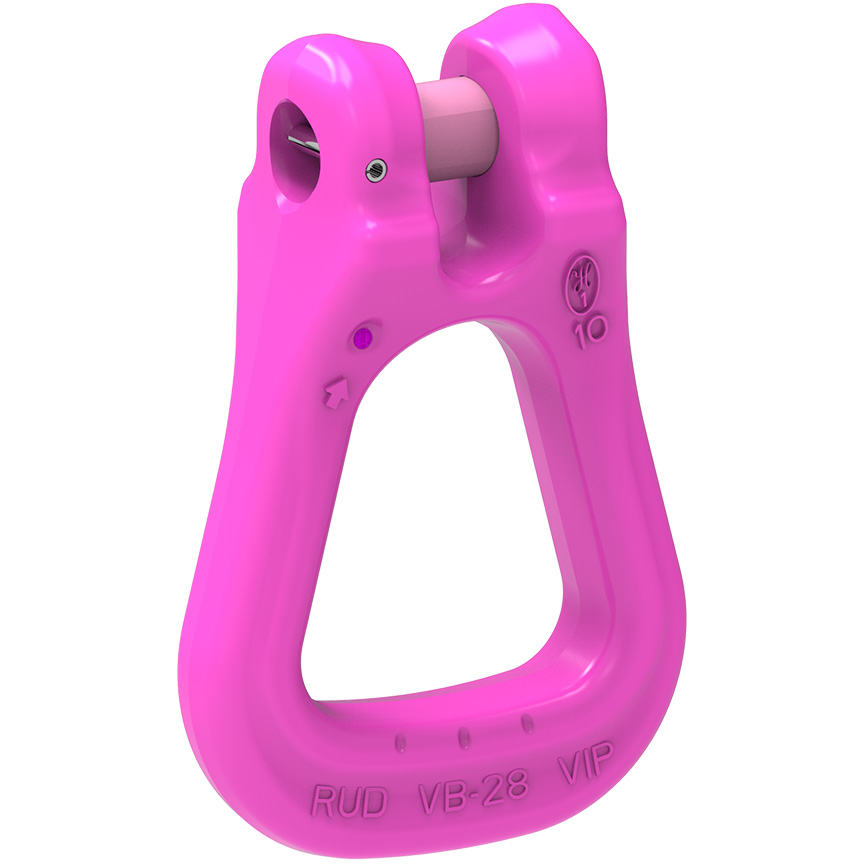

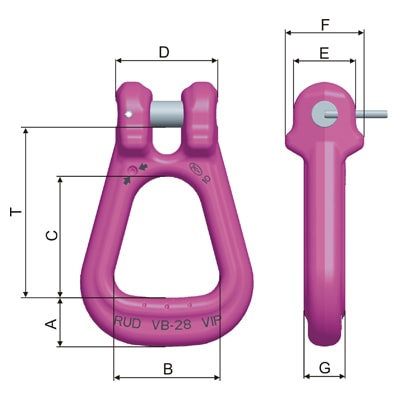

VIP-End link VB 1-28 (7900641)
| Attribute | Value | Value |
|---|
| weight | 13.70 kg | 30.20 lbs |
| Nominal WLL | 31500 kg | 69445 lbs |
| A | 62 mm | 2-7/16" |
| B | 130 mm | 5-1/8" |
| T | 215 mm | 8-15/32"
|
| C | 150 mm | 5-7/8" |
| D | 130 mm | 5-1/8" |
| E | 80 mm | 3-1/8" |
| F | 100 mm | 3-15/16" |
| G | 52 mm | 2-1/16" |

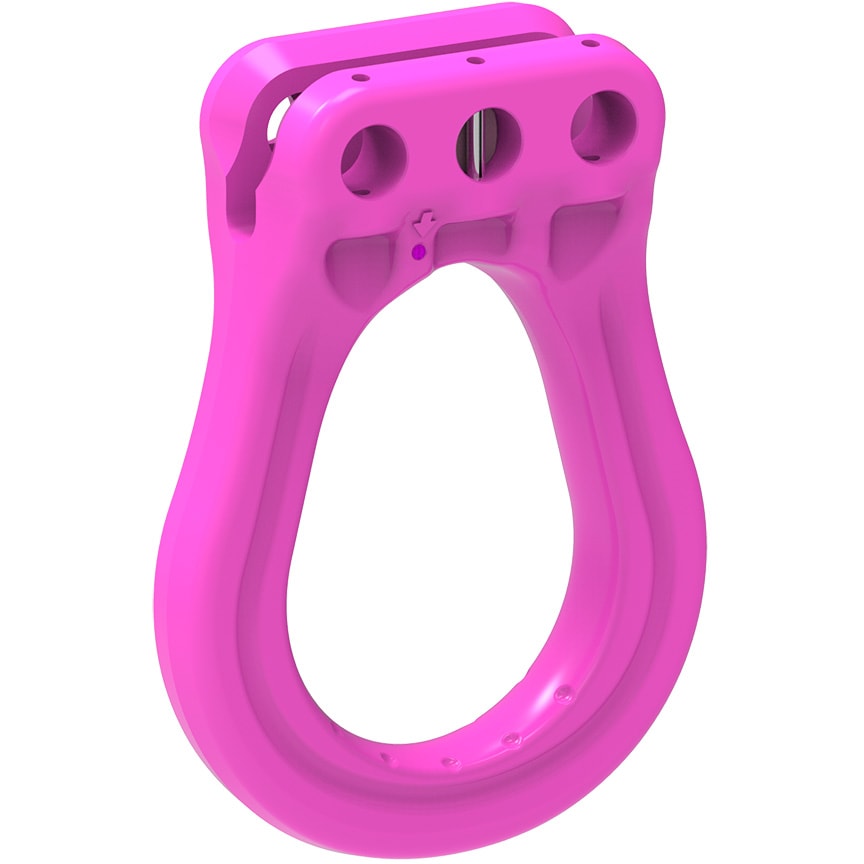

VIP-MAXI-Master link VBK 1/2-28 as end link (8504022)
| Attribute | Value | Value |
|---|
| weight | 31.93 kg | 70.39 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| A | 60 mm | 2-3/8" |
| B | 190 mm | 7-1/2" |
| T | 322 mm | 12-21/32"
|
| C | 265 mm | 10-7/16" |
| D | 240 mm | 9-1/2" |
| E | 120 mm | 4-3/4" |
| F | 55 mm | 2-5/32" |

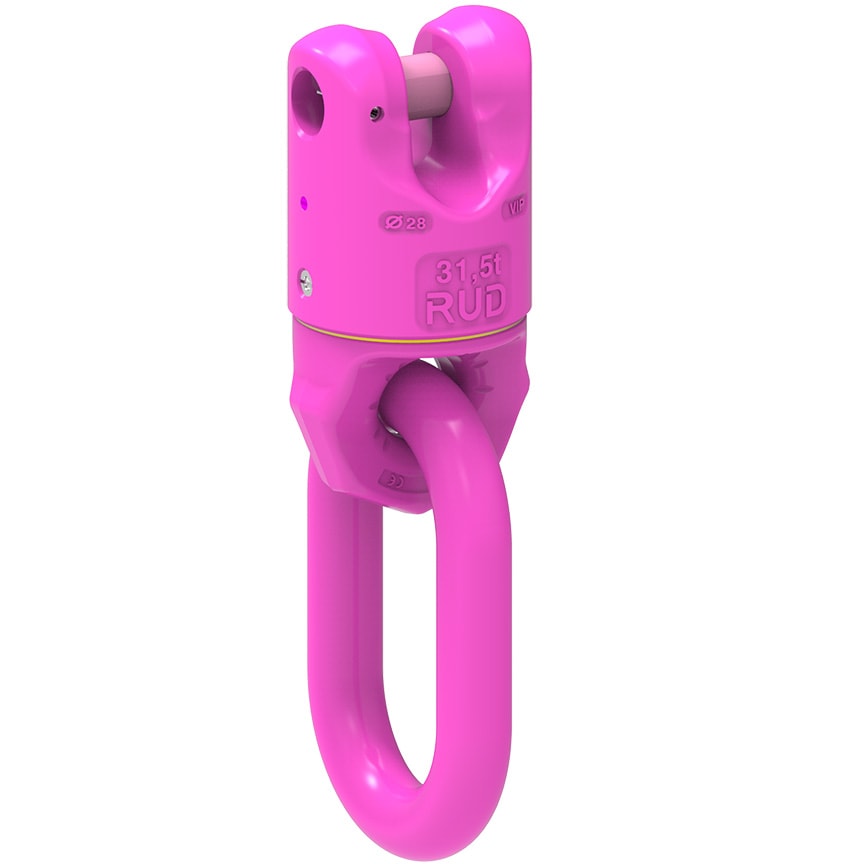

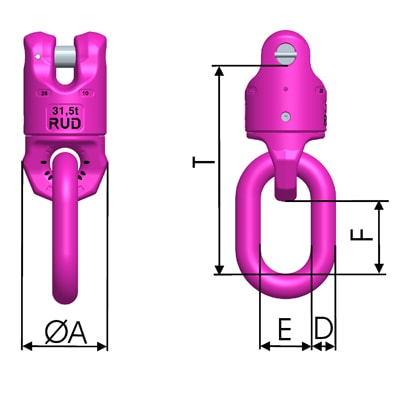

VIP-Maxi-End link tournable VUW-GLD-28 (7903436)
| Attribute | Value | Value |
|---|
| weight | 32.20 kg | 70.99 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| A | 153 mm | 6" |
| T | 416 mm | 16-3/8"
|
| D | 46 mm | 1-13/16" |
| E | 110 mm | 4-11/32" |
| F | 169 mm | 6-21/32" |
