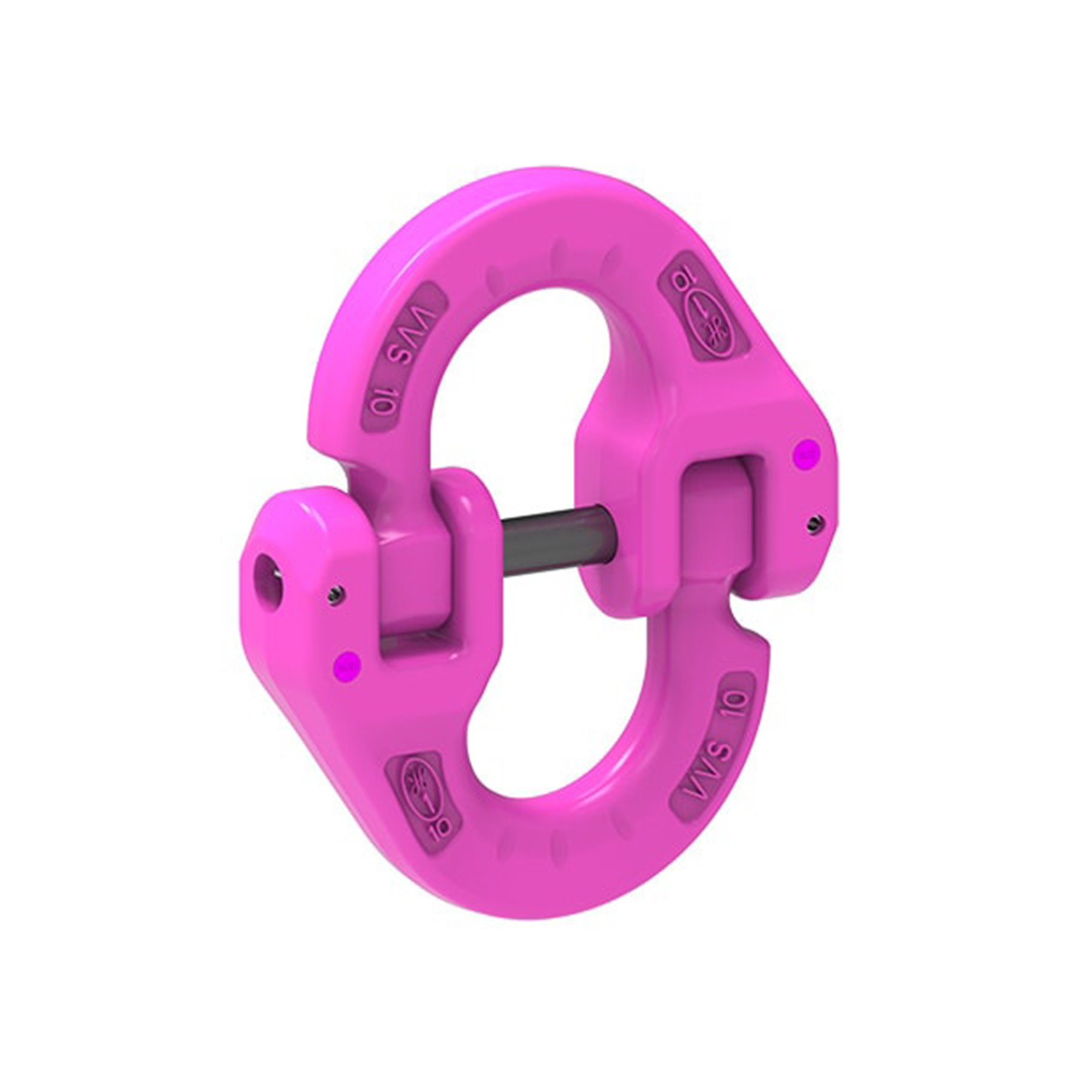

VIP VVS Connecting Link
- All-purpose VIP Coupling Link
- Connecting pin is held by a reliable safety tensioning sleeve
- Avoids movement and less likely for damage
- Lifting points, grabs and chains can be mounted to the link brackets
Product Variants (8)
VIP-Chain coupling VVS 6 (7901438)
| Attribute | Value | Value |
|---|
| weight | 0.13 kg | 0.29 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |

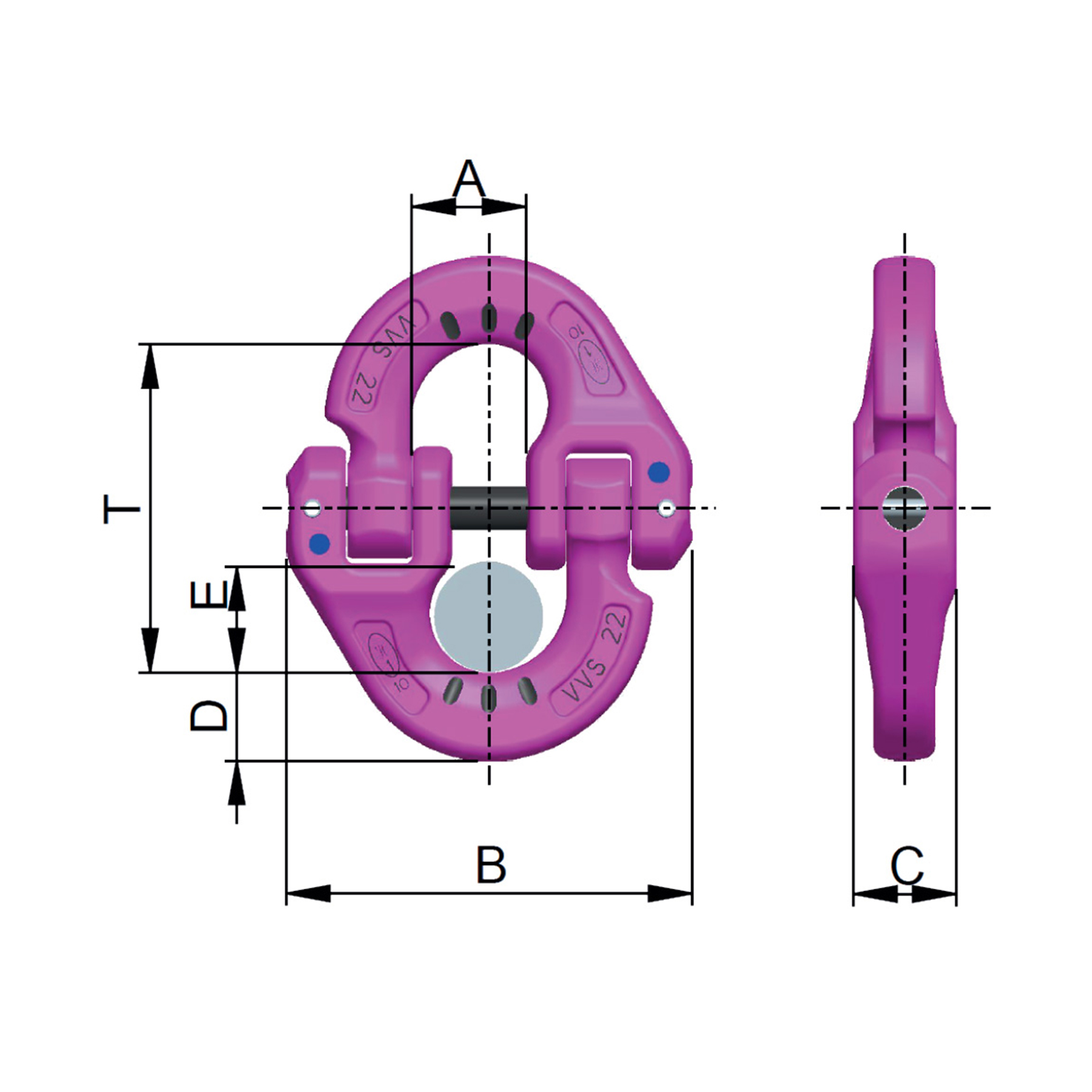

| A | 18 mm | 23/32" |
| B | 56 mm | 2-3/16" |
| T | 45 mm | 1-25/32"
|
| C | 13 mm | 1/2" |
| D | 11 mm | 7/16" |
| E | 17 mm | 43/64" |
VIP-Chain coupling VVS 8 (7901439)
| Attribute | Value | Value |
|---|
| weight | 0.29 kg | 0.64 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 24 mm | 15/16" |
| B | 72 mm | 2-2/32" |
| T | 61 mm | 2-13/32"
|
| C | 17.5 mm | |
| D | 14 mm | 9/16" |
| E | 23 mm | 29/32" |
VIP-Chain coupling VVS 10 (7901440)
| Attribute | Value | Value |
|---|
| weight | 0.57 kg | 1.26 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 28 mm | 1-1/8" |
| B | 88 mm | 3-15/32" |
| T | 74 mm | 2-29/32"
|
| C | 22 mm | 7/8" |
| D | 17 mm | 43/64" |
| E | 27 mm | 1-1/16" |
VIP-Chain coupling VVS 13 (7901441)
| Attribute | Value | Value |
|---|
| weight | 1.20 kg | 2.65 lbs |
| Nominal WLL | 6700 kg | 15000 lbs |
| A | 34 mm | 1-11/32" |
| B | 111 mm | 4-13/32" |
| T | 93 mm | 3-21/32"
|
| C | 28 mm | 1-1/8" |
| D | 23 mm | 29/32" |
| E | 33 mm | 1-5/16" |
VIP-Chain coupling VVS 16 (7901442)
| Attribute | Value | Value |
|---|
| weight | 1.98 kg | 4.37 lbs |
| Nominal WLL | 10000 kg | 22000 lbs |
| A | 39 mm | 1-9/16" |
| B | 130 mm | 5-1/8" |
| T | 108 mm | 4-1/4"
|
| C | 33 mm | 1-5/16" |
| D | 27 mm | 1-1/16" |
| E | 37 mm | 1-7/16" |
VIP-Chain coupling VVS 20 (7901443)
| Attribute | Value | Value |
|---|
| weight | 3.68 kg | 8.11 lbs |
| Nominal WLL | 16000 kg | 35300 lbs |
| A | 42 mm | 1-21/32" |
| B | 154 mm | 6-1/16" |
| T | 124 mm | 4-7/8"
|
| C | 41 mm | 1-5/8" |
| D | 34 mm | 1-11/32" |
| E | 42 mm | 1-21/32" |
VIP-Chain coupling VVS 22 (7901444)
| Attribute | Value | Value |
|---|
| weight | 4.78 kg | 10.54 lbs |
| Nominal WLL | 20000 kg | 44000 lbs |
| A | 48 mm | 1-7/8" |
| B | 172 mm | 6-25/32" |
| T | 138 mm | 5-7/16"
|
| C | 44 mm | 1-3/4" |
| D | 36 mm | 1-27/64" |
| E | 47 mm | 1-7/8" |
VIP-Chain coupling VVS 28 (7901445)
| Attribute | Value | Value |
|---|
| weight | 10.65 kg | 23.48 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| A | 69 mm | 2-23/32" |
| B | 228 mm | 9" |
| T | 189 mm | 7-7/16"
|
| C | 58 mm | 2-9/32" |
| D | 47 mm | 1-7/8" |
| E | 67 mm | 2-5/8" |
