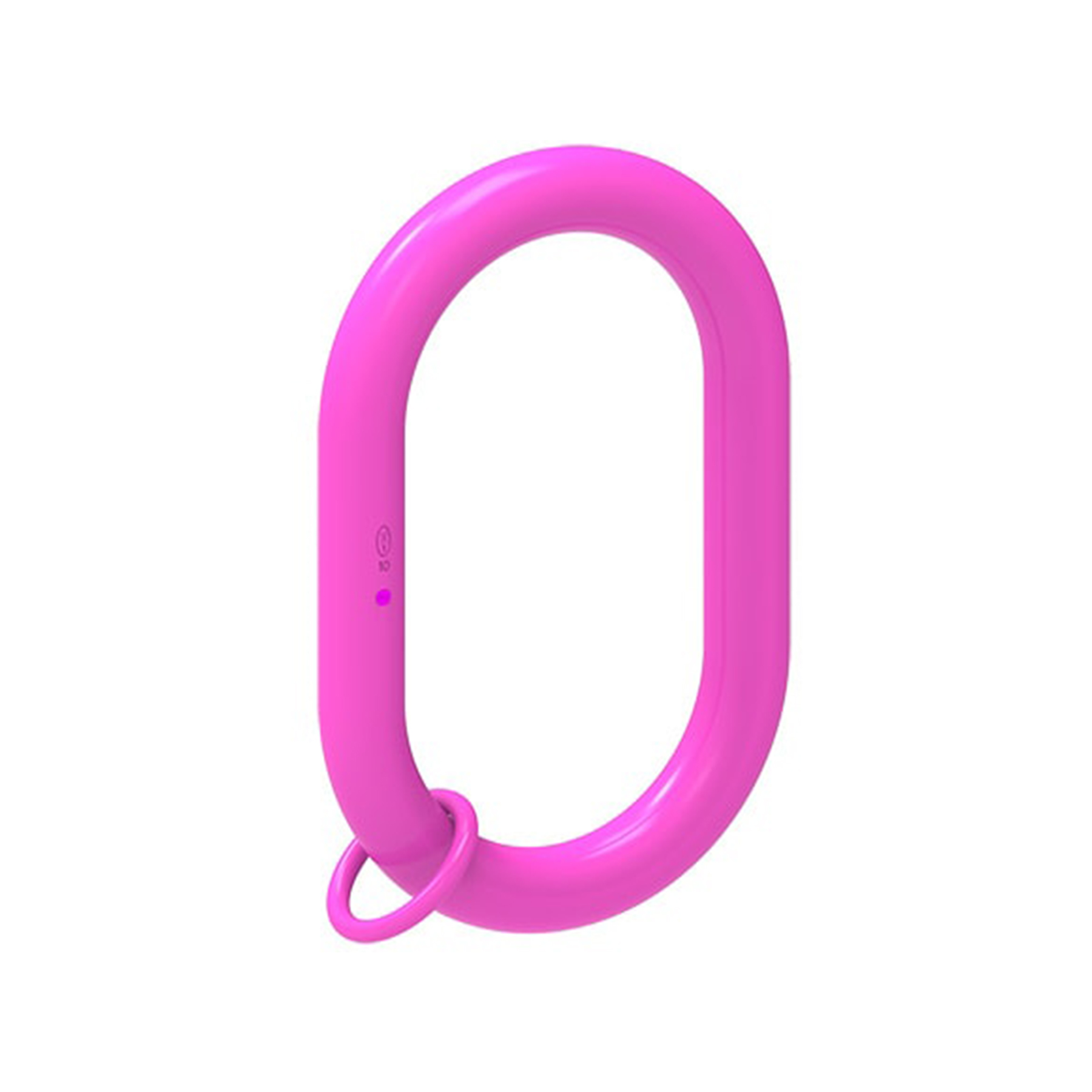

VIP Master Link

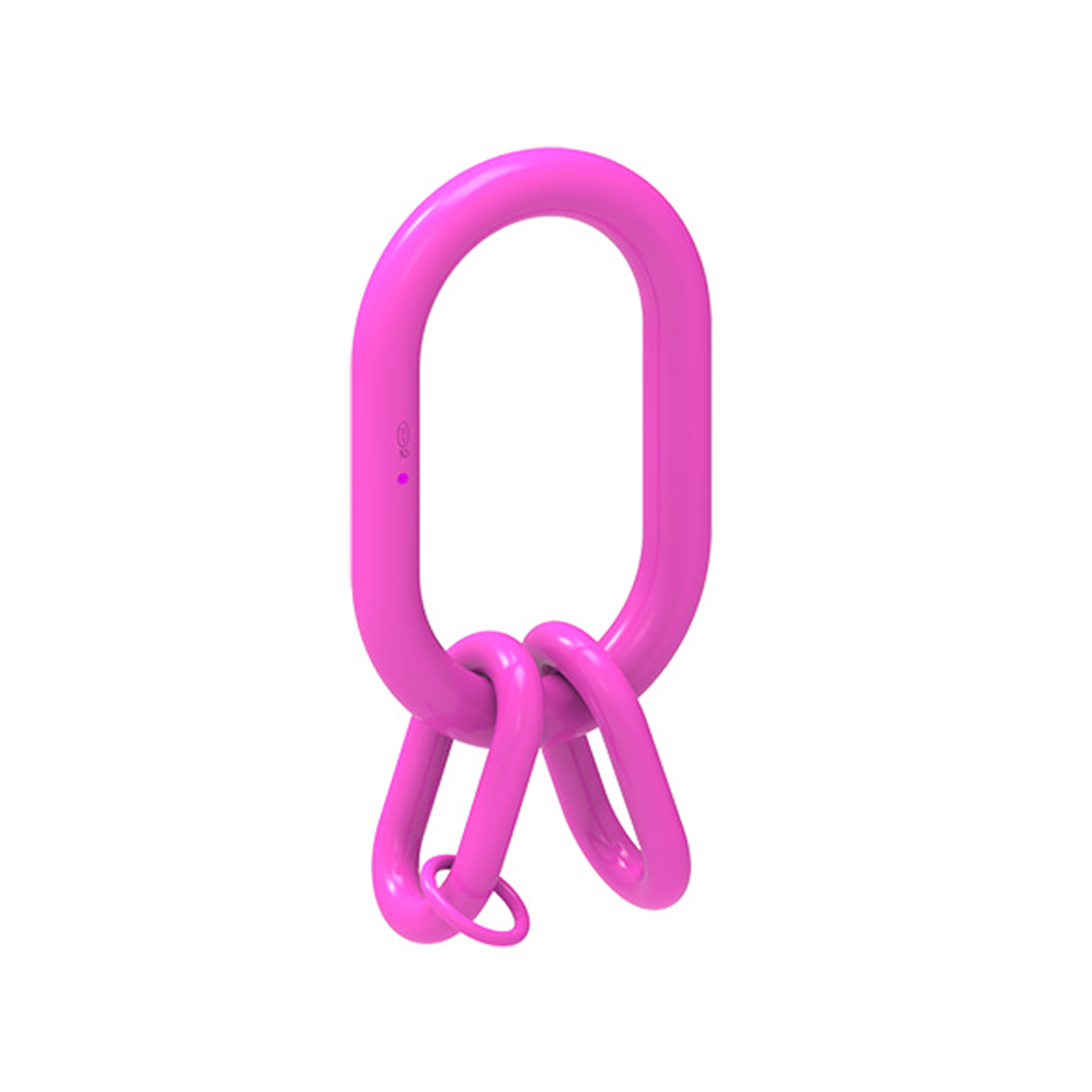

VIP Master Link - Image 2

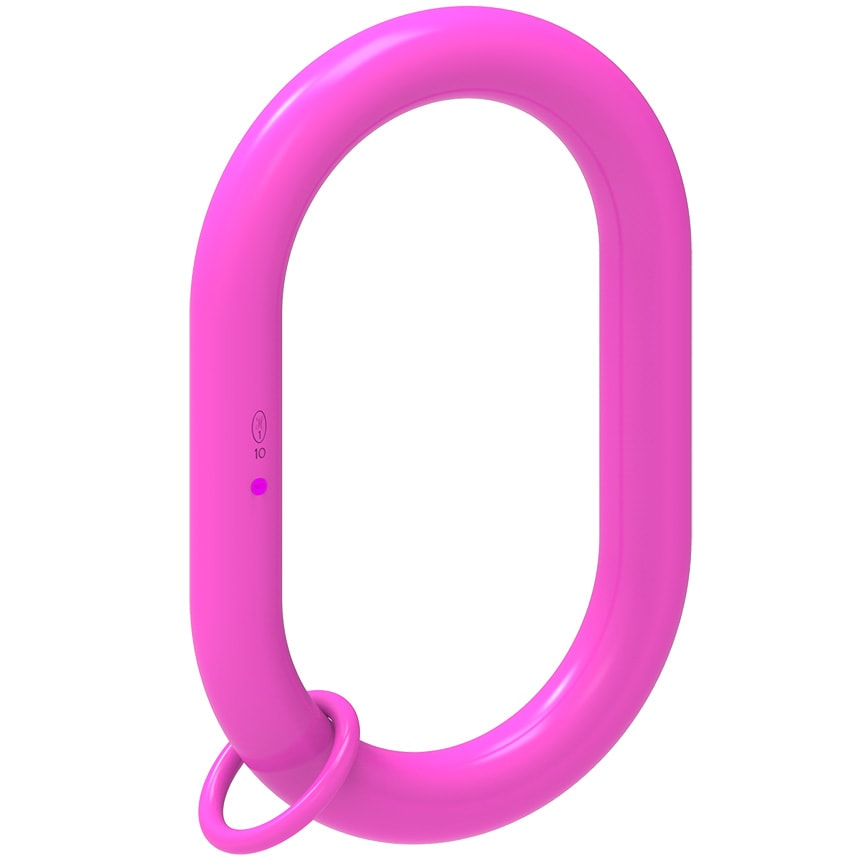

VIP Master Link

VIP Master link is marked by the RUD-ID-TAG® (RFID chip) and with a clear identification number
Manufactured according to DIN EN 1677-4

Note: When preparing the coupling arrangement, always confirm that the right combination is used - number of legs, WLL and chain diameter.

Product Variants (26)

VIP-Master link VA 13 without connector (7987509)

Technical Information

Product number: 7987509

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 13 ohne Ringgabel Download File

VIP-Aufhängeglied VA 13 ohne Ringgabel Download File

VIP-Aufhängeglied VA 13 ohne Ringgabel Download File

VIP-Master link VA 13 without connector Download File

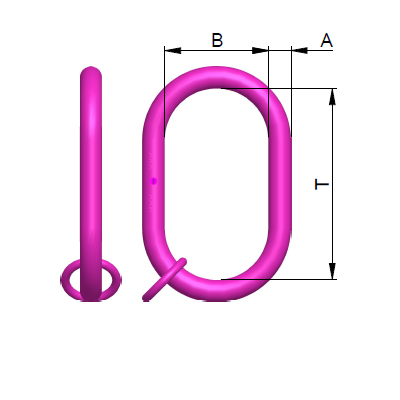

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	1500 kg	3300 lbs
A	13.0 mm	1/2"
B	60.0 mm	2-3/8"
T	110.0 mm	4-11/32"

VIP-Master link VA 16 without connector (7987510)

Technical Information

Product number: 7987510

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 16 ohne Ringgabel Download File

VIP-Aufhängeglied VA 16 ohne Ringgabel Download File

VIP-Aufhängeglied VA 16 ohne Ringgabel Download File

VIP-Master link VA 16 without connector Download File

Attribute	Value	Value
weight	0.5 kg	1.10 lbs
Nominal WLL	2500 kg	5500 lbs
A	16.0 mm	5/8"
B	60.0 mm	2-3/8"
T	110.0 mm	4-11/32"

VIP-Master link VA 18 without connector (7987511)

Technical Information

Product number: 7987511

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 18 ohne Ringgabel Download File

VIP-Aufhängeglied VA 18 ohne Ringgabel Download File

VIP-Aufhängeglied VA 18 ohne Ringgabel Download File

VIP-Master link VA 18 without connector Download File

Attribute	Value	Value
weight	0.8 kg	1.76 lbs
Nominal WLL	4000 kg	8800 lbs
A	18.0 mm	11/16"
B	75.0 mm	2-15/16"
T	135.0 mm	5-5/16"

VIP-Master link VA 22 without connector (7987512)

Technical Information

Product number: 7987512

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 22 ohne Ringgabel Download File

VIP-Aufhängeglied VA 22 ohne Ringgabel Download File

VIP-Aufhängeglied VA 22 ohne Ringgabel Download File

VIP-Master link VA 22 without connector Download File

Attribute	Value	Value
weight	1.5 kg	3.31 lbs
Nominal WLL	6700 kg	15000 lbs
A	22.0 mm	7/8"
B	90.0 mm	3-17/32"
T	160.0 mm	6-13/32"

VIP-Master link VA 26 without connector (7987513)

Technical Information

Product number: 7987513

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 26 ohne Ringgabel Download File

VIP-Aufhängeglied VA 26 ohne Ringgabel Download File

VIP-Aufhängeglied VA 26 ohne Ringgabel Download File

VIP-Master link VA 26 without connector Download File

Attribute	Value	Value
weight	2.3 kg	5.07 lbs
Nominal WLL	10000 kg	22000 lbs
A	26.0 mm	1"
B	100.0 mm	3-15/16"
T	180.0 mm	7-1/16"

VIP-Master link VA 32 without connector (7987514)

Technical Information

Product number: 7987514

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 32 ohne Ringgabel Download File

VIP-Aufhängeglied VA 32 ohne Ringgabel Download File

VIP-Aufhängeglied VA 32 ohne Ringgabel Download File

VIP-Master link VA 32 without connector Download File

Attribute	Value	Value
weight	3.9 kg	8.60 lbs
Nominal WLL	14000 kg	31600 lbs
A	32.0 mm	1-1/4"
B	110.0 mm	4-11/32"
T	200.0 mm	7-7/8"

VIP-Master link VA 36 without connector (7902741)

Technical Information

Product number: 7902741

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VA 36 - DXF 2D CAD File Download File

VA 36 - IGES 3D CAD File Download File

VA 36 - STEP 3D CAD File Download File

VIP-Master link VA 36 without connector Download File

Attribute	Value	Value
weight	6.44 kg	14.20 lbs
Nominal WLL	21000 kg
A	36 mm	1-27/64"
B	140 mm	5-1/2"
T	260 mm	10-1/4"

VIP-Master link VA 40 without connector (7991031)

Technical Information

Product number: 7991031

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 40 ohne Ringgabel Download File

VIP-Aufhängeglied VA 40 ohne Ringgabel Download File

VIP-Aufhängeglied VA 40 ohne Ringgabel Download File

VIP-Master link VA 40 without connector Download File

Attribute	Value	Value
weight	9.5 kg	21.0 lbs
Nominal WLL	22400 kg	49400 lbs
A	40.0 mm	1-37/64"
B	180.0 mm	7-5/64"
T	340.0 mm	13-3/8"

VIP-Master link VA 45 without connector (7991032)

Technical Information

Product number: 7991032

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Aufhängeglied VA 45 ohne Ringgabel Download File

VIP-Aufhängeglied VA 45 ohne Ringgabel Download File

VIP-Aufhängeglied VA 45 ohne Ringgabel Download File

VIP-Master link VA 45 without connector Download File

Attribute	Value	Value
weight	12.8 kg	28.0 lbs
Nominal WLL	28000 kg	61600 lbs
A	45.0 mm	1-49/64"
B	180.0 mm	7-5/64"
T	340.0 mm	13-3/8"

VIP-Special-Master link VSA 22x190x350 without connector (7906326)

Technical Information

Product number: 7906326

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 22x190x350 without connector Download File

Attribute	Value	Value
weight	3.10 kg	6.83 lbs
Nominal WLL	3150 kg	6930 lbs
A	22 mm	7/8"
B	190 mm	7-1/2"
T	350 mm	13-3/4"

VIP-Special-Master link VSA 26x190x350 without connector (7906327)

Technical Information

Product number: 7906327

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 26x190x350 without connector Download File

Attribute	Value	Value
weight	4.33 kg	9.55 lbs
Nominal WLL	5250 kg	11550 lbs
A	26 mm	1"
B	190 mm	7-1/2"
T	350 mm	13-3/4"

VIP-Special-Master link VSA 36x250x460 without connector (7987197)

Technical Information

Product number: 7987197

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 36x250x460 without connector Download File

Attribute	Value	Value
weight	11.15 kg	24.58 lbs
Nominal WLL	8400 kg	18480 lbs
A	36 mm	1-27/64"
B	250 mm	9-13/16"
T	460 mm	18-1/8"

VIP-Special-Master link VSA 40x250x460 without connector (7981588)

Technical Information

Product number: 7981588

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 40x250x460 without connector Download File

Attribute	Value	Value
weight	13.80 kg	30.42 lbs
Nominal WLL	14000 kg	30800 lbs
A	40 mm	1-9/16"
B	250 mm	9-13/16"
T	460 mm	18-1/8"

VIP-Special-Master link VSA 51x250x460 without connector (7906328)

Technical Information

Product number: 7906328

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 51x250x460 without connector Download File

Attribute	Value	Value
weight	22.80 kg	50.27 lbs
Nominal WLL	21000 kg	46200 lbs
A	51 mm	2"
B	250 mm	9-13/16"
T	460 mm	18-1/8"

VIP-Special-Master link VSA 54x250x460 without connector (7906329)

Technical Information

Product number: 7906329

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 54x250x460 without connector Download File

Attribute	Value	Value
weight	24.70 kg	54.45 lbs
Nominal WLL	33600 kg	73920 lbs
A	54 mm	2-1/8"
B	250 mm	9-13/16"
T	460 mm	18-1/8"

VIP-Special-Master link VSA 56x250x460 without connector (7906330)

Technical Information

Product number: 7906330

Technical Downloads

VA-GLD - Picture Download File

VA-GLD - Picture Download File

VIP-Special-Master link VSA 56x250x460 without connector Download File

Attribute	Value	Value
weight	26.70 kg	58.86 lbs
Nominal WLL	42000 kg	92400 lbs
A	56 mm	2-3/16"
B	250 mm	9-13/16"
T	460 mm	18-1/8"

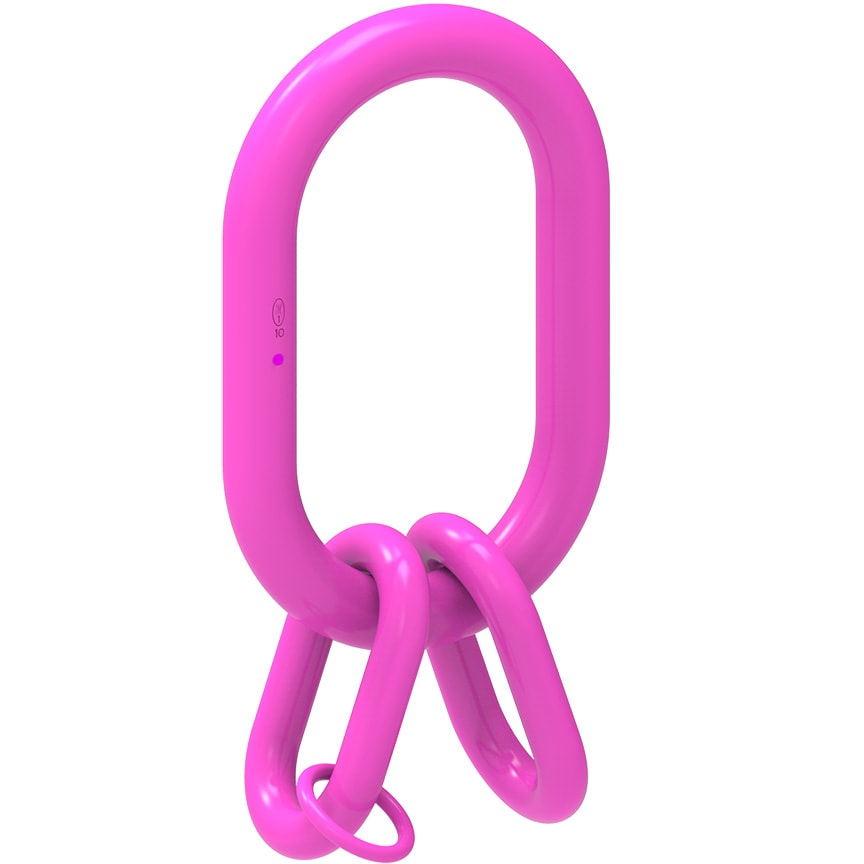

VIP-Master link VAKO 3/4-6 without connector (7987515)

Technical Information

Product number: 7987515

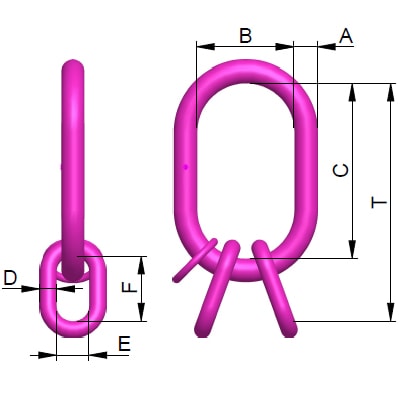

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-6 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-6 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-6 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-6 without connector Download File

Attribute	Value	Value
weight	1.2 kg	2.65 lbs
Nominal WLL	3150 kg	6900 lbs
A	18.0 mm	11/16"
B	75.0 mm	2-15/16"
T	190.0 mm	7-1/2"
C	135 mm	5-5/16"
D	13 mm	1/2"
E	25 mm	63/64"
F	54 mm	2-1/8"

VIP-Master link VAKO 3/4-8 without connector (7987516)

Technical Information

Product number: 7987516

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-8 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-8 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-8 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-8 without connector Download File

Attribute	Value	Value
weight	2.2 kg	4.85 lbs
Nominal WLL	5250 kg	12000 lbs
A	22.0 mm	7/8"
B	90.0 mm	3-17/32"
T	210.0 mm	8-1/4"
C	160 mm	6-13/32"
D	16 mm	5/8"
E	34 mm	1-11/32"
F	70 mm	2-3/4"

VIP-Master link VAKO 3/4-10 without connector (7987518)

Technical Information

Product number: 7987518

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-10 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-10 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-10 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-10 without connector Download File

Attribute	Value	Value
weight	3.4 kg	7.50 lbs
Nominal WLL	8400 kg	18500 lbs
A	26.0 mm	1"
B	100.0 mm	3-15/16"
T	265.0 mm	10-7/16"
C	180 mm	7-1/16"
D	18 mm	11/16"
E	40 mm	1-9/16"
F	85 mm	3-11/32"

VIP-Master link VAKO 3/4-13 without connector (7987519)

Technical Information

Product number: 7987519

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-13 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-13 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-13 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-13 without connector Download File

Attribute	Value	Value
weight	6.0 kg	13.2 lbs
Nominal WLL	14000 kg	31600 lbs
A	32.0 mm	1-1/4"
B	110.0 mm	4-5/16"
T	315.0 mm	12-1/4"
C	200 mm	7-7/8"
D	22 mm	7/8"
E	50 mm	2"
F	115 mm	4-17/32"

VIP-Master link VAKO 3/4-16 without connector (7987520)

Technical Information

Product number: 7987520

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-16 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-16 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-16 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-16 without connector Download File

Attribute	Value	Value
weight	10.0 kg	22.0 lbs
Nominal WLL	21000 kg	47400 lbs
A	36.0 mm	1-7/16"
B	140.0 mm	5-1/2"
T	400.0 mm	15-3/4"
C	260 mm	10-1/4"
D	26 mm	1"
E	65 mm	2-9/16"
F	140 mm	5-1/2"

VIP-Master link VAKO 3/4-22 without connector (7991034)

Technical Information

Product number: 7991034

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-22 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-22 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-22 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-22 without connector Download File

Attribute	Value	Value
weight	27.2 kg	60.0 lbs
Nominal WLL	42000 kg	92400 lbs
A	51.0 mm	2"
B	190.0 mm	7-31/64"
T	550.0 mm	21-21/32"
C	350 mm	13-25/32"
D	36 mm	1-13/32"
E	110 mm	4-11/32
F	200 mm	7-7/8"

VIP-Master link VAKO 3/4-20 without connector (7991033)

Technical Information

Product number: 7991033

VIP Master links, ECS 681 7

Technical Downloads

VIP-Aufhängekopf VAKO 3/4-20 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-20 ohne Ringgabel Download File

VIP-Aufhängekopf VAKO 3/4-20 ohne Ringgabel Download File

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-20 without connector Download File

Attribute	Value	Value
weight	25.0 kg	55.0 lbs
Nominal WLL	33600 kg	74100 lbs
A	51.0 mm	2"
B	190.0 mm	7-31/64"
T	520.0 mm	20-15/32"
C	350 mm	13-25/32"
D	32 mm	1-1/4"
E	75 mm	2-61-64"
F	170 mm	6-11/16"

VIP-Master link VAKO 3/4-28 without connector (7905159)

Technical Information

Product number: 7905159

VIP Master links, ECS 681 7

Technical Downloads

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VAKO 3/4-28 without connector Download File

Attribute	Value	Value
weight	68.00 kg	149.91 lbs
Nominal WLL	67000 kg
A	71 mm	2-13/16"
B	250 mm	9-13/16"
T	660 mm	25-31/32"
C	460 mm	18-1/8"
D	50 mm	1-31/32"
E	100 mm	3-15/16"
F	200 mm	7-7/8"

VIP-Master link VSAKO 3/4-20/250 without connector (7993208)

Technical Information

Product number: 7993208

VIP Master links, ECS 681 7

Technical Downloads

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VSAKO 3/4-20/250 without connector Download File

Attribute	Value	Value
weight	33.33 kg	73.48 lbs
Nominal WLL	33600 kg	74100 lbs
A	54 mm	2-1/8"
B	250 mm	9-13/16"
T	630 mm	24-13/16"
C	460 mm	18-1/8"
D	36 mm	1-27/64"
E	75 mm	2-15/16"
F	170 mm	6-11/16"

VIP-Master link VSAKO 3/4-22/250 without connector (7993209)

Technical Information

Product number: 7993209

VIP Master links, ECS 681 7

Technical Downloads

VAKO - Picture Download File

VAKO - Picture Download File

VIP-Master link VSAKO 3/4-22/250 without connector Download File

Attribute	Value	Value
weight	37.70 kg	83.11 lbs
Nominal WLL	42000 kg	92400 lbs
A	56 mm	2-3/16"
B	250 mm	9-13/16"
T	630 mm	24-13/16"
C	460 mm	18-1/8"
D	40 mm	1-9/16"
E	80 mm	3-1/8"
F	170 mm	6-11/16"

Legal Disclaimer

Enquire About This Product

X/Twitter
This field is for validation purposes and should be left unchanged.
Name*
First Last
Company**
Untitled
Country
State **
Your Phone*
Email Address*
Message*
