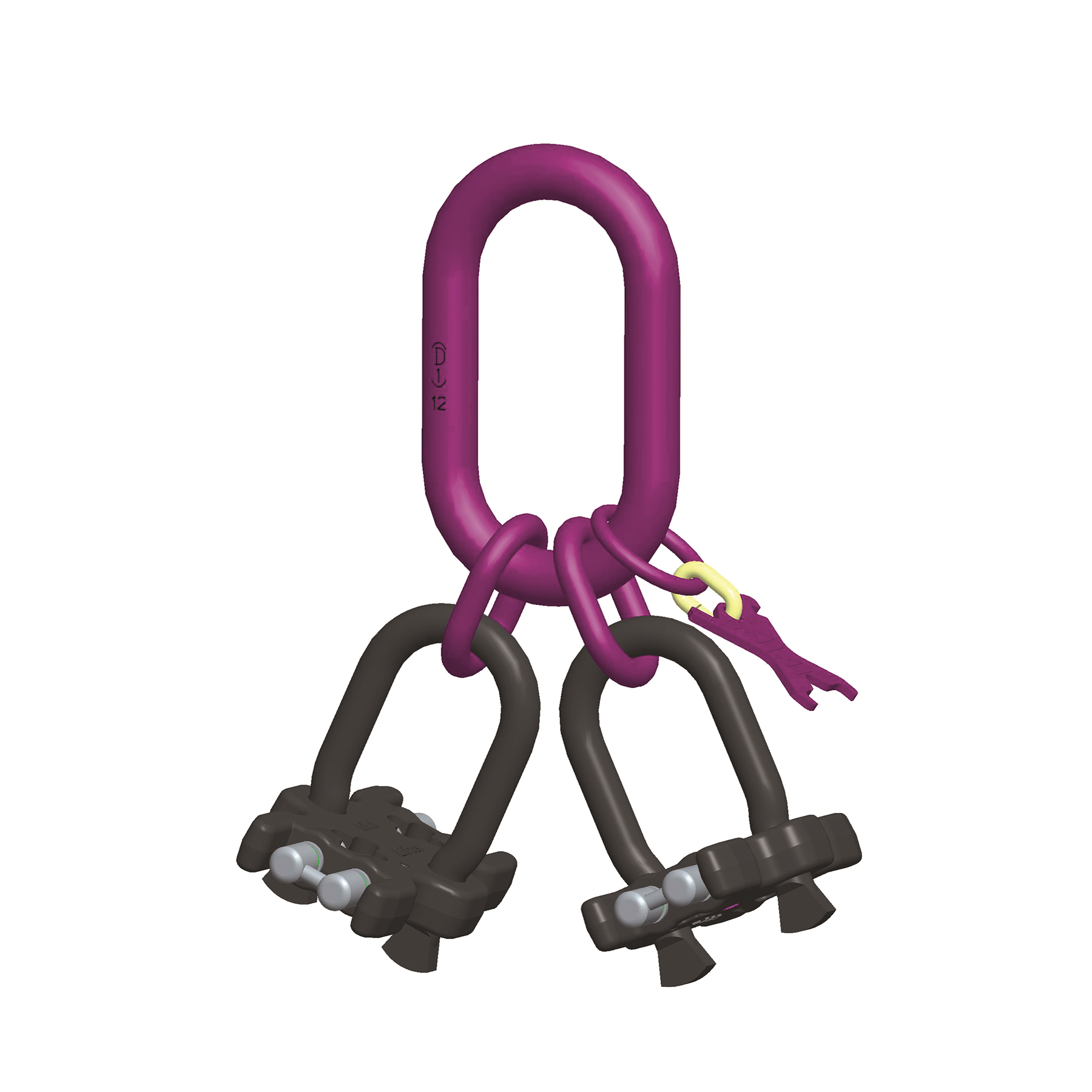

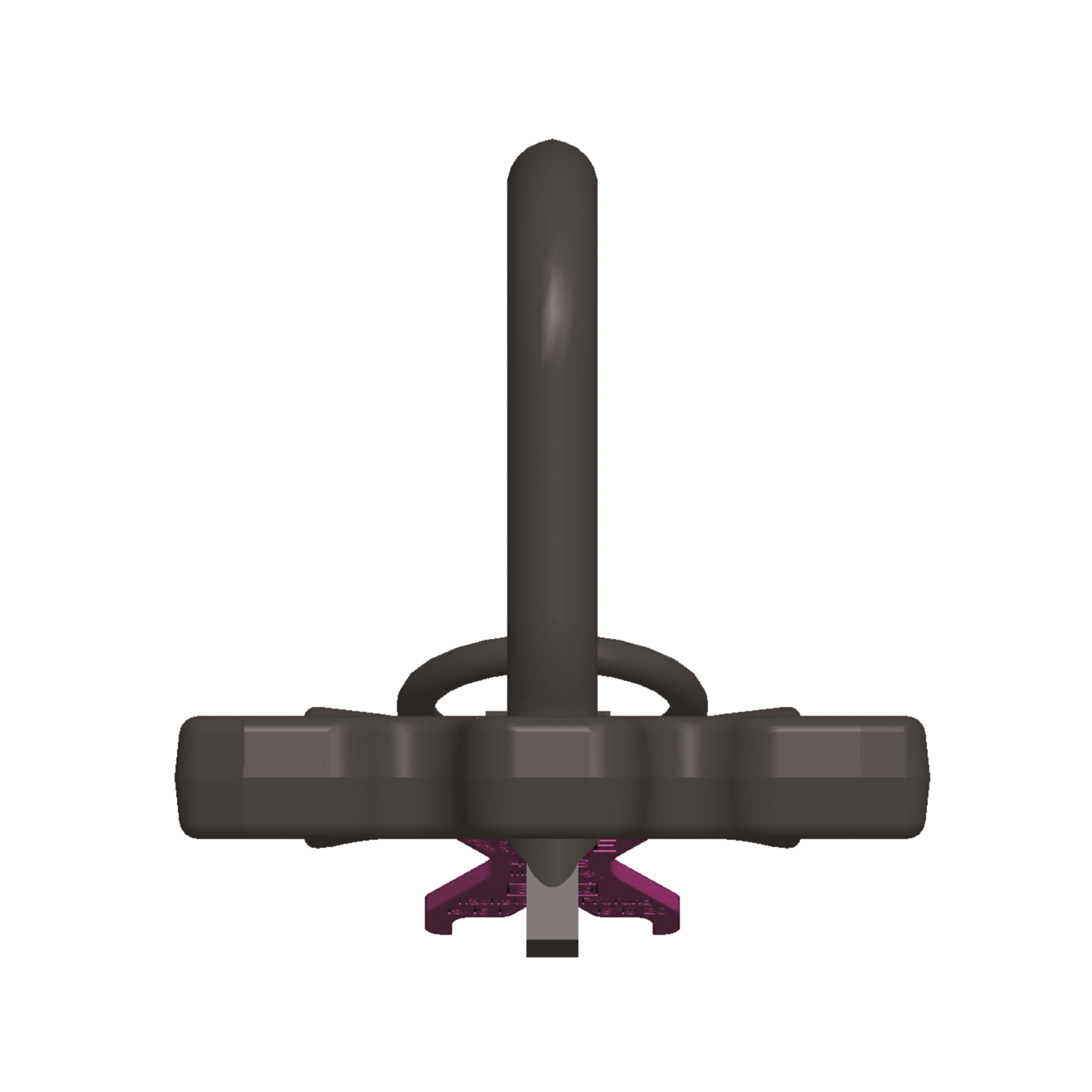

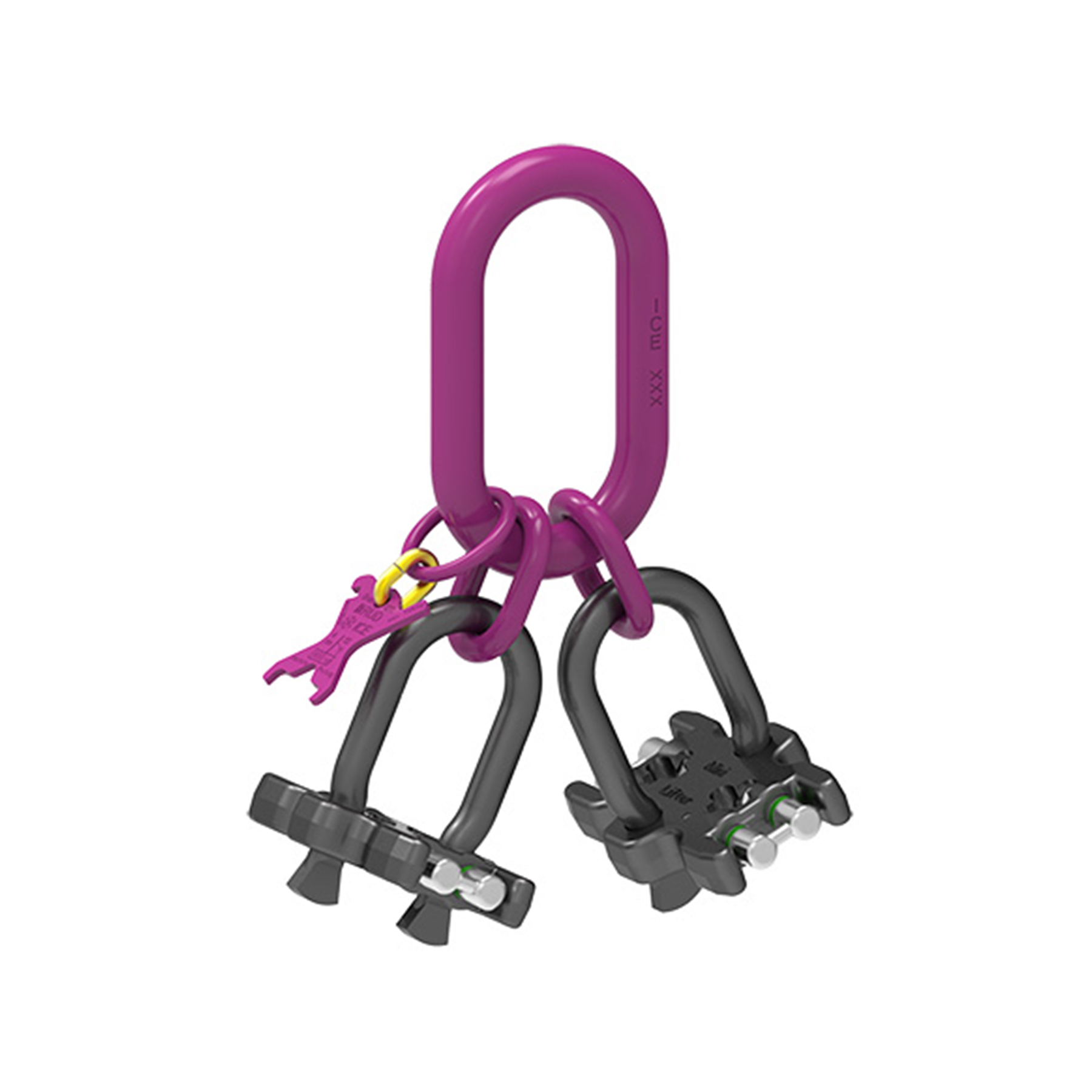

ICE 120 Mini-Lifter

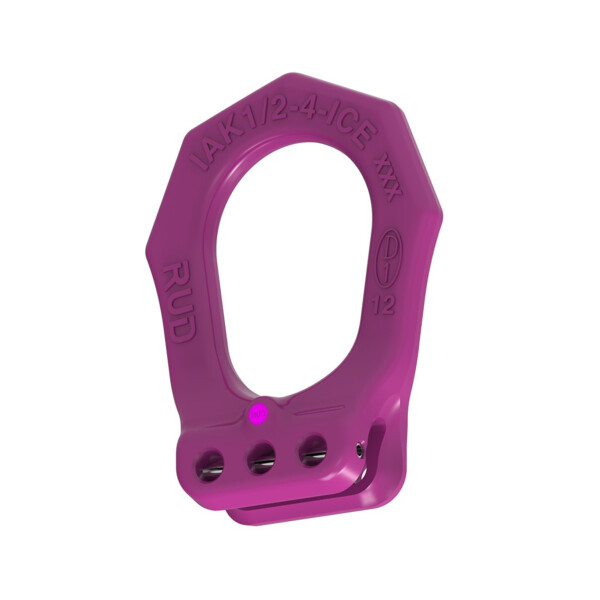

- Master link with an integrated shortening option developed specially for 4mm ICE 120 Lifting Chain
- The chain crucifix can be freed by pressing the locking bolt
- The chain can be mounted and can be adjusted to the desired length
- Ideal to lift small loads up to 1400 kg (in a 2, 3 or 4-Leg application)
- ICE Mini-Lifters are available as IML 2-4 and IML 4-4
- Fitted with RUD-ID-TAG® (RFID chip) and marked with a clear identification number.
Product Variants (3)

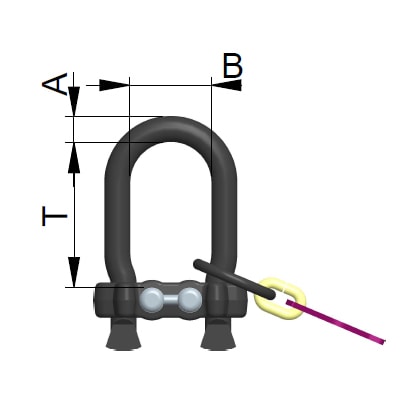

ICE-Mini-Lifter IML 2-4 with shortening device (7905075)
| Attribute | Value | Value |
|---|
| weight | 0.35 kg | 0.77 lbs |
| Nominal WLL | 1120 kg | 1760 lbs |
| A | 10 mm | 3/8" |
| B | 30 mm | 1-3/16" |
| T | 66 mm | 2-5/8" |

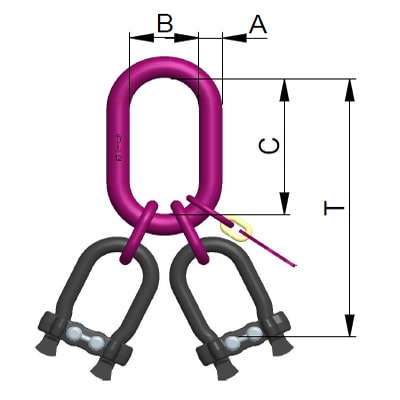

ICE-Mini-Lifter IML 4-4 with shortening device (7905076)
| Attribute | Value | Value |
|---|
| weight | 0.87 kg | 1.92 lbs |
| Nominal WLL | 1700 kg | 3740 lbs |
| T | 156 mm | 6-5/32" |
| A | 11 mm | 7/16" |
| B | 35 mm | 1-3/8" |
| C | 60 mm | 2-3/8" |

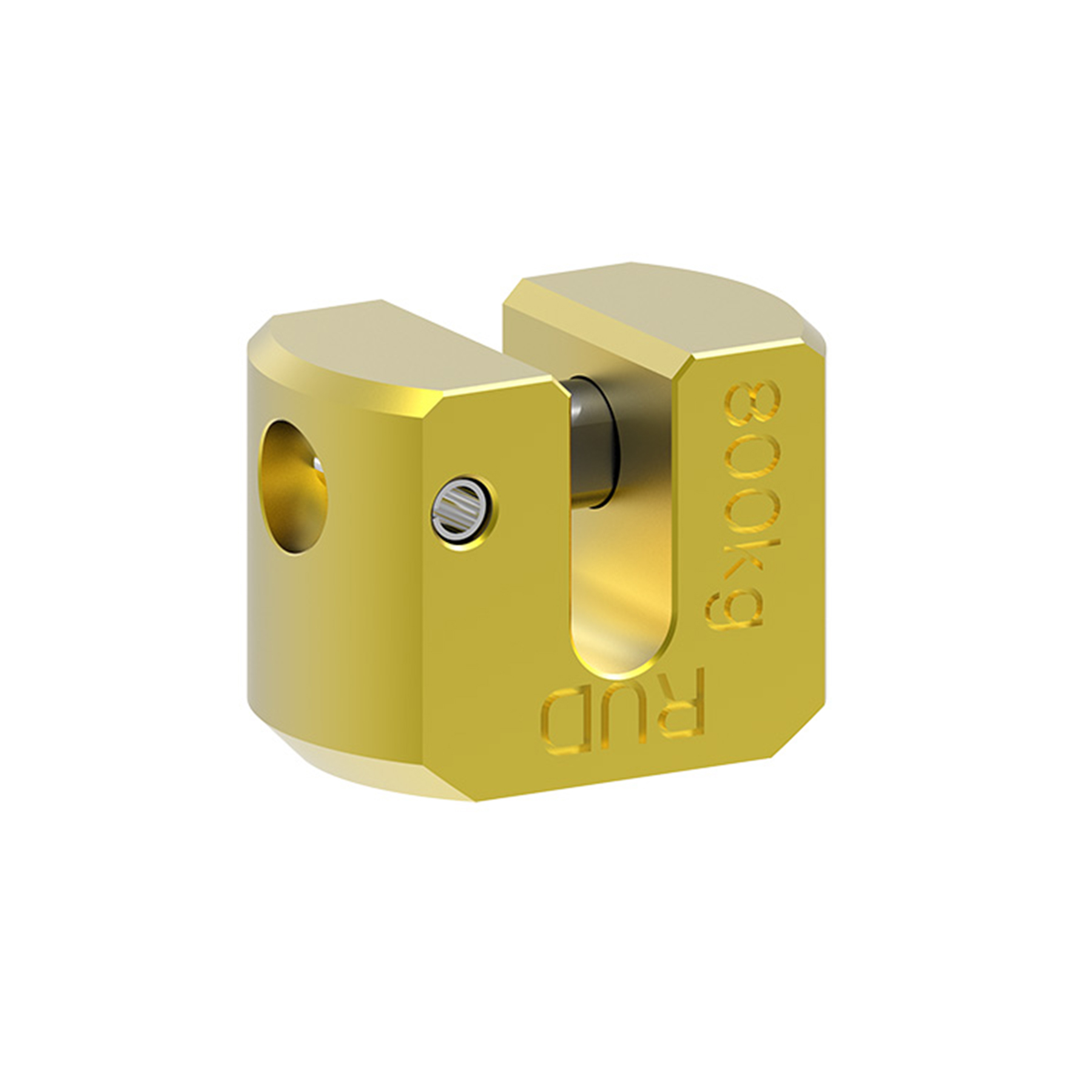

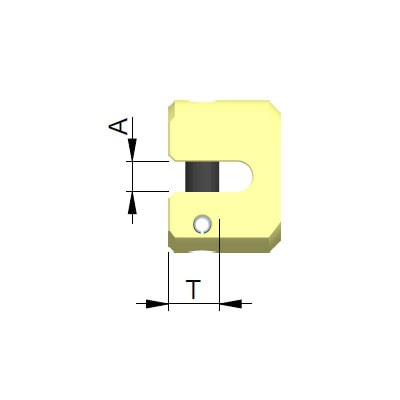

ICE-End-Closelink for 4mm Chain (7905039)
| Attribute | Value | Value |
|---|
| weight | 0.04 kg | 0.09 lbs |
| Nominal WLL | 800 kg | 1760 lbs |
| T | 12 mm | 11/32" |
| A | 4.8 mm | 3/16" |
