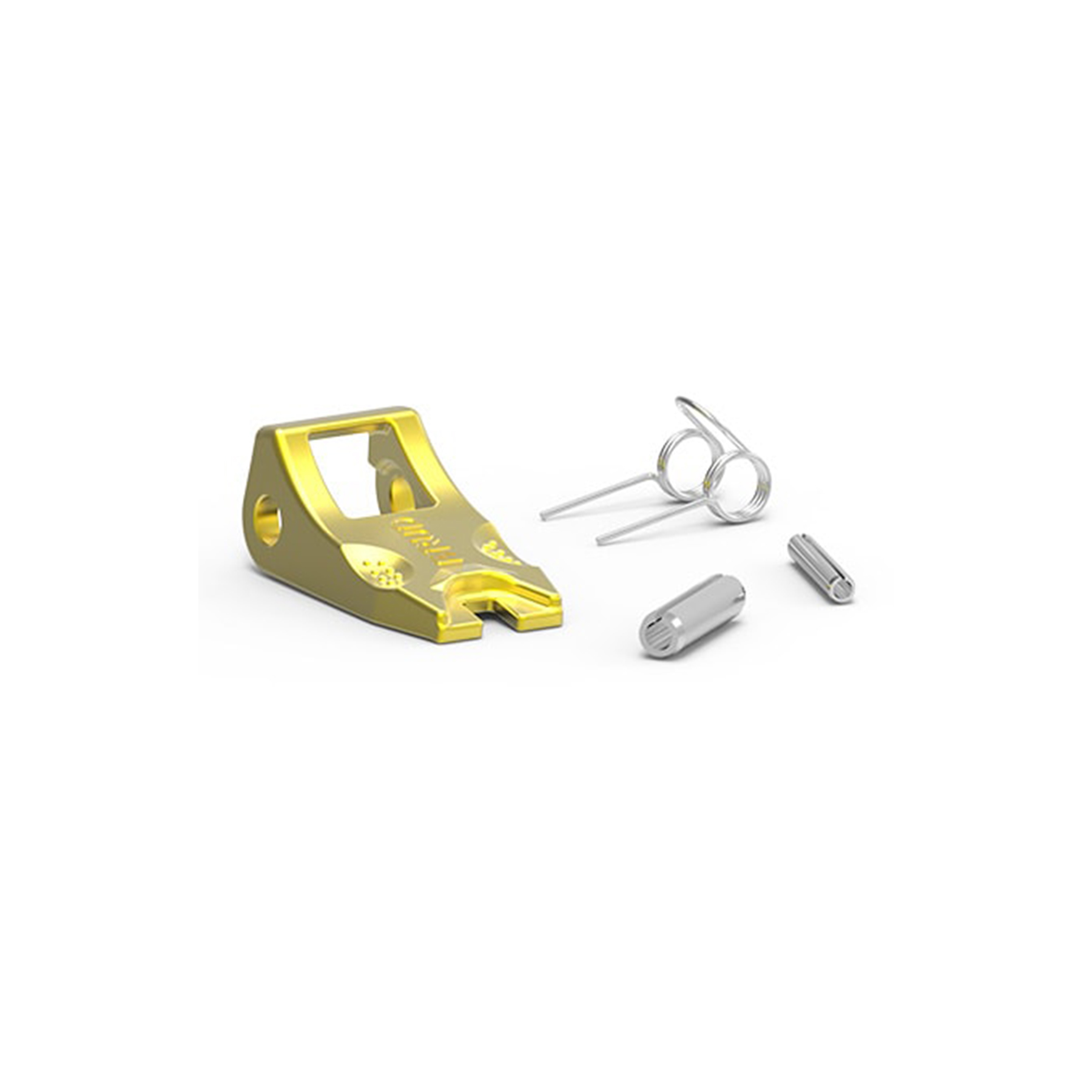

ISH Safety Set
Consisting of a forged safety latch, a triple coiled corrosion protected double leg spring and a tensioning sleeve. Only whole sets can be supplied. Can easily be assembled and disassembled using a hammer and a drift punch.
Consisting of a forged safety latch, a triple coiled corrosion protected double leg spring and a tensioning sleeve. Only whole sets can be supplied. Can easily be assembled and disassembled using a hammer and a drift punch.
Product number: 7987901

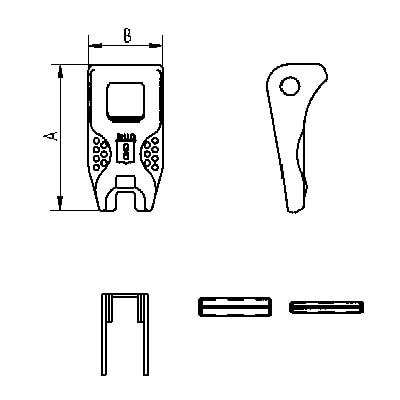

Attribute | Value | Value |
---|---|---|
weight | 0.02 kg | 0.04 lbs |
A | 36 mm | 1-27/64" |
B | 17 mm | 43/64" |
Product number: 7100300
Attribute | Value | Value |
---|---|---|
weight | 0.09 kg | 0.20 lbs |
A | 60 mm | 2-3/8" |
B | 26 mm | 1" |
Product number: 7100301
Attribute | Value | Value |
---|---|---|
weight | 0.12 kg | 0.26 lbs |
A | 66 mm | 2-5/8" |
B | 33 mm | 1-5/16" |
Product number: 7100302
Attribute | Value | Value |
---|---|---|
weight | 0.17 kg | 0.37 lbs |
A | 77 mm | 3"-1/32" |
B | 38 mm | 1-1/2" |
Product number: 7100303
Attribute | Value | Value |
---|---|---|
weight | 0.33 kg | 0.73 lbs |
A | 92 mm | 3-5/8" |
B | 50 mm | 1-31/32" |
Product number: 7900419
Attribute | Value | Value |
---|---|---|
weight | 0.38 kg | 0.84 lbs |
A | 100 mm | 3-15/16" |
B | 51 mm | 2" |
