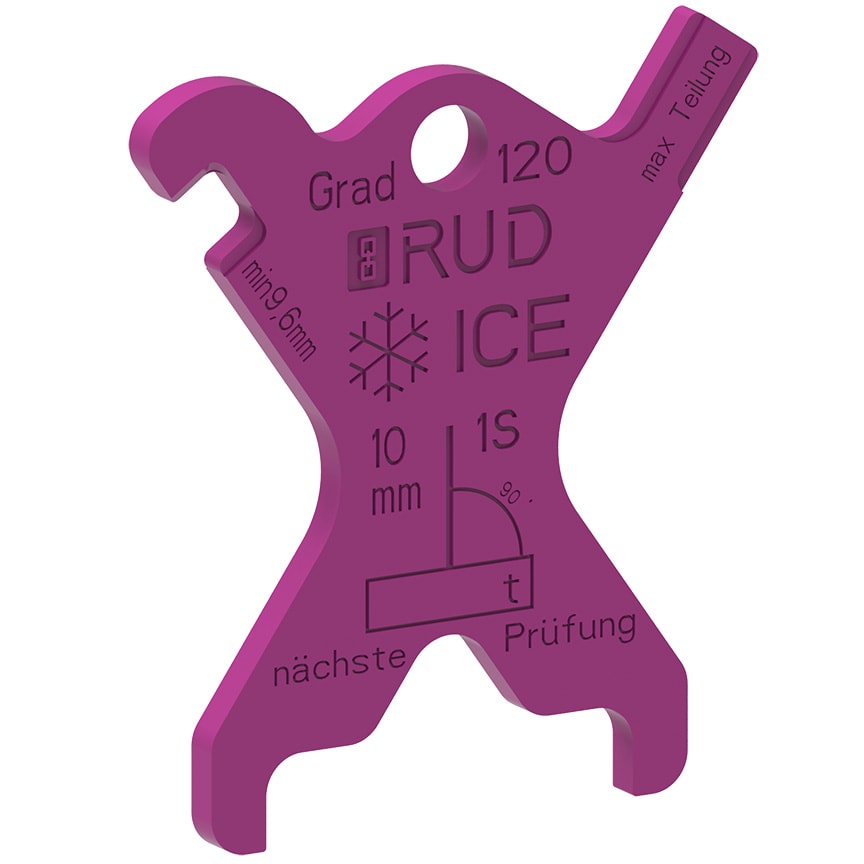

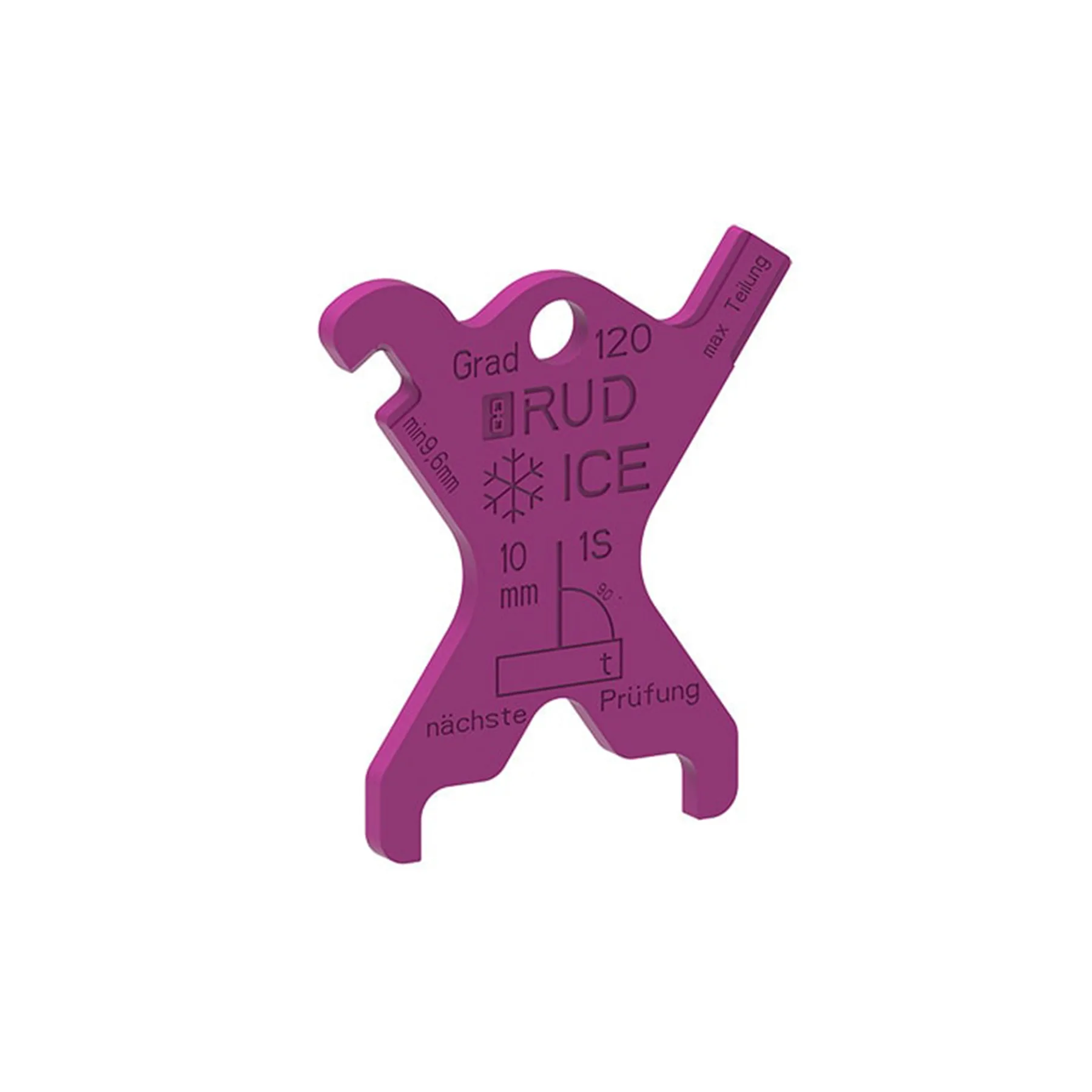

ICE Identification tag

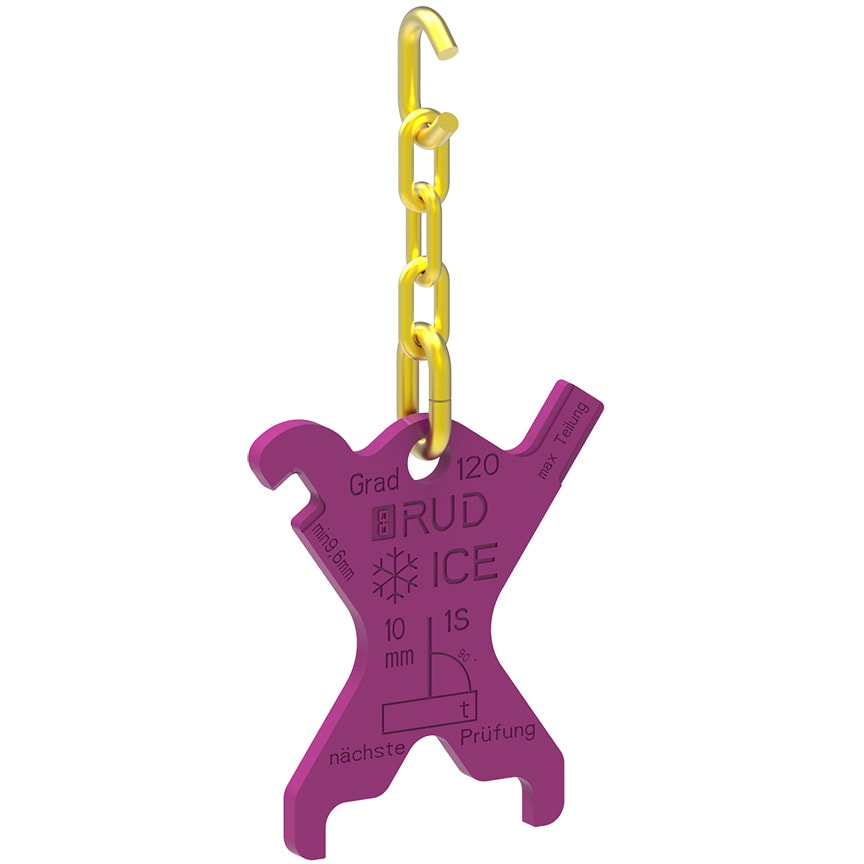

ICE identification tag with an integrated chain testing gauge, complete with a fastening chain.

The following chain characteristics can be tested with the gauge:

Wear of nominal diameter.
Pitch elongation (caused by wear of nominal diameter)
Plastic elongation (caused by overloading)

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Email
This field is for validation purposes and should be left unchanged.

Product Variants (13)

ICE-Identification tag IKZA-Universal (7901059)

Technical Information

Product number: 7901059

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA-Universal Download File

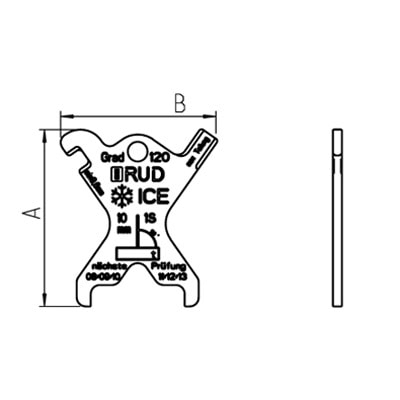

Attribute	Value	Value
weight	0.19 kg	0.42 lbs
A	100 mm	3-15/16"
B	88 mm	3-15/32"

ICE-Identification tag IKZA 4 (7905223)

Technical Information

Product number: 7905223

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA 4 Download File

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	39 mm	1-9/16"
B	34 mm	1-11/32"

ICE-Identification tag IKZA 6 (7998736)

Technical Information

Product number: 7998736

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA 6 Download File

Attribute	Value	Value
weight	0.08 kg	0.18 lbs
A	59 mm	2-15/16"
B	52 mm	2-1/16"

ICE-Identification tag IKZA 8 (7995552)

Technical Information

Product number: 7995552

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA 8 Download File

Attribute	Value	Value
weight	0.13 kg	0.29 lbs
A	81 mm	3-3/16"
B	71 mm	2-13/16"

ICE-Identification tag IKZA 10 (7995553)

Technical Information

Product number: 7995553

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA 10 Download File

Attribute	Value	Value
weight	0.2 kg	0.44 lbs
A	99.0 mm	3-7/8"
B	87.0 mm	3-7/16"

ICE-Identification tag IKZA 13 (7995554)

Technical Information

Product number: 7995554

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA 13 Download File

Attribute	Value	Value
weight	0.31 kg	0.68 lbs
A	128.0 mm	5"
B	112.0 mm	4-13/32"

ICE-Identification tag IKZA 16 (7998956)

Technical Information

Product number: 7998956

Technical Downloads

ICE-KZA - Picture Download File

ICE-Identification tag IKZA 16 Download File

Attribute	Value	Value
weight	0.49 kg	1.08 lbs
A	158 mm	6-1/4"
B	138 mm	5-7/16"

ICE-Testing gauge IKPL-4 (7904970)

Technical Information

Product number: 7904970

Technical Downloads

ICE-KPL - Picture Download File

ICE-Testing gauge IKPL-4 Download File

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	39 mm	1-9/16"
B	34 mm	1-11/32"

ICE-Testing gauge IKPL-6 (7998167)

Technical Information

Product number: 7998167

Technical Downloads

ICE-KPL - Picture Download File

ICE-Testing gauge IKPL-6 Download File

Attribute	Value	Value
weight	0.06 kg	0.13 lbs
A	59 mm	2-15/16"
B	52 mm	2-1/16"

ICE-Testing gauge IKPL-8 (7995525)

Technical Information

Product number: 7995525

Technical Downloads

ICE-KPL - Picture Download File

ICE-Testing gauge IKPL-8 Download File

Attribute	Value	Value
weight	0.1 kg	0.23 lbs
A	81.0 mm
B	71.0 mm

ICE-Testing gauge IKPL-10 (7995521)

Technical Information

Product number: 7995521

Technical Downloads

ICE-KPL - Picture Download File

ICE-Testing gauge IKPL-10 Download File

Attribute	Value	Value
weight	0.16 kg	0.36 lbs
A	99.0 mm
B	87.0 mm

ICE-Testing gauge IKPL-13 (7995530)

Technical Information

Product number: 7995530

Technical Downloads

ICE-KPL - Picture Download File

ICE-Testing gauge IKPL-13 Download File

Attribute	Value	Value
weight	0.28 kg	0.61 lbs
A	128.0 mm
B	112.0 mm

ICE-Testing gauge IKPL-16 (7998949)

Technical Information

Product number: 7998949

Technical Downloads

ICE-KPL - Picture Download File

ICE-Testing gauge IKPL-16 Download File

Attribute	Value	Value
weight	0.42 kg	0.92 lbs
A	158 mm	6-1/4"
B	138 mm	5-7/16"

ENQUIRE ABOUT THIS PRODUCT

ICE Identification tag

Enquire About This Product

Product Variants (13)

ICE-Identification tag IKZA-Universal (7901059)

ICE-Identification tag IKZA 4 (7905223)

ICE-Identification tag IKZA 6 (7998736)

ICE-Identification tag IKZA 8 (7995552)

ICE-Identification tag IKZA 10 (7995553)

ICE-Identification tag IKZA 13 (7995554)

ICE-Identification tag IKZA 16 (7998956)

ICE-Testing gauge IKPL-4 (7904970)

ICE-Testing gauge IKPL-6 (7998167)

ICE-Testing gauge IKPL-8 (7995525)

ICE-Testing gauge IKPL-10 (7995521)

ICE-Testing gauge IKPL-13 (7995530)

ICE-Testing gauge IKPL-16 (7998949)
