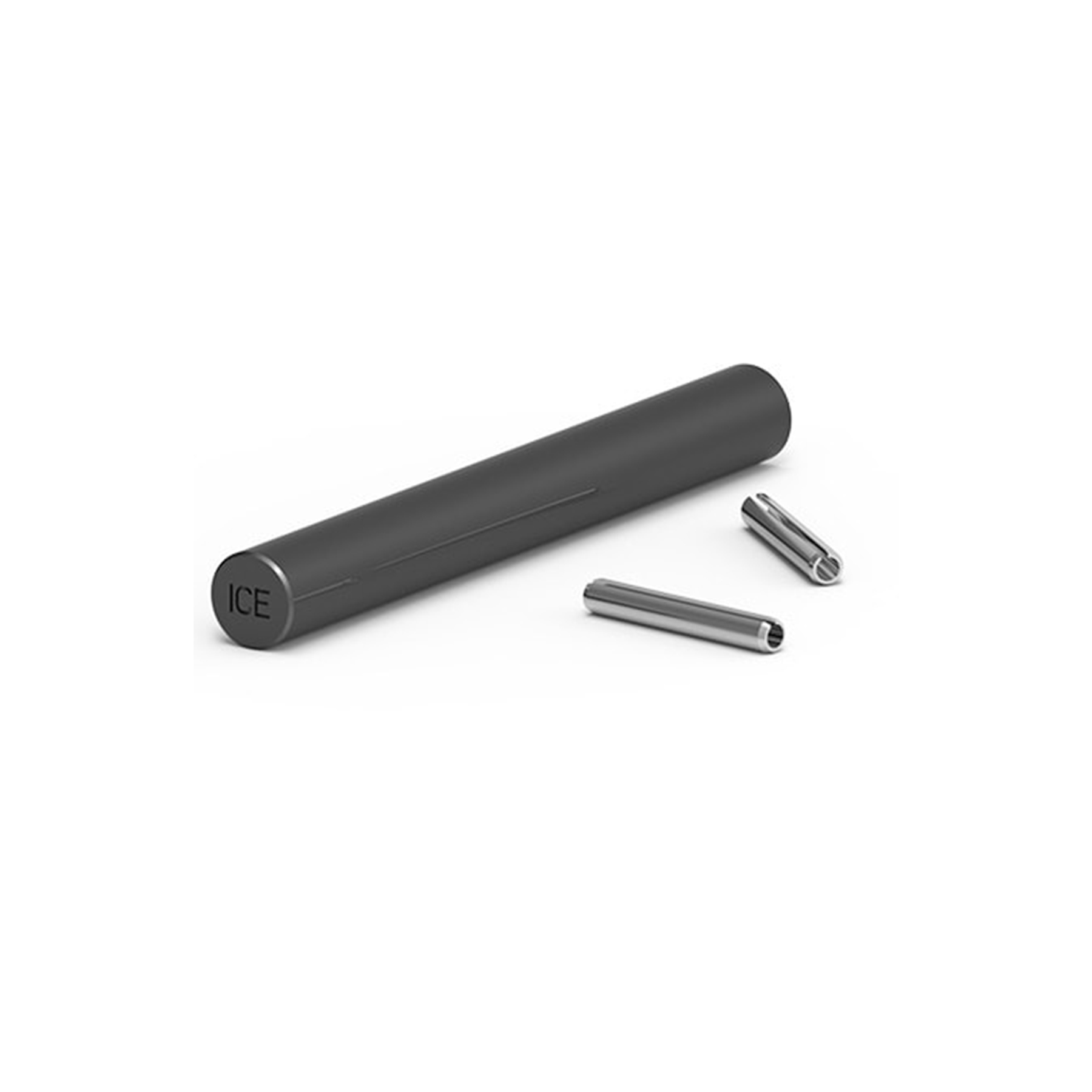

ICE Spare Parts Set for IVS

Spare Parts Set for IVS and VVS

Includes:

1 securing bolt
2 tensioning sleeves

Product Variants (5)

Securing set for IVS-6 and VVS-6 (7903886)

Technical Information

Product number: 7903886

Technical Downloads

Securing set for IVS-6 and VVS-6 Download File

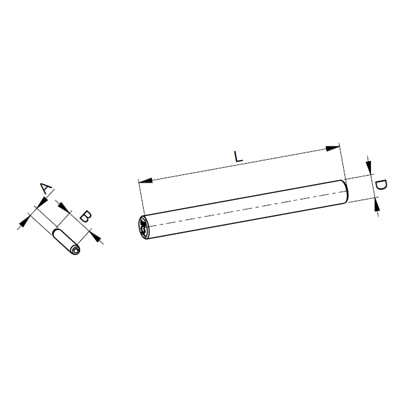

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	2.5 mm	2.5 mm
B	12 mm	15/32"
D	4.8 mm	3/16"
L	45.3 mm	1-25/32"

Securing set for IVS-8 and VVS-8 (7903887)

Technical Information

Product number: 7903887

Technical Downloads

Securing set for IVS-8 and VVS-8 Download File

Attribute	Value	Value
weight	0.02 kg	0.04 lbs
A	2.5 mm	7/64"
B	16 mm	5/8"
D	6.6 mm	17/64"
L	59.5 mm	2-11/32"

Securing set for IVS-10 and VVS-10 ( 7903888)

Technical Information

Product number: 7903888

Technical Downloads

Securing set for IVS-10 and VVS-10 Download File

Attribute	Value	Value
weight	0.03 kg	0.07 lbs
A	3 mm	1/8"
B	20 mm	3/4"
D	8.3 mm	21/64"
L	73 mm	2-7/8"

Securing set for IVS-13 and VVS-13 (7903889)

Technical Information

Product number: 7903889

Technical Downloads

Securing set for IVS-13 and VVS-13 Download File

Attribute	Value	Value
weight	0.07 kg	0.15 lbs
A	3.5 mm	11/32"
B	26 mm	1"
D	11 mm	7/16"
L	93.5 mm	3-11/16"

Securing set for IVS-16 and VVS-16 ( 7903890)

Technical Information

Product number: 7903890

Technical Downloads

Securing set for IVS-16 and VVS-16 Download File

Attribute	Value	Value
weight	0.11 kg	0.24 lbs
A	6 mm	15/64"
B	30 mm	1-3/16"
D	12.7 mm	1/2"
L	108 mm	4-1/4"
