* Compared to standard clevis shackles
Product number: 7912242

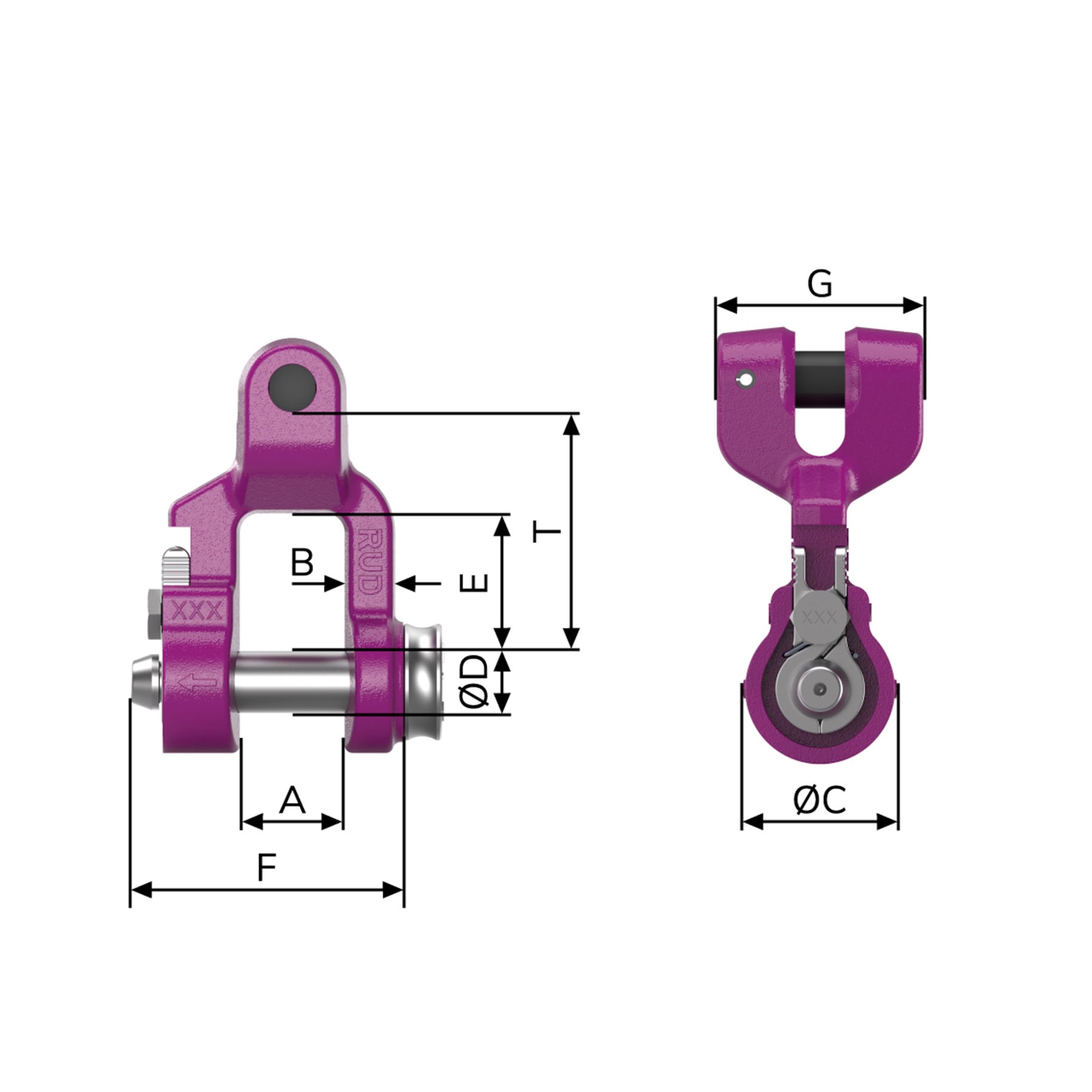

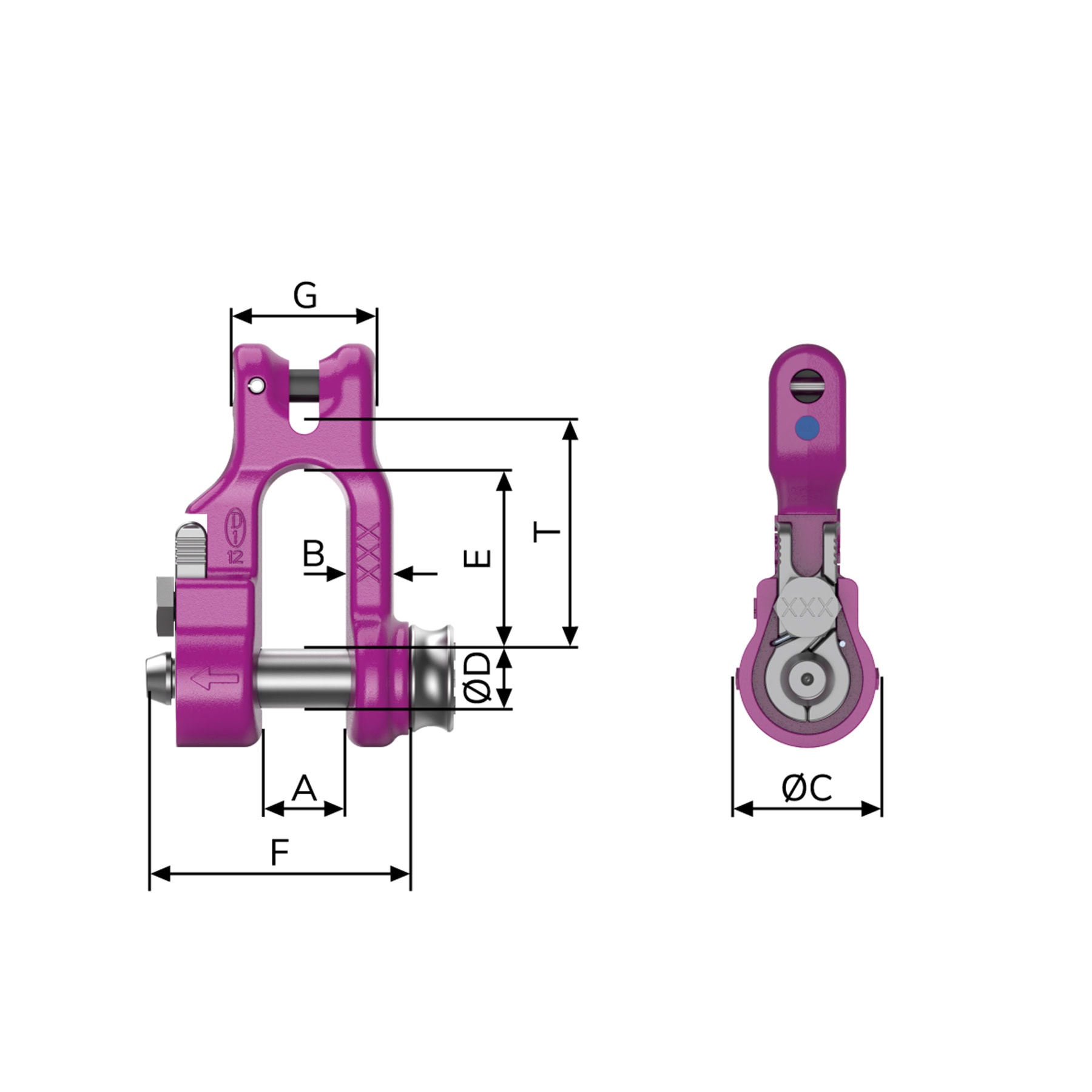

| Attribute | Value | Value |
|---|---|---|
| Weight | 0.17 kg | 0.37 lbs |
| Nominal WLL | 800 kg | 1760 lbs |
| T | 41 mm | 1-5/8" |
| A | 14 mm | 9/16" |
| B | 8 mm | 5/16" |
| C | 23 mm | 29/32" |
| D | 10 mm | 3/8" |
| E | 30 mm | 1-3/16" |
| F | 51.5 mm | 1-3/4" |
| G | 24 mm | 15/16" |
Product number: 7912243
| Attribute | Value | Value |
|---|---|---|
| Weight | 0.18 kg | 0.40 lbs |
| Nominal WLL | 1800 kg | 3960 lbs |
| T | 36 mm | 1-27/64" |
| A | 17 mm | 43/64" |
| B | 8 mm | 5/16" |
| C | 23 mm | 29/32" |
| D | 10 mm | 3/8" |
| E | 21 mm | 13/16" |
| F | 51.5 mm | 1-3/4" |
| G | 32 mm | 1-1/4" |
Product number: 7912244
| Attribute | Value | Value |
|---|---|---|
| Weight | 0.35 kg | 0.77 lbs |
| Nominal WLL | 3000 kg | 6610 lbs |
| T | 50 mm | 1-31/32" |
| A | 21 mm | 13/16" |
| B | 10 mm | 3/8" |
| C | 27 mm | 1-1/16" |
| D | 12 mm | 15/32" |
| E | 32 mm | 1-1/4" |
| F | 64 mm | 2-1/2" |
| G | 39 mm | 1-9/16" |
Product number: 7912245
| Attribute | Value | Value |
|---|---|---|
| Weight | 0.76 kg | 1.68 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 60 mm | 2-3/8" |
| A | 27 mm | 1-1/16" |
| B | 13 mm | 1/2" |
| C | 36.5 mm | 1-7/16" |
| D | 16 mm | 5/8" |
| E | 35.5 mm | 1-25/64" |
| F | 80 mm | 3-1/8" |
| G | 51 mm | 2" |
Product number: 7912246
| Attribute | Value | Value |
|---|---|---|
| Weight | 1.59 kg | 3.51 lbs |
| Nominal WLL | 8000 kg | 17630 lbs |
| T | 77 mm | 3-1/32" |
| A | 33 mm | 1-5/16" |
| B | 17 mm | 43/64" |
| C | 45.5 mm | 1-25/32" |
| D | 20 mm | 3/4" |
| E | 41.5 mm | 1-21/32" |
| F | 103 mm | 4-1/16" |
| G | 68 mm | 2-11/16" |
Product number: 7912247
| Attribute | Value | Value |
|---|---|---|
| Weight | 2.96 kg | 6.53 lbs |
| Nominal WLL | 12500 kg | 27500 lbs |
| T | 95 mm | 3-3/4" |
| A | 38 mm | 1-1/2" |
| B | 21 mm | 13/16" |
| C | 55 mm | 2-5/32" |
| D | 24 mm | 15/16" |
| E | 49 mm | 1-15/16" |
| F | 123.5 mm | 4-7/8" |
| G | 80 mm | 3-1/8" |
