Lifting and Lashing Points

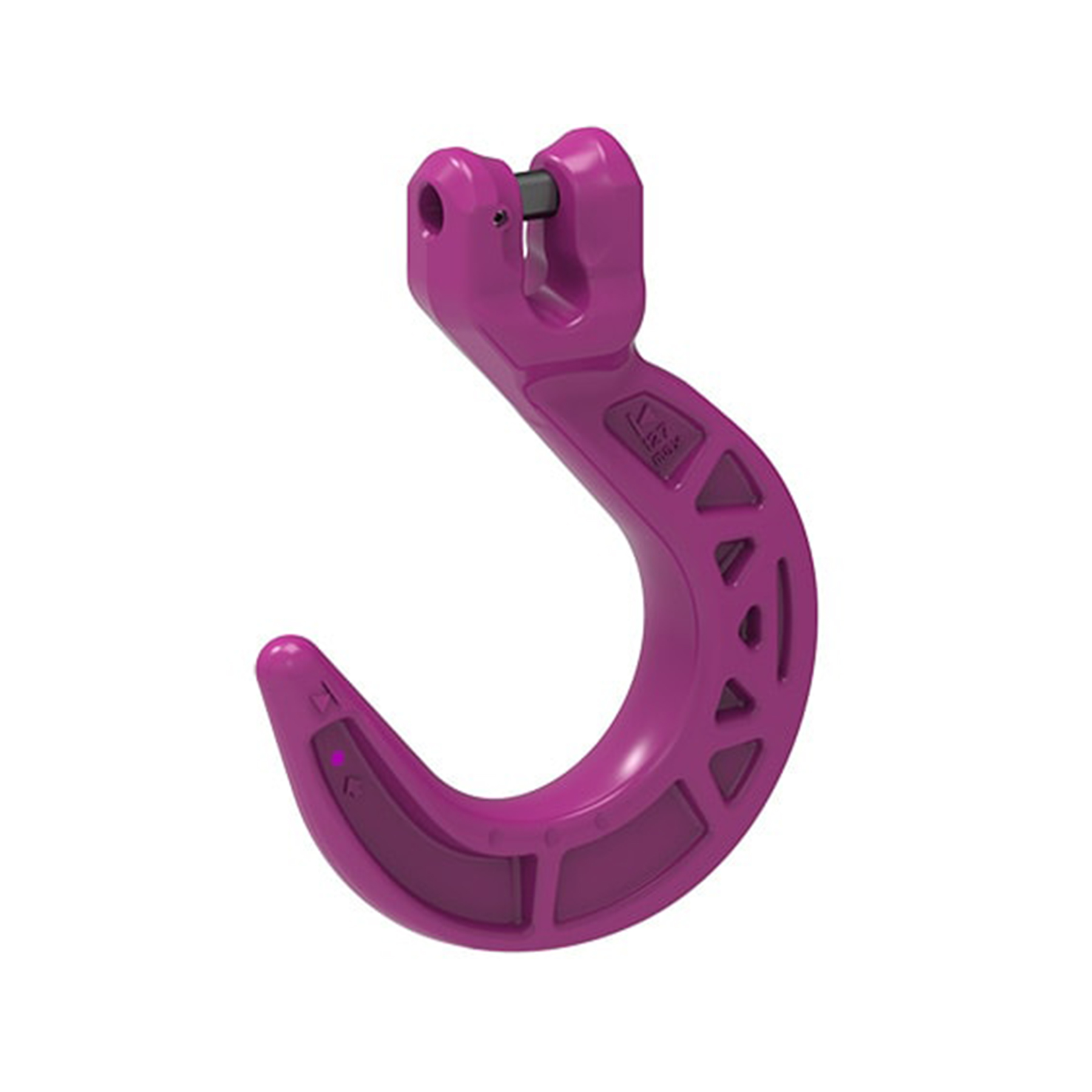

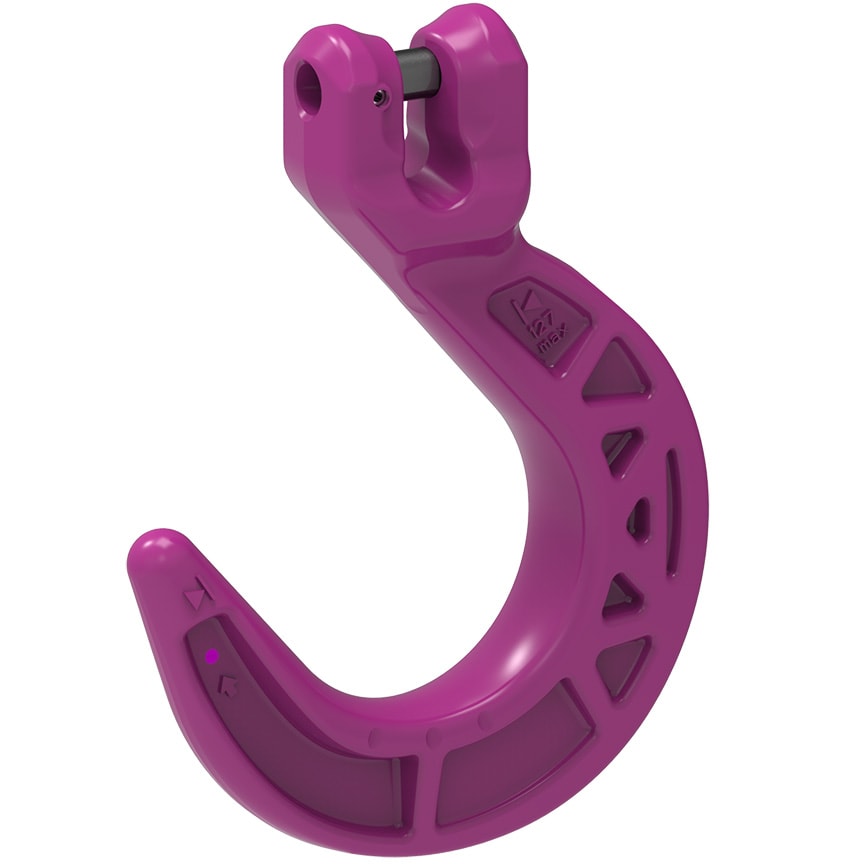

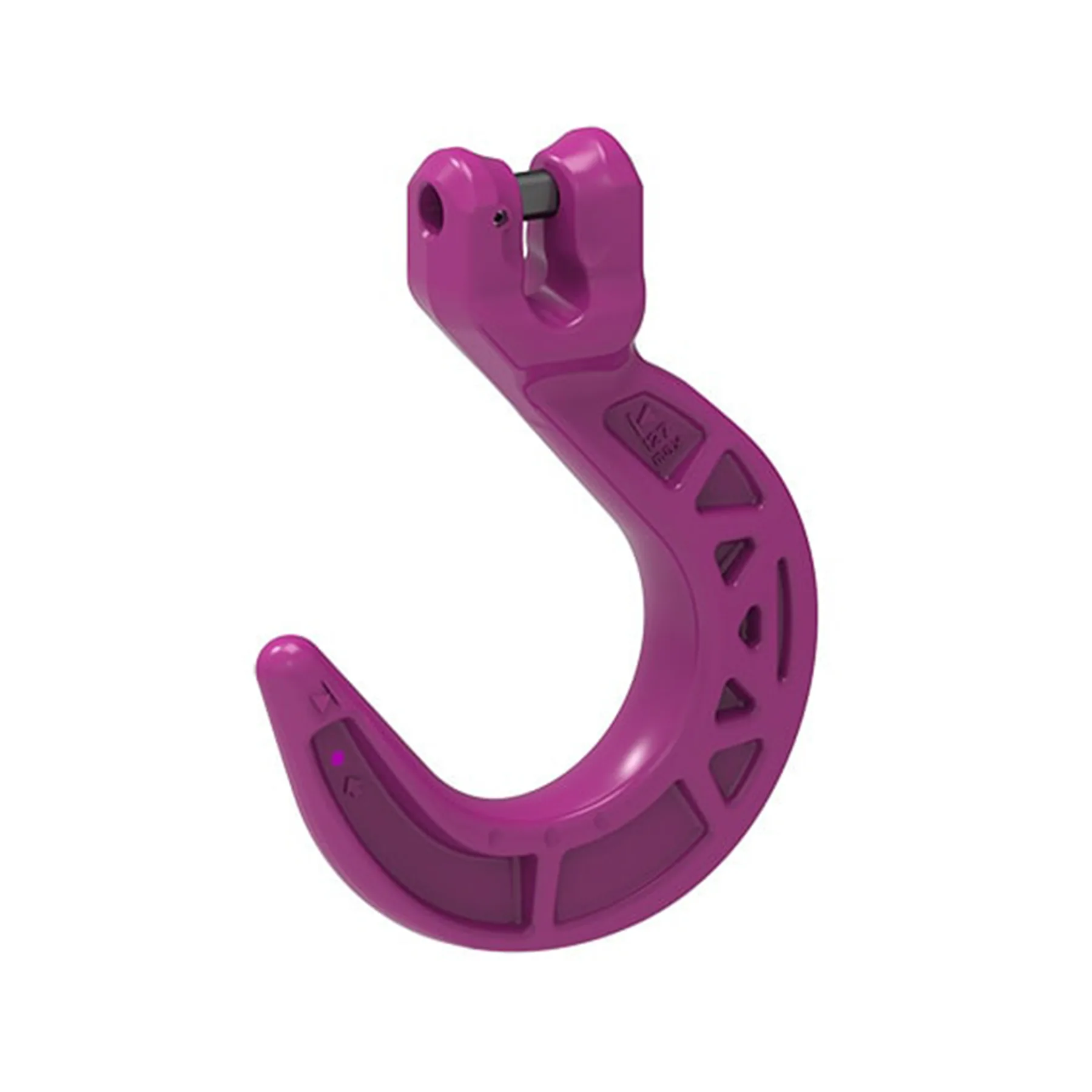

ICE-Foundry Hook IWH 6 (7904360)

Technical Information

Product number: 7904360

Technical Downloads

IWH - Picture Download File

IWH - Picture Download File

IWH 6 - DXF 2D CAD File Download File

IWH 6 - IGES 3D CAD File Download File

IWH 6 - STEP 3D CAD File Download File

ICE-Foundry Hook IWH 6 Download File

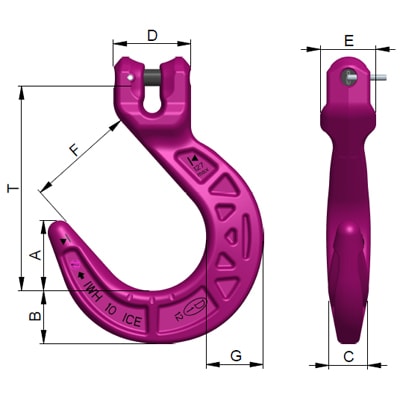

Attribute	Value	Value
weight	1.03 kg	2.27 lbs
Nominal WLL	1800 kg	3960 lbs
A	41 mm	1-5/8"
B	31 mm	1-7/32"
T	121 mm	4-3/4"
C	24 mm	15/16"
D	42 mm	1-21/32"
E	29 mm	1-5/32"
F	64 mm	2-1/2"
G	32 mm	1-1/4"

ICE-Foundry Hook IWH 8 (7904361)

Technical Information

Product number: 7904361

Technical Downloads

IWH - Picture Download File

IWH - Picture Download File

IWH 8 - DXF 2D CAD File Download File

IWH 8 - IGES 3D CAD File Download File

IWH 8 - STEP 3D CAD File Download File

ICE-Foundry Hook IWH 8 Download File

Attribute	Value	Value
weight	1.76 kg	3.88 lbs
Nominal WLL	3000 kg	6600 lbs
A	49 mm	1-15/16"
B	37 mm	1-7/16"
T	143 mm	5-5/8"
C	29 mm	1-5/32"
D	50 mm	1-31/32"
E	36 mm	1-27/64"
F	76 mm	3"
G	40 mm	1-9/16"

ICE-Foundry Hook IWH 10 (7903847)

Technical Information

Product number: 7903847

Technical Downloads

IWH - Picture Download File

IWH - Picture Download File

IWH 10 - DXF 2D CAD File Download File

IWH 10 - IGES 3D CAD File Download File

IWH 10 - STEP 3D CAD File Download File

ICE-Foundry Hook IWH 10 Download File

Attribute	Value	Value
weight	3.01 kg	6.64 lbs
Nominal WLL	5000 kg	11000 lbs
A	58 mm	2-9/32"
B	44 mm	1-3/4"
T	169 mm	6-21/32"
C	31 mm	1-7/32"
D	64 mm	2-1/2"
E	46 mm	1-13/16"
F	90 mm	3-17/32"
G	47 mm	1-7/8"

ICE-Foundry Hook IWH 13 (7904362)

Technical Information

Product number: 7904362

Technical Downloads

IWH - Picture Download File

IWH - Picture Download File

IWH 13 - DXF 2D CAD File Download File

IWH 13 - IGES 3D CAD File Download File

IWH 13 - STEP 3D CAD File Download File

ICE-Foundry Hook IWH 13 Download File

Attribute	Value	Value
weight	4.70 kg	10.36 lbs
Nominal WLL	8000 kg	17600 lbs
A	66 mm	2-5/8"
B	50 mm	1-31/32"
T	193 mm	7-19/32"
C	39 mm	1-9/16"
D	75 mm	2-15/16"
E	56 mm	2-3/16"
F	102 mm	4"
G	55 mm	2-5/32"

ICE-Foundry Hook IWH 16 (7904363)

Technical Information

Product number: 7904363

Technical Downloads

IWH - Picture Download File

IWH - Picture Download File

IWH 16 - DXF 2D CAD File Download File

IWH 16 - IGES 3D CAD File Download File

IWH 16 - STEP 3D CAD File Download File

ICE-Foundry Hook IWH 16 Download File

Attribute	Value	Value
weight	6.90 kg	15.21 lbs
Nominal WLL	12500 kg	27500 lbs
A	75 mm	2-15/16"
B	56 mm	2-3/16"
T	208 mm	8-3/16"
C	43 mm	1-11/16"
D	90 mm	3-17/32"
E	58 mm	2-9/32"
F	114 mm	4-1/2"
G	61 mm	2-13/32"
