WBPG - The Best Heavy Duty Boltable Lifting Point

Posted 11/11/2024

Lifting & Lashing Points, RUD Group, Safety, RUD News

In the demanding world of construction and infrastructure projects, the safe and efficient lifting of heavy loads is critical. If you want to lift heavy loads from 85 tonnes upwards, look no further than the RUD WBPG, which offers safe lifting as a single product.

The amazing RUD WBPG is the best heavy-duty bootable lifting point in the market and can lift loads from 85 tonnes to 250 tonnes, which is a game changer for the construction and infrastructure industry!

RUD's Commitment to Safety and Efficiency:

RUD's decades of experience in lifting technology are evident in the WBPG hoist ring. The WBPG lifting point is designed for exceptional strength and durability, meeting and exceeding industry standards.

Benefits

Exceptional Load Capacity: The WBPG is available in size M48 with a Working Load Limit (WLL) ranging from 85 to 250 tonnes, making it the best choice for heavy lifting in construction and infrastructure projects.
Ball Bearing Mounted for Smooth Operation: The innovative ball bearing mounting ensures smooth operation even under heavy loads, reducing friction and wear on the lifting point. A crucial benefit for increased safety even with multiple uses.

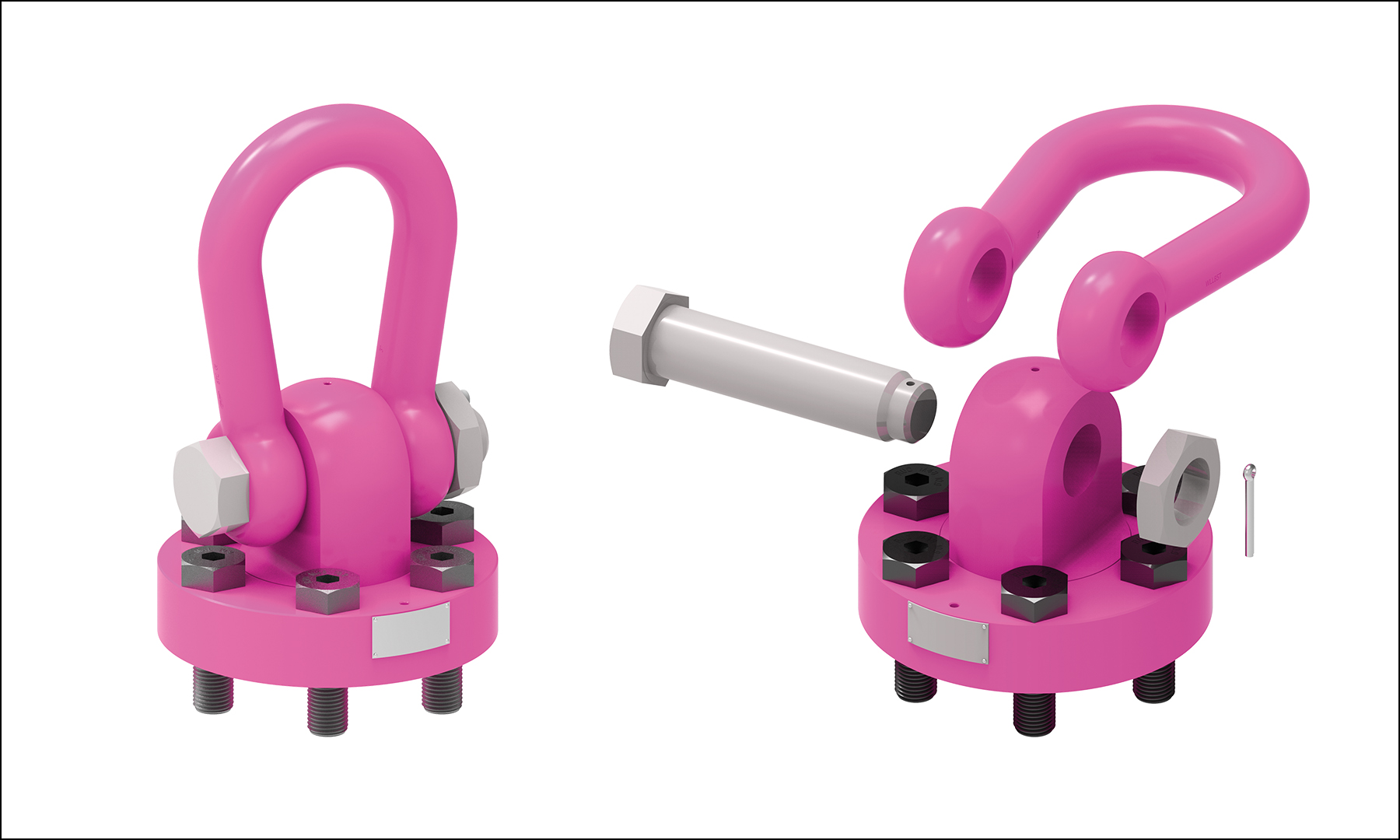

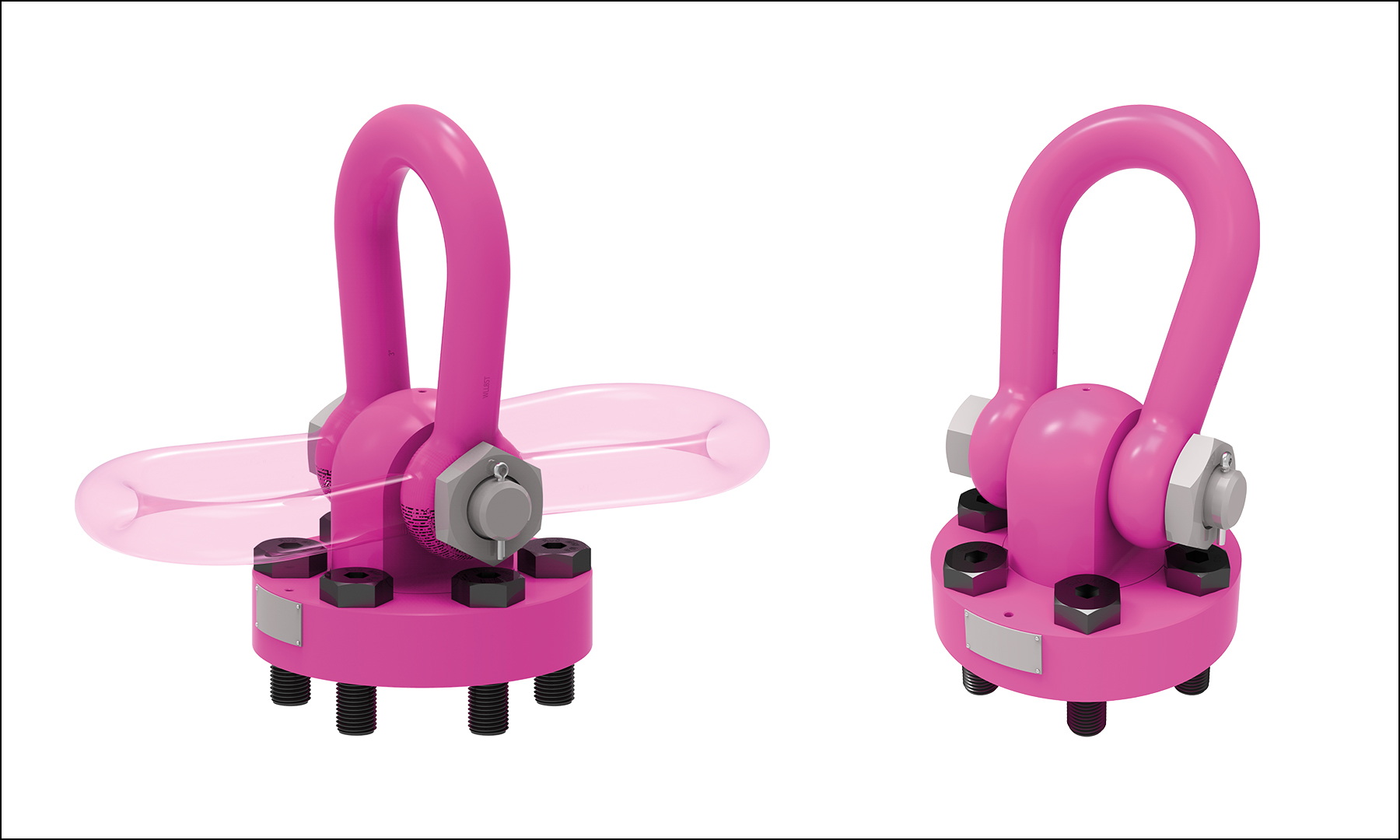

Shackle Pivoting and Swivel Bolt: The WBPG features a 180° shackle pivot and a 360° swivel bolt with ball bearings, allowing for flexible load positioning and manoeuvring.
Removable Suspension Ring: The WBPG ring is designed to resemble a shackle, permitting secure attachment of hoops in heavy concrete sleepers. This makes it easier for your team to work faster and more efficiently.

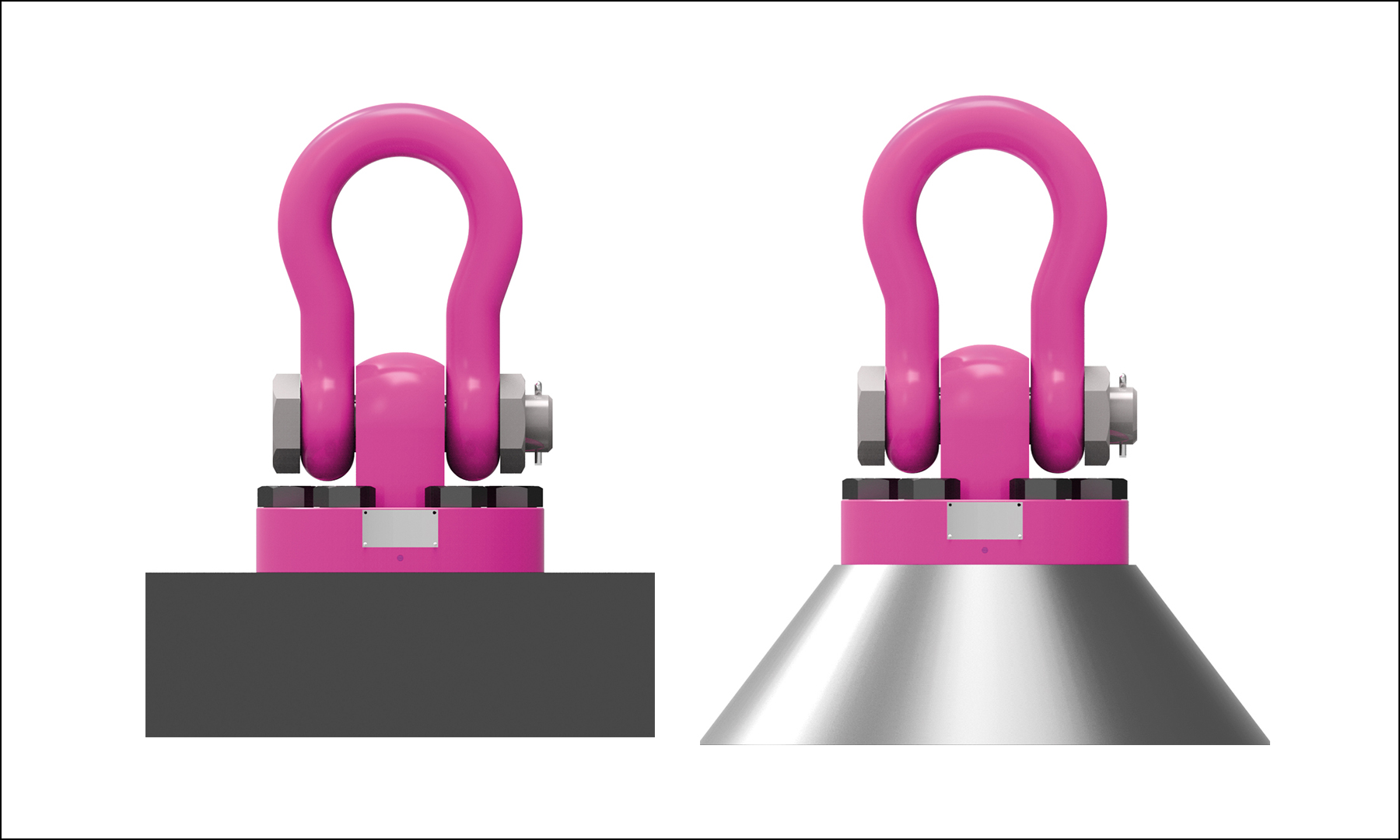

Multi-directional Loading: The WBPG can be loaded from any side in the direction of the pivot, making it ideal for lifting and turning heavy loads.
Robust Design and Construction: RUD's lifting points are built to withstand dynamic loads of at least 20,000 cycles and are tested at an overload of 50%. All bolts undergo a 100% crack test, providing quadruple safety in every loading direction.

Selecting the Right Lifting Point

When choosing a lifting point for a construction or infrastructure project, it is essential to:

Determine the Total Weight. Accurately calculate the weight of the load being lifted.
Consider the Number of Lifting Points. The appropriate number of lifting points must be determined based on the shape of the load and installation position.
Account for Reduction Factors. Refer to operating instructions to factor in reductions due to tilt angles and temperature variations.
Select a Lifting Point with Sufficient WLL. To ensure a safe margin, choose a lifting point with a WLL that exceeds the weight determined in step 3.

RUD's WBPG: A Solution for Heavy Lifting Challenges

The RUD WBPG hoist ring is the best boltable lifting point in the market. It offers an exceptional solution for heavy lifting in the construction and infrastructure industries. Its robust design, high load capacity, and multiple safety features provide peace of mind and efficiency, ensuring the safe and successful completion of even the most demanding projects.

Read how the WBPG helped the world's largest crane manufacturer build an enormous ship crane that would be used for offshore applications in the oil and gas sector and wind farm installation and disassembly. Click here for the full article.

RUD Australia has a ready stock of VWBG 200t. Call 07 3809 1300 or email us here for more details on how it can meet your heavy-lifting needs.
