Cast-in Lifting Hoop

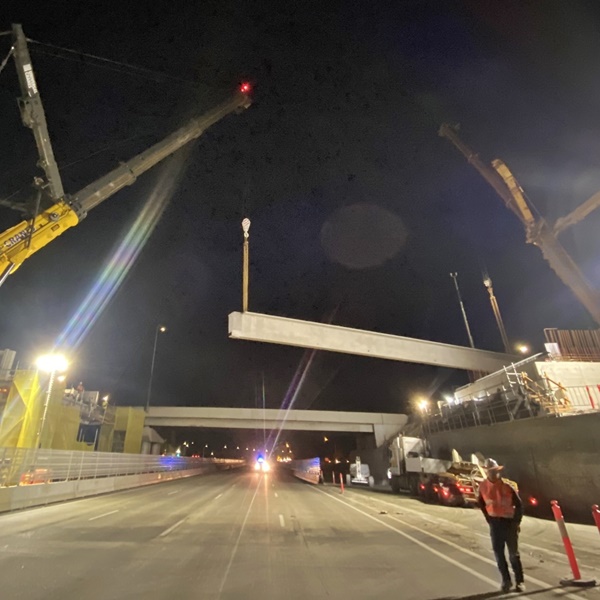

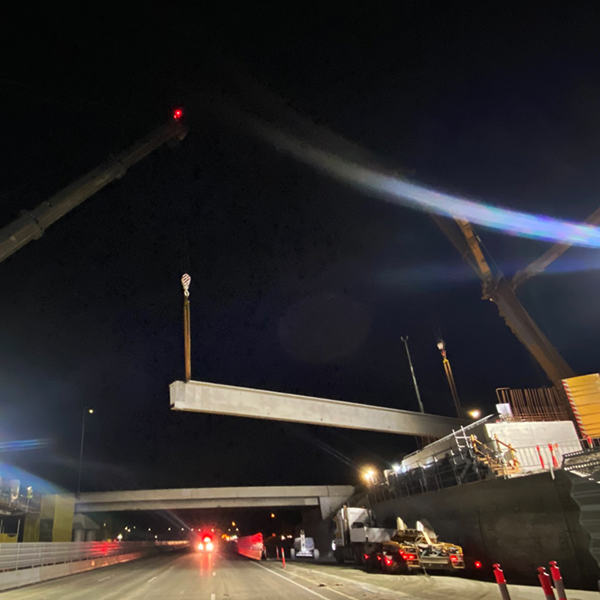

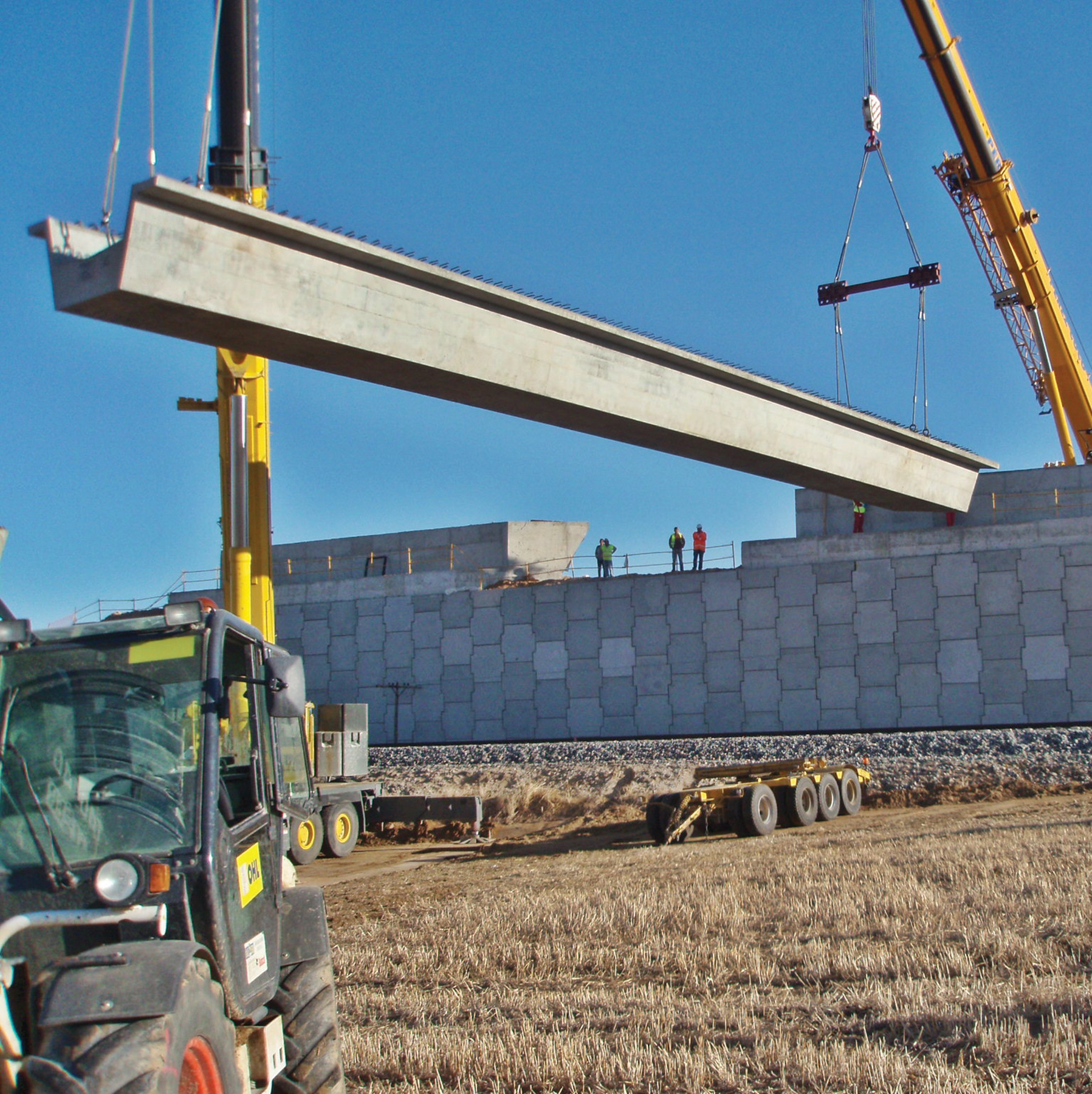

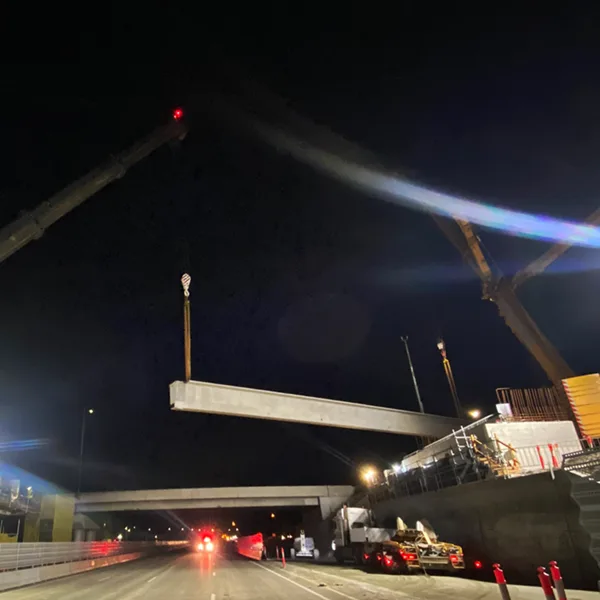

RUD/Philipp Lifting Hoops are simple to use for safe lifting of various concrete products such as beams, decks and girders.

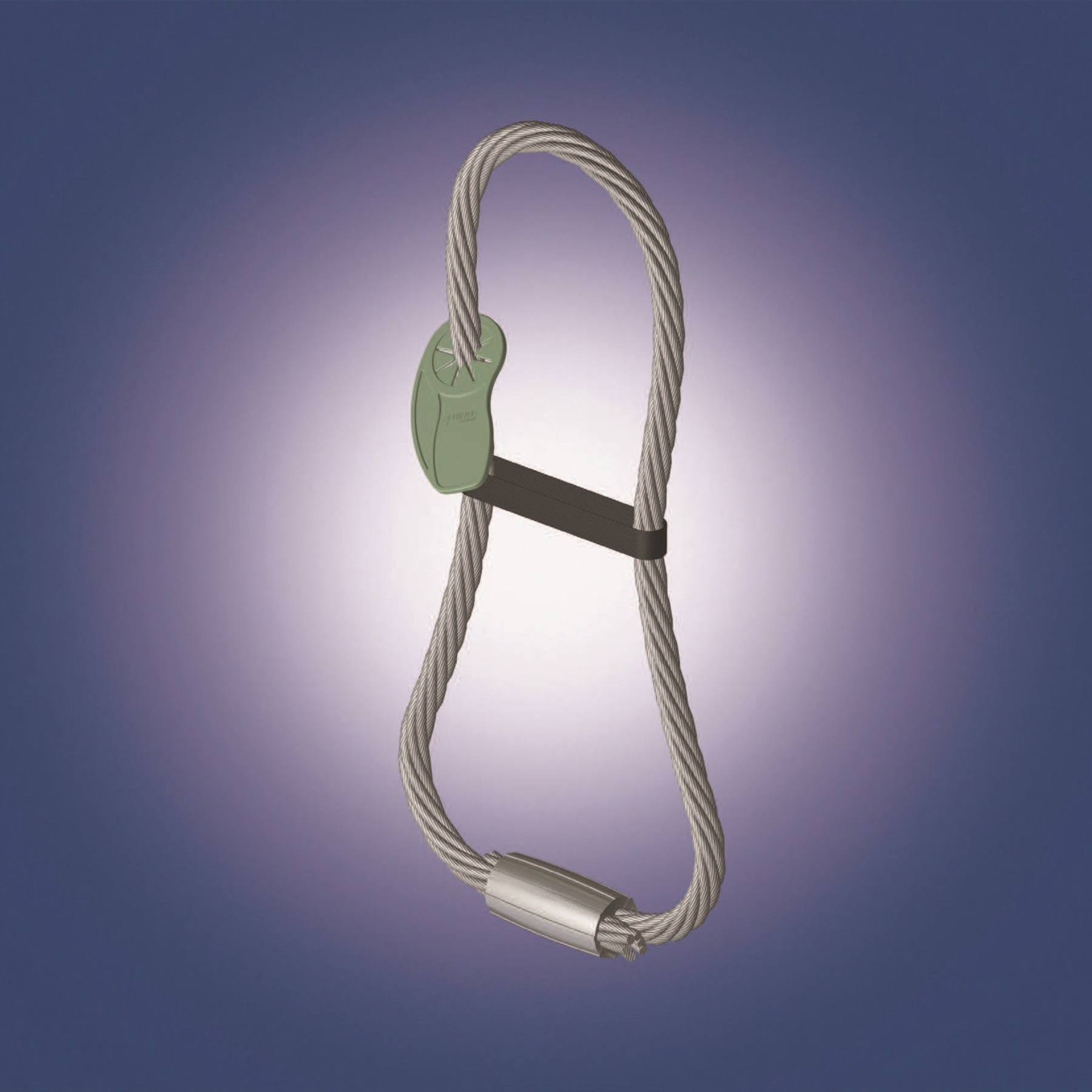

Wire-rope is bonded to form a lifting loop that encloses a concrete core - enabling high load-bearing capacities.

The benefits of RUD/Philipp Lifting Hoops are:

Can be installed without the need of recess formers
It can be used safely for high load capacities
No need for heavy and awkward lifting clutches
Connection is simple with a shackle and wire protection pulley or directly to the hook in smaller hoop sizes

Part No.	WLL	Installation Depth e (mm)	Overhang f (mm)
442040	4	240	100
442052	5.2	260	105
442063	6.3	280	100
442080	8	320	120
442100	10	390	125
442125	12.5	420	150
442160	16	450	155
442200	20	550	180
442250	25	580	200
442280	28	590	210
442320	32	630	250
442370	37	670	280
442240	42	700	300
442470	47	770	330
442520	52	850	350
442570	55	950	400
442650	65	1070	460
442750	75	1070	460
442850	85	1170	510
442950	95	1250	550

Part No.	WLL	Installation Depth e (mm)	Overhang f (mm)
442040	4	240	100
442052	5.2	260	105
442063	6.3	280	100
442080	8	320	120
442100	10	390	125
442125	12.5	420	150
442160	16	450	155
442200	20	550	180
442250	25	580	200
442280	28	590	210
442320	32	630	250
442370	37	670	280
442420	42	700	300
442470	47	770	330
442520	52	850	350
442570	57	950	400
442650	65	1000	430
442750	75	1070	460
442850	85	1170	510
442950	95	1250	550
