In the challenging world of Australian heavy industry sectors, from construction sites in Sydney or Melbourne to remote mining operations in Western Australia, the safe and efficient operation of heavy material loads is critical. Companies use many products for lifting operations and the two primary ones among them are lifting and spreader beams.

This article delves into lifting and spreader beams, their technical differences and the benefits they add to the job site. We will also discuss how RUD, Australia’s leading lifting equipment provider, caters to clients such as Hulk Lifting and to companies in the crane industry.

What is the Difference between a Spreader Beam and a Lifting Beam?

While both lifting and spreader beams are designed to lift heavy loads, their principles and applications differ. Understanding this difference is key to selecting the right lifting beam or spreader beam for any task.

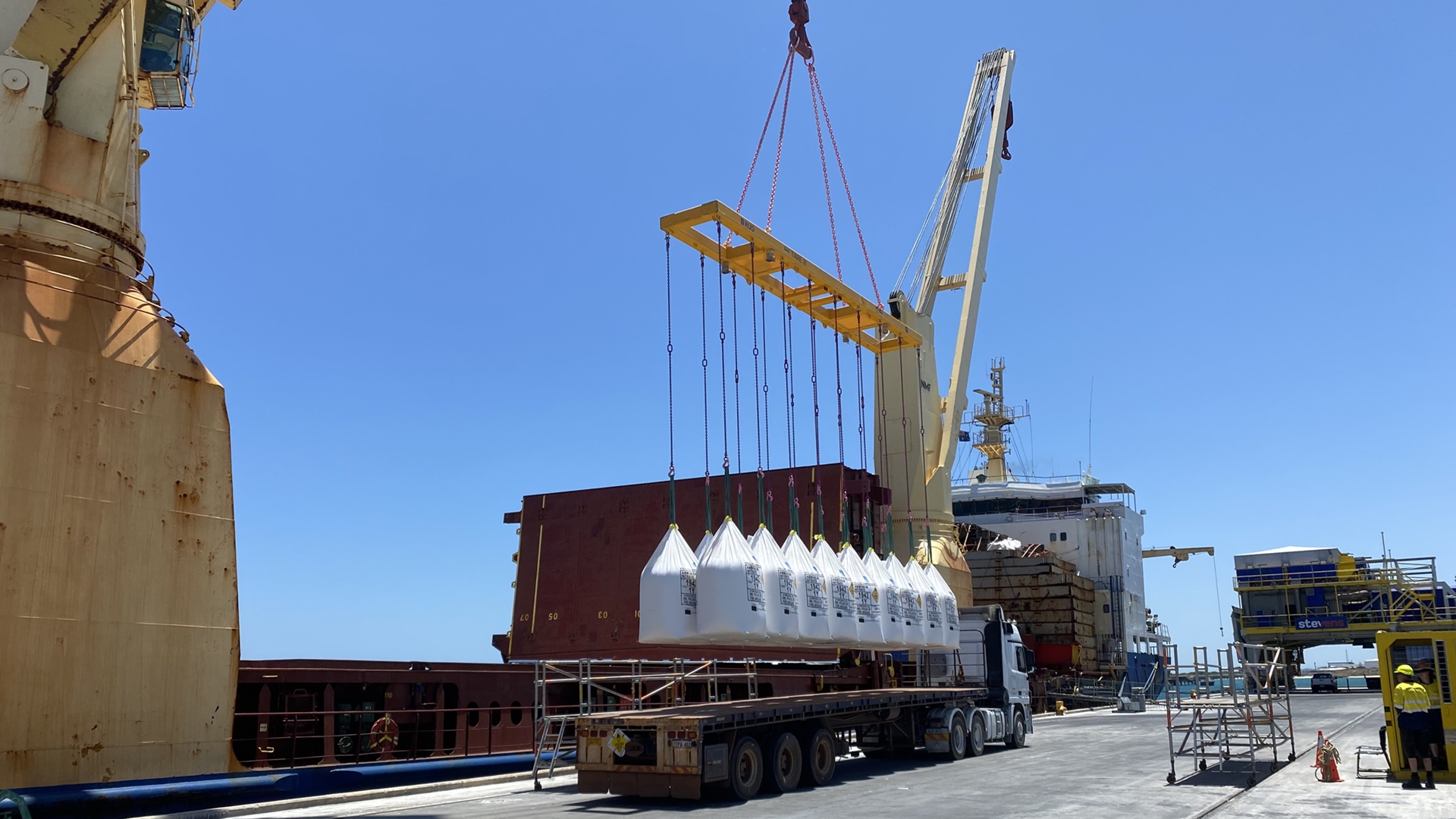

A spreader beam is a horizontal structure that distributes the weight of a load over multiple points, primarily by converting the lifting forces into compressive stress on the beam itself. The slings from the crane hook attach to the top of the spreader beam, while additional slings connect from the end of the beam down to the load. This ensures the lifting slings remain vertical, eliminating inward horizontal forces that could damage a long, flexible or fragile load. Spreader beams are ideal for lifting long objects like steel girders, pipes or precast concrete slabs, where a wide and stable lift is required to prevent the load from bending, buckling or shifting.

In contrast, a lifting beam is a simple device, typically with a single lifting point in the centre. The lifting beam is designed to withstand bending loads and is used for lifting compact or rigid objects. The load's slings are attached to the bottom of the beam, allowing the load to be lifted from a single overhead point. Lifting beams are useful in situations with low headroom, as their design minimises the vertical space needed for the lift. They are commonly used to lift heavy machinery components, large crates or engine blocks.

In summary, selecting one of the two depends on the load and the space available. A spreader beam is good to manage long, unwieldy loads by distributing forces, while a lifting beam provides a robust, low-profile solution for compact and heavy objects. For any project, consulting with a reputable spreader beam supplier or lifting beam manufacturer is crucial.

Enhancing Safety, Stability and Efficiency

The use of engineered lifting and spreader beams is beneficial beyond just getting the job done. Let’s have a look at the benefits.

Greater Safety: The most important benefit is safety. By distributing the load's weight evenly and preventing concentrated stress points, lifting and spreader beams reduce the risk of equipment failure, dropped loads and injuries. They keep slings from slipping and loads from tilting, creating a controlled and predictable lift. The robust design, in accordance with Australian Standards, provides operators with peace of mind

Increased Lifting Capacity: By spreading the load across multiple points, a spreader beam allows a lifting operation with higher capacity than a single-point lift. This is true for long loads, where the beam's design reduces the stress on the lifting equipment itself, allowing for safer handling of heavier items

Superior Load Stability and Protection: Spreader beams act as a stabilising force, preventing the load from swaying or rotating. This is critical when lifting delicate or irregularly shaped items, as it minimises the risk of damage to the load itself or surrounding equipment. For example, lifting a fragile glass panel or a high-value industrial component with a spreader beam ensures it remains level and secure throughout the entire process

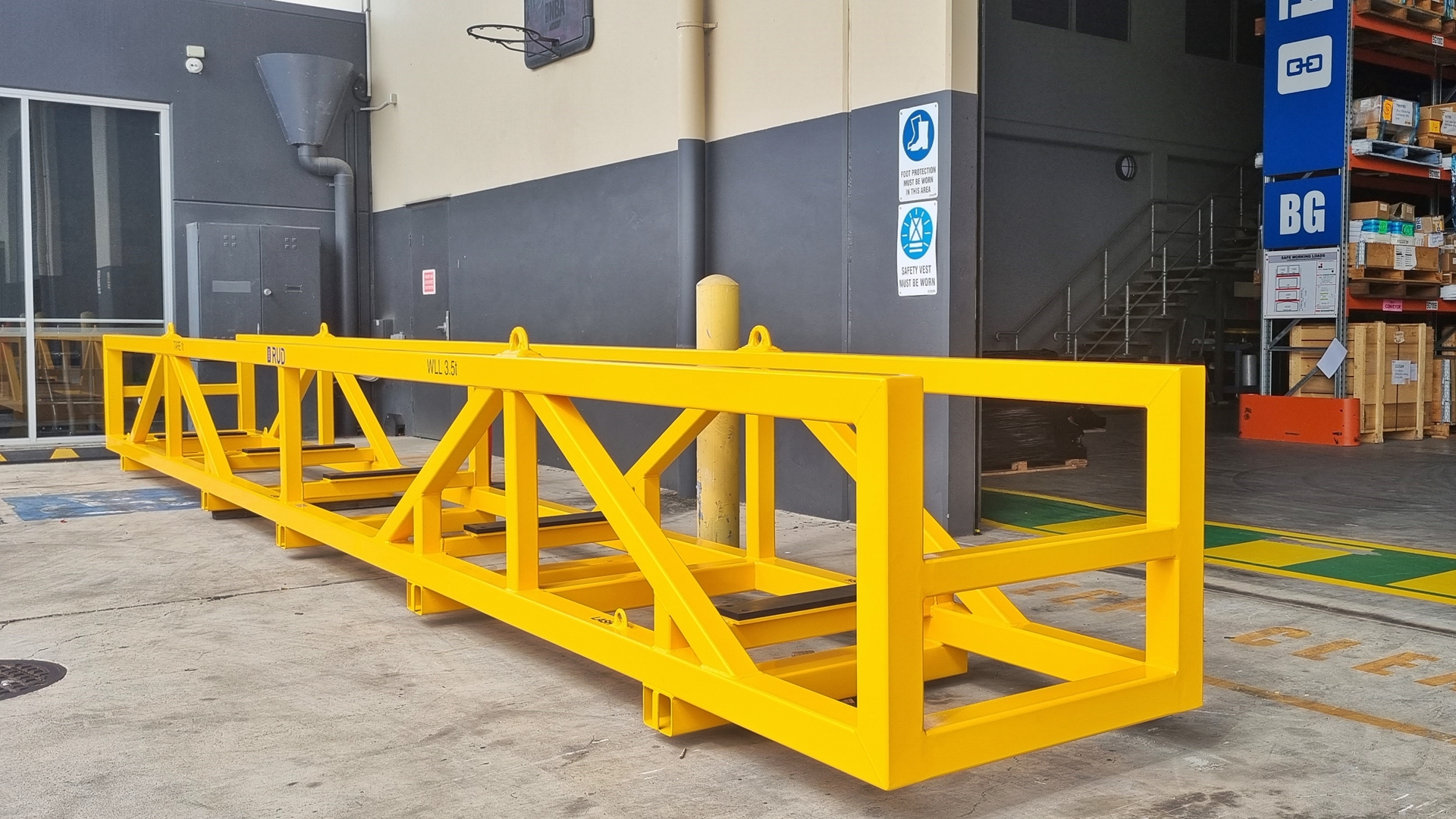

Versatility and Adaptability: Many modern lifting and spreader beams are modular or adjustable, allowing them to be reconfigured for different loads and lifting angles. This versatility means that a single beam can be used for a wide range of jobs, reducing the need for multiple pieces of equipment and saving both time and money

RUD Australia: A Case Study in Engineering Excellence

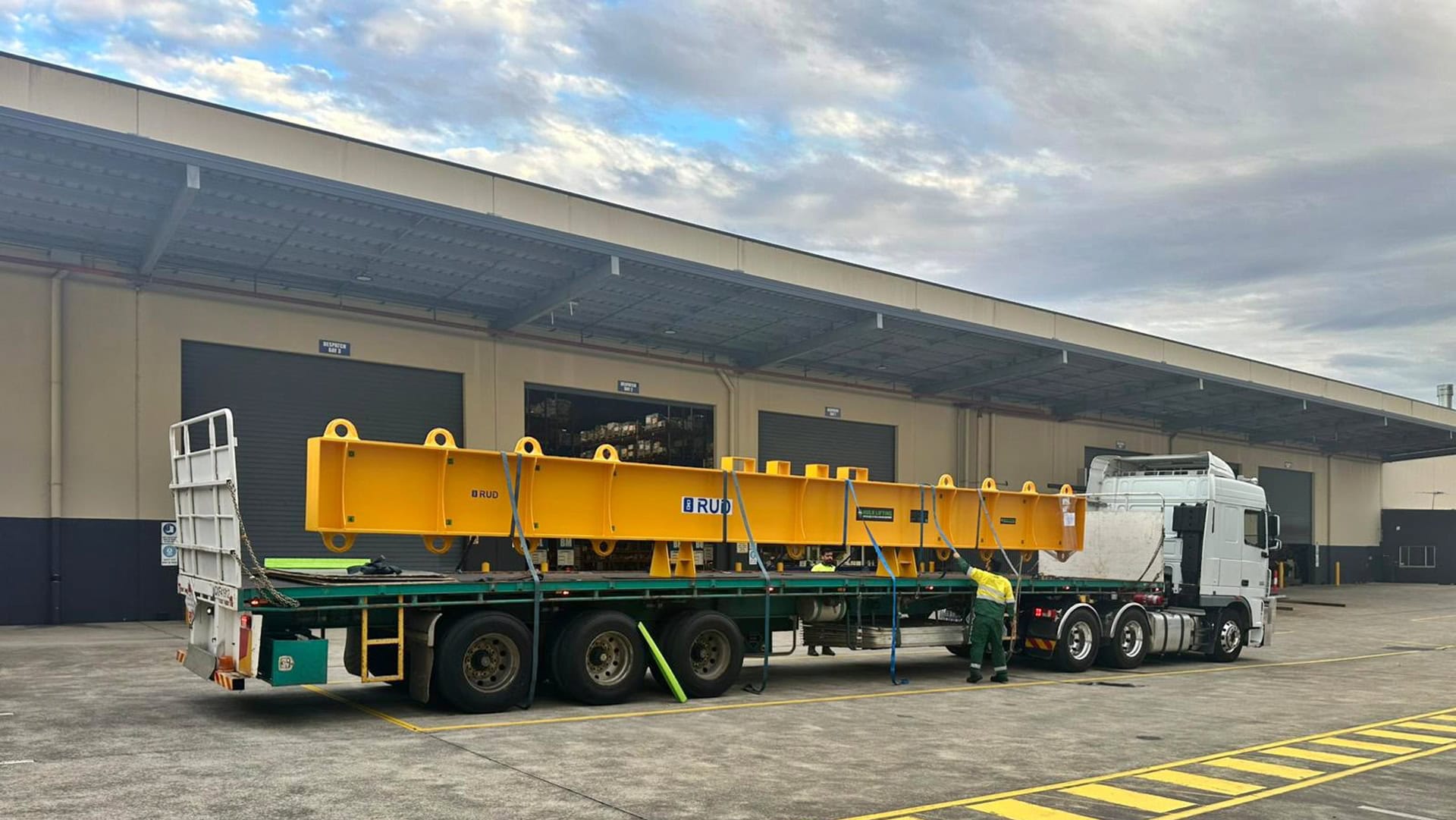

For decades, RUD has been a global leader in lifting and lashing technology and this expertise is reflected in our Australian operations. Our state-of-the-art 6,000m² facility at 12 Commerce Place in Brisbane is a testament to our commitment to quality and innovation. Our production area is equipped with cutting-edge technology, including a SEVERT robotic welder, laser scanning capabilities and multiple test beds which allow us to design, manufacture and test custom lifting and spreader beams in-house.

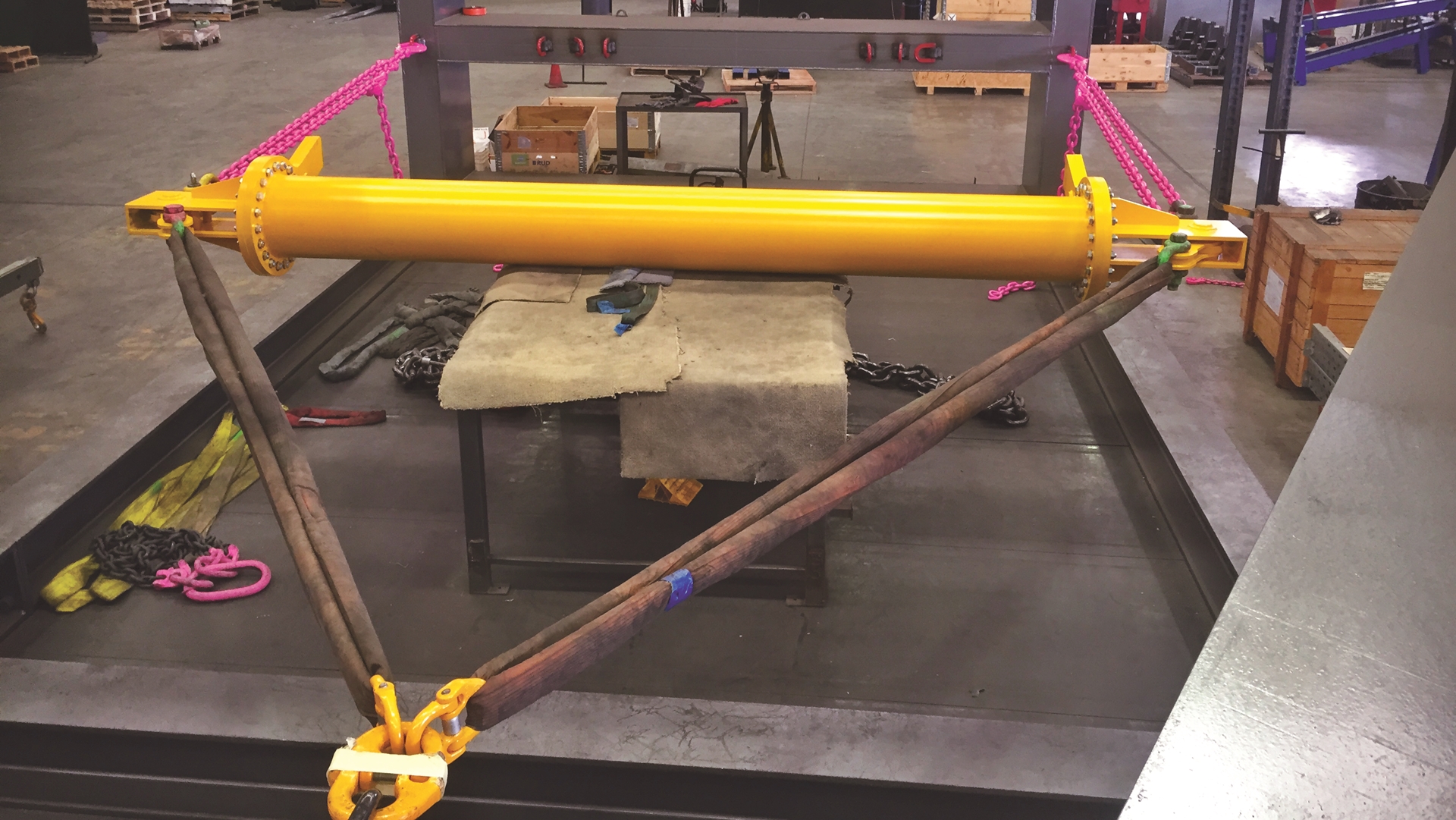

The core of our success is our specialised engineering team, which utilises FEA (Finite Element Analysis) software to model and test every beam design before it is manufactured. This rigorous process ensures that each product is robust, optimised for weight reduction and certified. After fabrication, every beam undergoes a physical proof load test to guarantee its performance and compliance. This end-to-end flow in the design and manufacturing process minimises lead times and ensures reliability and safety for clients across the country.

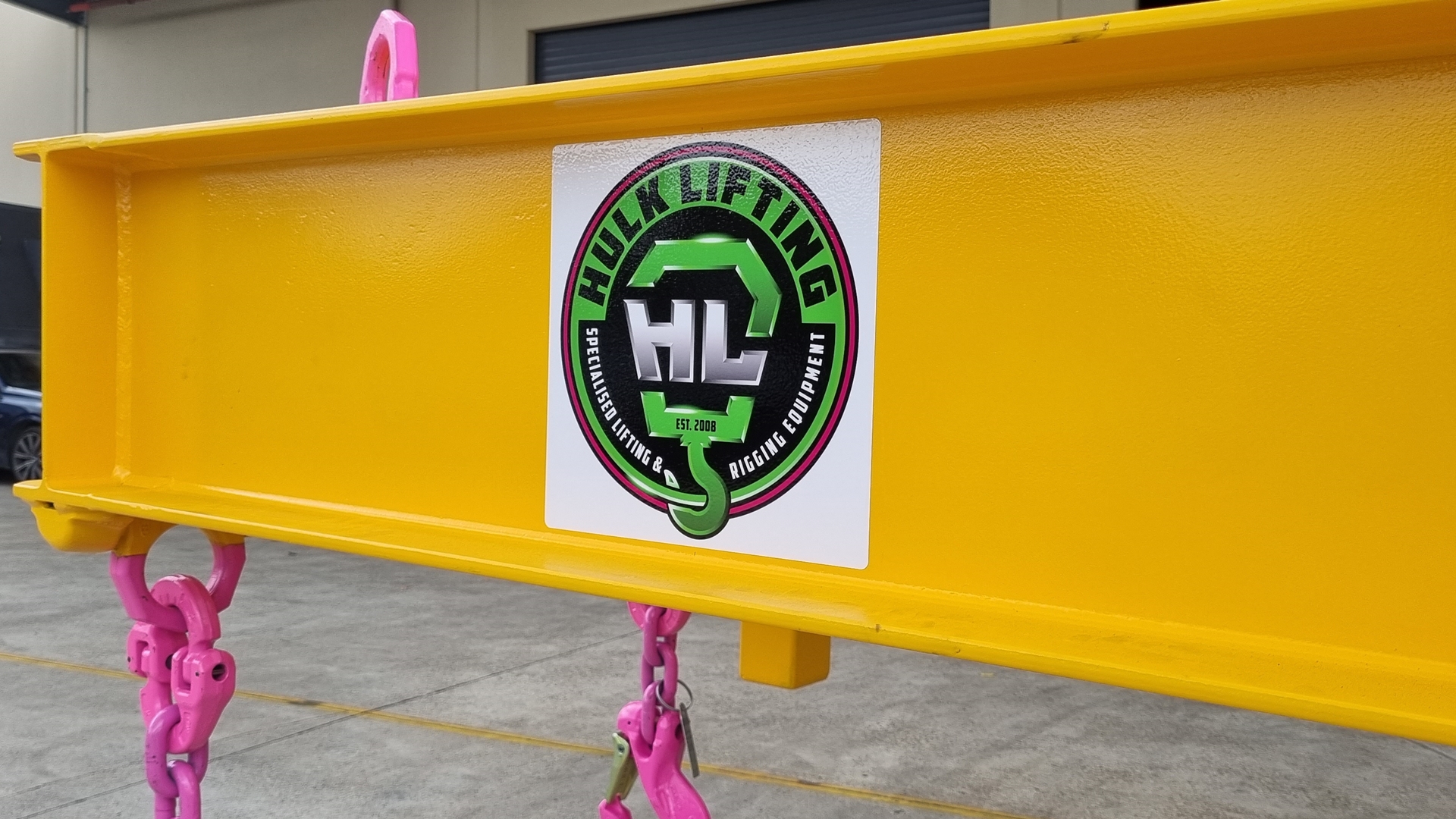

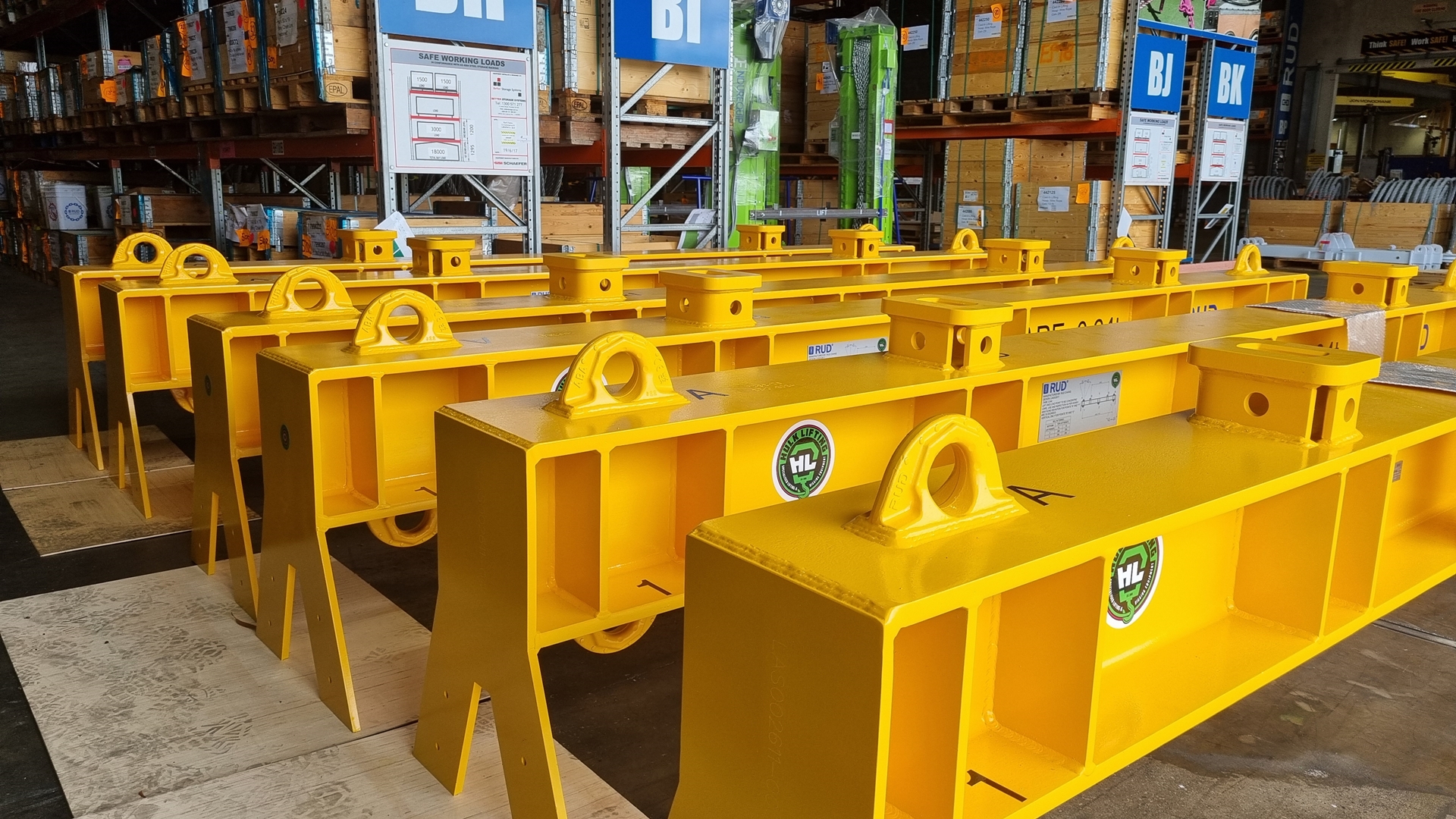

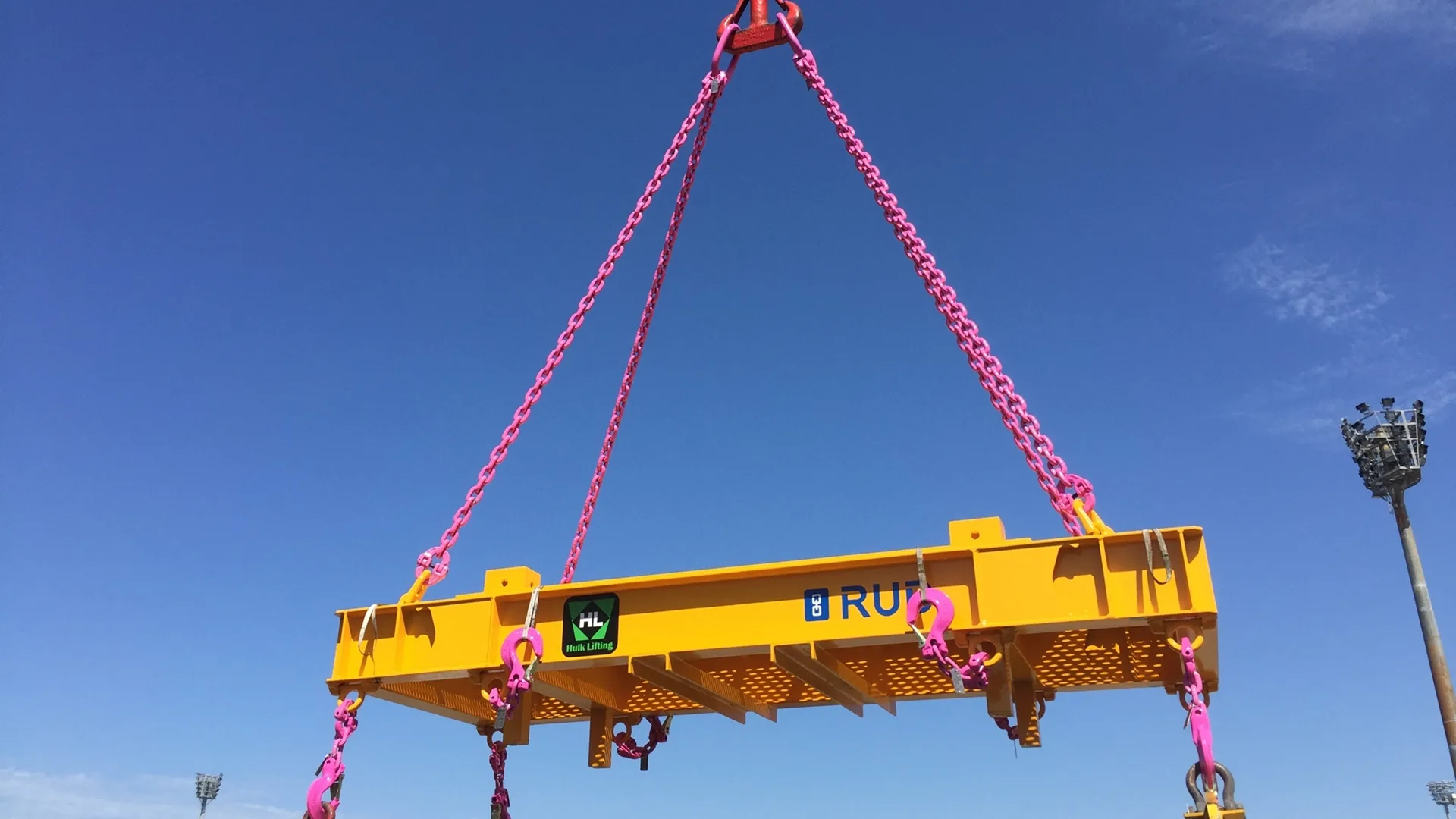

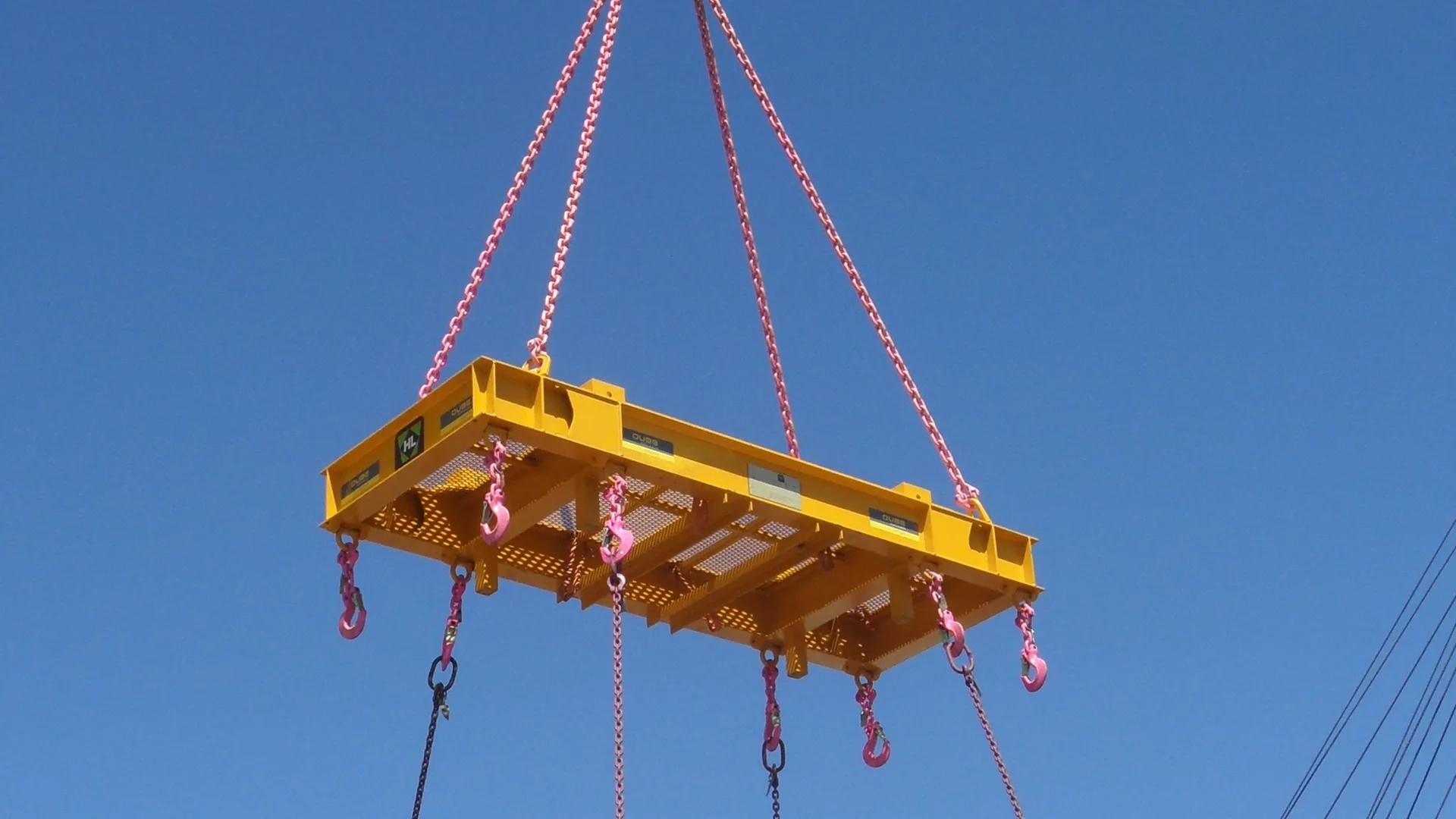

A case study is our work with Hulk Lifting, a Brisbane-based company founded by industry veterans Ben Rose and Mitch Atkinson. We have partnered with Hulk Lifting since its inception in 2008, which is a strong endorsement of our solution-oriented approach. Our collaboration often results in customised lifting beams with specialised RUD lugs. Including a 31.5-tonne capacity W-ABA lug, which can meet specific lifting requirements. This partnership demonstrates how we use local manufacturing and global engineering knowledge to provide bespoke and safe lifting solutions.

Read our blog article on Hulk Lifting - https://www.rud.com.au/ruds-hulk-smash/, which was also published in the Cranes & Lifting Dec 2023 magazine edition.

The Right Choice for a Better Future

Both lifting and spreader beams are critical to safety and efficiency. By embracing technically superior, high-quality lifting equipment, businesses can achieve smoother operations, greater productivity and most importantly, a safer working environment.

For more information on our lifting and spreader beams, call us on 07 3809 1300 or click here to submit an enquiry.
