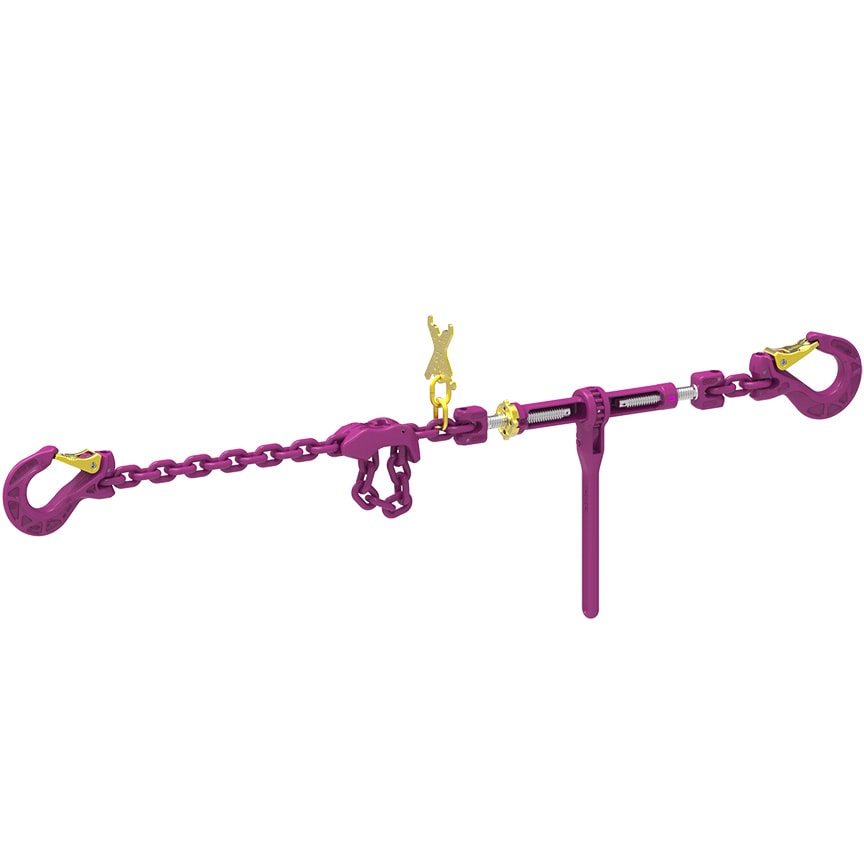

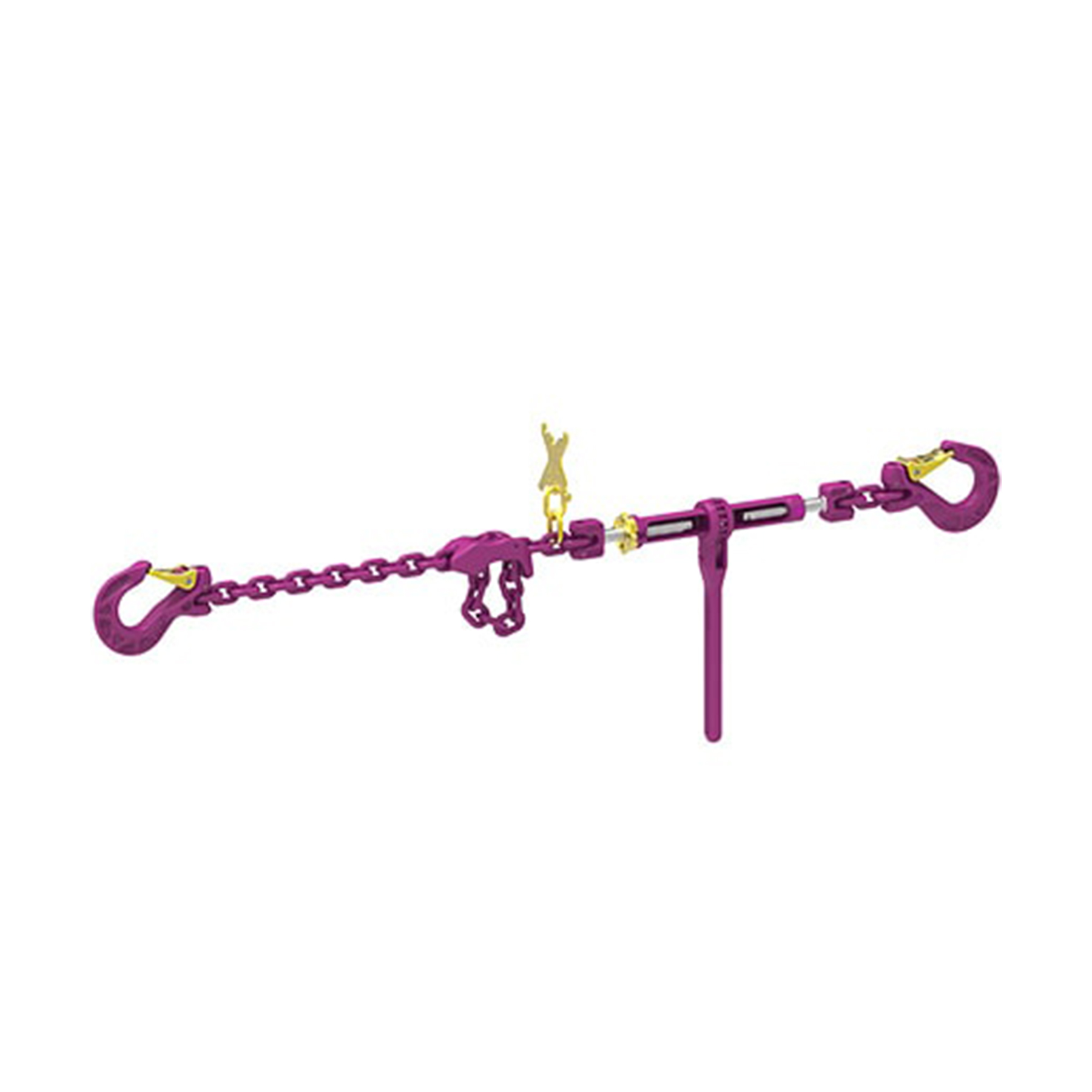

ICE Lashing Chain with ICE-CURT-GAKO Tensioner & IMVK
Specifications:
- The standard version of ICE Lashing Chain with an ICE-CURT-GAKO Ratchet Tensioner
- Length: 3500 mm
- Length adjustment with an ICE-multi-shortening claw
- Specified to DIN EN 12195-3 and VDI 2700 standards
- For calculation purposes, request a VSK Technical paper
Note:
- ICE-VSK Lashing Chains should not be used for lifting loads
- Hooks, tensioners and multi-shortening claws should not be loaded over the edges
- Edge protection should be used with "sharp" edges (the radius is smaller than the nominal chain diameter)
Product Variants (5)
ICE-Lashing chain with ratchet tensioner IVSK-6-CURT-IMVK-3500 (7904614)
Attribute | Value | Value |
---|
weight | 6.30 kg | 13.89 lbs |

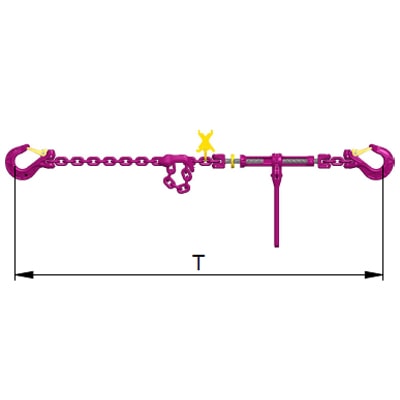

T | 3500 mm | 138" |
Lashing capacity | 3600 daN | |
STF max (daN) | 1500 daN | |
ICE-Lashing chain with ratchet tensioner IVSK-8-CURT-IMVK-3500 (7904615)
Attribute | Value | Value |
---|
weight | 11.70 kg | 25.79 lbs |
T | 3500 mm | 138" |
Lashing capacity | 6000 daN | |
STF max (daN) | 2800 daN | |
ICE-Lashing chain with ratchet tensioner IVSK-10-CURT-IMVK-3500 (7904616)
Attribute | Value | Value |
---|
weight | 17.00 kg | 37.48 lbs |
T | 3500 mm | 138" |
Lashing capacity | 10000 daN | |
STF max (daN) | 2800 daN | |
ICE-Lashing chain with ratchet tensioner IVSK-13-CURT-IMVK-3500 (7904617)
Attribute | Value | Value |
---|
weight | 28.60 kg | 63.05 lbs |
T | 3500 mm | 138" |
Lashing capacity | 16000 daN | |
STF max (daN) | 2800 daN | |
ICE-Lashing chain with ratchet tensioner IVSK-16-CURT-IMVK-3500 (7904618)
Attribute | Value | Value |
---|
weight | 46.00 kg | 101.41 lbs |
T | 3500 mm | 138" |
Lashing capacity | 25000 daN | |
