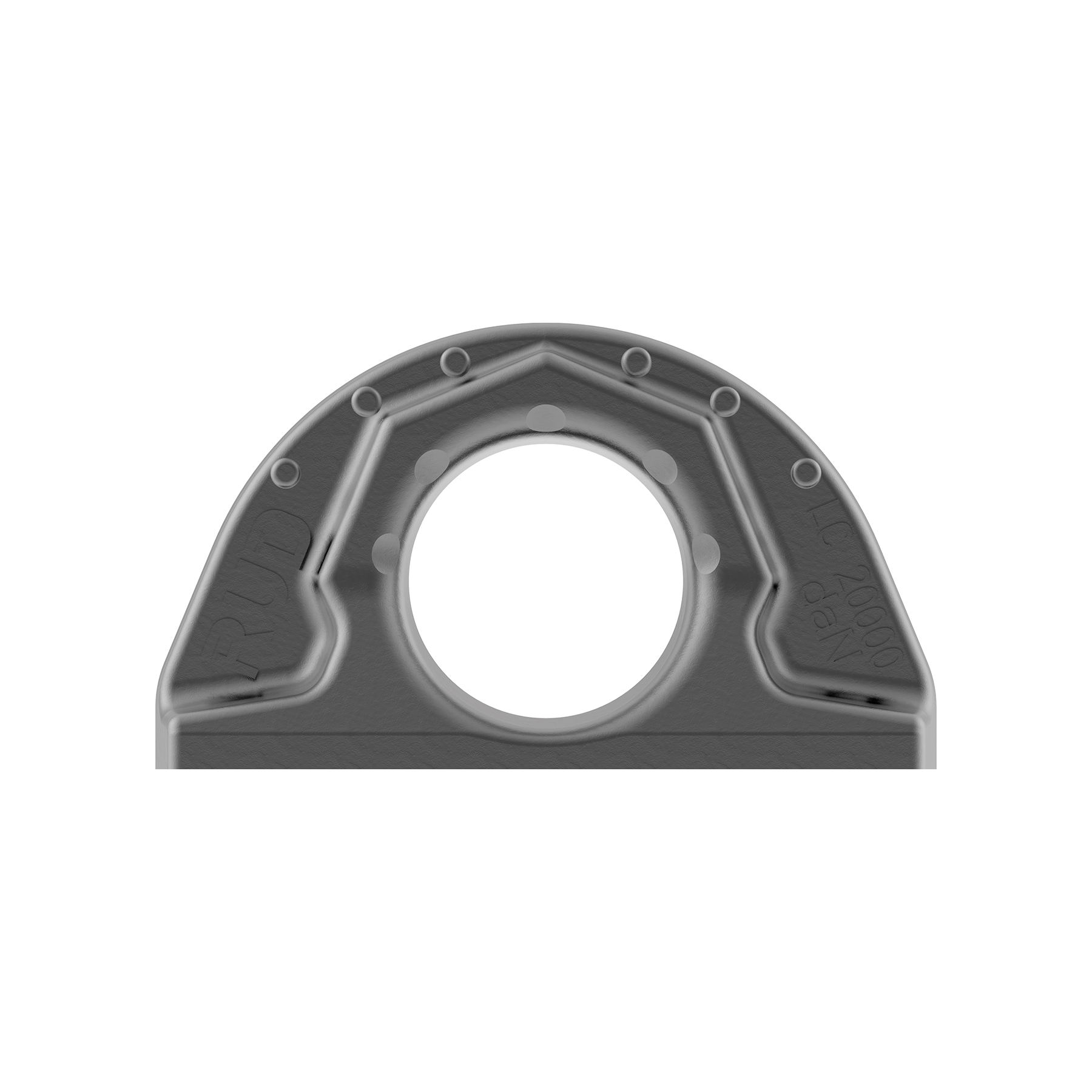

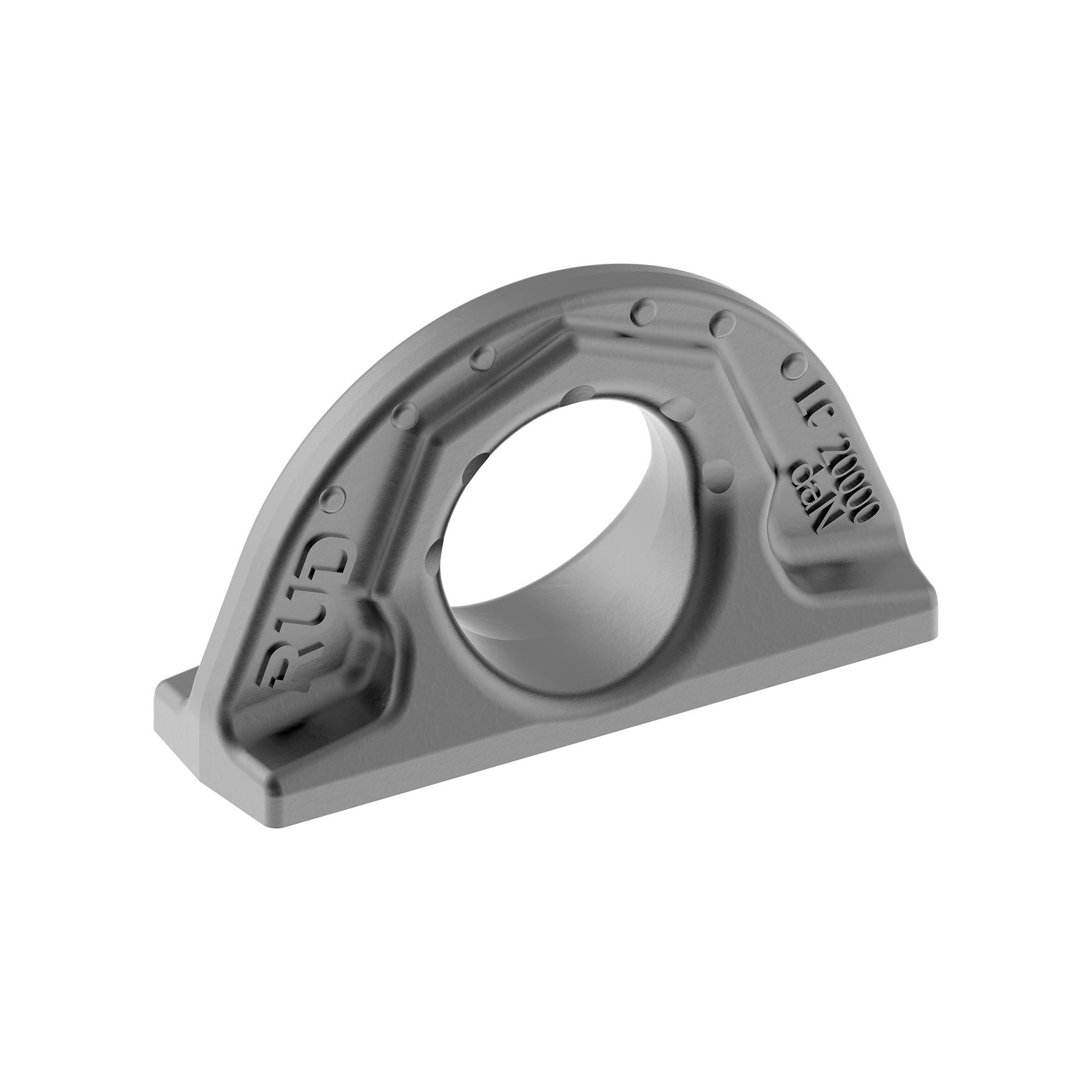

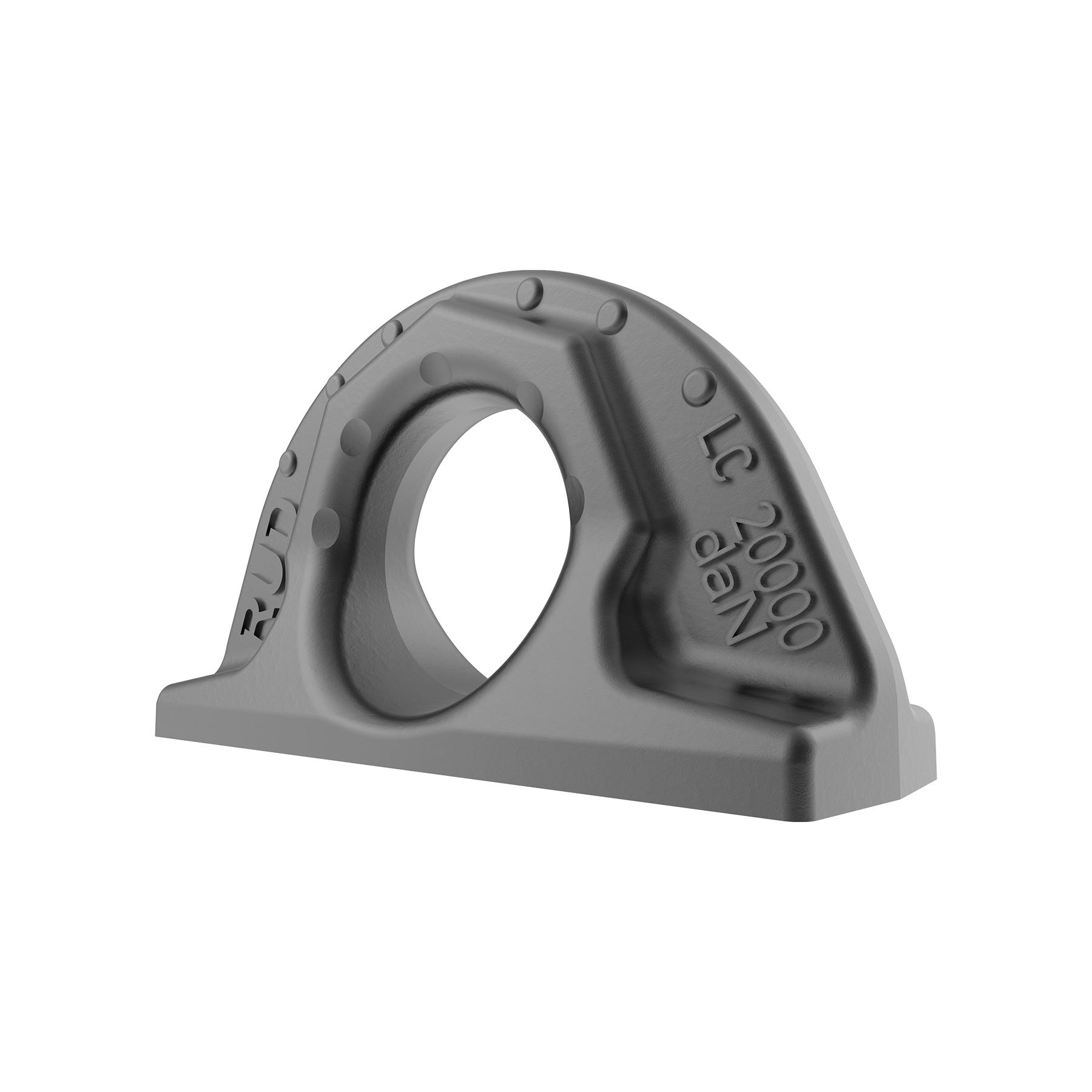

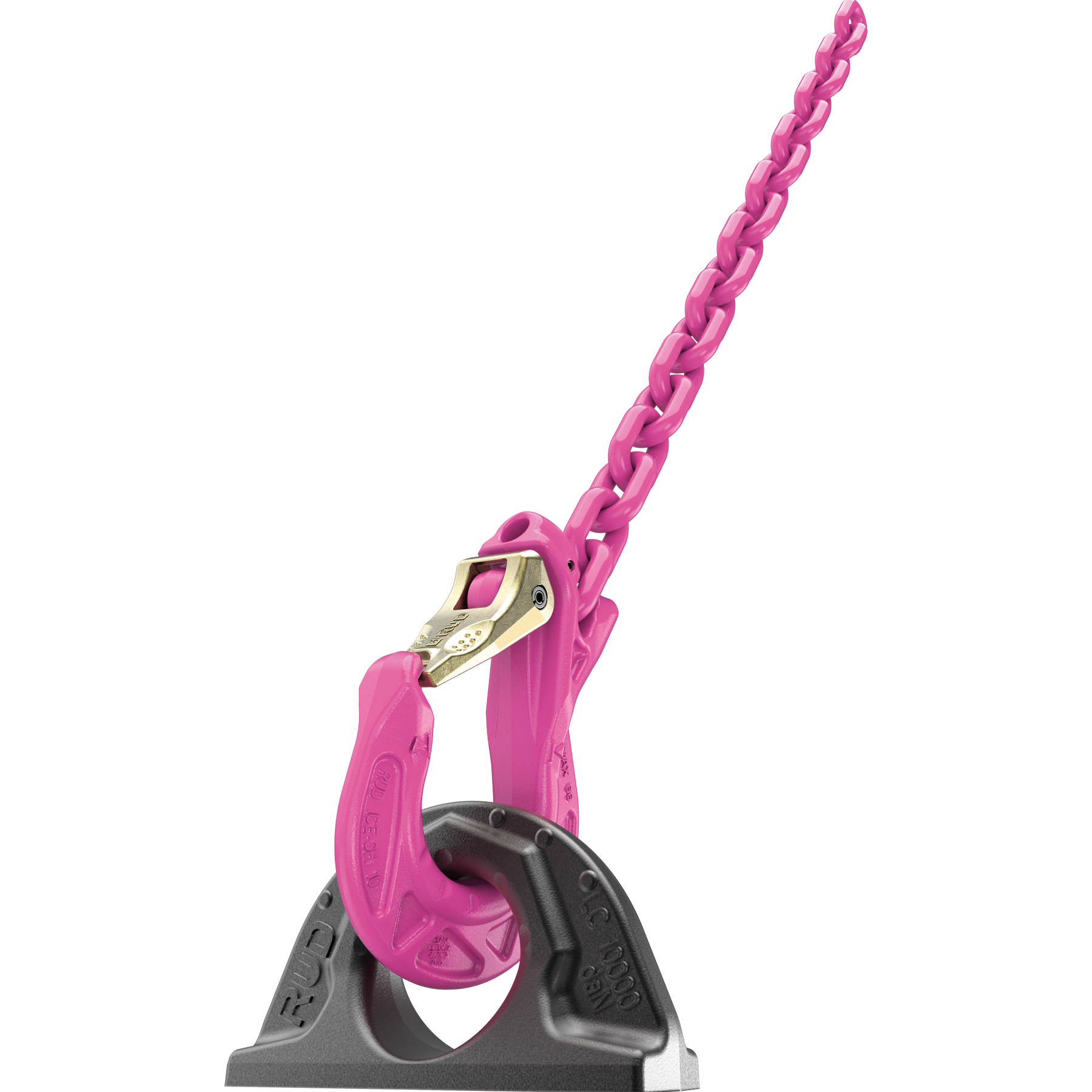

L-ABA Lashing point for welding

Loadable from any direction
Quentched and tempered part, thereby wear resistant
Patentented wear markings inside and outside
Circulating fillet weld
Surface phosphated
Welding should only be carried out by qualified persons according to ISO 9606-1. Material 23MnNiCrMo52

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (5)

Weldable lashing point L-ABA 3200 daN (7902667)

Technical Information

Product number: 7902667

Technical Downloads

L-ABA 3200 - DXF 2D CAD File Download File

L-ABA 3200 - IGES 3D CAD File Download File

L-ABA 3200 - STEP 3D CAD File Download File

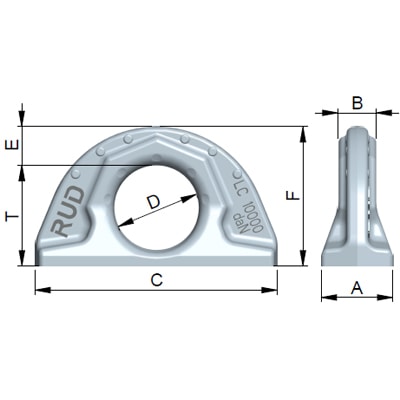

Attribute	Value	Value
weight	0.45 kg	0.99 lbs
A	30 mm	1-3/16"
B	16 mm	5/8"
T	42 mm	1-21/32"
C	100 mm	3-15/16"
D	35 mm	1-3/8"
E	16 mm	5/8"
F	57 mm	2-1/4"
Lashing capacity	3200 daN

Weldable lashing point L-ABA 6400 daN (7902668)

Technical Information

Product number: 7902668

Technical Downloads

L-ABA 6400daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	1.15 kg	2.54 lbs
A	41 mm	1-5/8"
B	23 mm	29/32"
T	59 mm	2-15/16"
C	137 mm	5-3/8"
D	50 mm	1-31/32"
E	21 mm	13/16"
F	80 mm	3-1/8"
Lashing capacity	6400 daN

Weldable lashing point L-ABA 10000 daN (7901722)

Technical Information

Product number: 7901722

Technical Downloads

L-ABA 10000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	2.26 kg	4.98 lbs
A	51 mm	2"
B	27 mm	1-1/16"
T	72 mm	2-2/32"
C	172 mm	6-25/32"
D	60 mm	2-3/8"
E	28 mm	1-1/8"
F	99 mm	3-7/8"
Lashing capacity	10000 daN

Weldable lashing point L-ABA 20000 daN (7901723)

Technical Information

Product number: 7901723

Technical Downloads

L-ABA 20000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	5.37 kg	11.84 lbs
A	70 mm	2-3/4"
B	38 mm	1-1/2"
T	95 mm	3-3/4"
C	228 mm	9"
D	80 mm	3-1/8"
E	35 mm	1-3/8"
F	130 mm	5-1/8"
Lashing capacity	20000 daN

Weldable lashing point L-ABA 2000 daN (7909394)

Technical Information

Product number: 7909394

Technical Downloads

L-ABA 2000 - DXF 2D CAD File Download File

L-ABA 2000 - IGES 3D CAD File Download File

L-ABA 2000 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.20 kg	0.44 lbs
A	22 mm	7/8"
B	12 mm	15/32"
T	38 mm	1-1/2"
C	70 mm	2-3/4"
D	32 mm	1-1/4"
E	12 mm	15/32"
F	50 mm	1-31/32"
Lashing capacity	2000 daN
