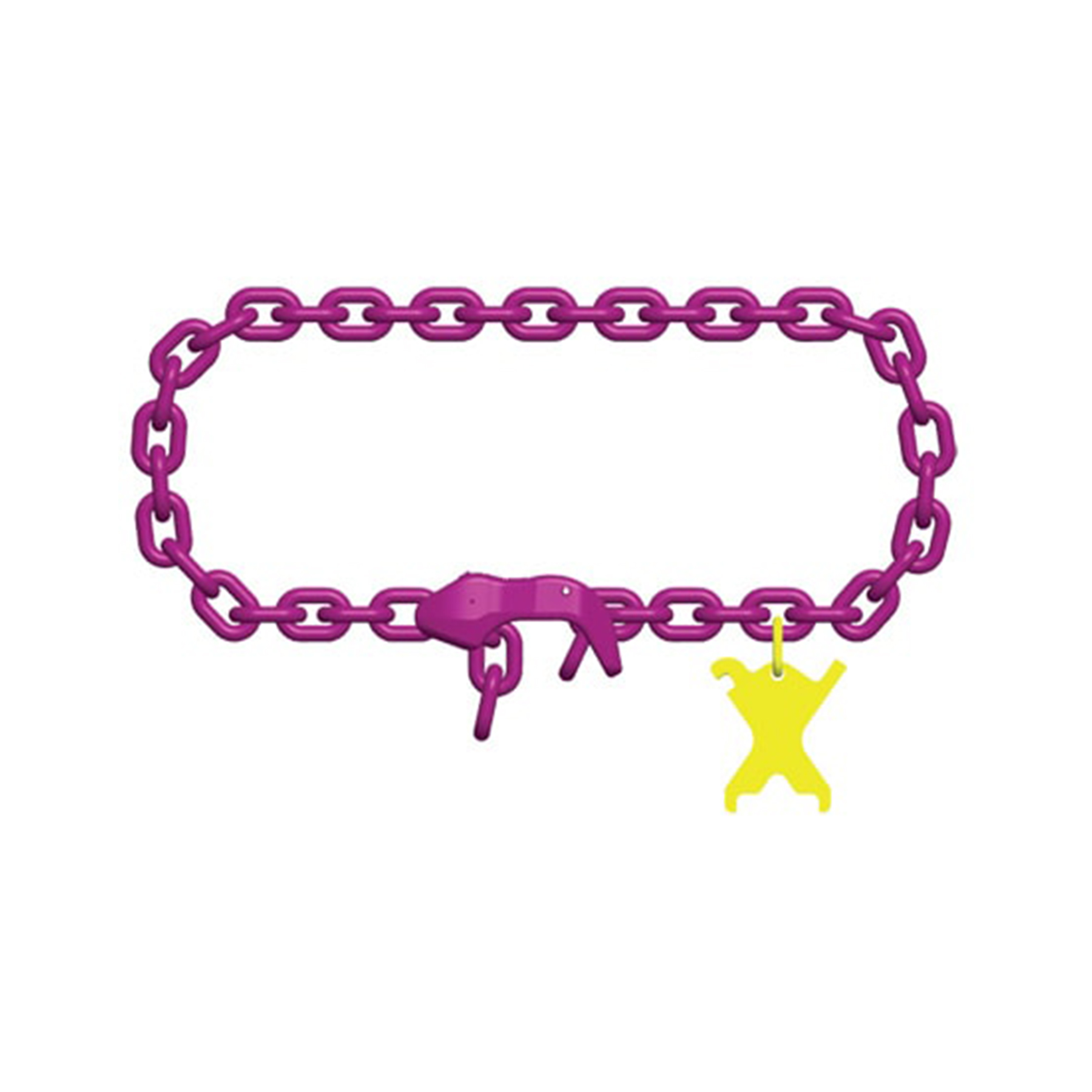

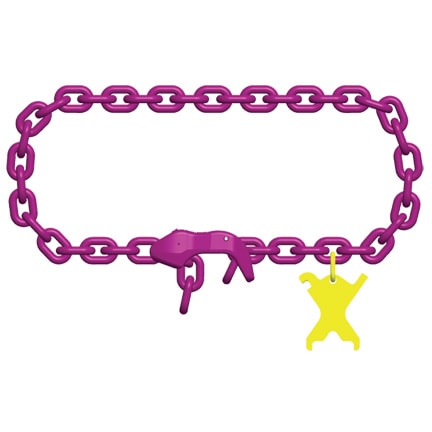

ICE-VSK Endless Chains

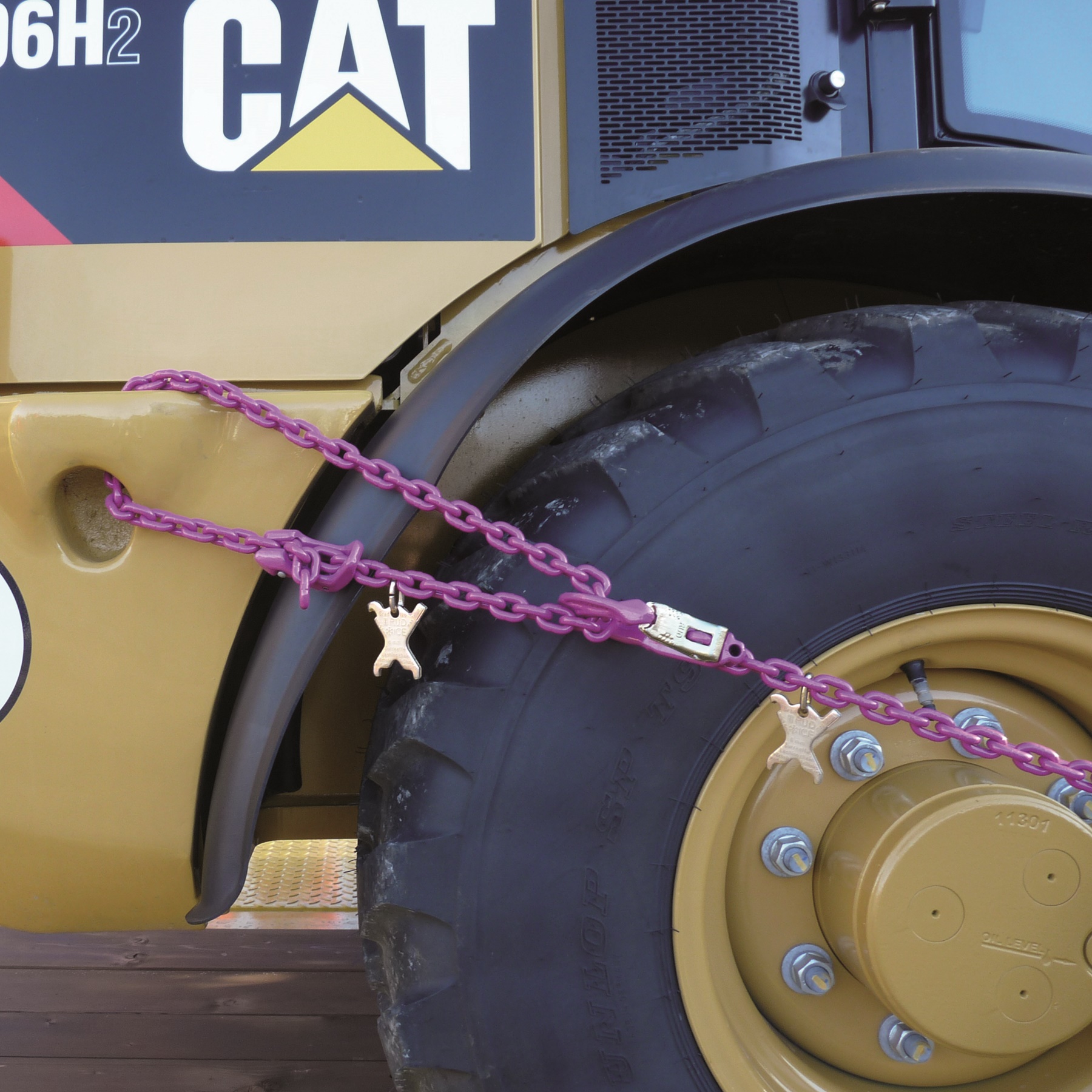

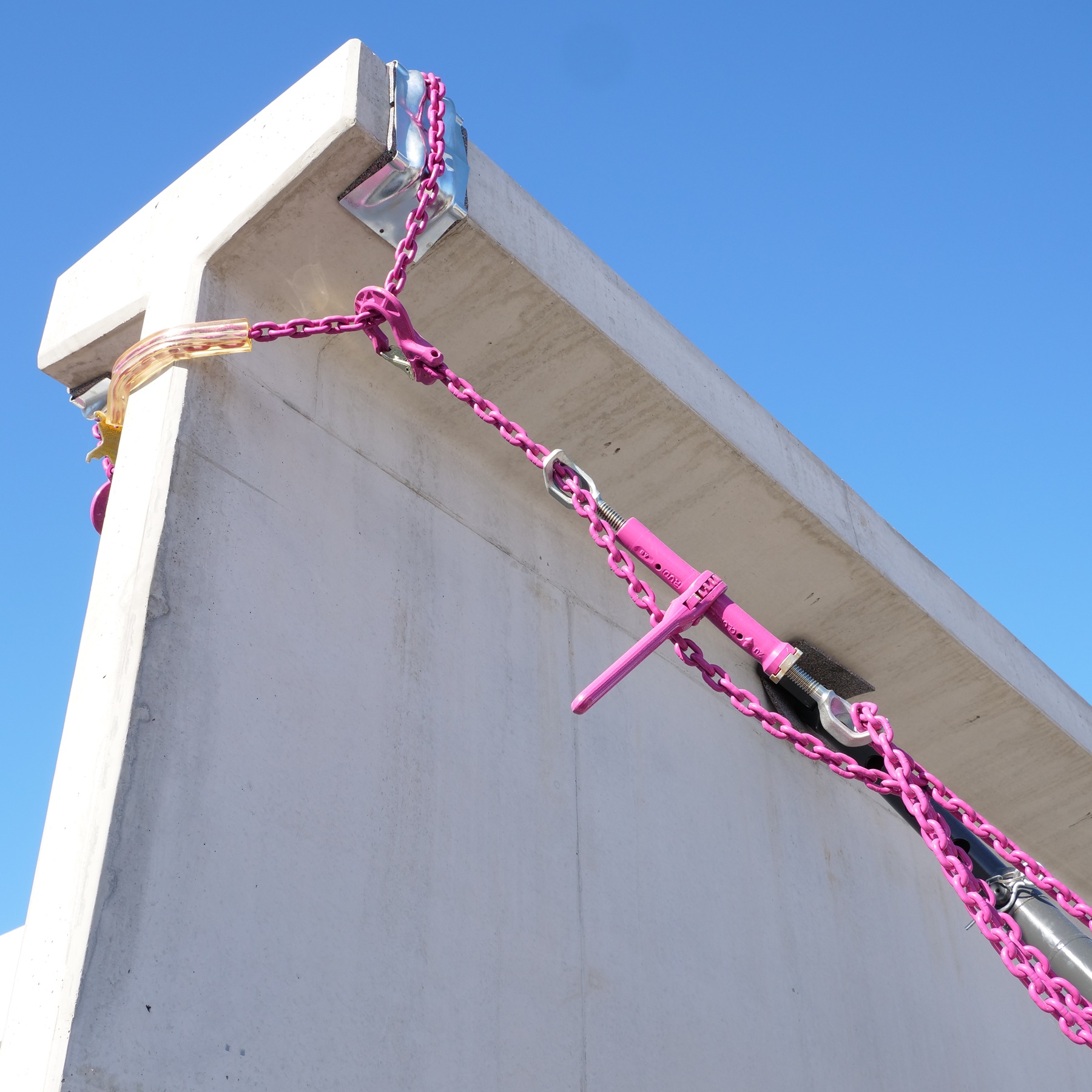

ICE Endless Chains are used where a regular "direct lashing" is not possible because of the lack of lashing points. Large loads such as stone or concrete blocks can be transported using an ICE endless chain as a "spring lashing" method.

Advantages:

The endless chain can be opened without tools
Can be adjusted in its loop diameter

An ICE-Endless Chain can be used with an ICE-Multi-shortening claw to form a closed chain.

Product Variants (5)

ICE-VSK-KK-6 (7901307)

Attribute	Value	Value
weight	1.20 kg	2.65 lbs
T	500 mm	19-11/16"
L	1000 mm	39-3/8"
Lashing capacity	3600 daN

ICE-VSK-KK-16 (7901311)

Attribute	Value	Value
weight	13.40 kg	29.54 lbs
T	750 mm	29-17/32"
L	1500 mm	59"
Lashing capacity	25000 daN

ICE-VSK-KK-13 (7901310)

Attribute	Value	Value
weight	8.80 kg	19.40 lbs
T	750 mm	29-17/32"
L	1500 mm	59"
Lashing capacity	16000 daN

ICE-VSK-KK-10 (7901309)

Attribute	Value	Value
weight	4.20 kg	9.26 lbs
T	600 mm	23-5/8"
L	1200 mm	47-1/4"
Lashing capacity	10000 daN

ICE-VSK-KK-8 (7901308)

Attribute	Value	Value
weight	2.50 kg	5.51 lbs
T	600 mm	23-5/8"
L	1200 mm	47-1/4"
Lashing capacity	6000 daN
