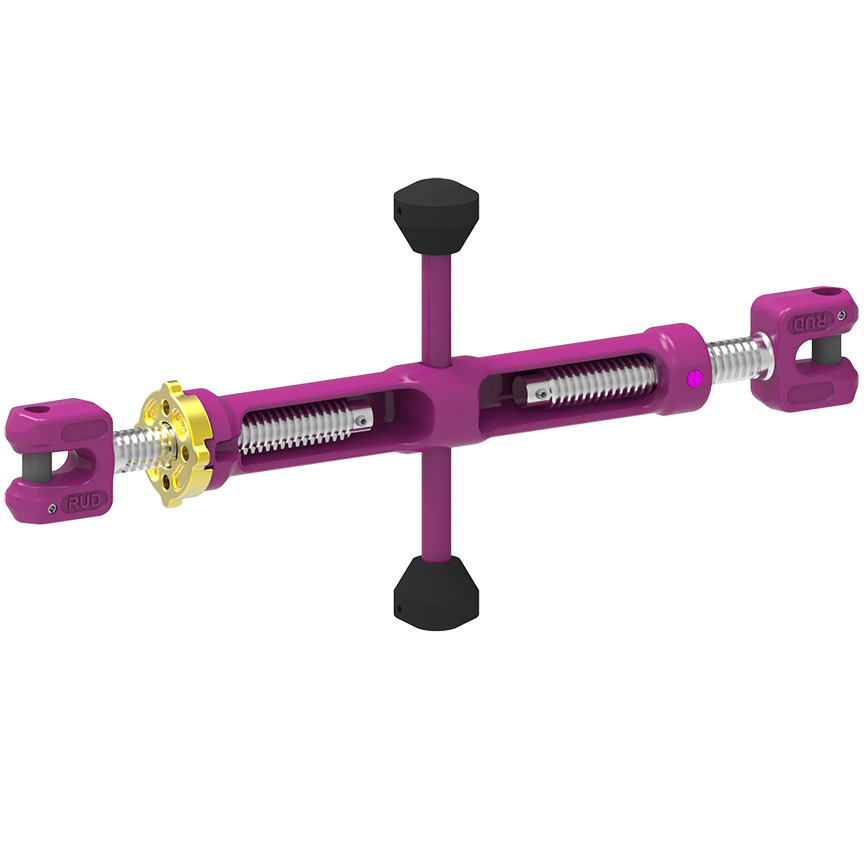

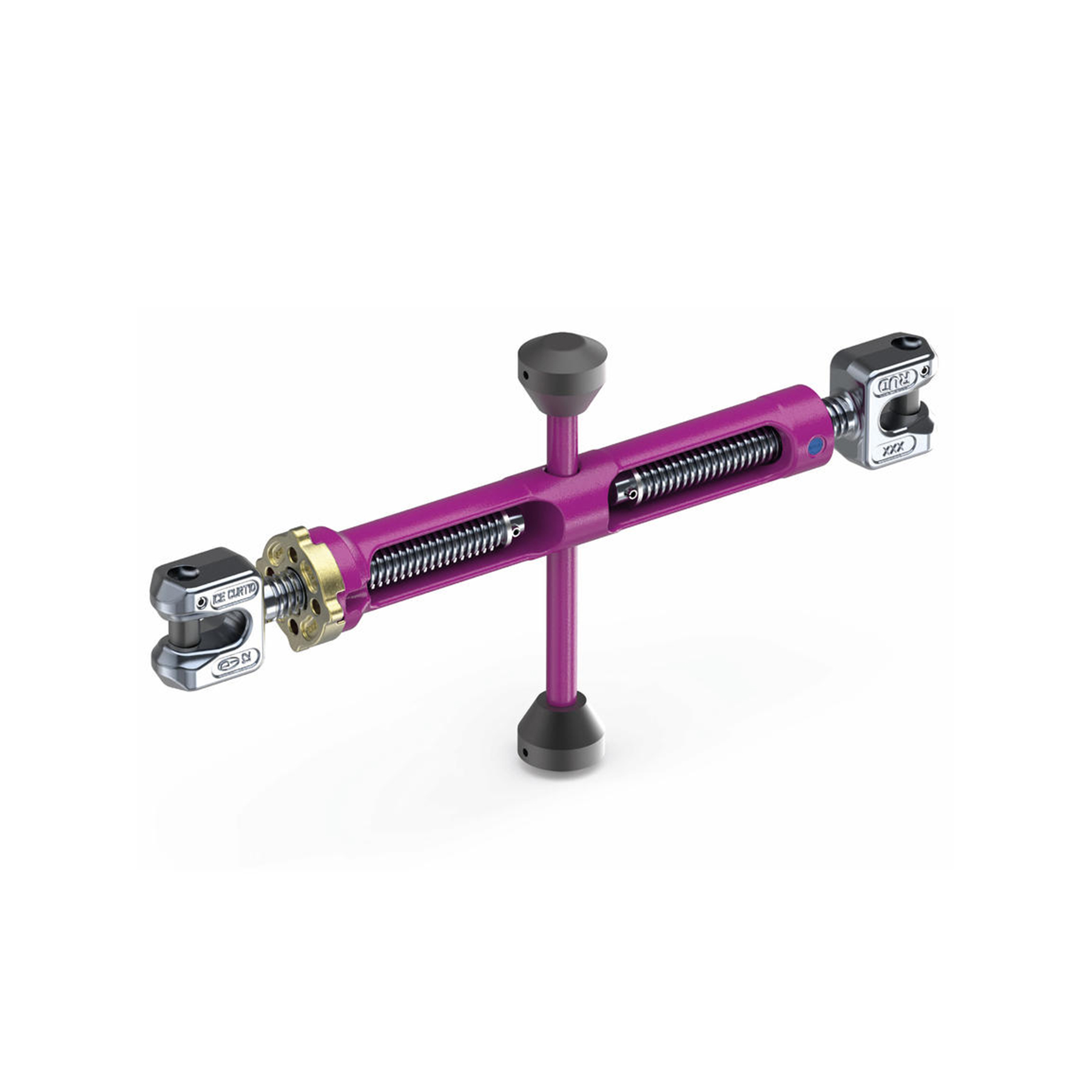

ICE-CURT-K-GAKO – tensioner

Easy to handle (also with gloves)
Innovative forged design – light and robust
Patented, practical prevention of loosening
Magnetically clinging locking device – also suitable as anti-theft system (lockable)
Easy to clean and to grease
Exceeds the requirements of the EN 12195-3

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Phone
This field is for validation purposes and should be left unchanged.

Product Variants (5)

ICE-CURT-K -6- GAKO (7904448)

Technical Information

Product number: 7904448

Technical Downloads

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO-6 - DXF 2D CAD File Download File

ICE-CURT-K-GAKO-6 - IGES 3D CAD File Download File

ICE-CURT-K-GAKO-6 - STEP 3D CAD File Download File

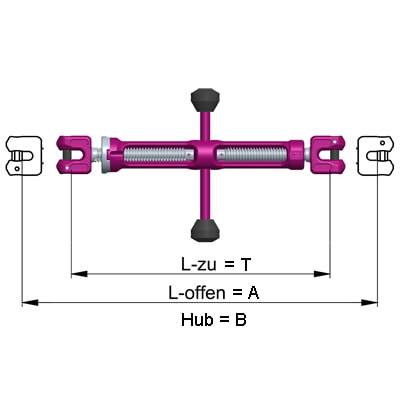

Attribute	Value	Value
weight	1.76 kg	3.88 lbs
A	400 mm	15-3/4"
B	140 mm	5-1/2"
T	260 mm	10-1/4"
Lashing capacity	3600 daN

ICE-CURT-K -8- GAKO (7904449)

Technical Information

Product number: 7904449

Technical Downloads

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO-8 - DXF 2D CAD File Download File

ICE-CURT-K-GAKO-8 - IGES 3D CAD File Download File

ICE-CURT-K-GAKO-8 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	3.15 kg	6.94 lbs
A	520 mm	20-1/2"
B	170 mm	6-11/16"
T	350 mm	13-3/4"
Lashing capacity	6000 daN

ICE-CURT-K -10- GAKO (7904450)

Technical Information

Product number: 7904450

Technical Downloads

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO-10 - DXF 2D CAD File Download File

ICE-CURT-K-GAKO-10 - IGES 3D CAD File Download File

ICE-CURT-K-GAKO-10 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	3.55 kg	7.83 lbs
A	532 mm	20-15/16"
B	170 mm	6-11/16"
T	362 mm	14-1/4"
Lashing capacity	10000 daN

ICE-CURT-K -13- GAKO (7904451)

Technical Information

Product number: 7904451

Technical Downloads

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO-13 - DXF 2D CAD File Download File

ICE-CURT-K-GAKO-13 - IGES 3D CAD File Download File

ICE-CURT-K-GAKO-13 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	6.57 kg	14.48 lbs
A	830 mm	32-11/16"
B	300 mm	11-13/16"
T	530 mm	20-7/8"
Lashing capacity	16000 daN

ICE-CURT-K -16- GAKO (7904452)

Technical Information

Product number: 7904452

Technical Downloads

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO - Picture Download File

ICE-CURT-K-GAKO-16 - DXF 2D CAD File Download File

ICE-CURT-K-GAKO-16 - IGES 3D CAD File Download File

ICE-CURT-K-GAKO-16 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	12.22 kg	26.94 lbs
A	962 mm	37-7/8"
B	350 mm	13-3/4"
T	612 mm	24-3/32"
Lashing capacity	25000 daN
