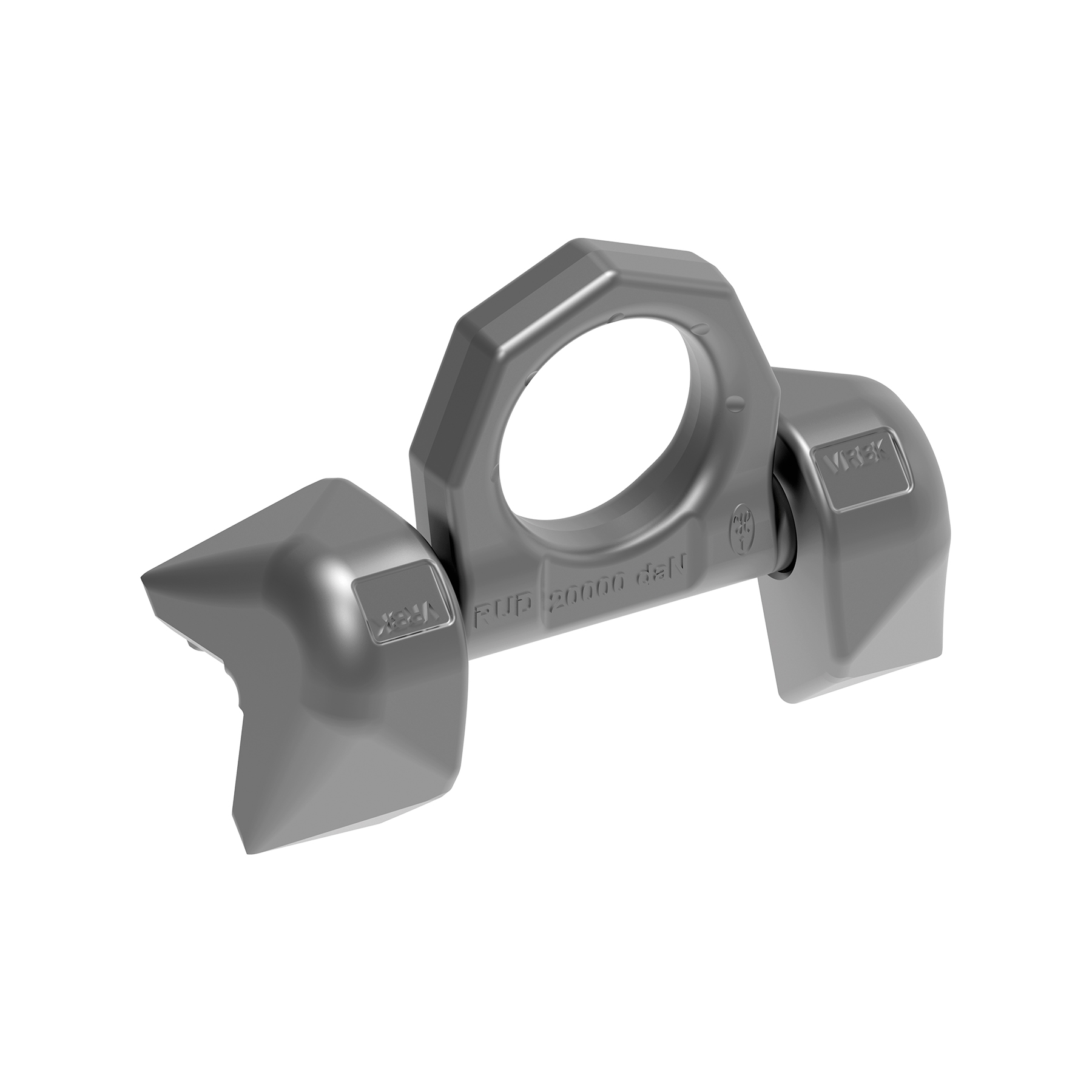

LRBK-FIX Lashing - Weld-On Load Ring

  • Weld-on area free from subsurface corrosion due to circular HY-weld seam
  • Even force distribution due to two-point attachment

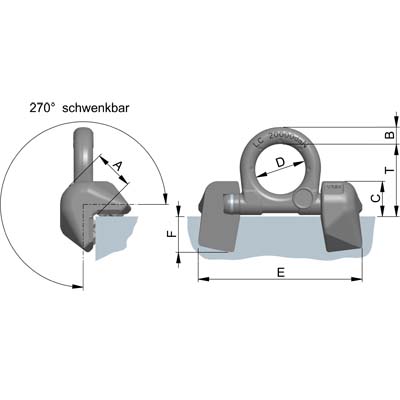

  • Low profile since it can be folded within an angle range of 270°
  • No alignment between the weld-on blocks and ring

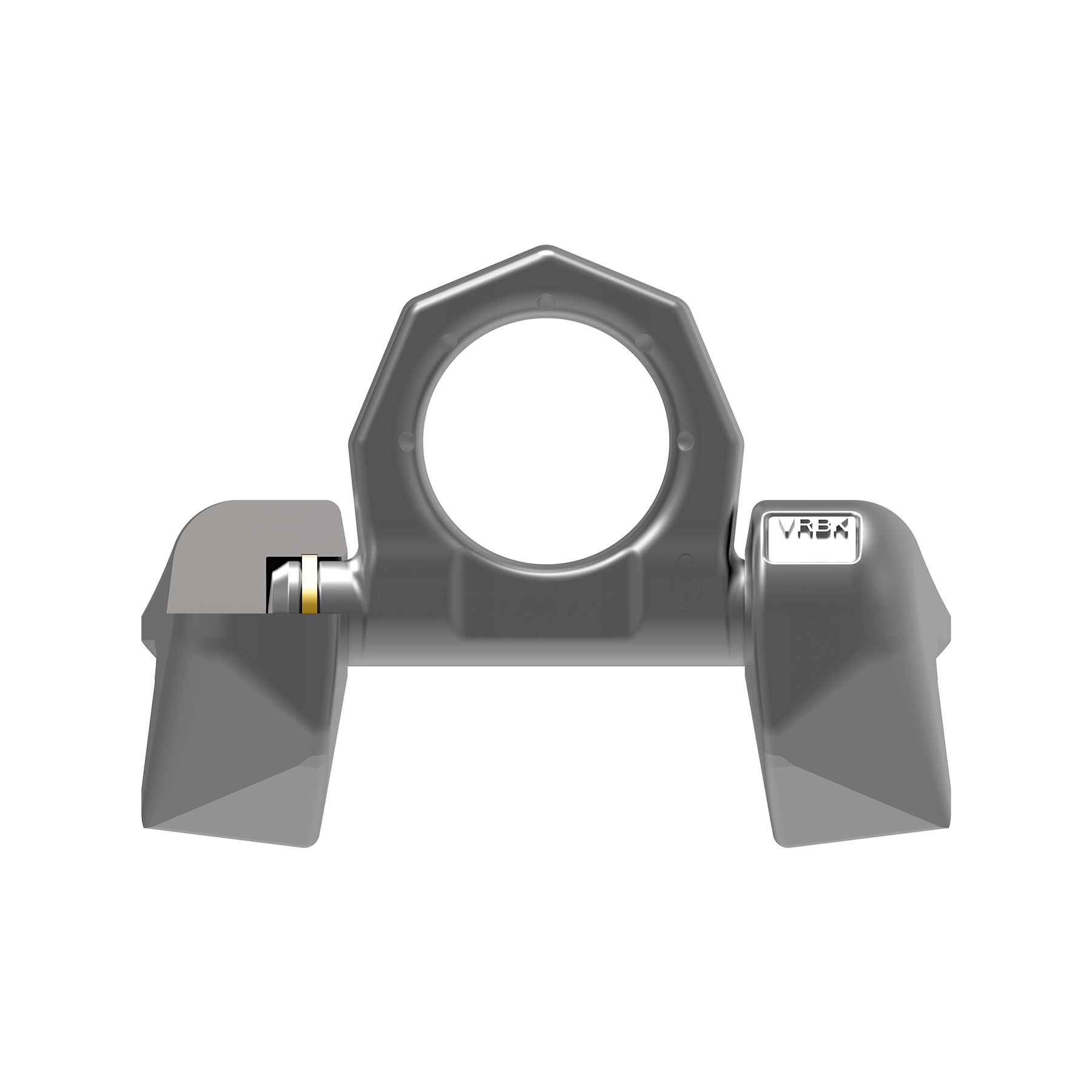

  • The clamp spring is protected inside the weld-on block
  • The spring fixes the weld-on blocks to the ring and creates a radial clamping to prevent loosening
  • Clamping spring limits rattling noise
  • Inclination angle marked on the ring and blocks in all levels
  • Ring is marked with the permitted lashing capacity "LC" in daN

Note: Welding should only be carried out by qualified persons in accordance with ISO 9606-1

  • Full working load in all directions.
  • ECS 19190 122

Product Variants (3)
