ICE-CURT-GAKO - ratchet tensioner - RUD Chains Australia

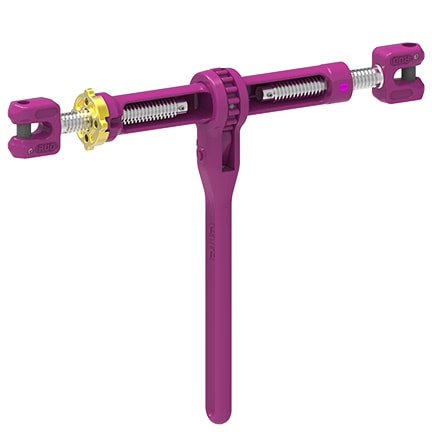

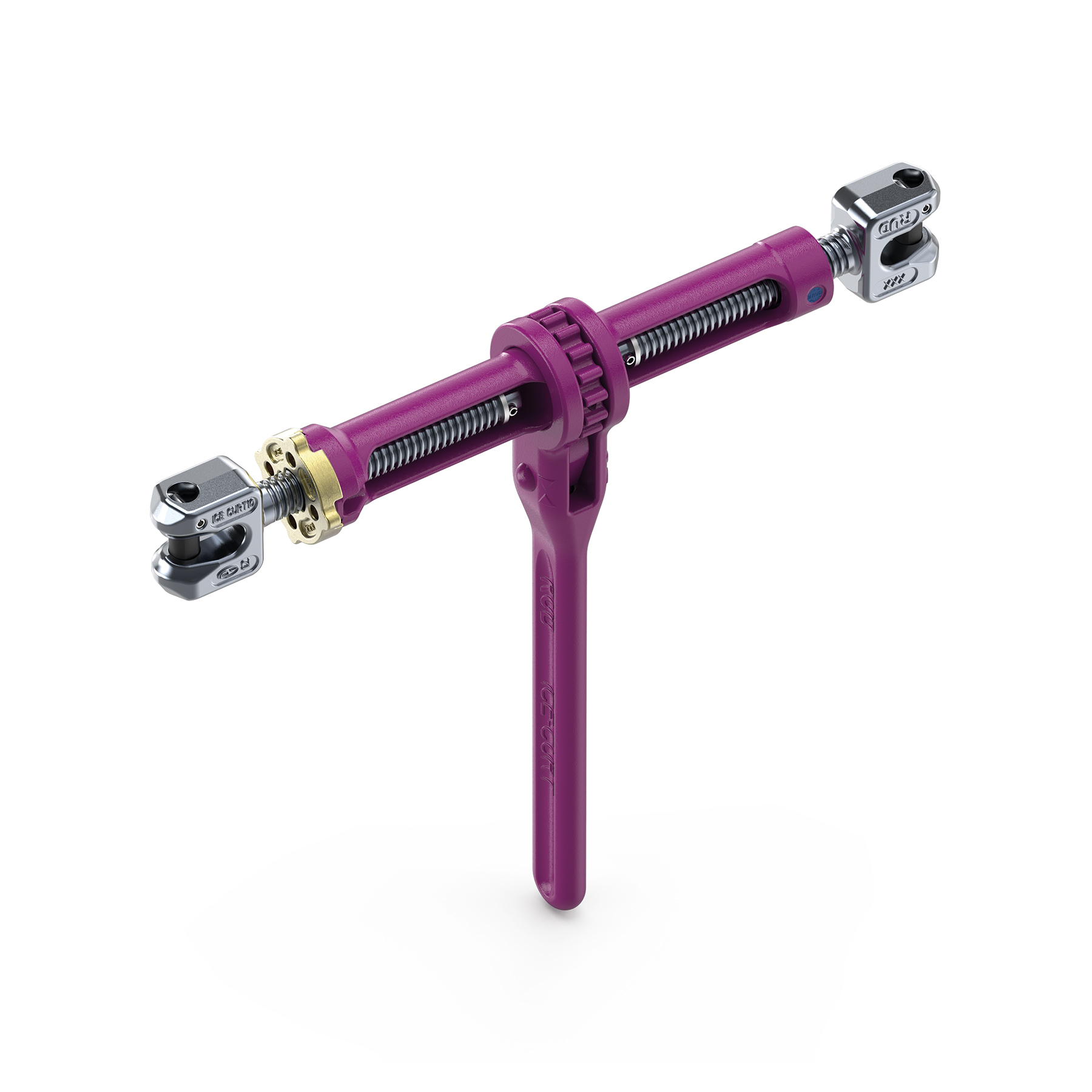

ICE-CURT-GAKO – ratchet tensioner

Ratchet easy to handle (also with gloves)
Innovative forged design – light and robust
Patented, practical prevention of loosening
Magnetically clinging locking device – also suitable as anti-theft system (lockable)
Easy to clean and lubricate
Exceeds the requirements of the EN 12195-3

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (5)

ICE-CURT -6- GAKO (7903439)

Technical Information

Product number: 7903439

Technical Downloads

ICE-CURT-GAKO - Picture Download File

ICE-CURT-GAKO - Picture Download File

ICE-CURT-6-GAKO - DXF 2D CAD File Download File

ICE-CURT-6-GAKO - IGES 3D CAD File Download File

ICE-CURT-6-GAKO - STEP 3D CAD File Download File

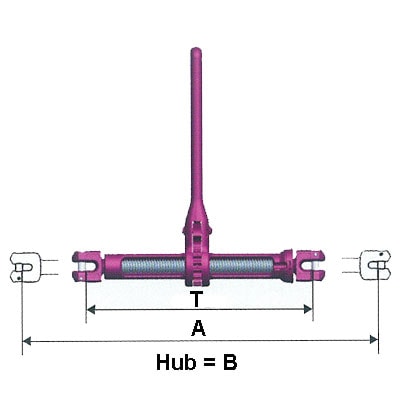

Attribute	Value	Value
weight	1.49 kg	3.28 lbs
A	400 mm	15-3/4"
B	140 mm	5-1/2"
T	260 mm	10-1/4"
Lashing capacity	3600 daN

ICE-CURT -8- GAKO (7901125)

Technical Information

Product number: 7901125

Technical Downloads

ICE-CURT-GAKO - Picture Download File

ICE-CURT-GAKO - Picture Download File

ICE-CURT-8-GAKO - DXF 2D CAD File Download File

ICE-CURT-8-GAKO - IGES 3D CAD File Download File

ICE-CURT-8-GAKO - STEP 3D CAD File Download File

Attribute	Value	Value
weight	3.90 kg	8.60 lbs
A	520 mm	20-1/2"
B	170 mm	6-11/16"
T	350 mm	13-3/4"
Lashing capacity	6000 daN

ICE-CURT -10- GAKO (7901126)

Technical Information

Product number: 7901126

Technical Downloads

ICE-CURT-GAKO - Picture Download File

ICE-CURT-GAKO - Picture Download File

ICE-CURT-10-GAKO - DXF 2D CAD File Download File

ICE-CURT-10-GAKO - IGES 3D CAD File Download File

ICE-CURT-10-GAKO - STEP 3D CAD File Download File

Attribute	Value	Value
weight	4.30 kg	9.48 lbs
A	532 mm	20-15/16"
B	170 mm	6-11/16"
T	362 mm	14-1/4"
Lashing capacity	10000 daN

ICE-CURT -13- GAKO (7902624)

Technical Information

Product number: 7902624

Technical Downloads

ICE-CURT-GAKO - Picture Download File

ICE-CURT-GAKO - Picture Download File

ICE-CURT-13-GAKO - DXF 2D CAD File Download File

ICE-CURT-13-GAKO - IGES 3D CAD File Download File

ICE-CURT-13-GAKO - STEP 3D CAD File Download File

Attribute	Value	Value
weight	7.63 kg	16.82 lbs
A	830 mm	32-11/16"
B	300 mm	11-13/16"
T	530 mm	20-7/8"
Lashing capacity	16000 daN

ICE-CURT -16- GAKO (7902625)

Technical Information

Product number: 7902625

Technical Downloads

ICE-CURT-GAKO - Picture Download File

ICE-CURT-GAKO - Picture Download File

ICE-CURT-16-GAKO - DXF 2D CAD File Download File

ICE-CURT-16-GAKO - IGES 3D CAD File Download File

ICE-CURT-16-GAKO - STEP 3D CAD File Download File

Attribute	Value	Value
weight	13.03 kg	28.73 lbs
A	962 mm	37-7/8"
B	350 mm	13-3/4"
T	612 mm	24-3/32"
Lashing capacity	25000 daN
