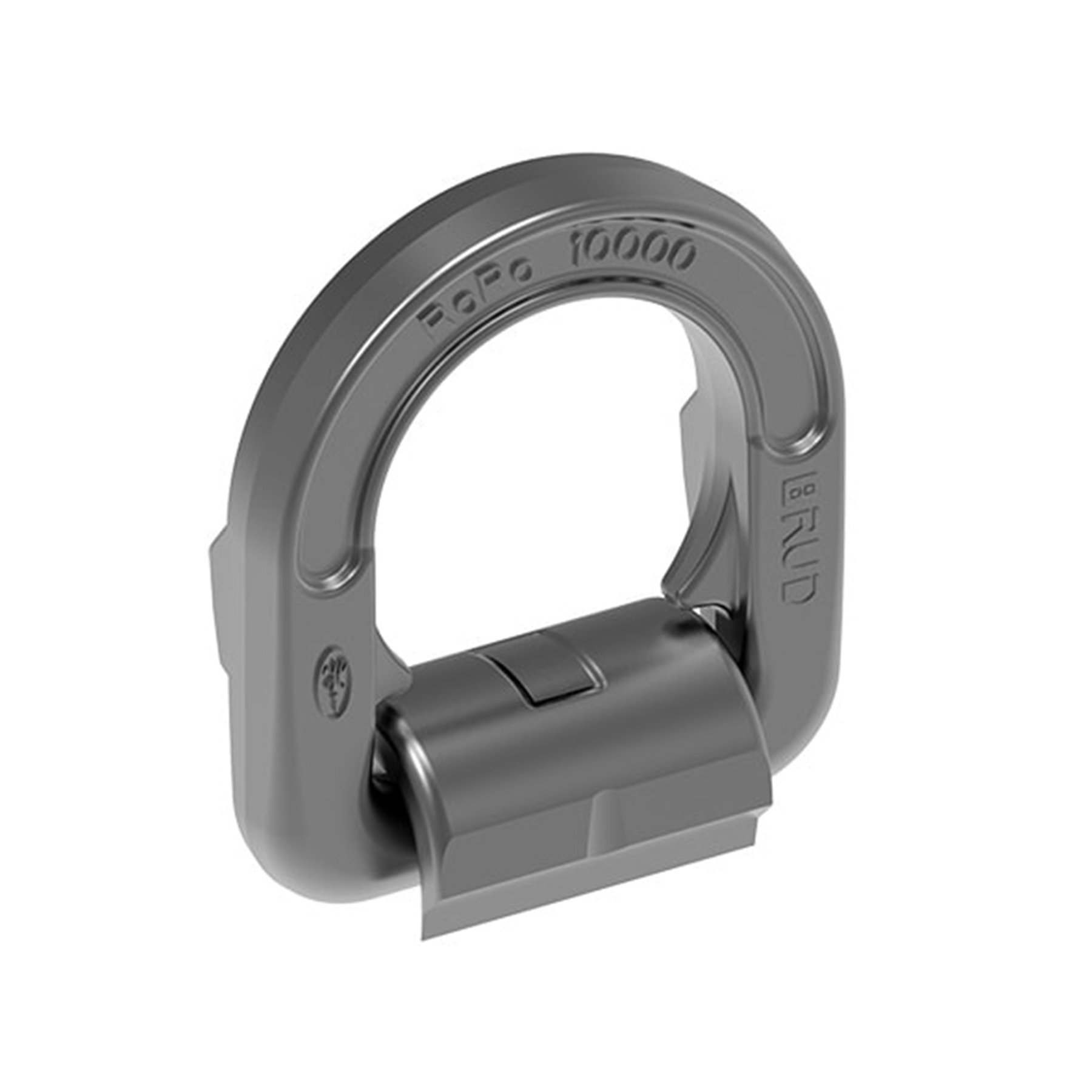

RoRo Weld-On Lashing Point
- Used specially for low temperatures -40°C
- Lashing - and connection devices for road vehicles on Ro/Ro ships
- 100% crack detected
- Complies to EN 29367-2
- Resistance to proof force of 120 kN and breaking force of 200 kN
- Phosphate surface
- Suitable for all lashing requirements
Product Variants (1)
RoRo Weld-On Lashing Point LP 10,000 daN (7983031)

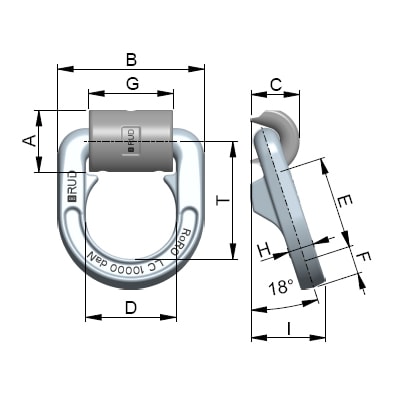

| Attribute | Value | Value |
|---|
| weight | 2.30 kg | 5.07 lbs |
| A | 55 mm | 2-5/32" |
| B | 130 mm | 5-1/8" |
| T | 105 mm | 4-1/8"
|
| C | 43 mm | 1-11/16" |
| D | 80 mm | 3-1/8" |
| E | 82 mm | 3-1/4" |
| F | 25 mm | 63/64" |
| G | 75 mm | 2-15/16" |
| H | 23 mm | 29/32" |
| I | 66 mm | 2-5/8" |
| Lashing capacity | 10000 daN | |
