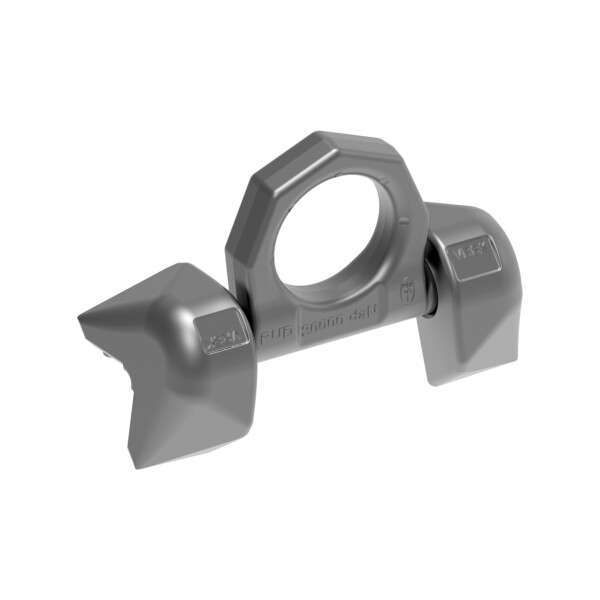

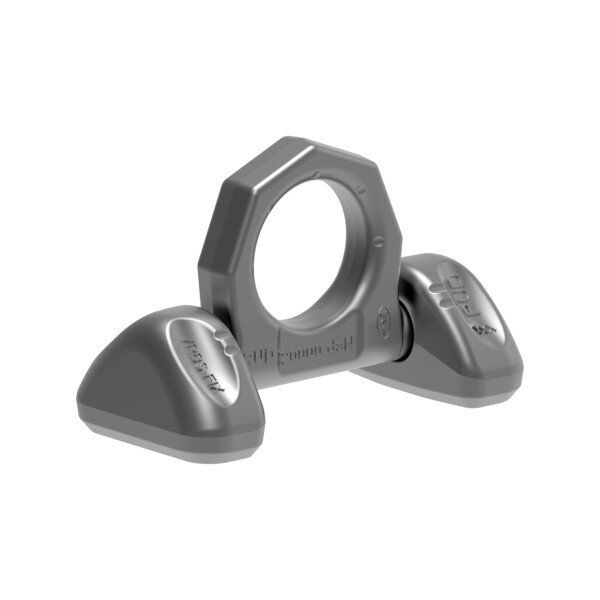

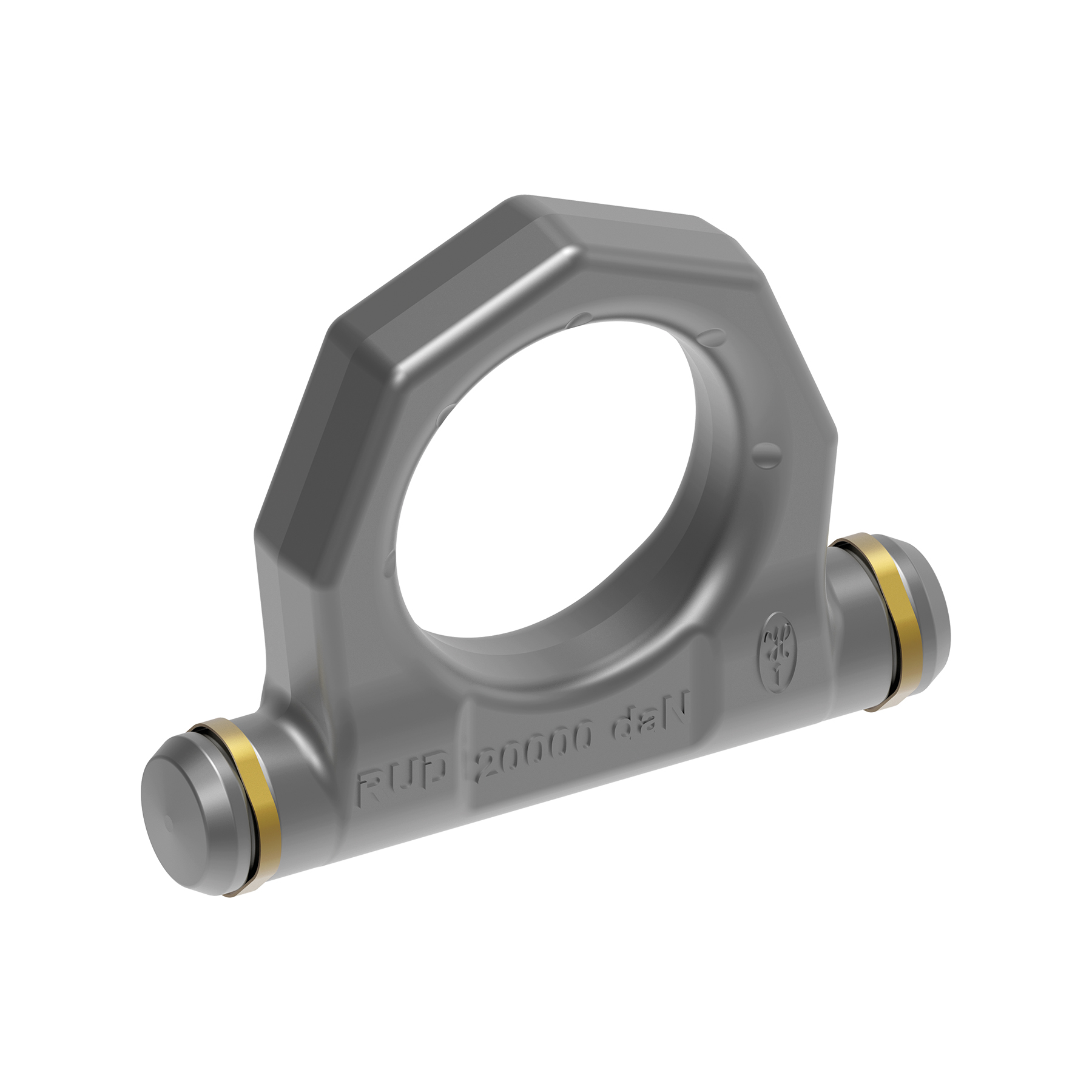

LRBS-FIX / LRBK-FIX Ring
- Forged load ring complied with EN 1677-1
- 100% electromagnetic crack detected
- Phosphate surface
- Meets the requirements for liability insurances
Product Variants (4)
LRBS-FIX Ring LRL-FIX 8000 (7902251)

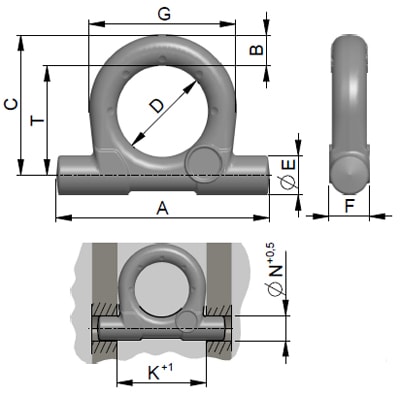

| Attribute | Value | Value |
|---|
| weight | 0.38 kg | 0.84 lbs |
| A | 107 mm | 4-7/32" |
| B | 14 mm | 9/16" |
| T | 63 mm | 2-15/32"
|
| C | 69 mm | 2-23/32" |
| D | 48 mm | 1-7/8" |
| E | 17 mm | 43/64" |
| F | 18 mm | 23/32" |
| G | 76 mm | 3" |
| K | 77 mm | 3"-1/32" |
| N | 19 mm | 3/4" |
| Lashing capacity | 8000 daN | |
LRBS-FIX Ring LRL-FIX 13400 (7902252)
| Attribute | Value | Value |
|---|
| weight | 0.92 kg | 2.03 lbs |
| A | 134 mm | 5-9/32" |
| B | 20 mm | 3/4" |
| T | 82 mm | 3-1/4"
|
| C | 91 mm | 3-9/16" |
| D | 60 mm | 2-3/8" |
| E | 23 mm | 29/32" |
| F | 23 mm | 29/32" |
| G | 100 mm | 3-15/16" |
| K | 101 mm | 3-31/32" |
| N | 25 mm | 63/64" |
| Lashing capacity | 13400 daN | |
LRBS-FIX Ring LRL-FIX 20000 (7902331)
| Attribute | Value | Value |
|---|
| weight | 0.92 kg | 2.03 lbs |
| A | 152 mm | 6" |
| B | 22 mm | 7/8" |
| T | 78 mm | 3-1/16"
|
| C | 100 mm | 3-15/16" |
| D | 65 mm | 2-9/16" |
| E | 28 mm | 1-1/8" |
| F | 29 mm | 1-5/32" |
| G | 105 mm | 4-1/8" |
| K | 106 mm | 4-3/16" |
| N | 30 mm | 1-3/16" |
| Lashing capacity | 20000 daN | |
LRBS-FIX Ring LRL-FIX 32000 (7993480)
| Attribute | Value | Value |
|---|
| weight | 3.20 kg | 7.05 lbs |
| A | 204 mm | 8-1/32" |
| B | 30 mm | 1-3/16" |
| T | 104 mm | 4-3/32"
|
| C | 134 mm | 5-9/32" |
| D | 90 mm | 3-17/32" |
| E | 35 mm | 1-3/8" |
| F | 36 mm | 1-27/64" |
| G | 147 mm | 5-25/32" |
| K | 149 mm | 5-7/8" |
| N | 37 mm | 1-7/16" |
| Lashing capacity | 32000 daN | |
