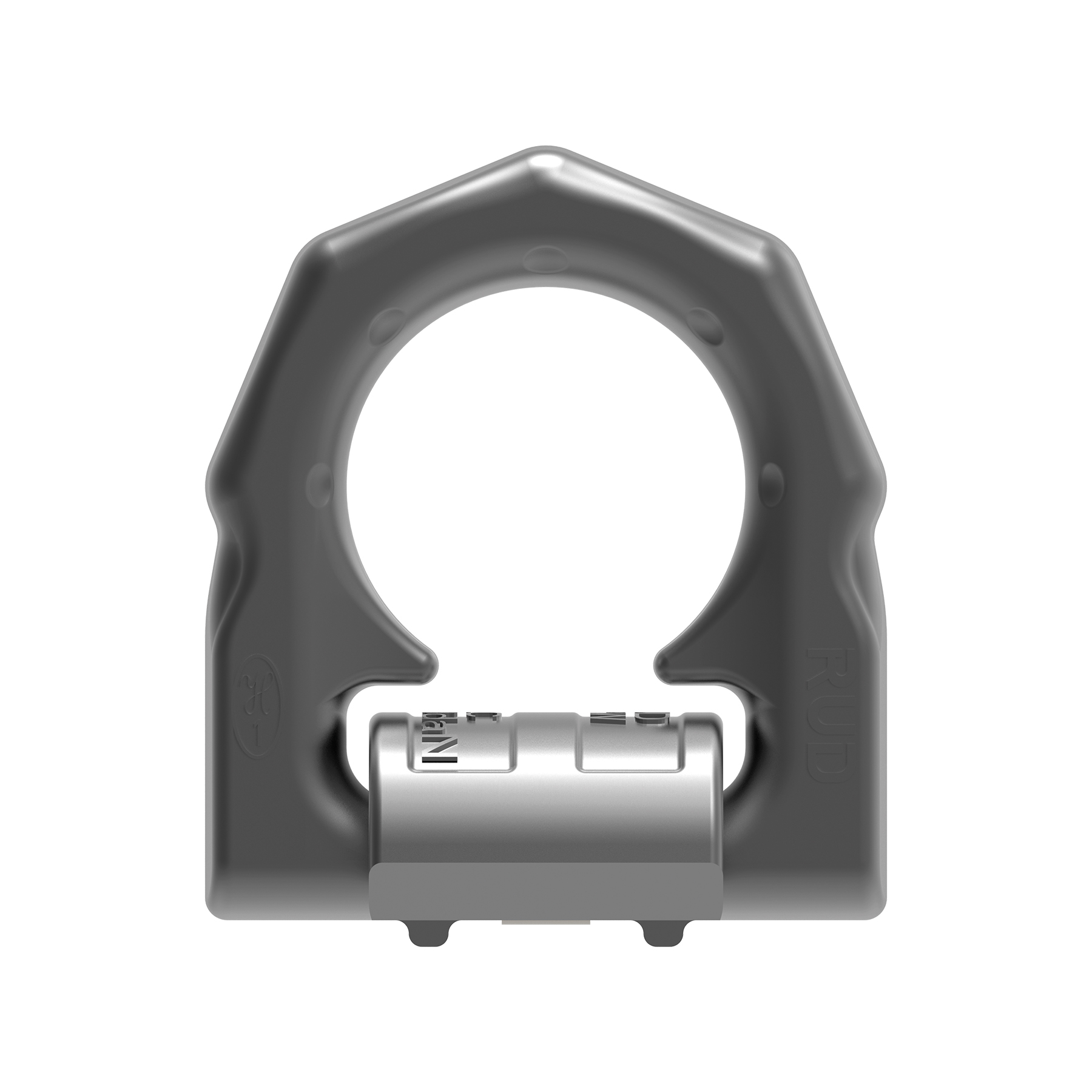

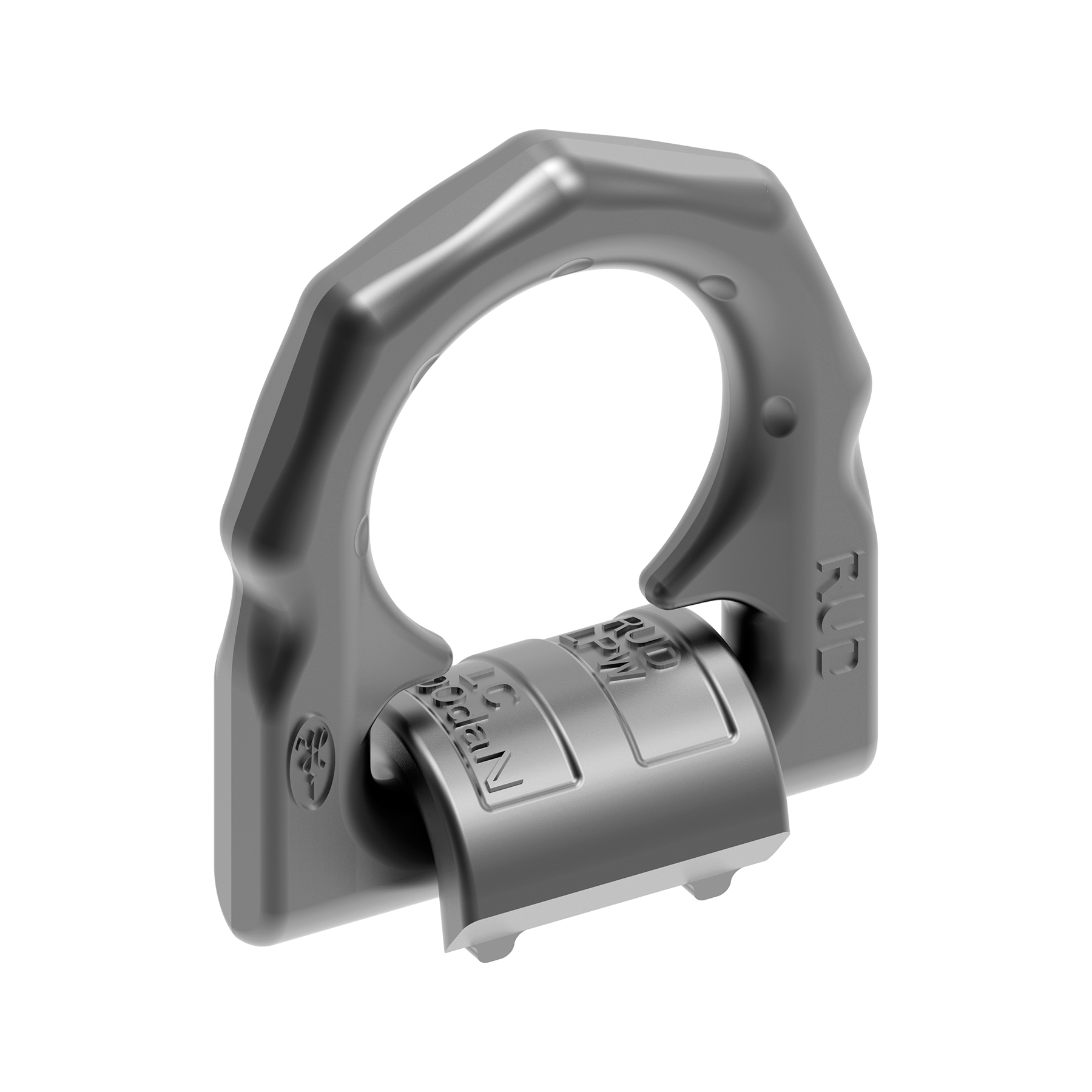

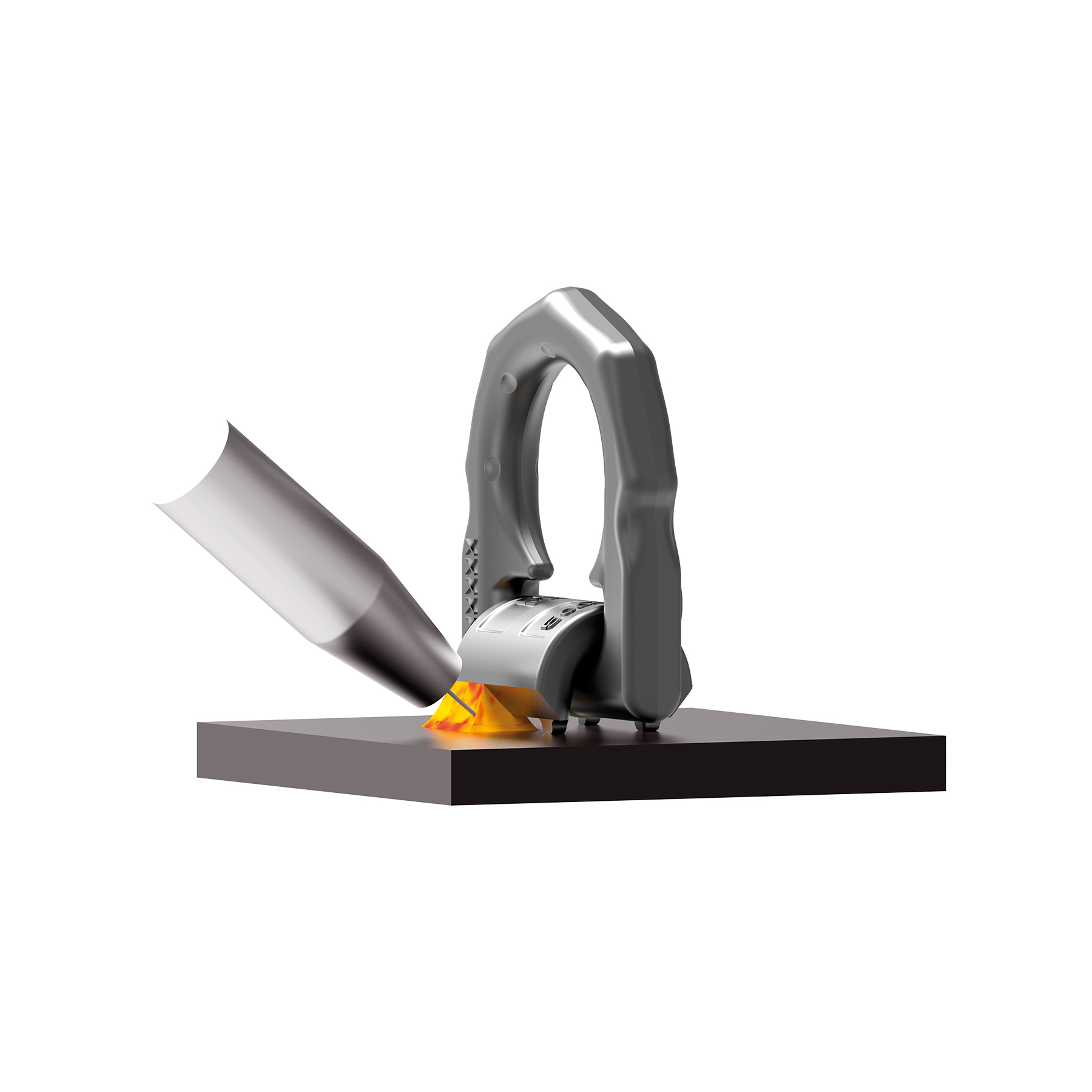

LPW Lashing-Point-Weld-on

Full LC in all loading directions

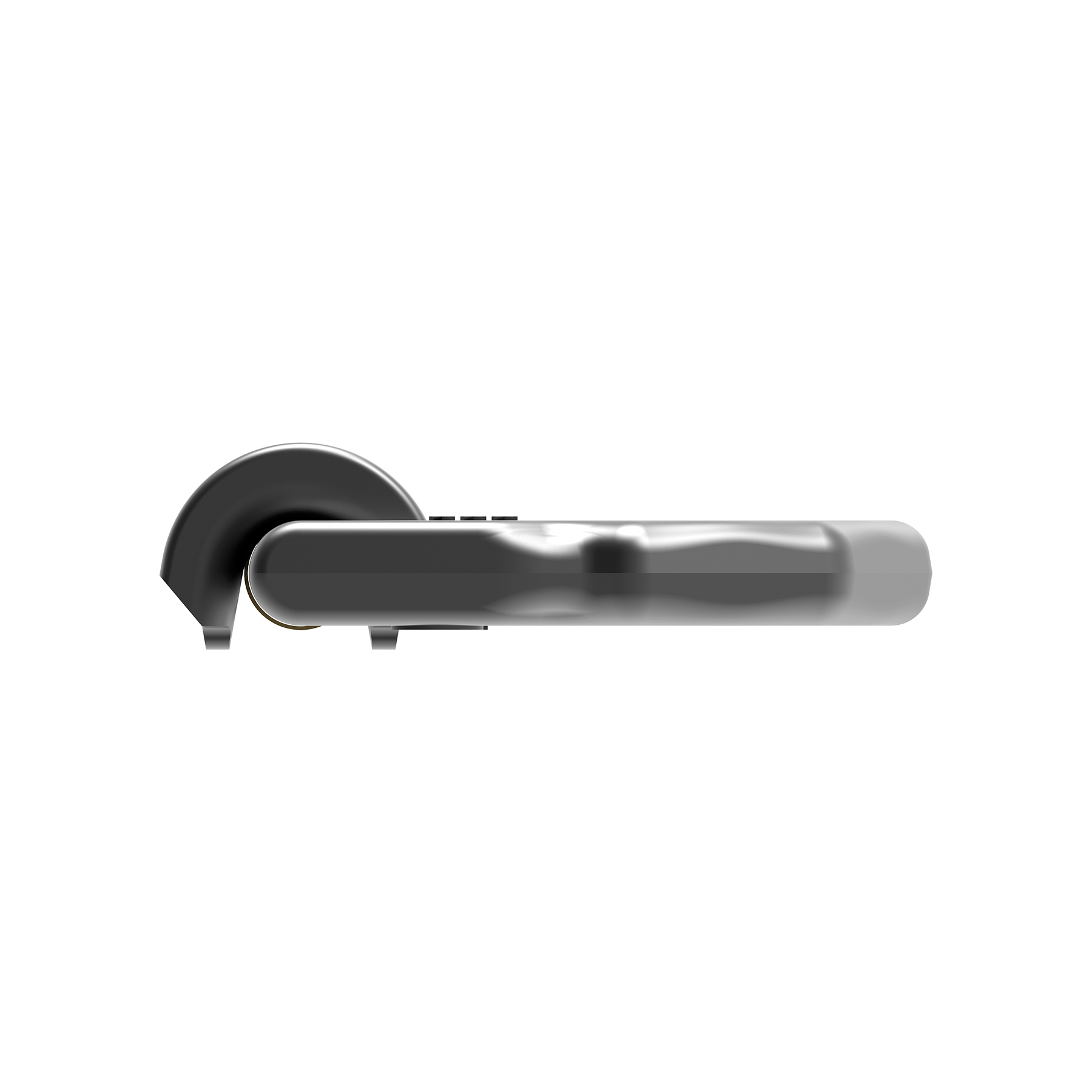

Patented 90° support

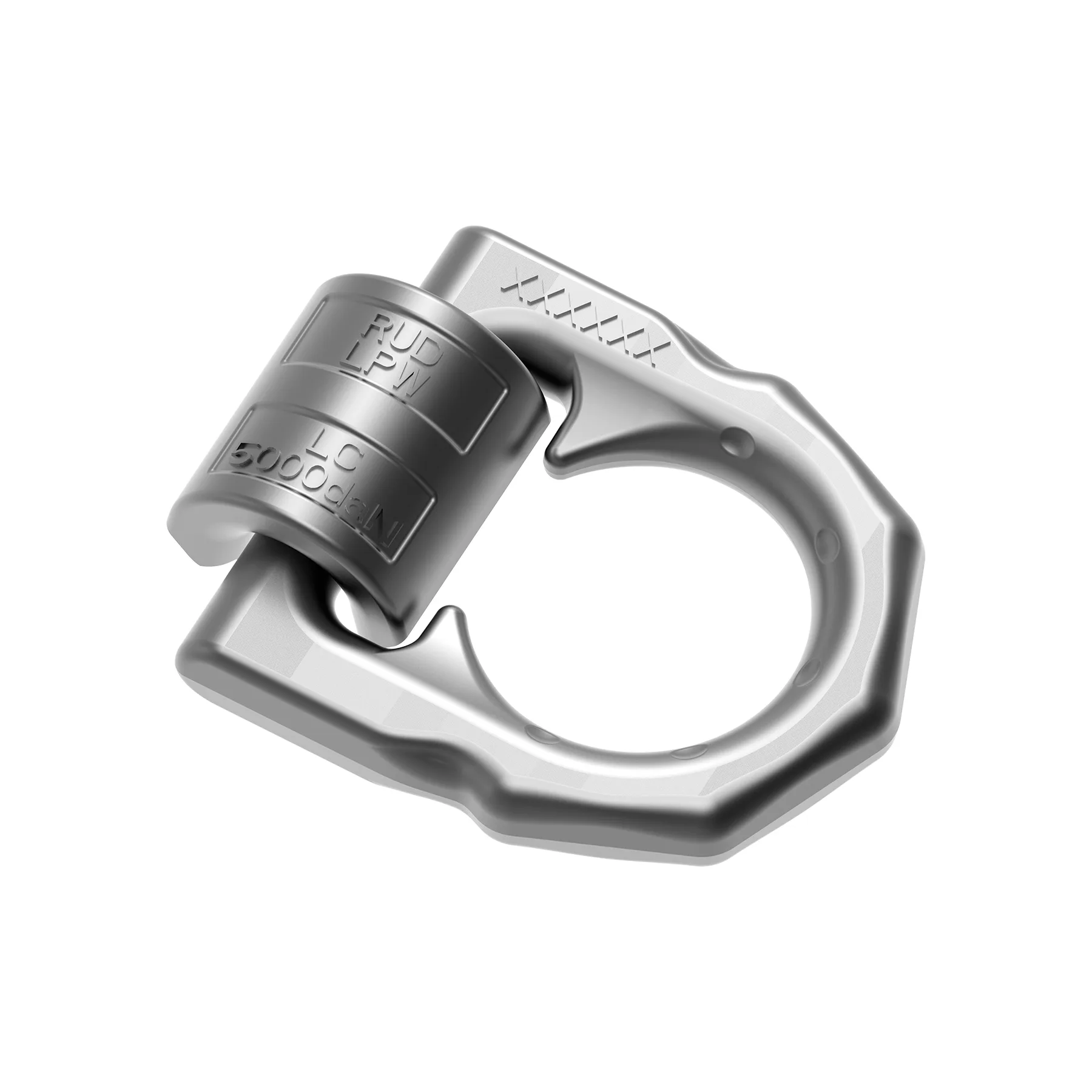

LC marking with daN

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (12)

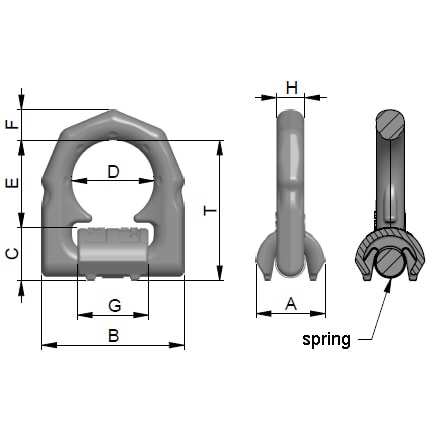

Lashing Point Welding LPW-U 3000 daN with spring (7992225)

Technical Information

Product number: 7992225

Technical Downloads

LPW-U 3000daN - DXF 2D CAD File Download File

LPW-U 3000daN - IGES 3D CAD File Download File

LPW-U 3000daN - STEP 3D CAD File Download File

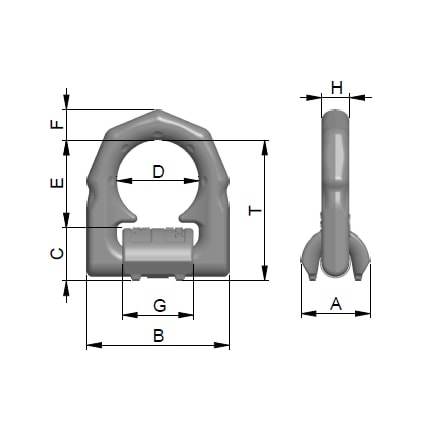

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
A	33 mm	1-5/16"
B	66 mm	2-5/8"
T	65 mm	2-9/16"
C	25 mm	63/64"
D	38 mm	1-1/2"
E	40 mm	1-9/16"
F	14 mm	9/16"
G	33 mm	1-5/16"
H	14 mm	9/16"
Lashing capacity	3000 daN

Lashing Point Welding LPW-U 5000 daN with spring (7994831)

Technical Information

Product number: 7994831

Technical Downloads

LPW-U 5000daN - DXF 2D CAD File Download File

LPW-U 5000daN - IGES 3D CAD File Download File

LPW-U 5000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.48 kg	1.06 lbs
A	36 mm	1-27/64"
B	77 mm	3"-1/32"
T	75 mm	2-15/16"
C	27 mm	1-1/16"
D	45 mm	1-25/32"
E	48 mm	1-7/8"
F	16 mm	5/8"
G	40 mm	1-9/16"
H	14 mm	9/16"
Lashing capacity	5000 daN

Lashing Point Welding LPW-U 8000 daN with spring (7992226)

Technical Information

Product number: 7992226

Technical Downloads

LPW-U 8000daN - DXF 2D CAD File Download File

LPW-U 8000daN - IGES 3D CAD File Download File

LPW-U 8000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.80 kg	1.76 lbs
A	42 mm	1-21/32"
B	87 mm	3-7/16"
T	83 mm	3-1/4"
C	31 mm	1-7/32"
D	51 mm	2"
E	52 mm	2-1/16"
F	18 mm	23/32"
G	46 mm	1-13/16"
H	16 mm	5/8"
Lashing capacity	8000 daN

Lashing Point Welding LPW-U 13400 daN with spring (7992227)

Technical Information

Product number: 7992227

Technical Downloads

LPW-U 13400daN - DXF 2D CAD File Download File

LPW-U 13400daN - IGES 3D CAD File Download File

LPW-U 13400daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	1.90 kg	4.19 lbs
A	61 mm	2-13/32"
B	115 mm	4-1/2"
T	117 mm	4-5/8"
C	44 mm	1-3/4"
D	67 mm	2-5/8"
E	73 mm	2-7/8"
F	24 mm	15/16"
G	60 mm	2-3/8"
H	22 mm	7/8"
Lashing capacity	13400 daN

Lashing Point Welding LPW-U 20000 daN with spring (7992228)

Technical Information

Product number: 7992228

Technical Downloads

LPW-U 20000daN - DXF 2D CAD File Download File

LPW-U 20000daN - IGES 3D CAD File Download File

LPW-U 20000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	2.90 kg	6.39 lbs
A	75 mm	2-15/16"
B	129 mm	5-1/16"
T	126 mm	5"
C	55 mm	2-5/32"
D	67 mm	2-5/8"
E	71 mm	2-13/16"
F	26.5 mm	1-3/64"
G	60 mm	2-3/8"
H	26 mm	1"
Lashing capacity	20000 daN

Lashing Point Welding LPW 3000 daN without spring (7993142)

Technical Information

Product number: 7993142

Technical Downloads

LPW 3000daN - DXF 2D CAD File Download File

LPW 3000daN - IGES 3D CAD File Download File

LPW 3000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
A	33 mm	1-5/16"
B	66 mm	2-5/8"
T	65 mm	2-9/16"
C	25 mm	63/64"
D	38 mm	1-1/2"
E	40 mm	1-9/16"
F	14 mm	9/16"
G	33 mm	1-5/16"
H	14 mm	9/16"
Lashing capacity	3000 daN

Lashing Point Welding LPW 5000 daN without spring (7995430)

Technical Information

Product number: 7995430

Technical Downloads

LPW 5000daN - DXF 2D CAD File Download File

LPW 5000daN - IGES 3D CAD File Download File

LPW 5000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.48 kg	1.06 lbs
A	36 mm	1-27/64"
B	77 mm	3"-1/32"
T	75 mm	2-15/16"
C	27 mm	1-1/16"
D	45 mm	1-25/32"
E	48 mm	1-7/8"
F	16 mm	5/8"
G	40 mm	1-9/16"
H	14 mm	9/16"
Lashing capacity	5000 daN

Lashing Point Welding LPW 8000 daN without spring (7993143)

Technical Information

Product number: 7993143

Technical Downloads

LPW 8000daN - DXF 2D CAD File Download File

LPW 8000daN - IGES 3D CAD File Download File

LPW 8000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.80 kg	1.76 lbs
A	42 mm	1-21/32"
B	87 mm	3-7/16"
T	83 mm	3-1/4"
C	31 mm	1-7/32"
D	51 mm	2"
E	52 mm	2-1/16"
F	18 mm	23/32"
G	46 mm	1-13/16"
H	16 mm	5/8"
Lashing capacity	8000 daN

Lashing Point Welding LPW 13400 daN without spring (7993144)

Technical Information

Product number: 7993144

Technical Downloads

LPW 13400daN - DXF 2D CAD File Download File

LPW 13400daN - IGES 3D CAD File Download File

LPW 13400daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	1.90 kg	4.19 lbs
A	61 mm	2-13/32"
B	115 mm	4-1/2"
T	117 mm	4-5/8"
C	44 mm	1-3/4"
D	67 mm	2-5/8"
E	73 mm	2-7/8"
F	24 mm	15/16"
G	60 mm	2-3/8"
H	22 mm	7/8"
Lashing capacity	13400 daN

Lashing Point Welding LPW 20000 daN without spring (7993145)

Technical Information

Product number: 7993145

Technical Downloads

LPW 20000daN - DXF 2D CAD File Download File

LPW 20000daN - IGES 3D CAD File Download File

LPW 20000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	2.90 kg	6.39 lbs
A	75 mm	2-15/16"
B	129 mm	5-1/16"
T	126 mm	5"
C	55 mm	2-5/32"
D	67 mm	2-5/8"
E	71 mm	2-13/16"
F	26.5 mm	1-3/64"
G	60 mm	2-3/8"
H	26 mm	1"
Lashing capacity	20000 daN

Lashing Point Welding LPW 32000 daN without spring (7992229)

Technical Information

Product number: 7992229

Technical Downloads

LPW 32000daN - DXF 2D CAD File Download File

LPW 32000daN - IGES 3D CAD File Download File

LPW 32000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	6.80 kg	14.99 lbs
A	96 mm	3-25/32"
B	190 mm	7-1/2"
T	174 mm	6-7/8"
C	69 mm	2-23/32"
D	100 mm	3-15/16"
E	105 mm	4-1/8"
F	40 mm	1-9/16"
G	90 mm	3-17/32"
H	26 mm	1"
Lashing capacity	32000 daN

Lashing Point Welding LPW-U 32000 daN with spring (7906781)

Technical Information

Product number: 7906781

Technical Downloads

LPW-U 32000daN - DXF 2D CAD File Download File

LPW-U 32000daN - IGES 3D CAD File Download File

LPW-U 32000daN - STEP 3D CAD File Download File

Attribute	Value	Value
weight	7.12 kg	15.70 lbs
A	96 mm	3-25/32"
B	192 mm	7-9/16"
T	176 mm	6-15/16"
C	70 mm	2-3/4"
D	100 mm	3-15/16"
E	106 mm	4-3/16"
F	40 mm	1-9/16"
G	90 mm	3-17/32"
H	26 mm	1"
Lashing capacity	32000 daN
