ICE Spare latches for ICE-Star-Hook

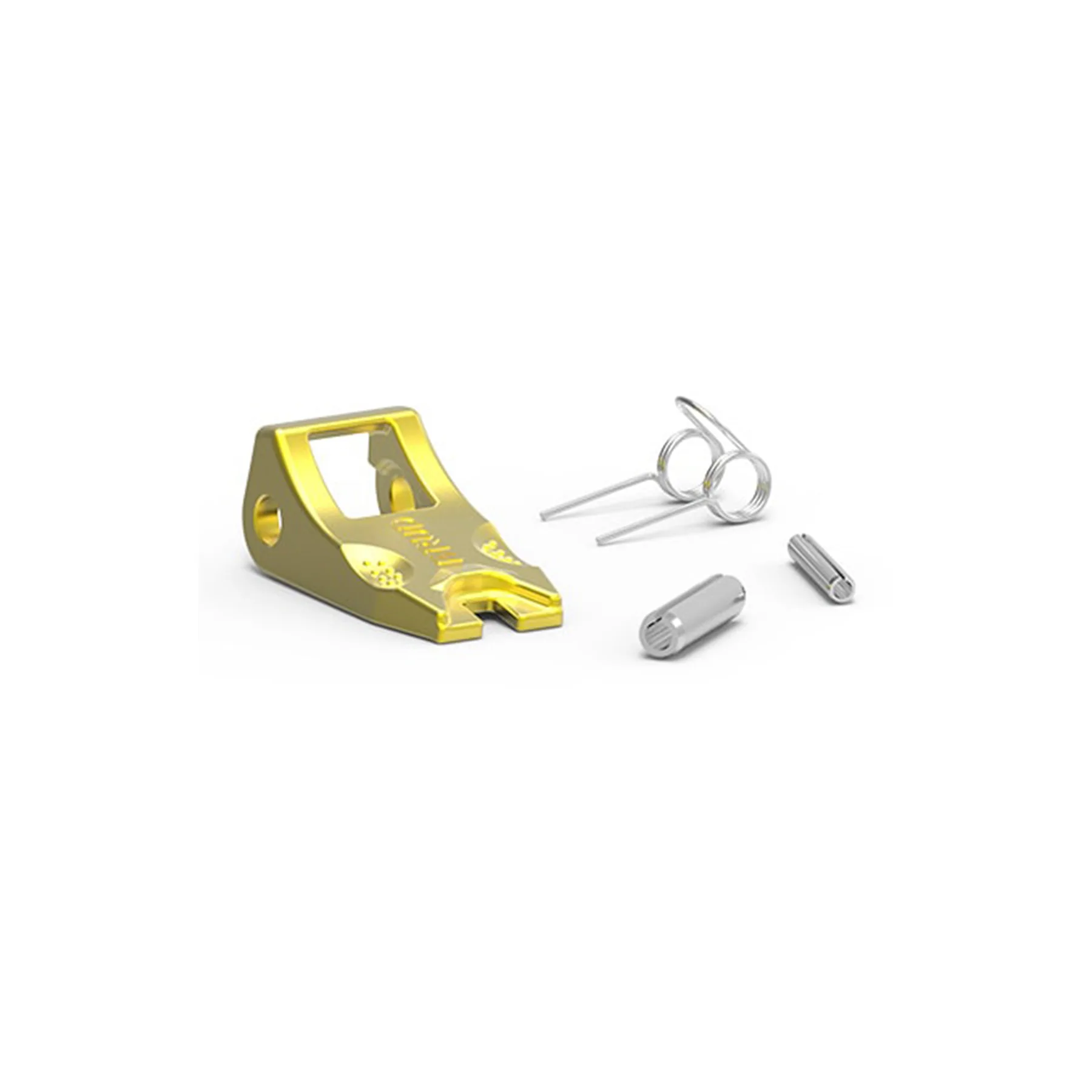

Consisting of a forged safety latch, a triple coiled corrosion protected double leg spring and a tensioning sleeve
Only whole sets can be supplied
Easy be assemble and disassemble using a hammer and a drift punch

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (5)

Securing set for ISH 6 (7904067)

Securing set for ISH 8 (7998289)

Securing set for ISH 10 (7998290)

Securing set for ISH 13 (7998291)

Securing set for ISH 16 (7999104)

ENQUIRE ABOUT THIS PRODUCT

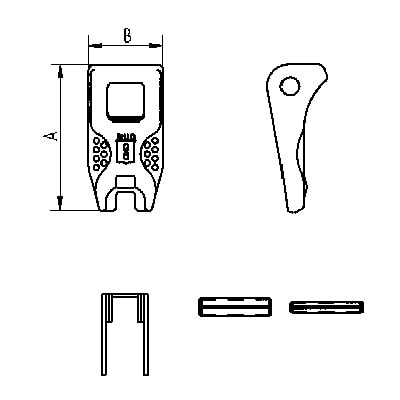

Attribute	Value	Value
weight	0.09 kg	0.20 lbs
A	60 mm	2-3/8"
B	26 mm	1"

Attribute	Value	Value
weight	0.13 kg	0.29 lbs
A	66 mm	2-5/8"
B	33 mm	1-5/16"

Attribute	Value	Value
weight	0.17 kg	0.37 lbs
A	77 mm	3"-1/32"
B	38 mm	1-1/2"

Attribute	Value	Value
weight	0.34 kg	0.75 lbs
A	92 mm	3-5/8"
B	50 mm	1-31/32"

Attribute	Value	Value
weight	0.38 kg	0.84 lbs
A	100 mm	3-15/16"
B	51 mm	2"
