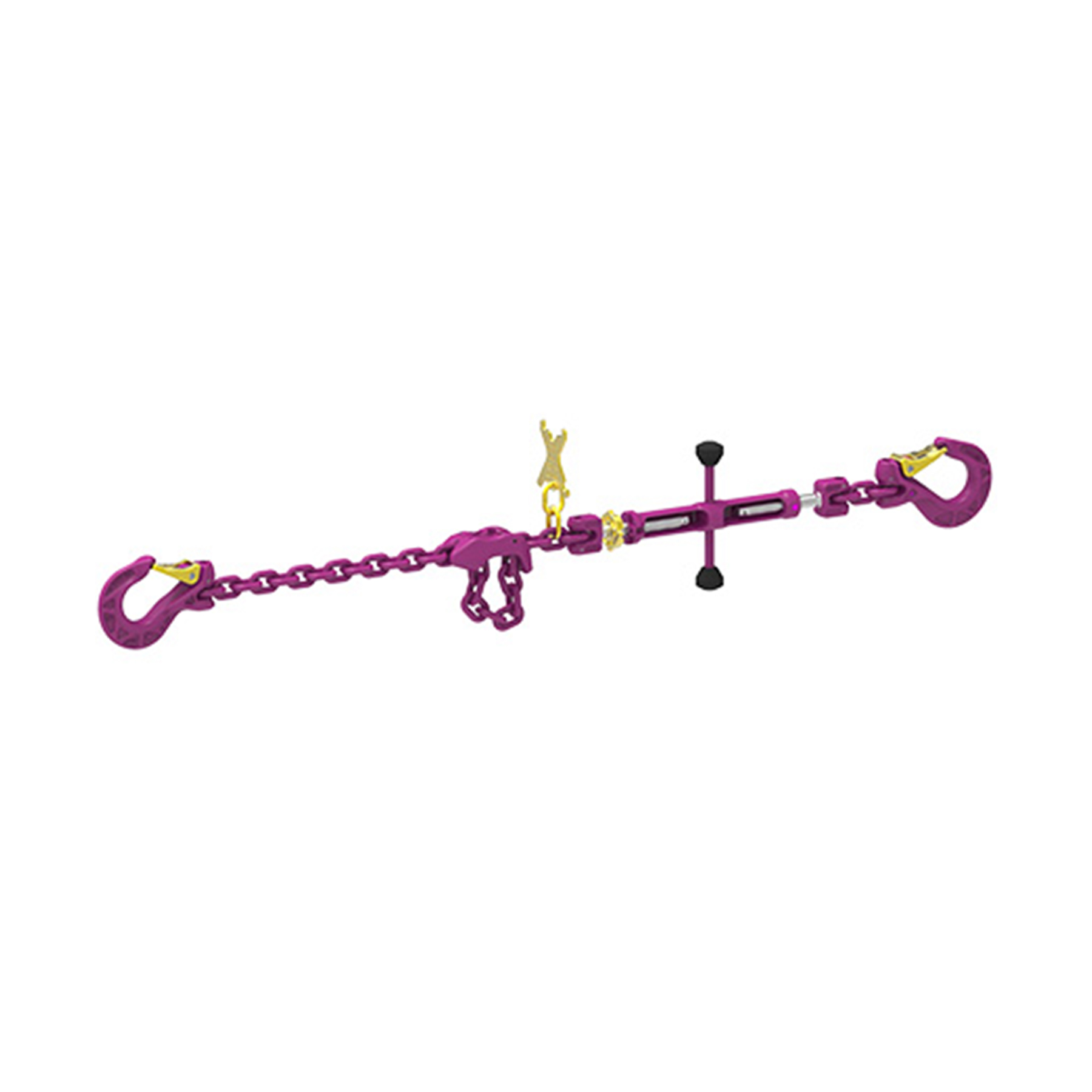

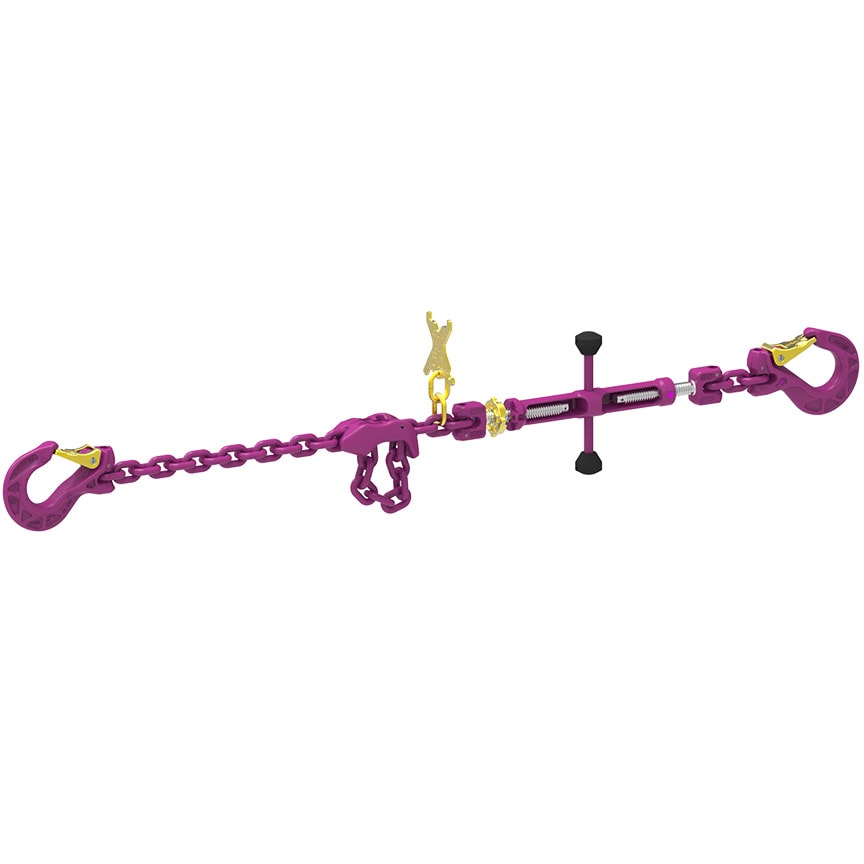

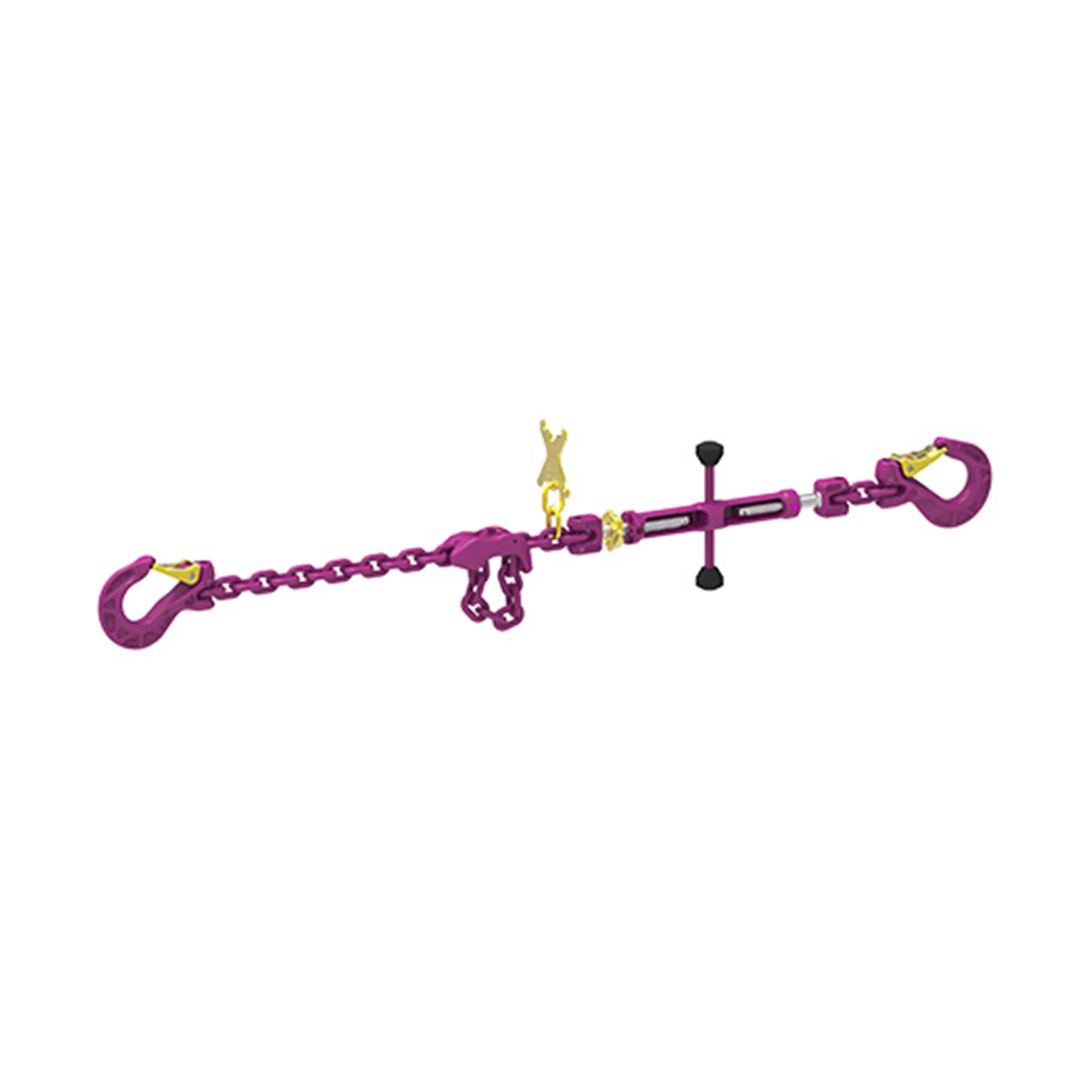

ICE Lashing Chain with ICE-CURT-K-GAKO Tensioner & IMVK
Specifications:
- Standard version of ICE Lashing Chain ICE-CURT-GAKO-K Tensioner
- Length: 3500 mm
- Length adjustment with an ICE-multi-shortening claw
- Specified to DIN EN 12195-3 and VDI 2700 standards
- For calculation purposes, request a VSK Technical paper
Note:
- ICE-VSK Lashing Chains should not be used for lifting loads
- Hooks, tensioners and multi-shortening claws should not be loaded over the edges
- Edge protection should be used with "sharp" edges (the radius is smaller than the nominal chain diameter)
Product Variants (5)
ICE-Lashing chain with tensioner IVSK-6-CURT-K-IMVK-3500 (7904608)
| Attribute | Value | Value |
|---|
| weight | 6.60 kg | 14.55 lbs |

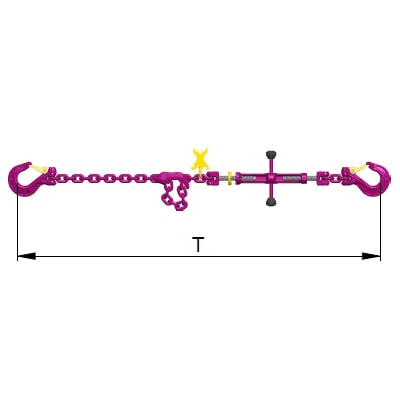

| T | 3500 mm | 138" |
| Lashing capacity | 3600 daN | |
ICE-Lashing chain with tensioner IVSK-8-CURT-K-IMVK-3500 (7904610)
| Attribute | Value | Value |
|---|
| weight | 11.00 kg | 24.25 lbs |
| T | 3500 mm | 138" |
| Lashing capacity | 6000 daN | |
ICE-Lashing chain with tensioner IVSK-10-CURT-K-IMVK-3500 (7904611)
| Attribute | Value | Value |
|---|
| weight | 16.30 kg | 35.94 lbs |
| T | 3500 mm | 138" |
| Lashing capacity | 10000 daN | |
ICE-Lashing chain with tensioner IVSK-13-CURT-K-IMVK-3500 (7904612)
| Attribute | Value | Value |
|---|
| weight | 27.60 kg | 60.85 lbs |
| T | 3500 mm | 138" |
| Lashing capacity | 16000 daN | |
ICE-Lashing chain with tensioner IVSK-16-CURT-K-IMVK-3500 (7904613)
| Attribute | Value | Value |
|---|
| weight | 44.90 kg | 98.99 lbs |
| T | 3500 mm | 138" |
| Lashing capacity | 25000 daN | |
