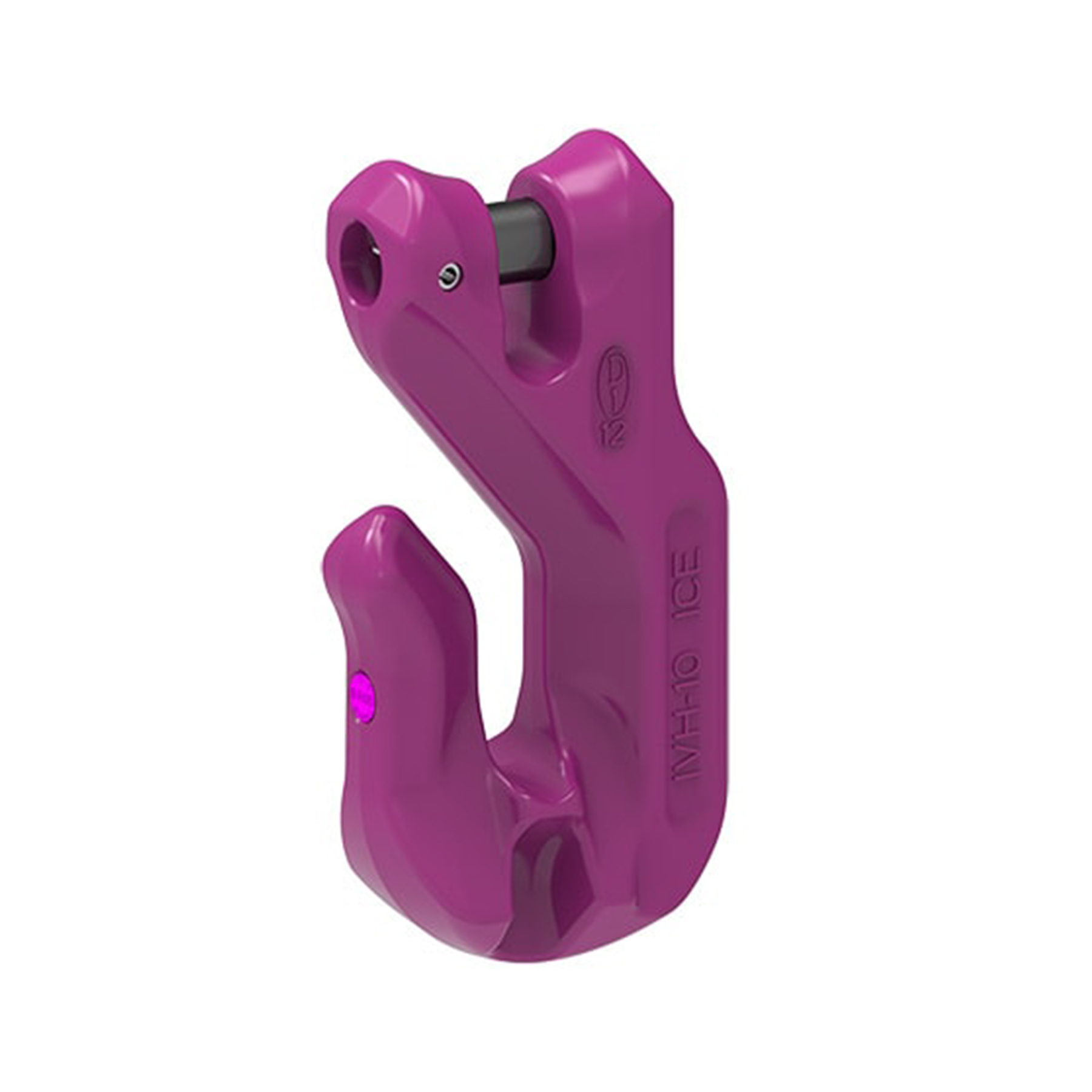

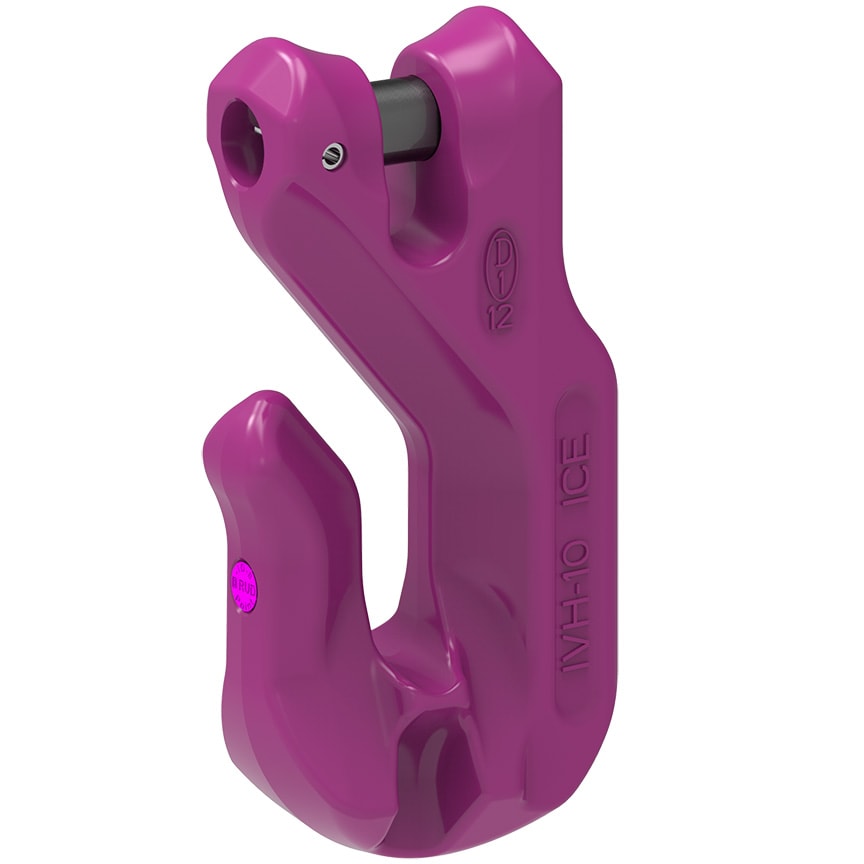

ICE-Shortening hook IVH

In compliance with DIN 5692 for shortening components
No reduction of the ICE-WLL
Thickened tip of hook to avoid misuse e.g. incorrect hinge of the chain
The curved insertion opening prevents the chain from easily falling out easy.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Email
This field is for validation purposes and should be left unchanged.

Product Variants (5)

ICE-Shortening hook IVH 6 (7900129)

Technical Information

Product number: 7900129

Technical Downloads

IVH - Picture Download File

IVH-6 - DXF 2D CAD File Download File

IVH-6 - IGES 3D CAD File Download File

IVH-6 - STEP 3D CAD File Download File

ICE-Shortening hook IVH 6 Download File

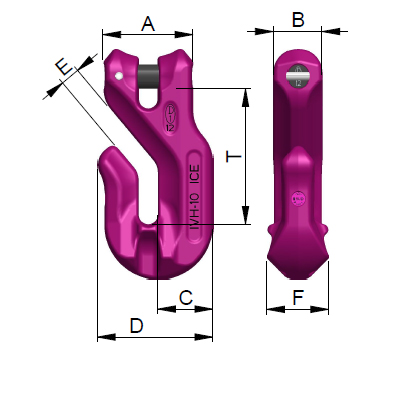

Attribute	Value	Value
weight	0.27 kg	0.60 lbs
Nominal WLL	1800 kg	3960 lbs
A	34 mm	1-11/32"
B	18 mm	11/16"
T	53 mm	2-3/32"
C	20 mm	3/4"
D	44 mm	1-3/4"
E	7 mm	5
F	22 mm	7/8"

ICE-Shortening hook IVH 8 (7900133)

Technical Information

Product number: 7900133

Technical Downloads

IVH - Picture Download File

IVH-8 - DXF 2D CAD File Download File

IVH-8 - IGES 3D CAD File Download File

IVH-8 - STEP 3D CAD File Download File

ICE-Shortening hook IVH 8 Download File

Attribute	Value	Value
weight	0.56 kg	1.23 lbs
Nominal WLL	3000 kg
A	43 mm	1-11/16"
B	24 mm	15/16"
T	67 mm	2-5/8"
C	26 mm	1"
D	55 mm	2-5/32"
E	9.5 mm	3/8"
F	29 mm	1-5/32"

ICE-Shortening hook IVH 10 (7900134)

Technical Information

Product number: 7900134

Technical Downloads

IVH - Picture Download File

IVH-10 - DXF 2D CAD File Download File

IVH-10 - IGES 3D CAD File Download File

IVH-10 - STEP 3D CAD File Download File

ICE-Shortening hook IVH 10 Download File

Attribute	Value	Value
weight	1.21 kg	2.67 lbs
Nominal WLL	5000 kg
A	55 mm	2-5/32"
B	30 mm	1-3/16"
T	86 mm	3-3/8"
C	34 mm	1-11/32"
D	71 mm	2-13/16"
E	12 mm	15/32"
F	38 mm	1-1/2"

ICE-Shortening hook IVH 13 (7900136)

Technical Information

Product number: 7900136

Technical Downloads

IVH - Picture Download File

IVH-13 - DXF 2D CAD File Download File

IVH-13 - IGES 3D CAD File Download File

IVH-13 - STEP 3D CAD File Download File

ICE-Shortening hook IVH 13 Download File

Attribute	Value	Value
weight	2.45 kg	5.40 lbs
Nominal WLL	8000 kg
A	70 mm	2-3/4"
B	38 mm	1-1/2"
T	105 mm	4-1/8"
C	43 mm	1-11/16"
D	90 mm	3-17/32"
E	15 mm	19/32"
F	48 mm	1-7/8"

ICE-Shortening hook IVH 16 (7900138)

Technical Information

Product number: 7900138

Technical Downloads

IVH - Picture Download File

IVH-16 - DXF 2D CAD File Download File

IVH-16 - IGES 3D CAD File Download File

IVH-16 - STEP 3D CAD File Download File

ICE-Shortening hook IVH 16 Download File

Attribute	Value	Value
weight	4.67 kg	10.30 lbs
Nominal WLL	12500 kg	27500 lbs
A	86 mm	3-3/8"
B	47 mm	1-7/8"
T	128 mm	5"
C	53 mm	2-3/32"
D	110 mm	4-11/32"
E	18 mm	23/32"
F	66 mm	2-5/8"
