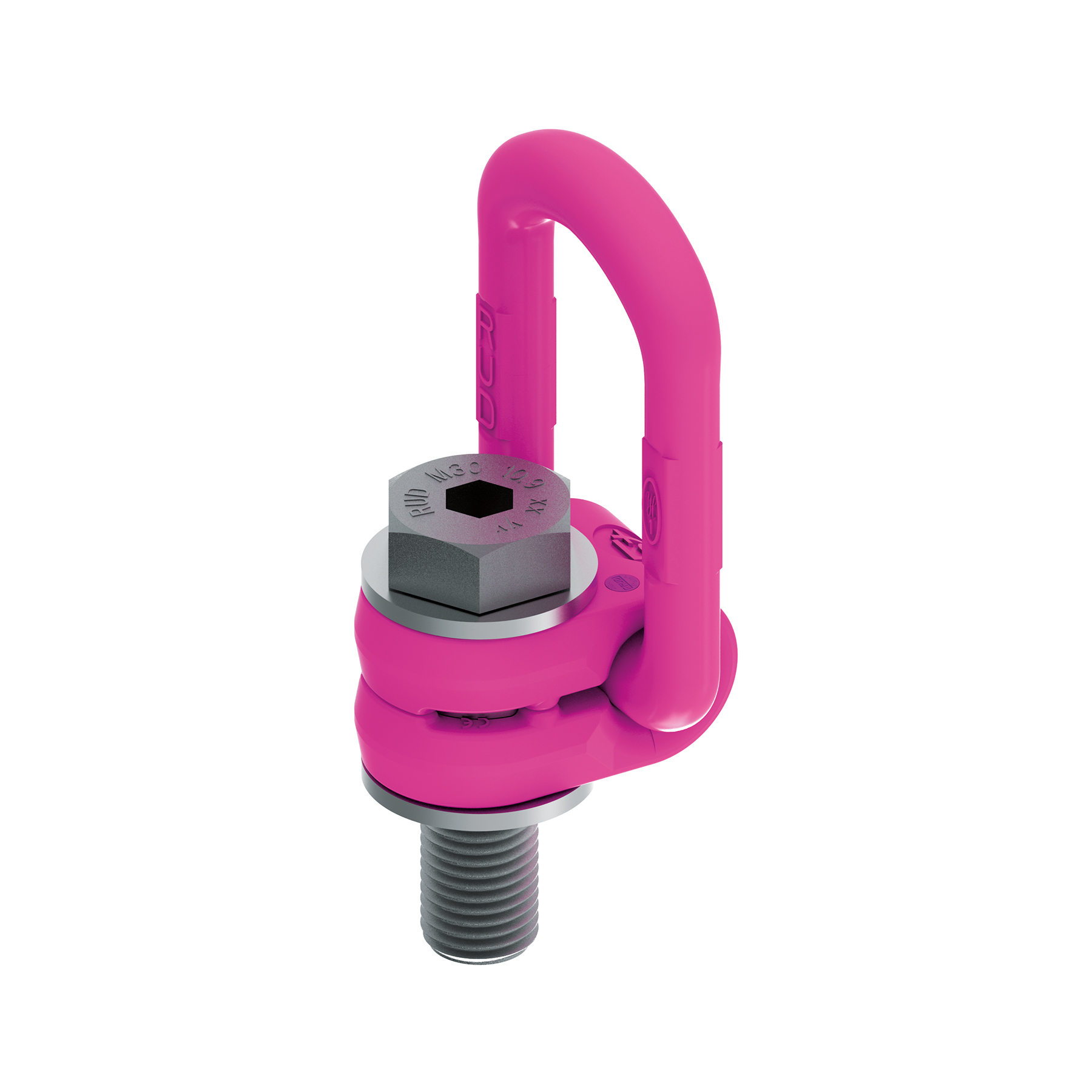

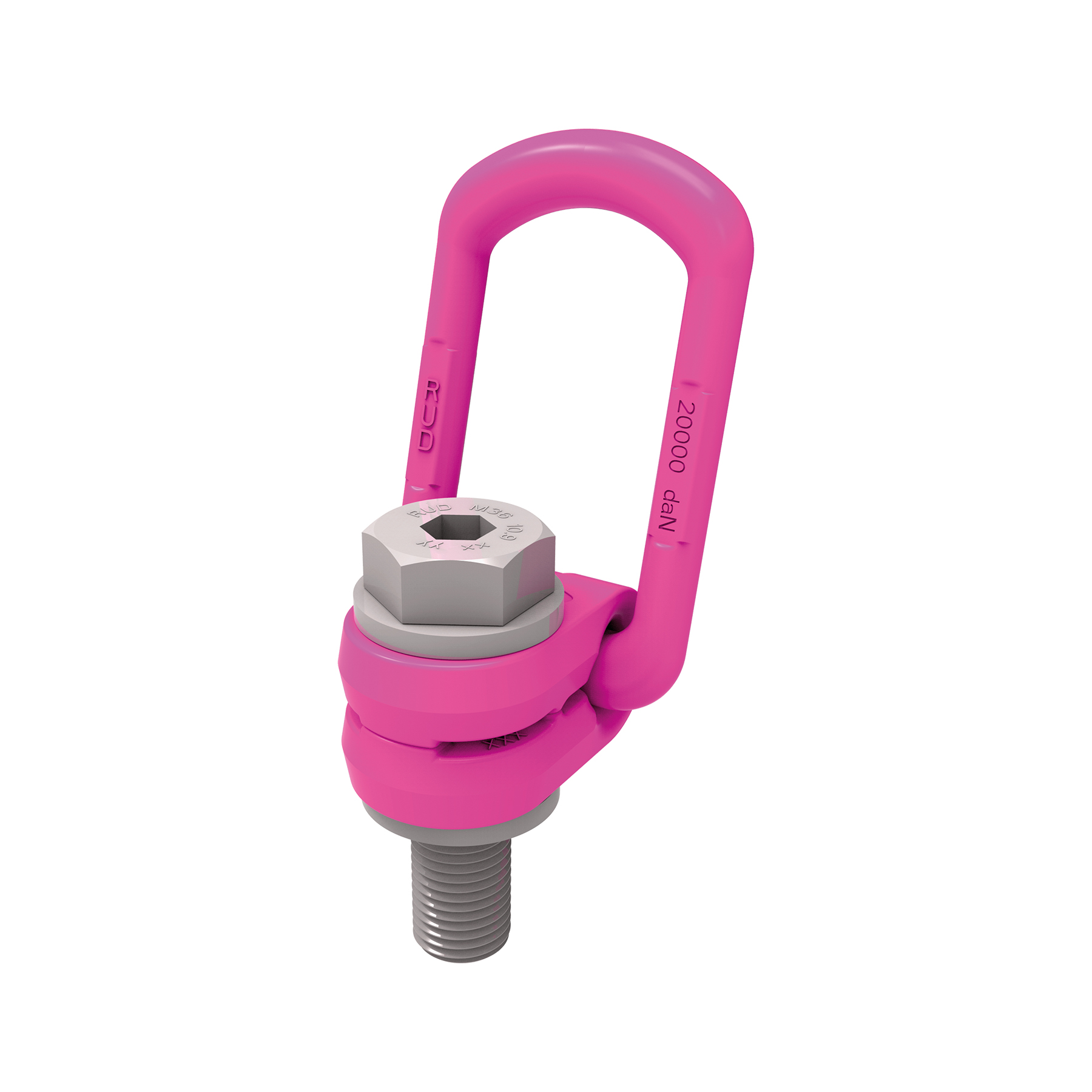

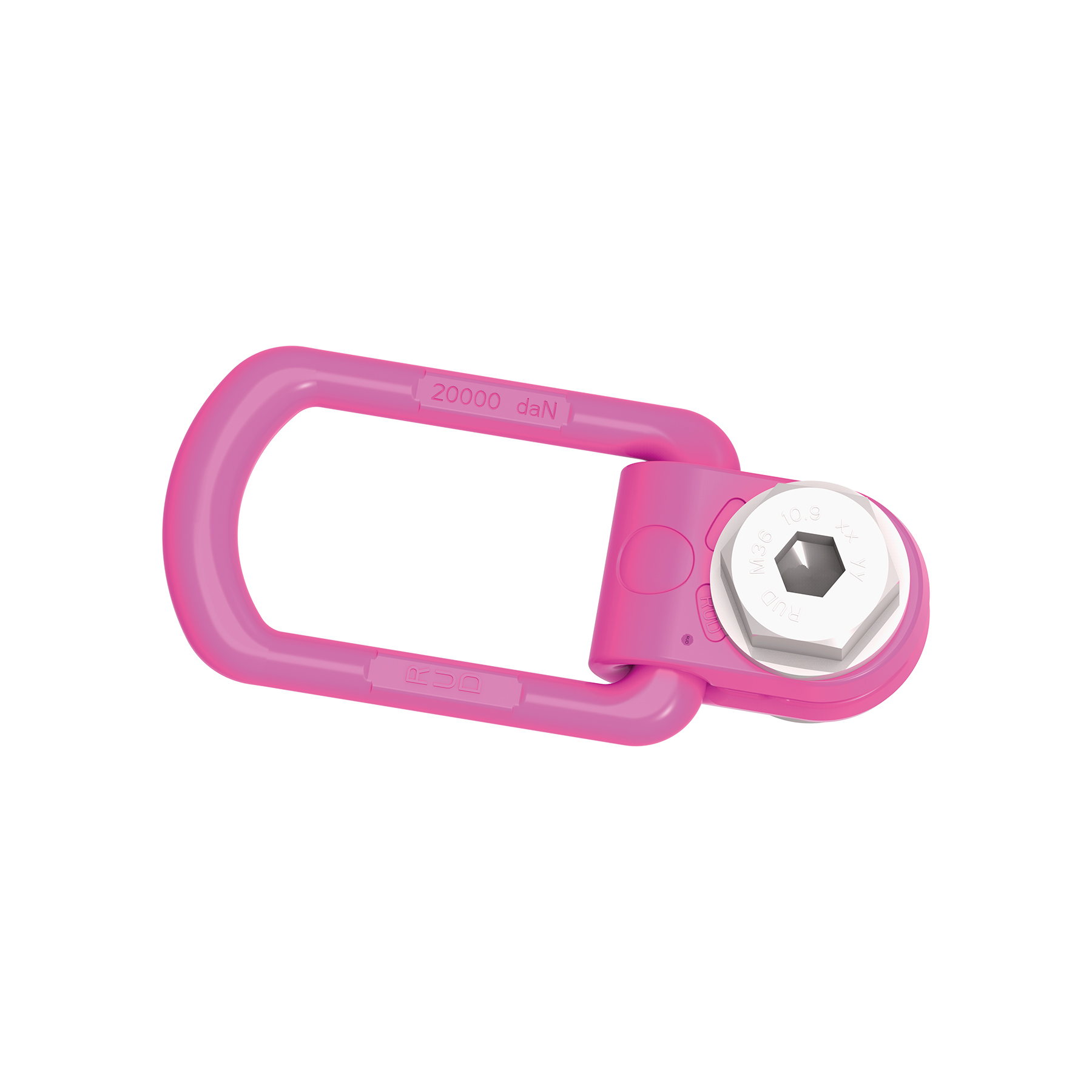

L-VLBG Lashing ring metric thread

Clear LC marking in daN
Bracket pivoting 180°
Rotating 360°/bracket adjustable in force direction

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (1)

Lashing point L-VLBG 16.000 daN - M36 (7904778)

Technical Information

Product number: 7904778

Technical Downloads

L-VLBG 16000daN - STEP 3D CAD File Download File

L-VLBG 16000daN - IGES 3D CAD File Download File

L-VLBG 16000daN - DXF 2D CAD File Download File

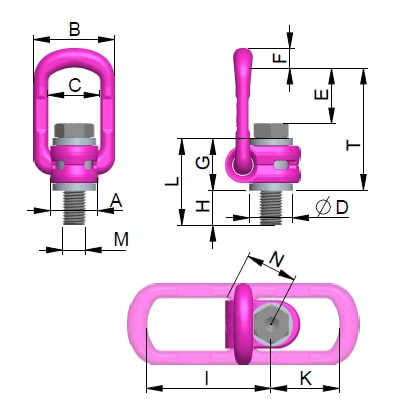

Attribute	Value	Value
weight	6.00 kg	13.23 lbs
A	77 mm	3"-1/32"
B	122 mm	4-13/16"
T	197 mm	7-3/4"
C	82 mm	3-1/4"
D	70 mm	2-3/4"
E	97 mm	3-13/16"
F	26.5 mm	1-3/64"
G	77 mm	3"-1/32"
H	63 mm	2-15/32"
I	205 mm	8-1/16"
K	110 mm	4-11/32"
L	140 mm	5-1/2"
M	M36 mm	M36
N	87 mm	3-7/16"
Lashing capacity	16000 daN
