Lifting and Lashing Points

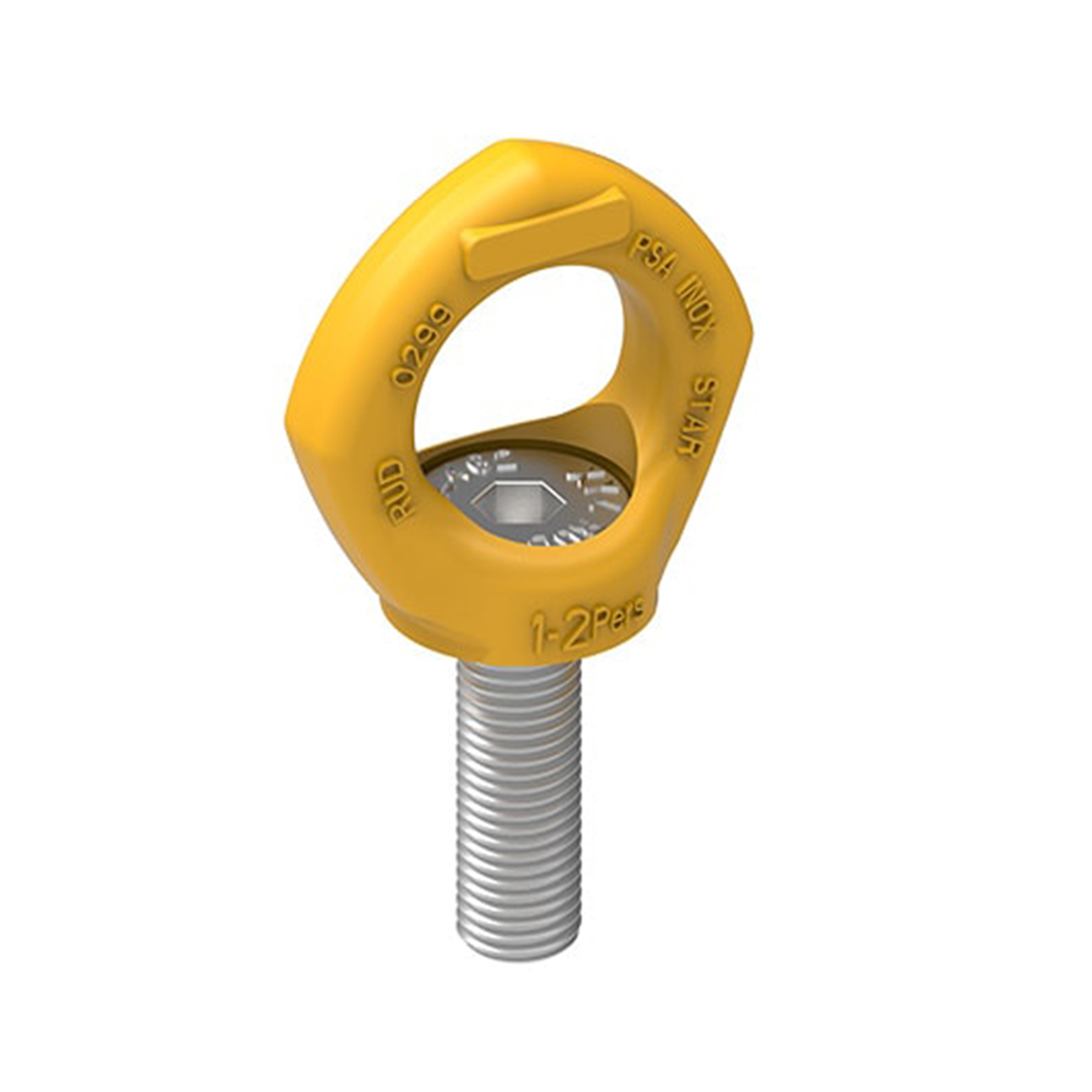

PSA-INOX-STAR-Eyebolt M12 (7997097)

Technical Information

Product number: 7997097

Technical Downloads

PSA INOX-STAR - Picture Download File

PSA INOX-STAR - Picture Download File

PSA-INOX-STAR-M12 - DXF 2D CAD File Download File

PSA-INOX-STAR-M12 - IGES 3D CAD File Download File

PSA-INOX-STAR-M12 - STEP 3D CAD File Download File

PSA-INOX-STAR-Eyebolt M12 Download File

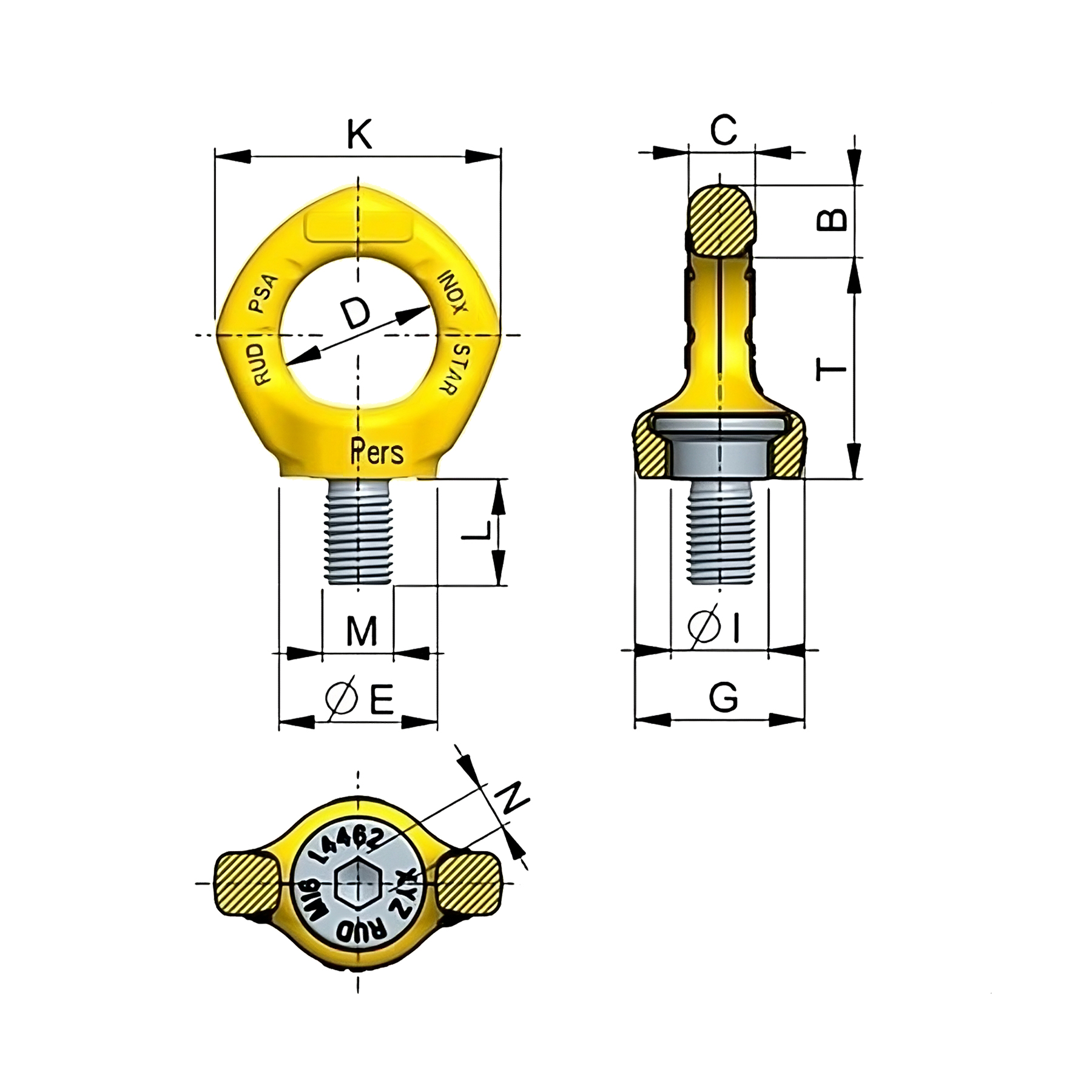

Attribute	Value	Value
weight	0.19 kg	0.42 lbs
B	14 mm	9/16"
T	43 mm	1-11/16"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	32 mm	1-1/4"
I	18 mm	23/32"
K	56 mm	2-3/16"
L	18 mm	23/32"
M	M12 mm	M12
N	8 mm	5/16"

PSA-INOX-STAR-Eyebolt M16 (7996757)

Technical Information

Product number: 7996757

Technical Downloads

PSA INOX-STAR - Picture Download File

PSA INOX-STAR - Picture Download File

PSA-INOX-STAR-M16 - DXF 2D CAD File Download File

PSA-INOX-STAR-M16 - STEP 3D CAD File Download File

PSA-INOX-STAR-M16 - IGES 3D CAD File Download File

PSA-INOX-STAR-Eyebolt M16 Download File

Attribute	Value	Value
weight	0.31 kg	0.68 lbs
B	16 mm	5/8"
T	50 mm	1-31/32"
C	15 mm	19/32"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
G	38 mm	1-1/2"
I	22 mm	7/8"
K	65 mm	2-9/16"
L	24 mm	15/16"
M	M16 mm	M16
N	10 mm	3/8"

PSA-INOX-STAR-Eyebolt M20 (7900921)

Technical Information

Product number: 7900921

Technical Downloads

PSA INOX-STAR - Picture Download File

PSA INOX-STAR - Picture Download File

PSA-INOX-STAR-M20 - DXF 2D CAD File Download File

PSA-INOX-STAR-M20 - IGES 3D CAD File Download File

PSA-INOX-STAR-M20 - STEP 3D CAD File Download File

PSA-INOX-STAR-Eyebolt M20 Download File

Attribute	Value	Value
weight	0.56 kg	1.23 lbs
B	19 mm	3/4"
T	57 mm	2-1/4"
C	17 mm	43/64"
D	40 mm	1-9/16"
E	43 mm	1-11/16"
G	47 mm	1-7/8"
I	28 mm	1-1/8"
K	74 mm	2-29/32"
L	30 mm	1-3/16"
M	M20 mm	M20
N	12 mm	15/32"

PSA-INOX-STAR-Eyebolt M12 with L=50 mm (7997820)

Technical Information

Product number: 7997820

Technical Downloads

PSA INOX-STAR max - Picture Download File

PSA INOX-STAR max - Picture Download File

PSA-INOXSTAR M12x50 - DXF 2D CAD File Download File

PSA-INOXSTAR M12x50 - IGES 3D CAD File Download File

PSA-INOXSTAR M12x50 - STEP 3D CAD File Download File

PSA-INOX-STAR-Eyebolt M12 with L=50 mm Download File

Attribute	Value	Value
weight	0.22 kg	0.49 lbs
B	14 mm	9/16"
T	43 mm	1-11/16"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	32 mm	1-1/4"
I	18 mm	23/32"
K	56 mm	2-3/16"
L	50 mm	1-31/32"
M	M12 mm	M12
N	8 mm	5/16"

PSA-INOX-STAR-Eyebolt M16 with L=50 mm (7904107)

Technical Information

Product number: 7904107

Technical Downloads

PSA INOX-STAR max - Picture Download File

PSA INOX-STAR max - Picture Download File

PSA-INOX-STAR-M16 L=50 - DXF 2D CAD File Download File

PSA-INOX-STAR-M16 L=50 - IGES 3D CAD File Download File

PSA-INOX-STAR-M16 L=50 - STEP 3D CAD File Download File

PSA-INOX-STAR-Eyebolt M16 with L=50 mm Download File

Attribute	Value	Value
weight	0.40 kg	0.88 lbs
B	16 mm	5/8"
T	50 mm	1-31/32"
C	15 mm	19/32"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
G	38 mm	2-9/16"
I	22 mm	7/8"
K	65 mm	2-9/16"
L	50 mm	1-31/32"
M	M16 mm	M16
N	10 mm	3/8"

PSA-INOX-STAR-Eyebolt M20 with L=60 mm (7901252)

Technical Information

Product number: 7901252

Technical Downloads

PSA INOX-STAR max - Picture Download File

PSA INOX-STAR max - Picture Download File

PSA-INOX-STAR M20 L=60 - DXF 2D CAD File Download File

PSA-INOX-STAR-M20 L=60 - IGES 3D CAD File Download File

PSA-INOX-STAR-M20 L=60 - STEP 3D CAD File Download File

PSA-INOX-STAR-Eyebolt M20 with L=60 mm Download File

Attribute	Value	Value
weight	0.60 kg	1.32 lbs
B	19 mm	3/4"
T	57 mm	2-1/4"
C	17 mm	43/64"
D	40 mm	1-9/16"
E	43 mm	1-11/16"
G	43 mm	1-11/16"
I	28 mm	1-1/8"
K	74 mm	2-29/32"
L	60 mm	2-3/8"
M	M20 mm	M20
N	12 mm	15/32"

PSA-INOX-STAR-Eyebolt M16 with L=120 mm (7906576)

Technical Information

Product number: 7906576

Technical Downloads

PSA INOX-STAR max - Picture Download File

PSA INOX-STAR max - Picture Download File

PSA-INOX-STAR-Eyebolt M16 with L=120 mm Download File

Attribute	Value	Value
weight	0.47 kg	1.04 lbs
B	16 mm	5/8"
T	50 mm	1-31/32"
C	15 mm	19/32"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
G	38 mm	1-1/2"
I	22 mm	7/8"
K	65 mm	2-9/16"
L	120 mm	4-3/4"
M	M16 mm	M16
N	10 mm	3/8"
