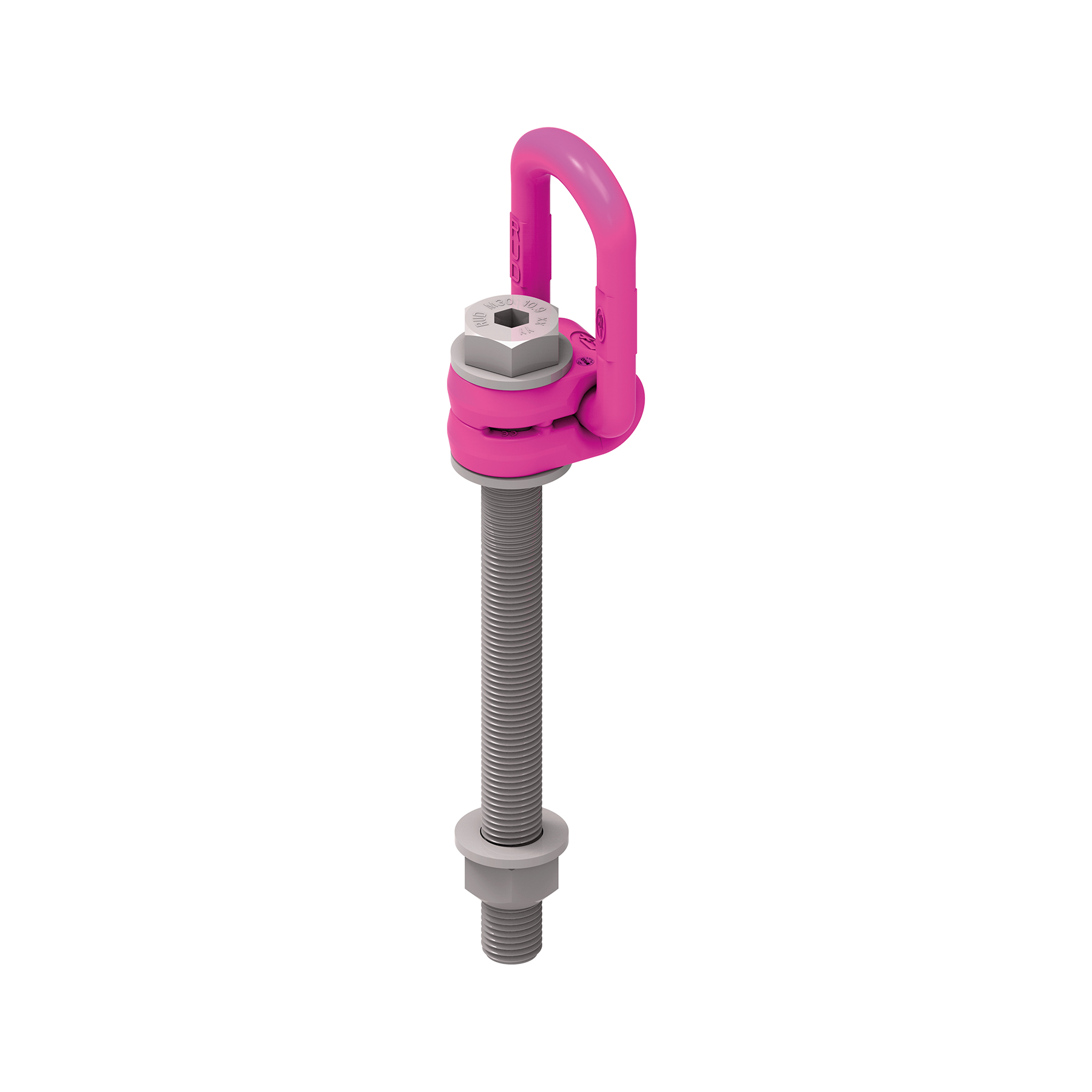

VLBG Ring Bolt, metric fine thread with variable length

Captive but exchangable RUD-Bolt
Bracket adjustable in force direction
Comprehensive range of threads

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Email
This field is for validation purposes and should be left unchanged.

Product Variants (7)

Load ring VLBG 1t M12X1.5 with variable length (8600382)

Technical Information

Product number: 8600382

Technical Downloads

VLBG 1t M12x1.5 Vario - DXF 2D CAD File Download File

VLBG 1t M12x1.5 Vario - STEP 3D CAD File Download File

VLBG 1t M12x1.5 Vario - IGES 3D CAD File Download File

Load ring VLBG 1t M12X1.5 with variable length Download File

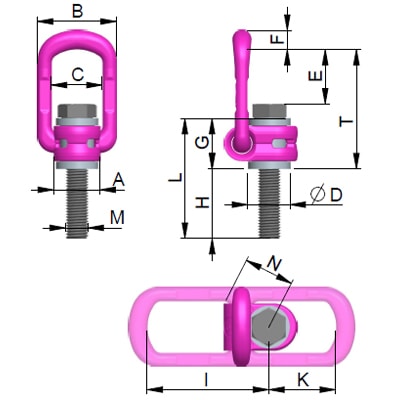

Attribute	Value	Value
weight	0.0 kg	0.00 lbs
Nominal WLL	1000 kg	2200 lbs
A	32 mm	1-1/4"
B	54 mm	2-1/8"
T	75 mm	2-15/16"
C	34 mm	1-11/32"
D	26 mm	1"
E	38 mm	1-1/2"
F	10 mm	3/8"
G	29 mm	1-5/32"
H	12-31 mm	1/2" up to 1-7/32"
I	75 mm	2-15/16"
K	45 mm	1-25/32"
L	41-60 mm	1-5/8" up to 2-3/8"
M	M12X1.5 mm	M12X1.5
N	32 mm	1-1/4"

Load ring VLBG 1.2t M14 with variable length (8600399)

Technical Information

Product number: 8600399

Technical Downloads

VLBG 1.2t M14x1.5 Vario - DXF 2D CAD File Download File

VLBG 1.2t M14x1.5 Vario - IGES 3D CAD File Download File

VLBG 1.2t M14x1.5 Vario - STEP 3D CAD File Download File

Load ring VLBG 1.2t M14 with variable length Download File

Attribute	Value	Value
weight	0.0 kg	0.00 lbs
Nominal WLL	1200 kg	2650 lbs
A	33 mm	1-5/16"
B	56 mm	2-3/16"
T	85 mm	3-11/32"
C	36 mm	1-27/64"
D	30 mm	1-3/16"
E	39 mm	1-9/16"
F	13.5 mm	17/32"
G	36 mm	1-27/64"
H	14-34 mm	9/16" up to 1-3/8"
I	86 mm	3-3/8"
K	47 mm	1-7/8"
L	50-70 mm	2" up to 2-3/4"
M	M14 mm	M14
N	38 mm	1-1/2"

Load ring VLBG 1.5t M16X1.5 with variable length (8600383)

Technical Information

Product number: 8600383

Technical Downloads

VLBG 1.5t M16x1.5 Vario - DXF 2D CAD File Download File

VLBG 1.5t M16x1.5 Vario - IGES 3D CAD File Download File

VLBG 1.5t M16x1.5 Vario - STEP 3D CAD File Download File

Load ring VLBG 1.5t M16X1.5 with variable length Download File

Attribute	Value	Value
weight	0.0 kg	0.00 lbs
Nominal WLL	1500 kg	3300 lbs
A	33 mm	1-5/16"
B	56 mm	2-3/16"
T	85 mm	3-11/32"
C	36 mm	1-27/64"
D	30 mm	1-3/16"
E	39 mm	1-9/16"
F	13.5 mm	17/32"
G	36 mm	1-27/64"
H	16-39 mm	5/8" up to 1-1/2"
I	86 mm	3-3/8"
K	47 mm	1-7/8"
L	52-75 mm	2-1/16" up to 2-15/16"
M	M16X1.5 mm	M16X1.5
N	38 mm	1-1/2"

Load ring VLBG 2t M18X1.5 with variable length (8600384)

Technical Information

Product number: 8600384

Technical Downloads

VLBG 2t M18x1.5 Vario - DXF 2D CAD File Download File

VLBG 2t M18x1.5 Vario - IGES 3D CAD File Download File

VLBG 2t M18x1.5 Vario - STEP 3D CAD File Download File

Load ring VLBG 2t M18X1.5 with variable length Download File

Attribute	Value	Value
weight	0.0 kg	0.00 lbs
Nominal WLL	2000 kg	4400 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	110 mm	4-11/32"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	55 mm	2-5/32"
F	16.5 mm	21/32"
G	43 mm	1-11/16"
H	18-47 mm	23/32" up to 1-7/8"
I	113 mm	4-7/16"
K	64 mm	2-1/2"
L	61-90 mm	2-13/32" up to 3-17/32"
M	M18X1.5 mm	M18X1.5
N	48 mm	1-7/8"

Load ring VLBG 2.5t M20X1.5 with variable length (8600385)

Technical Information

Product number: 8600385

Technical Downloads

VLBG 2.5t M20x1.5 Vario - DXF 2D CAD File Download File

VLBG 2.5t M20x1.5 Vario - IGES 3D CAD File Download File

VLBG 2.5t M20x1.5 Vario - STEP 3D CAD File Download File

Load ring VLBG 2.5t M20X1.5 with variable length Download File

Attribute	Value	Value
weight	0.0 kg	0.00 lbs
Nominal WLL	2500 kg	5500 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	110 mm	4-11/32"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	55 mm	2-5/32"
F	16.5 mm	21/32"
G	43 mm	1-11/16"
H	20-52 mm	13/16" up to 2"
I	113 mm	4-7/16"
K	64 mm	2-1/2"
L	63-95 mm	2-1/2" up to 3-3/4"
M	M20X1.5 mm	M20X1.5
N	48 mm	1-7/8"

Load ring VLBG 4t M24X1.5 with variable length (8600386)

Technical Information

Product number: 8600386

Technical Downloads

VLBG 4t M24x1.5 Vario - DXF 2D CAD File Download File

VLBG 4t M24x1.5 Vario - IGES 3D CAD File Download File

VLBG 4t M24x1.5 Vario - STEP 3D CAD File Download File

Load ring VLBG 4t M24X1.5 with variable length Download File

Attribute	Value	Value
weight	0.0 kg	0.00 lbs
Nominal WLL	4000 kg	8800 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	125 mm	4-15/16"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	67 mm	2-5/8"
F	18 mm	23/32"
G	43 mm	1-11/16"
H	24-62 mm	15/16" up to 2-7/16"
I	130 mm	5-1/8"
K	78 mm	3-1/16"
L	67-105 mm	2-5/8" up to 4-1/8"
M	M24X1.5 mm	M24X1.5
N	48 mm	1-7/8"

Load ring VLBG 5t M30X2 with variable length (8600388)

Technical Information

Product number: 8600388

Technical Downloads

Load ring VLBG 5t M30X2 with variable length Download File

Attribute	Value	Value
Nominal WLL	5000 kg	11000 lbs
A	60 mm	2-3/8"
B	103 mm	4-1/16"
T	147 mm	5-25/32"
C	65 mm	2-9/16"
D	60 mm	2-3/8"
E	67 mm	2-5/8"
F	22.5 mm	7/8"
G	61 mm	2-13/32"
H	30-74 mm	30-74
I	151 mm	5-15/16"
K	80 mm	3-1/8"
L	91-135 mm	91-135
M	M30X2 mm	M30X2
N	67 mm	2-5/8"
