VWBG Load ring, metric thread with variable length

Rotates 360°, pivots 230°
Optical markings for easy determination for withdraw from service
Ball bearing

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (10)

Lifting Point threaded VWBG 6(7.5)t with special thread (8600150)

Technical Information

Product number: 8600150

Technical Downloads

Lifting Point threaded VWBG 6(7.5)t with special thread Download File

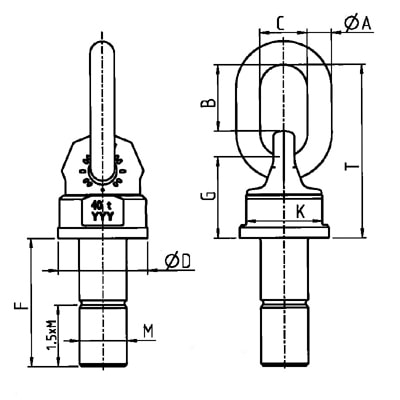

Attribute	Value	Value
Nominal WLL	6000 kg	13200 lbs
A	23 mm	29/32"
B	86 mm	3-3/8"
T	208 mm	8-3/16"
C	50 mm	1-31/32"
D	90 mm	3-17/32"
E	80 mm	3-1/8"
F	33-300 mm	33-300
G	94 mm	3-11/16"
M	M33 mm	M33

Lifting Point threaded VWBG 40(50)t with special thread (8600458)

Technical Information

Product number: 8600458

Technical Downloads

Lifting Point threaded VWBG 40(50)t with special thread Download File

Attribute	Value	Value
Nominal WLL	40000 kg	88000 lbs
A	46 mm	1-13/16"
B	168 mm	6-5/8"
T	378 mm	14-7/8"
C	110 mm	4-11/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	90-300 mm	90-300
G	159 mm	6-1/4"
M	M90-M150 mm	M90-M150

Lifting Point threaded VWBG 35(48)t with special thread (8600457)

Technical Information

Product number: 8600457

Technical Downloads

Lifting Point threaded VWBG 35(48)t with special thread Download File

Attribute	Value	Value
Nominal WLL	35000 kg	77000 lbs
A	46 mm	1-13/16"
B	130 mm	5-1/8"
T	338 mm	13-5/16"
C	90 mm	3-17/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	80-300 mm	80-300
G	159 mm	6-1/4"
M	M80-M85 mm	M80-M85

Lifting Point threaded VWBG 31.5(40)t with special thread (8600456)

Technical Information

Product number: 8600456

Technical Downloads

Lifting Point threaded VWBG 31.5(40)t with special thread Download File

Attribute	Value	Value
Nominal WLL	31500 kg	69300 lbs
A	46 mm	1-13/16"
B	130 mm	5-1/8"
T	338 mm	13-5/16"
C	90 mm	3-17/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	72-300 mm	72-300
G	159 mm	6-1/4"
M	M72-M76 mm	M72-M76

Lifting Point threaded VWBG 16(25)t with special thread (8600455)

Technical Information

Product number: 8600455

Technical Downloads

Lifting Point threaded VWBG 16(25)t with special thread Download File

Attribute	Value	Value
Nominal WLL	16000 kg	35200 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	64-300 mm	64-300
G	120 mm	4-3/4"
M	M64-M76 mm	M64-M76

Lifting Point threaded VWBG 16(22)t with special thread (8600454)

Technical Information

Product number: 8600454

Technical Downloads

Lifting Point threaded VWBG 16(22)t with special thread Download File

Attribute	Value	Value
Nominal WLL	16000 kg	35200 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	56-300 mm	56-300
G	120 mm	4-3/4"
M	M56-M62 mm	M56-M62

Lifting Point threaded VWBG 14(20)t with special thread ( 8600158)

Technical Information

Product number: 8600158

Technical Downloads

Lifting Point threaded VWBG 14(20)t with special thread Download File

Attribute	Value	Value
Nominal WLL	14000 kg	30800 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	52-300 mm	52-300
G	120 mm	4-3/4"
M	M52 mm	M52

Lifting Point threaded VWBG 13(16)t with special thread (8600453)

Technical Information

Product number: 8600453

Technical Downloads

Lifting Point threaded VWBG 13(16)t with special thread Download File

Attribute	Value	Value
Nominal WLL	13000 kg	28600 lbs
A	26 mm	1"
B	111 mm	4-13/32"
T	234 mm	9-7/32"
C	65 mm	2-9/16"
D	98 mm	3-27/32"
E	85 mm	3-11/32"
F	48-300 mm	48-300
G	95 mm	3-3/4"
M	M48-M52 mm	M48-M52

Lifting Point threaded VWBG 12(13)t with special thread (8600452)

Technical Information

Product number: 8600452

Technical Downloads

Lifting Point threaded VWBG 12(13)t with special thread Download File

Attribute	Value	Value
Nominal WLL	12000 kg	26400 lbs
A	26 mm	1"
B	111 mm	4-13/32"
T	234 mm	9-7/32"
C	65 mm	2-9/16"
D	98 mm	3-27/32"
E	85 mm	3-11/32"
F	42-300 mm	42-300
G	95 mm	3-3/4"
M	M42-M45 mm	M42-M45

Lifting Point threaded VWBG 8(10)t with special thread (8600451)

Technical Information

Product number: 8600451

Technical Downloads

Lifting Point threaded VWBG 8(10)t with special thread Download File

Attribute	Value	Value
Nominal WLL	8000 kg	17600 lbs
A	23 mm	29/32"
B	86 mm	3-3/8"
T	208 mm	8-3/16"
C	50 mm	1-31/32"
D	90 mm	3-17/32"
E	80 mm	3-1/8"
F	36-300 mm	36-300
G	94 mm	3-11/16"
M	M36-M39 mm	M36-M39
