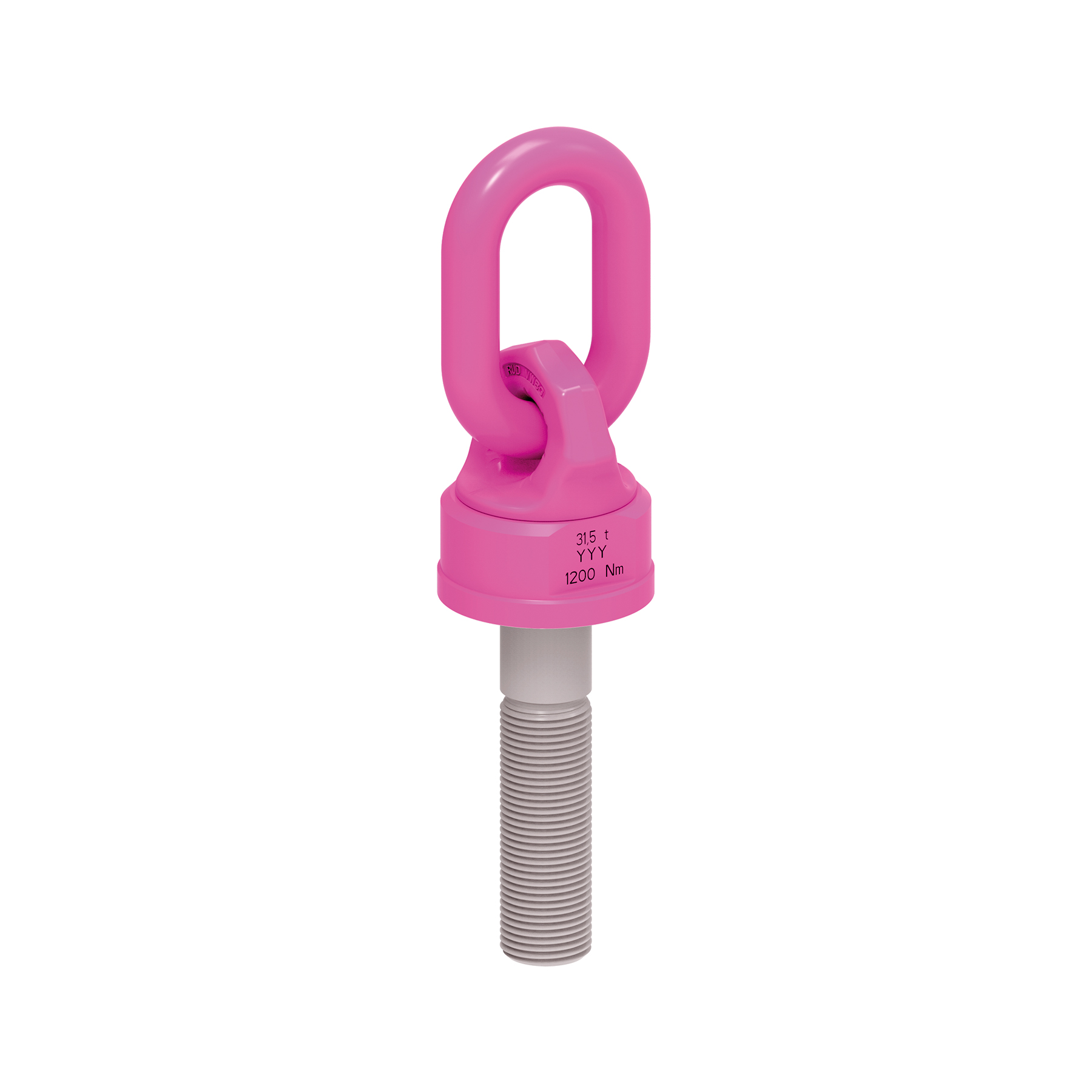

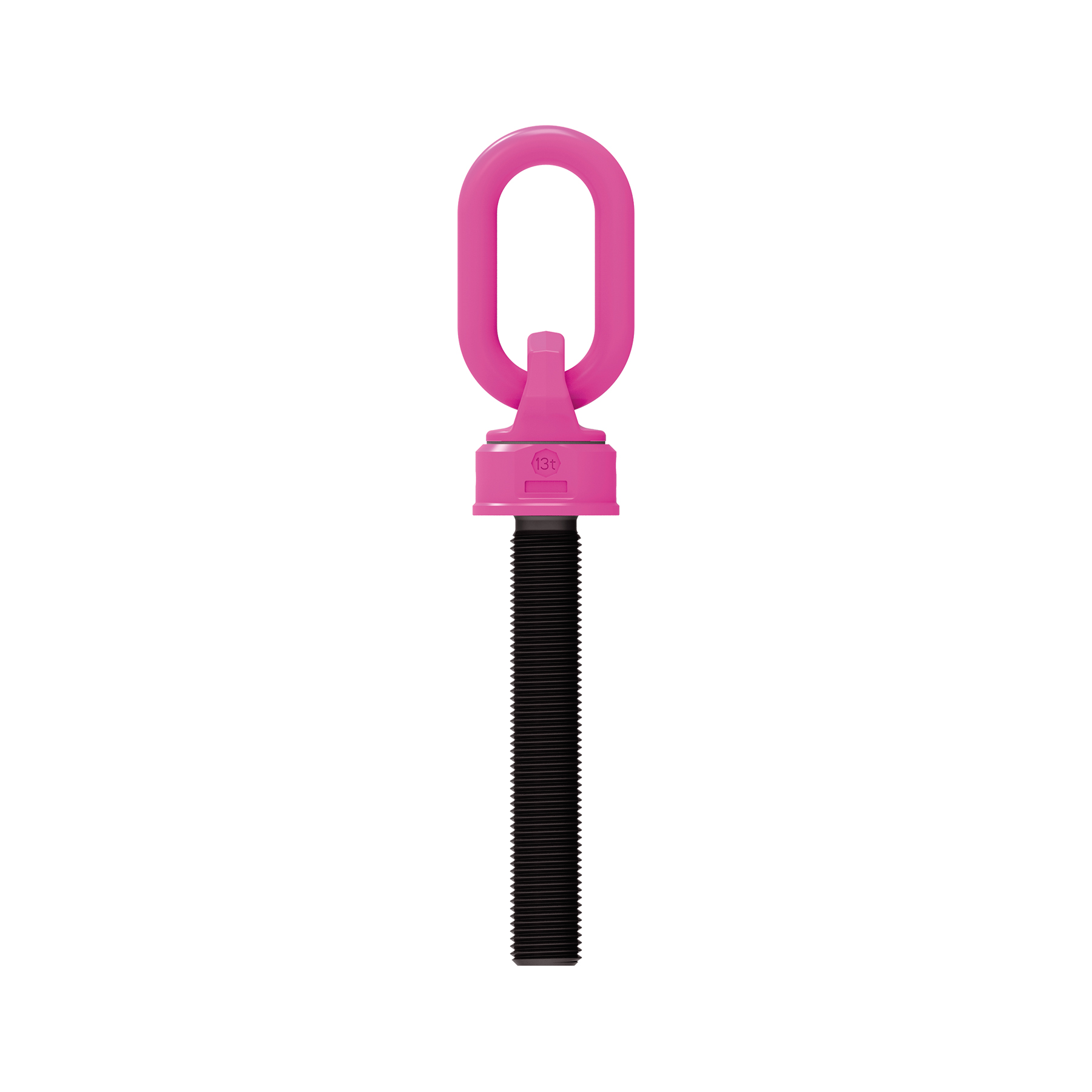

VWBG Load Ring - Metric Fine Thread with Variable Length
Versatile, no matter how you turn it
- Rotates 360° and pivots 230°
- Optical markings for easy identification of replacement
- Ball bearing
- RUD 4:1 safety factor
Product Variants (9)
Lifting Point threaded VWBG 6t(7.5t)-M33X2 with var. length (8600150)
| Attribute | Value | Value |
|---|
| weight | 5.60 kg | 12.35 lbs |
| Nominal WLL | 6000 kg | 13200 lbs |
| A | 23 mm | 29/32" |
| B | 86 mm | 3-3/8" |
| T | 208 mm | 8-3/16"
|
| C | 50 mm | 1-31/32" |
| D | 90 mm | 3-17/32" |
| E | 80 mm | 3-1/8" |
| F | 33-300 mm | 1-5/16" up to 11-13/16" |
| G | 96 mm | 3-25/32" |
| M | M33X2 mm | M33X2 |
Lifting Point threaded VWBG 8t(10t)-M36X3 with var. length (8600451)
| Attribute | Value | Value |
|---|
| weight | 4.79 kg | 10.56 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 22 mm | 7/8" |
| B | 86 mm | 3-3/8" |
| T | 208 mm | 8-3/16" |
| C | 50 mm | 1-31/32" |
| D | 90 mm | 3-17/32" |
| E | 80 mm | 3-1/8" |
| F | 36-300 mm | 1-7/16" to 11-3/4" |
| G | 94 mm | 3-11/16" |
| M | M36X3 mm | M36X3 |
Lifting Point threaded VWBG 12t(13t)-M42X3 with var. length (8600452)
| Attribute | Value | Value |
|---|
| weight | 6.17 kg | 13.60 lbs |
| Nominal WLL | 12000 kg | 26400 lbs |
| A | 26 mm | 1" |
| B | 111 mm | 4-13/32" |
| T | 235 mm | 9-1/4" |
| C | 65 mm | 2-9/16" |
| D | 98 mm | 3-27/32" |
| E | 85 mm | 3-11/32" |
| F | 42-300 mm | 1-11/16" up to 11-3/4" |
| G | 96 mm | 3-25/32" |
| M | M42X3 mm | M42X3 |
Lifting Point threaded VWBG 13t(16t)-M48x3 with var. length (8600453)
| Attribute | Value | Value |
|---|
| weight | 6.14 kg | 13.54 lbs |
| Nominal WLL | 13000 kg | 28600 lbs |
| A | 26 mm | 1" |
| B | 111 mm | 4-13/32" |
| T | 235 mm | 9-1/4" |
| C | 65 mm | 2-9/16" |
| D | 98 mm | 3-27/32" |
| E | 85 mm | 3-11/32" |
| F | 48-300 mm | 1-7/8" up to 11-3/4" |
| G | 96 mm | 3-25/32" |
| M | M48x3 mm | M48x3 |
Lifting Point threaded VWBG 16t(22t)-M56X4 with var. length (8600454)
| Attribute | Value | Value |
|---|
| weight | 9.84 kg | 21.69 lbs |
| Nominal WLL | 16000 kg | 35200 lbs |
| A | 32 mm | 1-1/4" |
| B | 119 mm | 4-11/16" |
| T | 274 mm | 10-25/32"
|
| C | 70 mm | 2-3/4" |
| D | 120 mm | 4-3/4" |
| E | 95 mm | 3-3/4" |
| F | 56-300 mm | 2-3/16" up to 11-3/4" |
| G | 120 mm | 4-3/4" |
| M | M56X4 mm | M56X4 |
Lifting Point threaded VWBG 16t(25t)-M64X4 with var. length (8600455)
| Attribute | Value | Value |
|---|
| weight | 9.84 kg | 21.69 lbs |
| Nominal WLL | 16000 kg | 35200 lbs |
| A | 32 mm | 1-1/4" |
| B | 119 mm | 4-11/16" |
| T | 274 mm | 10-25/32"
|
| C | 70 mm | 2-3/4" |
| D | 120 mm | 4-3/4" |
| E | 95 mm | 3-3/4" |
| F | 64-300 mm | 2-1/2" to 11-3/4" |
| G | 120 mm | 4-3/4" |
| M | M64X4 mm | M64X4 |
Lifting Point threaded VWBG 31.5t(40t)-M72X4 with var. length (8600456)
| Attribute | Value | Value |
|---|
| weight | 29.96 kg | 66.05 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| A | 46 mm | 1-13/16" |
| B | 130 mm | 5-1/8" |
| T | 338 mm | 13-5/16"
|
| C | 90 mm | 3-17/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 72-300 mm | 2-13/16" up to 11-3/4" |
| G | 159 mm | 6-1/4" |
| M | M72X4 mm | M72X4 |
Lifting Point threaded VWBG 35t(48t)-M80X4 with var. length (8600457)
| Attribute | Value | Value |
|---|
| weight | 31.19 kg | 68.76 lbs |
| Nominal WLL | 35000 kg | 77000 lbs |
| A | 46 mm | 1-13/16" |
| B | 130 mm | 5-1/8" |
| T | 338 mm | 13-5/16" |
| C | 90 mm | 3-17/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 80-300 mm | 3-1/8" up to 11-3/4" |
| G | 159 mm | 6-1/4" |
| M | M80X4 mm | M80X4 |
Lifting Point threaded VWBG 40t(50t)-M90X4 with var. length (8600458)
| Attribute | Value | Value |
|---|
| weight | 34.50 kg | 76.06 lbs |
| Nominal WLL | 40000 kg | 88000 lbs |
| A | 46 mm | 1-13/16" |
| B | 170 mm | 6-11/16" |
| T | 378 mm | 14-7/8"
|
| C | 110 mm | 4-11/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 90-300 mm | 3-1/2" up to 11-3/4" |
| G | 159 mm | 6-1/4" |
| M | M90X4 mm | M90X4 |
