Lifting and Lashing Points

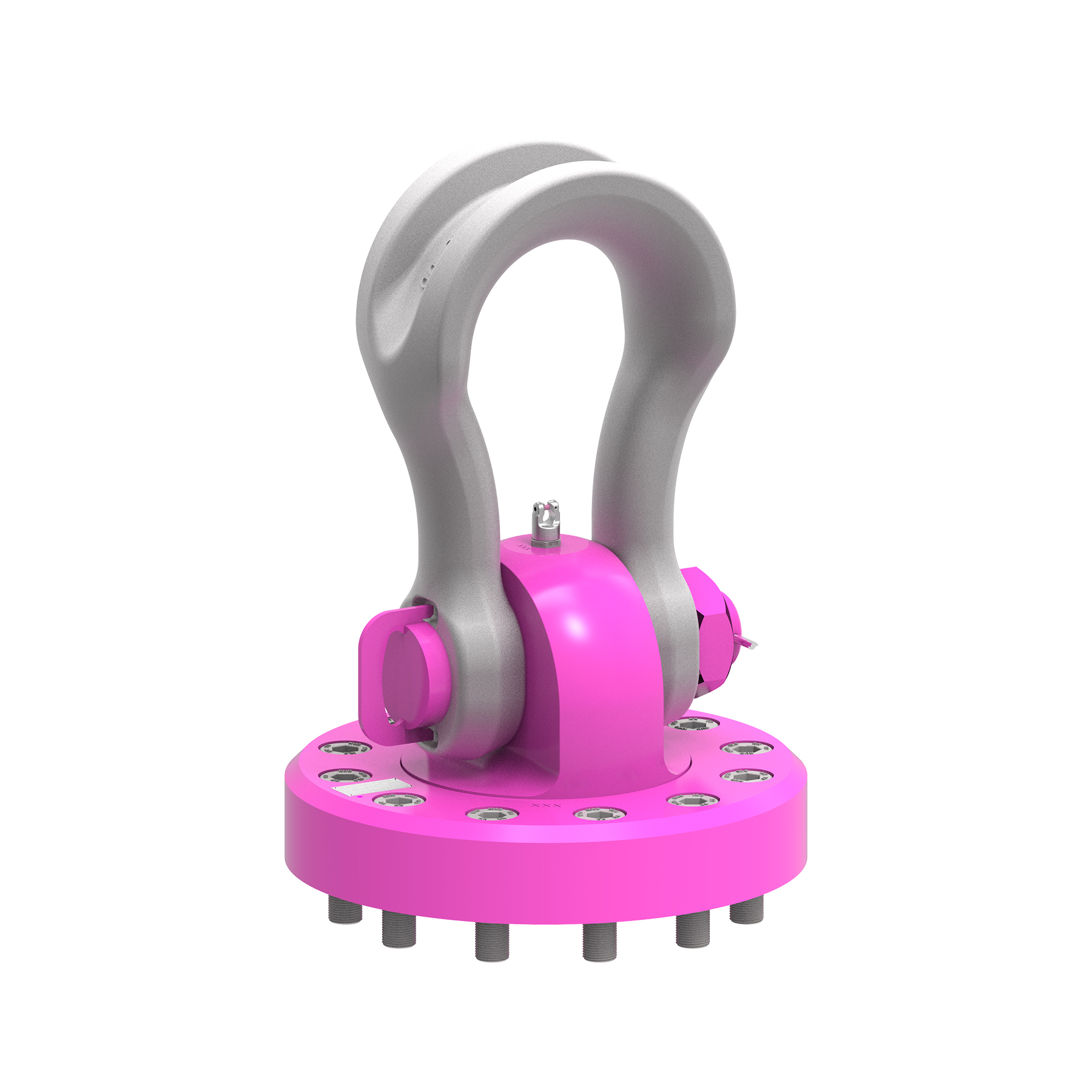

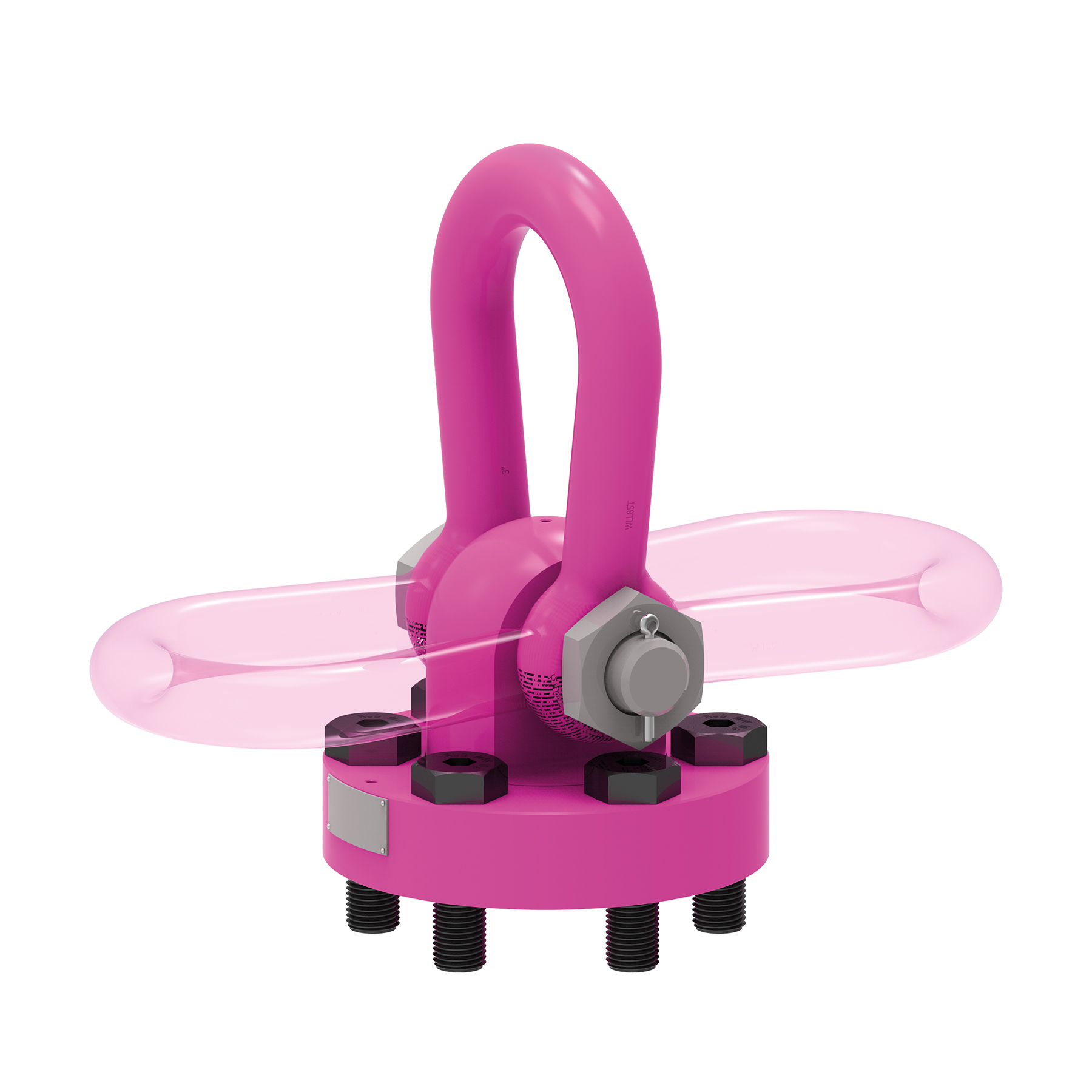

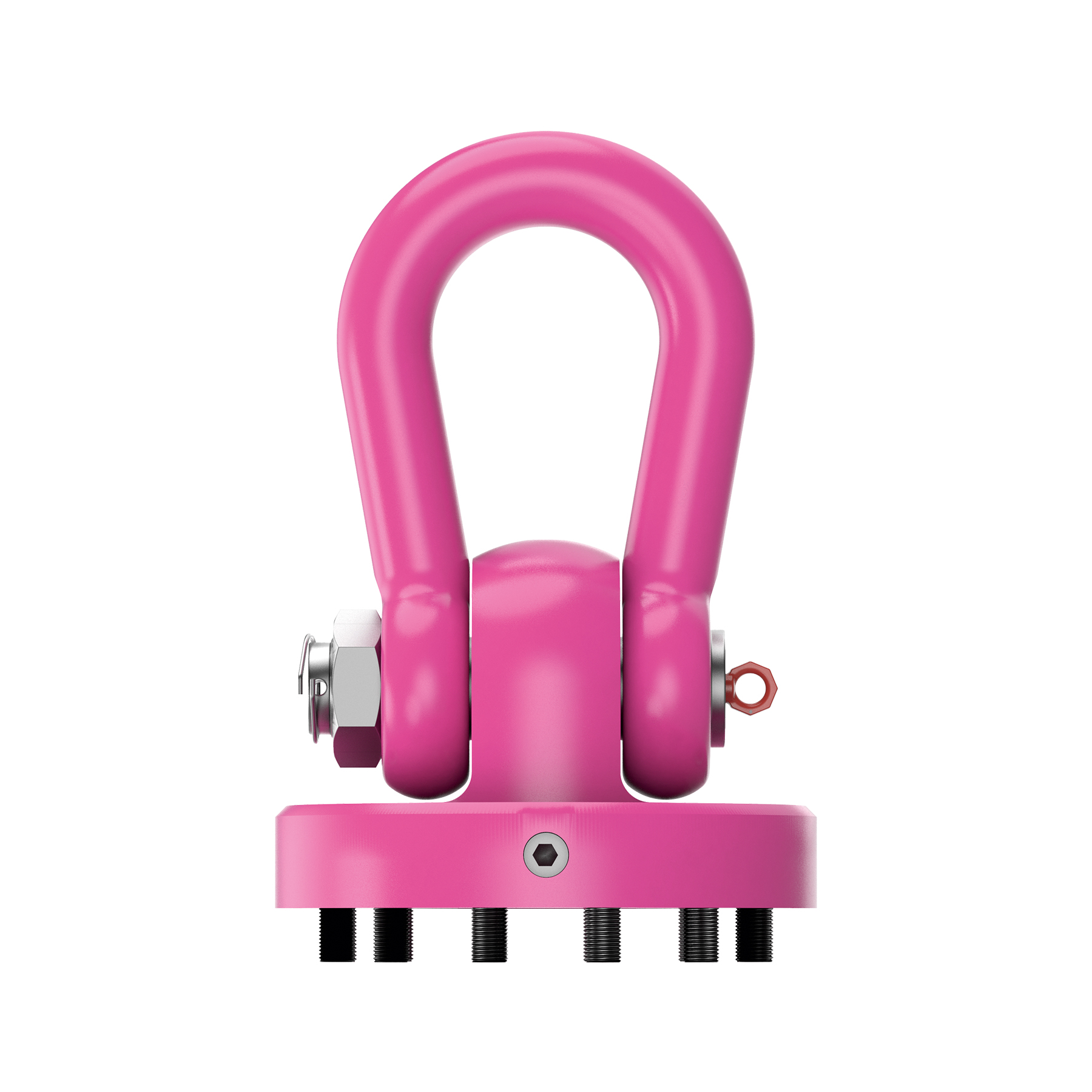

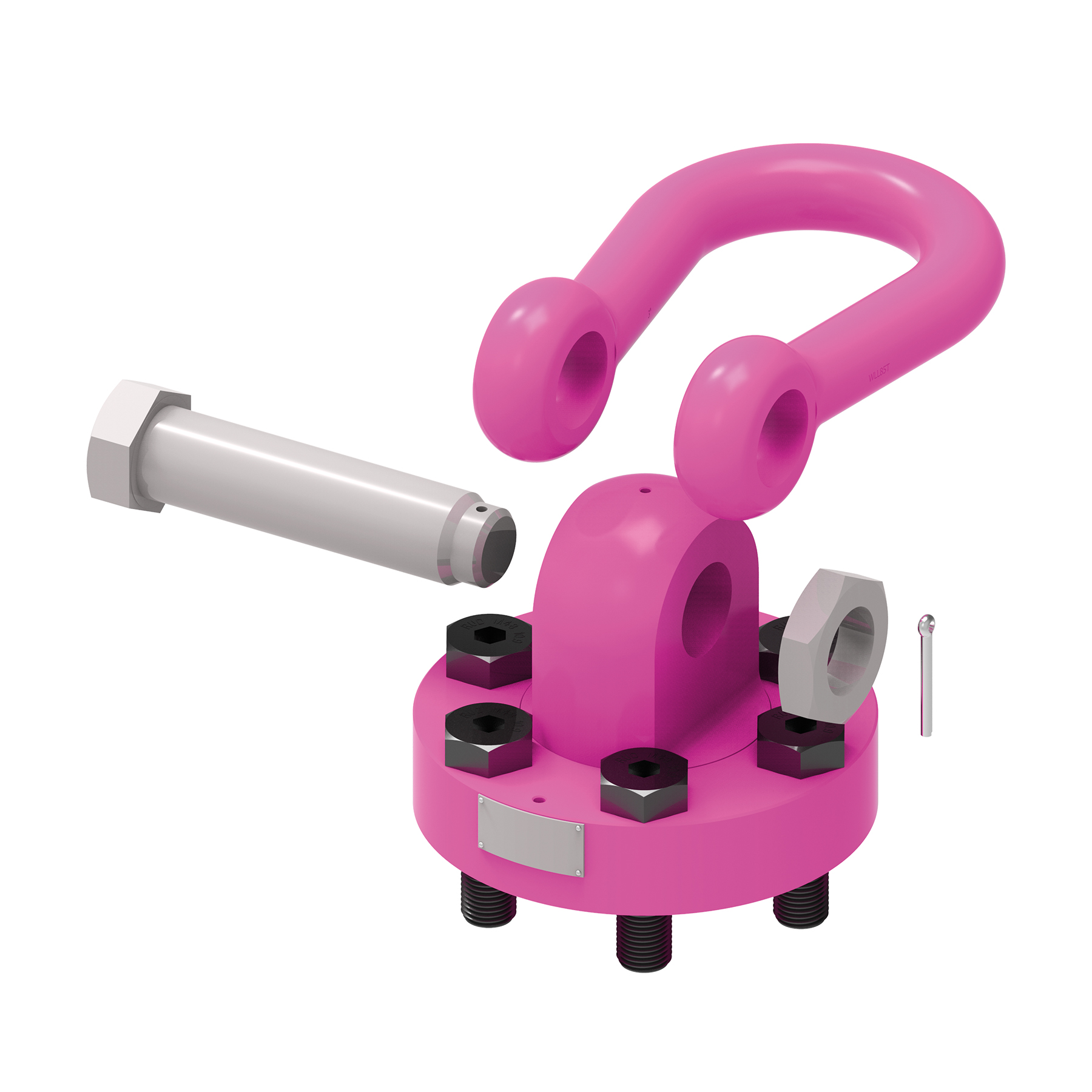

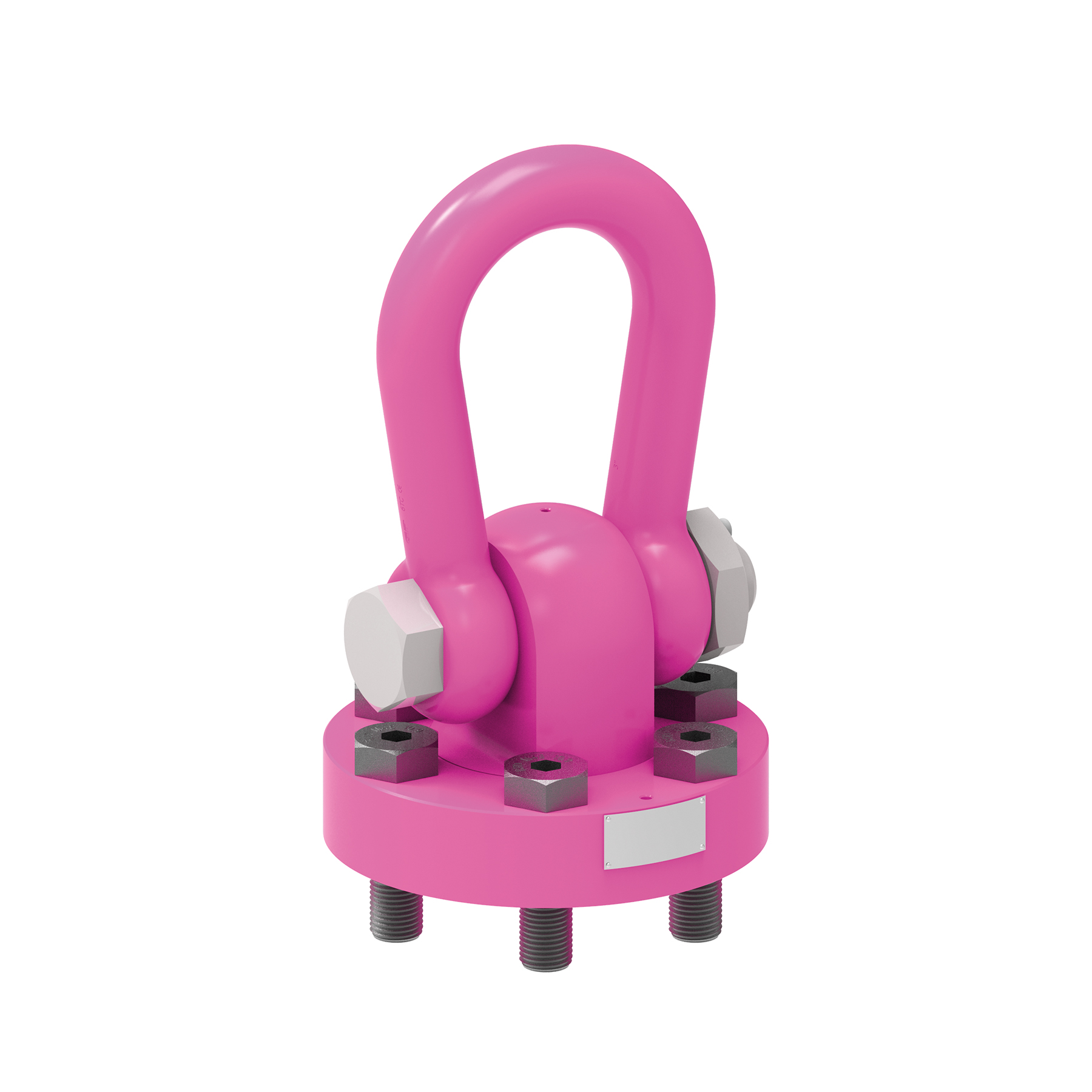

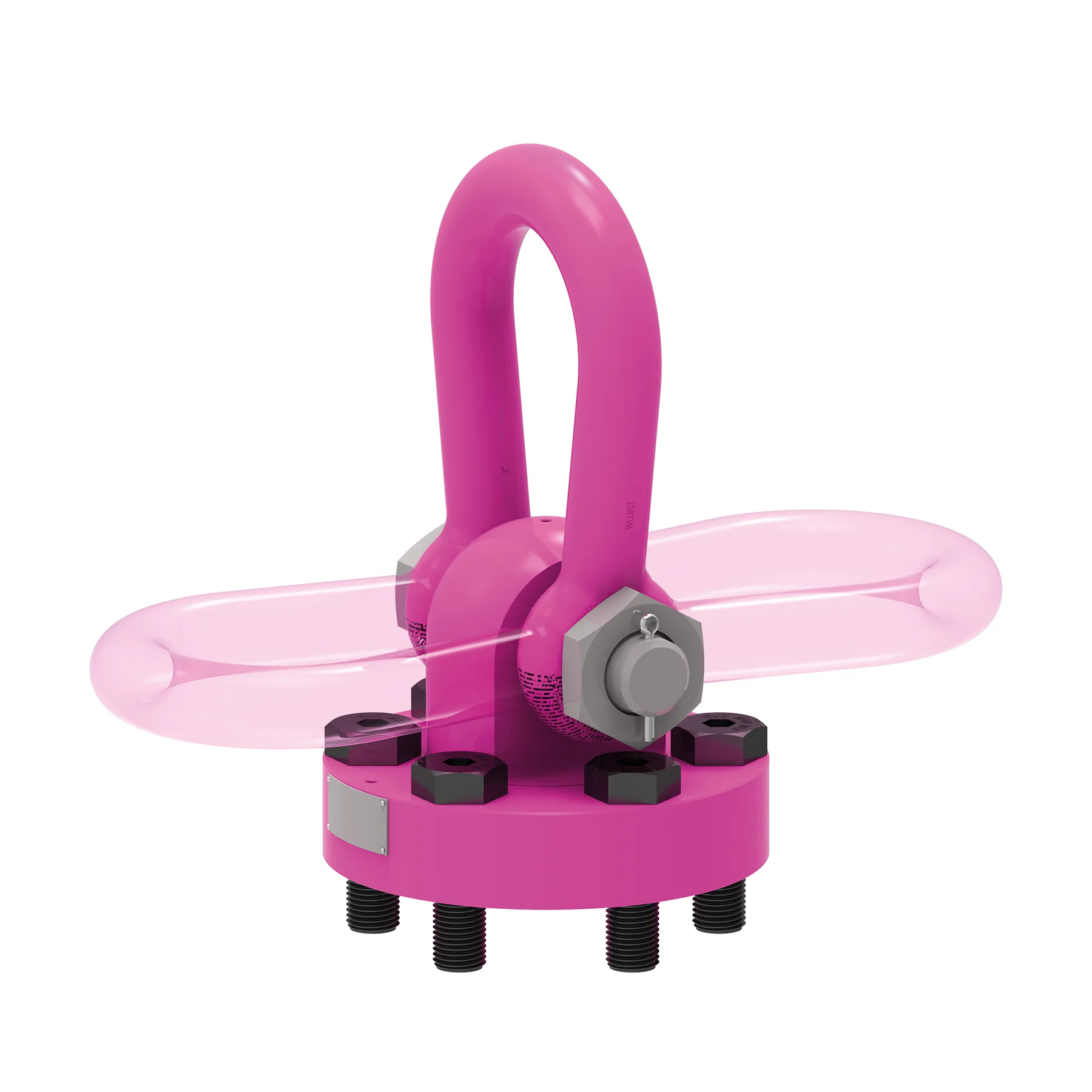

Special WBPG M48 for 85t WLL / 400 mm (7993712)

Technical Information

Product number: 7993712

Technical Downloads

WBPG 85t - DXF 2D CAD File Download File

WBPG 85t - IGES 3D CAD File Download File

WBPG 85t - STEP 3D CAD File Download File

Special WBPG M48 for 85t WLL / 400 mm Download File

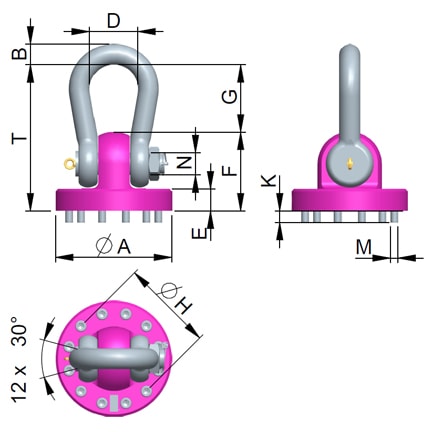

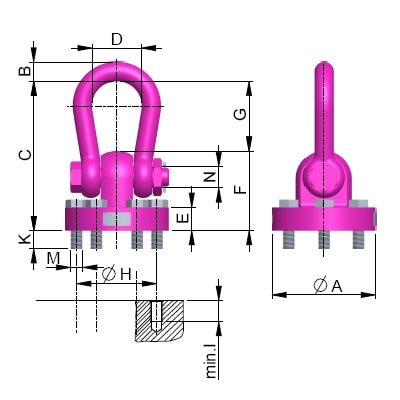

Attribute	Value	Value
weight	170.00 kg	374.79 lbs
Nominal WLL	85000 kg	187000 lbs
T	577 mm	22-23/32"
A	400 mm	15-3/4"
B	75 mm	2-15/16"
C	577 mm	22-23/32"
D	190 mm	7-1/2"
E	89 mm	3-1/2"
F	304 mm	11-31/32"
G	273 mm	10-3/4"
H	310 mm	12-3/16"
I	73 mm	2-7/8"
K	71 mm	2-13/16"
M	M48 mm	M48
N	83 mm	3-1/4"

Special WBPG M48 for 100t WLL / 400 mm (7993245)

Technical Information

Product number: 7993245

Technical Downloads

WBPG 100t - DXF 2D CAD File Download File

WBPG 100t - IGES 3D CAD File Download File

WBPG 100t - STEP 3D CAD File Download File

Special WBPG M48 for 100t WLL / 400 mm Download File

Attribute	Value	Value
weight	198.00 kg	436.52 lbs
Nominal WLL	100000 kg	220000 lbs
T	577 mm	22-23/32"
A	400 mm	15-3/4"
B	83 mm	3-1/4"
C	577 mm	22-23/32"
D	190 mm	7-1/2"
E	89 mm	3-1/2"
F	304 mm	11-31/32"
G	273 mm	10-3/4"
H	310 mm	12-3/16"
I	73 mm	2-7/8"
K	71 mm	2-13/16"
M	M48 mm	M48
N	83 mm	3-1/4"

Special WBPG M48 for 120t WLL / 571 mm (7900917)

Technical Information

Product number: 7900917

Technical Downloads

WBPG 120t - DXF 2D CAD File Download File

WBPG 120t - IGES 3D CAD File Download File

WBPG 120t - STEP 3D CAD File Download File

Special WBPG M48 for 120t WLL / 571 mm Download File

Attribute	Value	Value
weight	360.00 kg	793.66 lbs
Nominal WLL	120000 kg	264000 lbs
T	651 mm	25-5/8"
A	571 mm	22-15/32"
B	95 mm	3-3/4"
C	651 mm	25-5/8"
D	238 mm	9-3/8"
E	110 mm	4-11/32"
F	344 mm	13-9/16"
G	307 mm	12-3/32"
H	445 mm	17-1/2"
I	77 mm	3"-1/32"
K	75 mm	2-15/16"
M	M48 mm	M48
N	95 mm	3-3/4"

Special WBPG M48 for 200t WLL / 650 mm (7900383)

Technical Information

Product number: 7900383

Technical Downloads

WBPG 200t - DXF 2D CAD File Download File

WBPG 200t - IGES 3D CAD File Download File

WBPG 200t - STEP 3D CAD File Download File

Special WBPG M48 for 200t WLL / 650 mm Download File

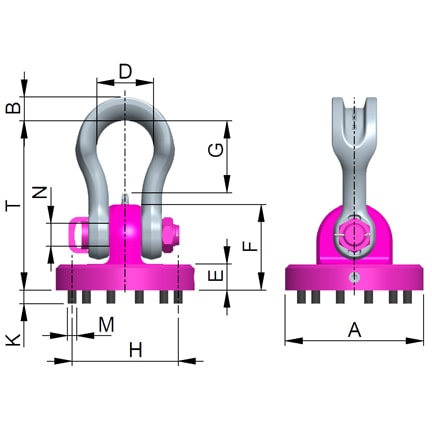

Attribute	Value	Value
weight	678.00 kg	1494.73 lbs
Nominal WLL	200000 kg	440000 lbs
T	880 mm	34-21/32"
A	650 mm	25-5/8"
B	120 mm	4-3/4"
C	880 mm	34-21/32"
D	290 mm	11-13/32"
E	100 mm	3-15/16"
F	460 mm	18-1/8"
G	426 mm	16-3/4"
H	500 mm	19-11/16"
I	73 mm	2-7/8"
K	71 mm	2-13/16"
M	M48 mm	M48
N	130 mm	5-1/8"

Special WBPG M48 for 250t WLL / 730 mm (7905690)

Technical Information

Product number: 7905690

Technical Downloads

WBPG 250t - DXF 2D CAD File Download File

WBPG 250t - IGES 3D CAD File Download File

WBPG 250t - STEP 3D CAD File Download File

Special WBPG M48 for 250t WLL / 730 mm Download File

Attribute	Value	Value
weight	992.00 kg	2186.99 lbs
Nominal WLL	250000 kg	550000 lbs
T	920 mm	36-7/32"
A	730 mm	28-3/4"
B	130 mm	5-1/8"
D	305 mm	12"
E	138 mm	5-7/16"
F	496 mm	19-1/2"
G	424 mm	16-11/16"
H	580 mm	22-27/32"
K	72 mm	2-27/32"
M	M48 mm	M48
N	140 mm	5-1/2"

Special WBPG-SL M48 for 250t WLL / 730 mm (7909644)

Technical Information

Product number: 7909644

Technical Downloads

Special WBPG-SL M48 for 250t WLL / 730 mm Download File

Attribute	Value	Value
weight	845.00 kg	1862.91 lbs
Nominal WLL	250000 kg	550000 lbs
T	894 mm	35-3/16"
A	730 mm	28-3/4"
B	126 mm	5"
D	300 mm	11-13/16"
E	138 mm	5-7/16"
F	452 mm	17-13/16"
G	380 mm	15"
H	580 mm	22-27/32"
I	74 mm	2-29/32"
K	72 mm	2-27/32"
M	M48 mm	M48
N	120 mm	4-3/4"
