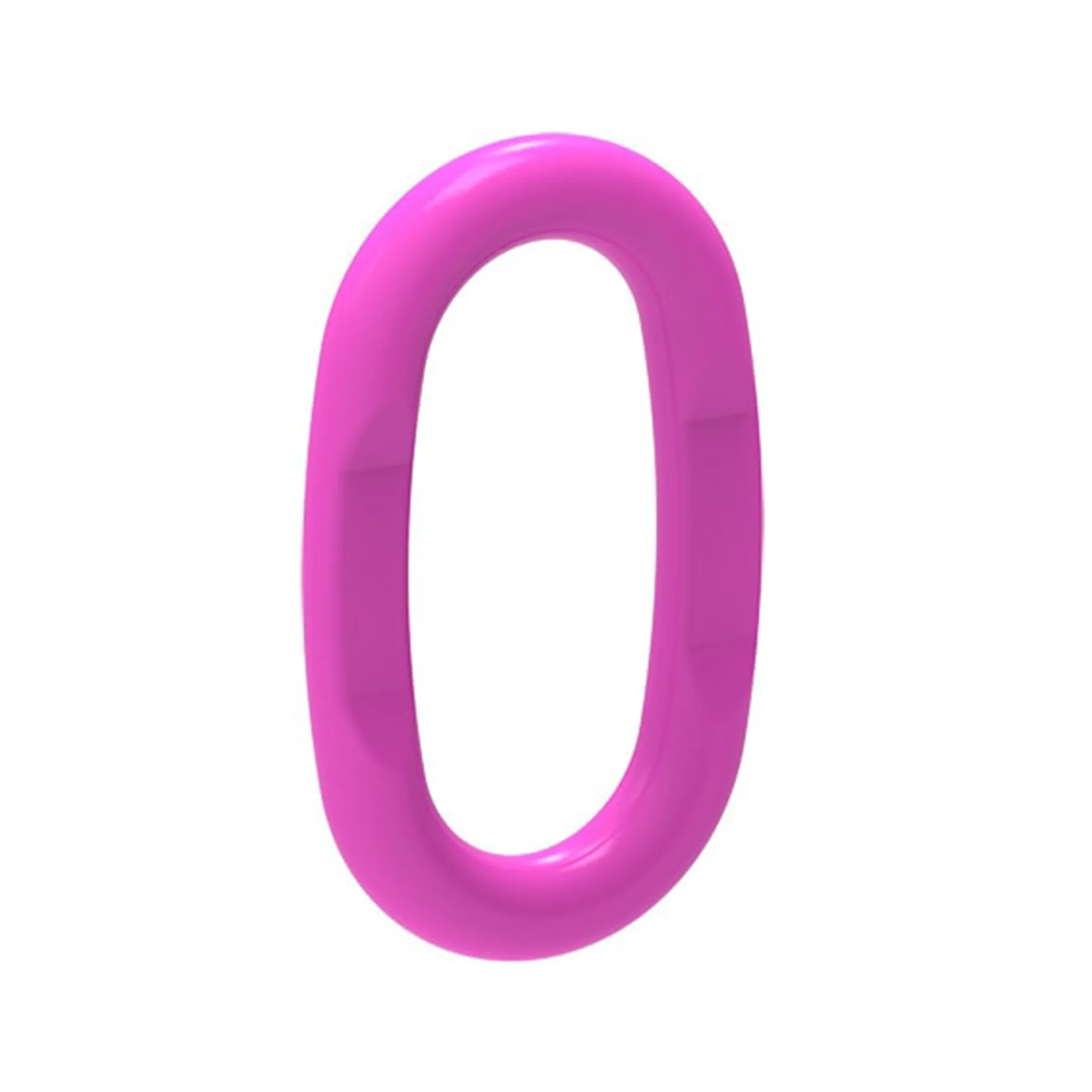

VIP-Oval-link for PowerPoint

Forged special link for small load hooks.

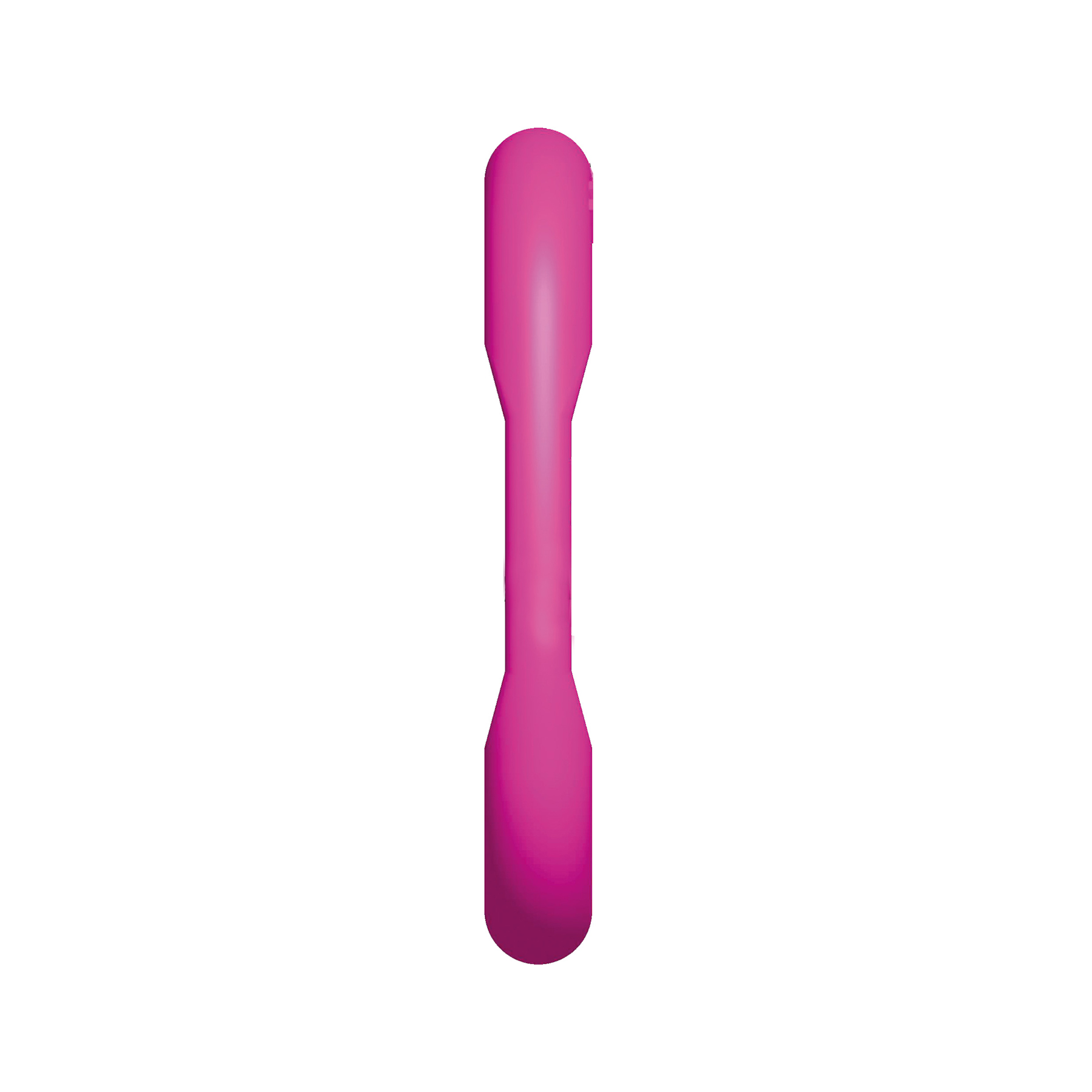

Light construction with a flattened centre corresponding to the respective VIP chain diameter.
Suitable for use with the universal swivel UW-PP or PP-B .
Surface: pink powder coated.
When assembling or connecting components always ensure that they all have the correct WLL.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Phone
This field is for validation purposes and should be left unchanged.

Product Variants (6)

VIP-Oval-link PP 0.63t-B (7989531)

Technical Information

Product number: 7989531

Technical Downloads

VIP-link PP 0.63t-B - DXF 2D CAD File Download File

VIP-link PP 0.63t-B - IGES 3D CAD File Download File

VIP-link PP 0.63t-B - STEP 3D CAD File Download File

VIP-Oval-link PP 0.63t-B Download File

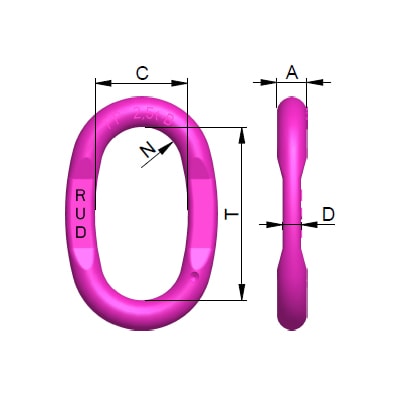

Attribute	Value	Value
weight	0.09 kg	0.20 lbs
Nominal WLL	630 kg	1385 lbs
A	9 mm	11/32"
T	65 mm	2-9/16"
C	35 mm	1-3/8"
D	4 mm	5/32"
N	15 mm	19/32"

VIP-Oval-link PP 1.5t-B (8502173)

Technical Information

Product number: 8502173

Technical Downloads

VIP-link PP 1.5t-B - DXF 2D CAD File Download File

VIP-link PP 1.5t-B - IGES 3D CAD File Download File

VIP-link PP 1.5t-B - STEP 3D CAD File Download File

VIP-Oval-link PP 1.5t-B Download File

Attribute	Value	Value
weight	0.13 kg	0.29 lbs
Nominal WLL	1500 kg	3300 lbs
A	11 mm	7/16"
T	65 mm	2-9/16"
C	35 mm	1-3/8"
D	6 mm	15/64"
N	15 mm	19/32"

VIP-Oval-link PP 2.5t-B (8502174)

Technical Information

Product number: 8502174

Technical Downloads

VIP-link PP 2.5t-B - DXF 2D CAD File Download File

VIP-link PP 2.5t-B - IGES 3D CAD File Download File

VIP-link PP 2.5t-B - STEP 3D CAD File Download File

VIP-Oval-link PP 2.5t-B Download File

Attribute	Value	Value
weight	0.22 kg	0.49 lbs
Nominal WLL	2500 kg	5500 lbs
A	13 mm	1/2"
T	75 mm	2-15/16"
C	40 mm	1-9/16"
D	8 mm	5/16"
N	18 mm	23/32"

VIP-Oval-link PP 4t-B (8502175)

Technical Information

Product number: 8502175

Technical Downloads

VIP-link PP 4t-B - DXF 2D CAD File Download File

VIP-link PP 4t-B - IGES 3D CAD File Download File

VIP-link PP 4t-B - STEP 3D CAD File Download File

VIP-Oval-link PP 4t-B Download File

Attribute	Value	Value
weight	0.42 kg	0.93 lbs
Nominal WLL	4000 kg	8800 lbs
A	16 mm	5/8"
T	95 mm	3-3/4"
C	45 mm	1-25/32"
D	10 mm	3/8"
N	20 mm	3/4"

VIP-Oval-link PP Ø13-B (8502176)

Technical Information

Product number: 8502176

Technical Downloads

VIP-link PP Ø13-B - DXF 2D CAD File Download File

VIP-link PP Ø13-B - IGES 3D CAD File Download File

VIP-link PP Ø13-B - STEP 3D CAD File Download File

VIP-Oval-link PP Ø13-B Download File

Attribute	Value	Value
weight	0.97 kg	2.14 lbs
Nominal WLL	6700 kg	15000 lbs
A	21 mm	13/16"
T	130 mm	5-1/8"
C	60 mm	2-3/8"
D	13 mm	1/2"
N	25 mm	63/64"

VIP-Oval-link PP Ø16-B (8502177)

Technical Information

Product number: 8502177

Technical Downloads

VIP-link PP Ø16-B - DXF 2D CAD File Download File

VIP-link PP Ø16-B - IGES 3D CAD File Download File

VIP-link PP Ø16-B - STEP 3D CAD File Download File

VIP-Oval-link PP Ø16-B Download File

Attribute	Value	Value
weight	1.38 kg	3.04 lbs
Nominal WLL	10000 kg	22000 lbs
A	24 mm	15/16"
T	140 mm	5-1/2"
C	65 mm	2-9/16"
D	16 mm	5/8"
N	28 mm	1-1/8"
