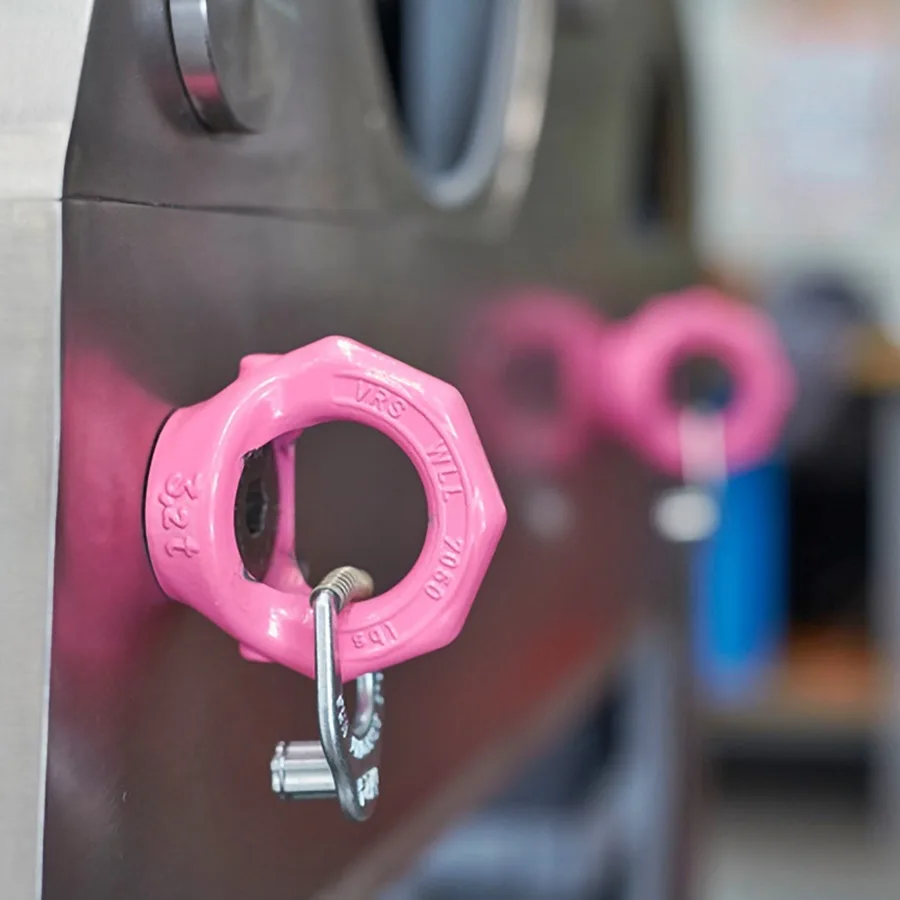

VRS-F STARPOINT - Metric Thread
Clever installation – Simple alignment

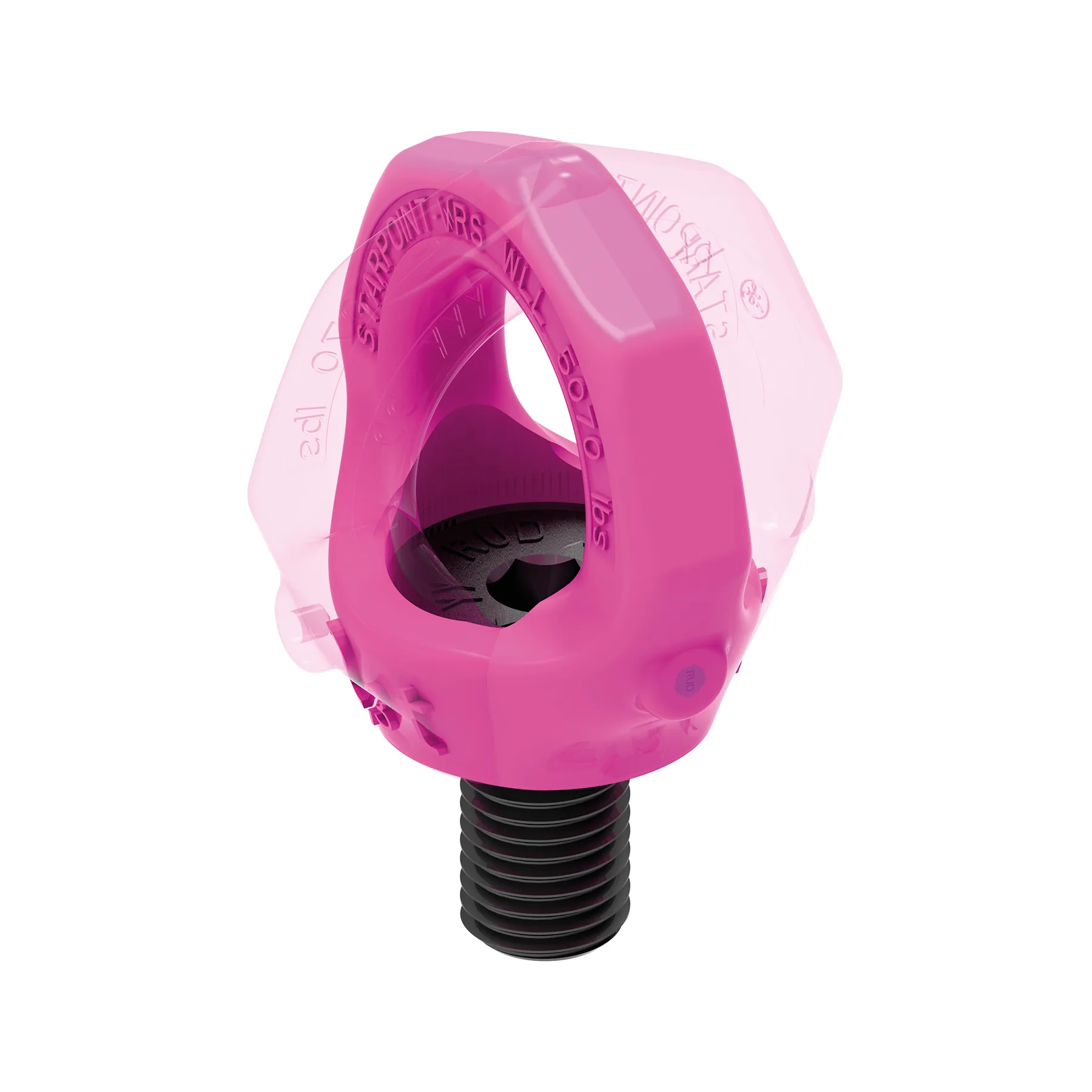

- 360° adjustable in force direction
- Higher WLL than the DIN 580 eye bolt

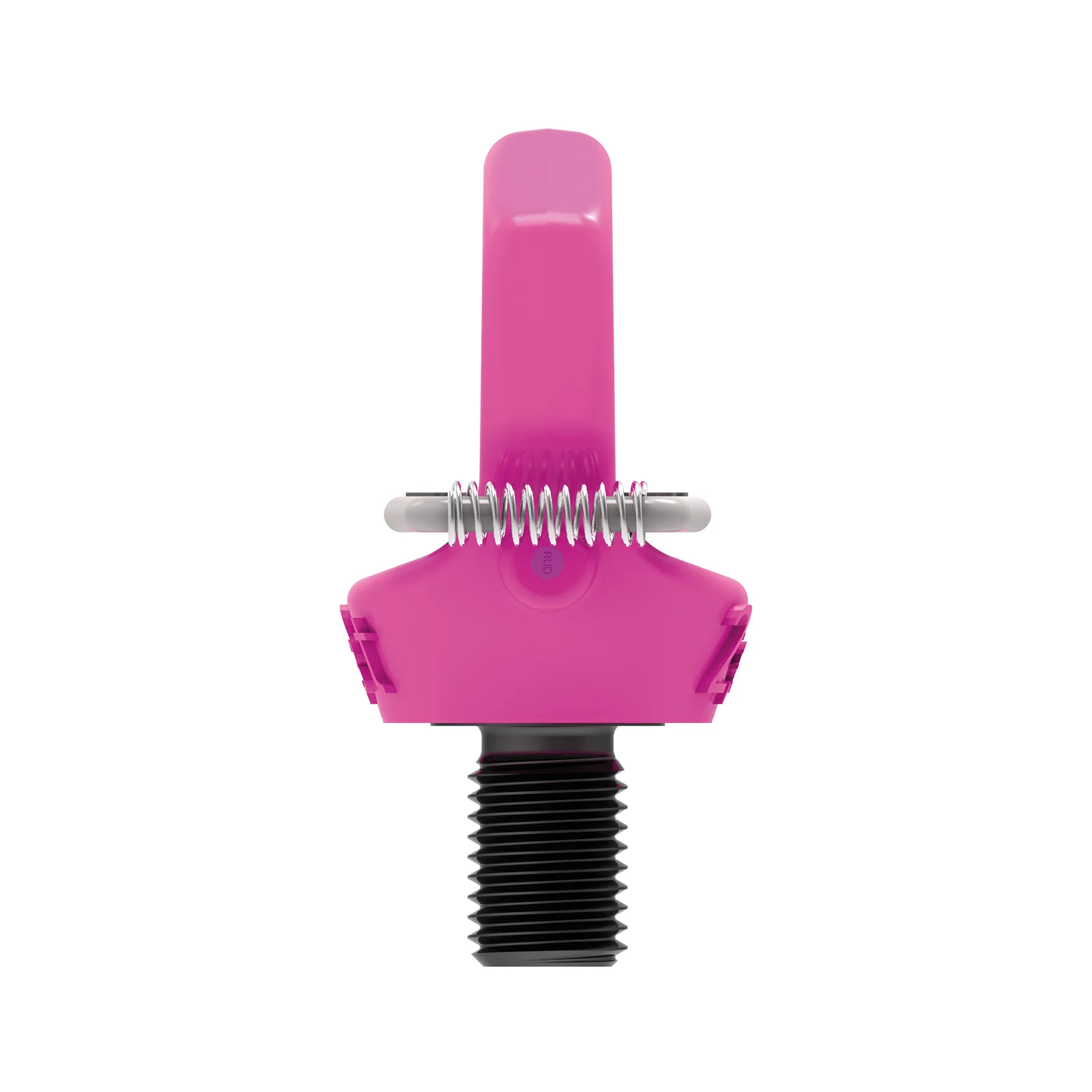

- Unique key design for easy assembly and disassembly
- Ideal for both axial and angular loading
- Stamped with WLL F2
Product Variants (18)
VRS-F M6 Starpoint with Star Key (7900906)

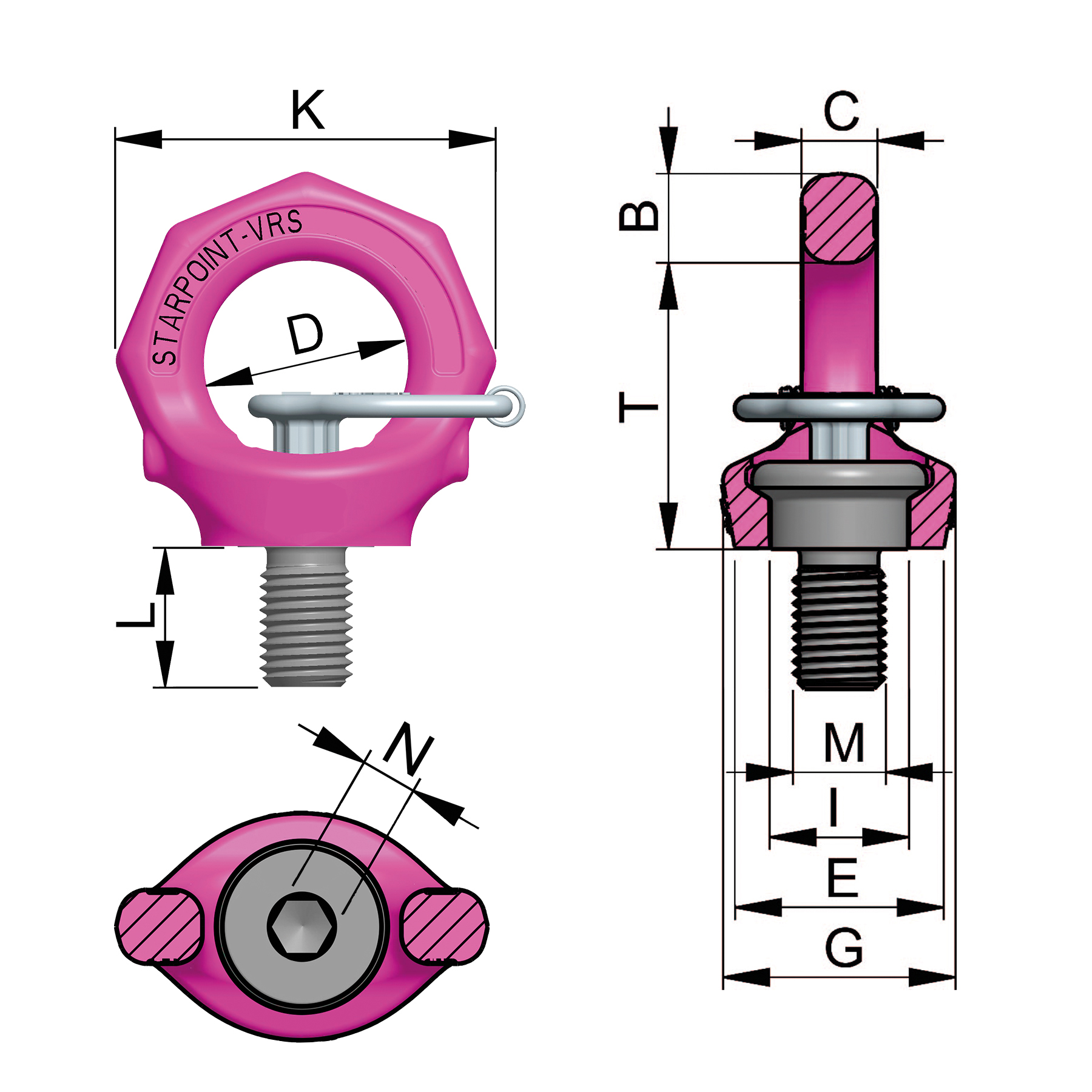

| Attribute | Value | Value |
|---|
| Weight | 0.07 kg | 0.15 lbs |
| Nominal WLL | 100 kg | 220 lbs |
| B | 9 mm | 11/32" |
| T | 28 mm | 1-1/8" |
| C | 7 mm | 9/32" |
| D | 20 mm | 3/4" |
| E | 23 mm | 29/32" |
| G | 28 mm | 1-1/8" |
| I | 13 mm | 1/2" |
| K | 37 mm | 1-7/16" |
| L | 9 mm | 11/32" |
| M | M 6 mm | M 6 |
| N | 6 mm | 15/64" |
VRS-F M8 Starpoint with Star Key (8500911)
| Attribute | Value | Value |
|---|
| Weight | 0.12 kg | 0.26 lbs |
| Nominal WLL | 300 kg | 660 lbs |
| B | 11 mm | 7/16" |
| T | 35 mm | 1-3/8" |
| C | 9 mm | 11/32" |
| D | 25 mm | 63/64" |
| E | 25 mm | 63/64" |
| G | 30 mm | 1-3/16" |
| I | 16.3 mm | 41/64" |
| K | 47 mm | 1-7/8" |
| L | 12 mm | 15/32" |
| M | M8 mm | M8 |
| N | 6 mm | 15/64" |
VRS-F M10 Starpoint with Star Key (7104029)
| Attribute | Value | Value |
|---|
| Weight | 0.12 kg | 0.26 lbs |
| Nominal WLL | 400 kg | 880 lbs |
| B | 11 mm | 7/16" |
| T | 35 mm | 1-3/8" |
| C | 9 mm | 11/32" |
| D | 25 mm | 63/64" |
| E | 25 mm | 63/64" |
| G | 30 mm | 1-3/16" |
| I | 16.3 mm | 41/64" |
| K | 47 mm | 1-7/8" |
| L | 15 mm | 19/32" |
| M | M10 mm | M10 |
| N | 6 mm | 15/64" |
VRS-F M12 Starpoint with Star Key (7101313)
| Attribute | Value | Value |
|---|
| Weight | 0.21 kg | 0.46 lbs |
| Nominal WLL | 750 kg | 1650 lbs |
| B | 13 mm | 1/2" |
| T | 42 mm | 1-21/32" |
| C | 10 mm | 3/8" |
| D | 30 mm | 1-3/16" |
| E | 30 mm | 1-3/16" |
| G | 34 mm | 1-11/32" |
| I | 19.8 mm | 25/32" |
| K | 56 mm | 2-3/16" |
| L | 18 mm | 23/32" |
| M | M12 mm | M12 |
| N | 8 mm | 5/16" |
VRS-F M14 Starpoint with Star Key (7999330)
| Attribute | Value | Value |
|---|
| Weight | 0.22 kg | 0.49 lbs |
| Nominal WLL | 750 kg | 1650 lbs |
| B | 13 mm | 1/2" |
| T | 42 mm | 1-21/32" |
| C | 10 mm | 3/8" |
| D | 30 mm | 1-3/16" |
| E | 30 mm | 1-3/16" |
| G | 34 mm | 1-11/32" |
| I | 19.8 mm | 25/32" |
| K | 56 mm | 2-3/16" |
| L | 18 mm | 23/32" |
| M | M14 mm | M14 |
| N | 8 mm | 5/16" |
VRS-F M16 Starpoint with Star Key (7101314)
| Attribute | Value | Value |
|---|
| Weight | 0.36 kg | 0.79 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| B | 15 mm | 19/32" |
| T | 49 mm | 1-15/16" |
| C | 13 mm | 1/2" |
| D | 35 mm | 1-3/8" |
| E | 36 mm | 1-27/64" |
| G | 40 mm | 1-9/16" |
| I | 23.5 mm | 59/64" |
| K | 65 mm | 2-9/16" |
| L | 24 mm | 15/16" |
| M | M16 mm | M16 |
| N | 10 mm | 3/8" |
VRS-F M18 Starpoint with Star Key (7903387)
| Attribute | Value | Value |
|---|
| Weight | 0.39 kg | 0.86 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| B | 15 mm | 19/32" |
| T | 49 mm | 1-15/16" |
| C | 13 mm | 1/2" |
| D | 35 mm | 1-3/8" |
| E | 36 mm | 1-27/64" |
| G | 40 mm | 1-9/16" |
| I | 23.5 mm | 59/64" |
| K | 65 mm | 2-9/16" |
| L | 24 mm | 15/16" |
| M | M18 mm | M18 |
| N | 10 mm | 3/8" |
VRS-F M20 Starpoint with Star Key (7101315)
| Attribute | Value | Value |
|---|
| Weight | 0.60 kg | 1.32 lbs |
| Nominal WLL | 2300 kg | 5070 lbs |
| B | 17 mm | 43/64" |
| T | 58 mm | 2-9/32" |
| C | 16 mm | 5/8" |
| D | 40 mm | 1-9/16" |
| E | 41 mm | 1-5/8" |
| G | 50 mm | 1-31/32" |
| I | 29.3 mm | 1-5/32" |
| K | 76 mm | 3" |
| L | 30 mm | 1-3/16" |
| M | M20 mm | M20 |
| N | 12 mm | 15/32" |
VRS-F M22 Starpoint with Star Key (7992197)
| Attribute | Value | Value |
|---|
| Weight | 0.67 kg | 1.48 lbs |
| Nominal WLL | 2300 kg | 5070 lbs |
| B | 17 mm | 43/64" |
| T | 58 mm | 2-9/32" |
| C | 16 mm | 5/8" |
| D | 40 mm | 1-9/16" |
| E | 41 mm | 1-5/8" |
| G | 50 mm | 1-31/32" |
| I | 29.3 mm | 1-5/32" |
| K | 76 mm | 3" |
| L | 30 mm | 1-3/16" |
| M | M22 mm | M22 |
| N | 12 mm | 15/32" |
VRS-F M24 Starpoint with Star Key (7101316)
| Attribute | Value | Value |
|---|
| Weight | 1.05 kg | 2.31 lbs |
| Nominal WLL | 3200 kg | 7050 lbs |
| B | 20 mm | 3/4" |
| T | 70 mm | 2-3/4" |
| C | 19 mm | 3/4" |
| D | 49 mm | 1-15/16" |
| E | 51 mm | 2" |
| G | 60 mm | 2-3/8" |
| I | 35 mm | 1-3/8" |
| K | 92 mm | 3-5/8" |
| L | 36 mm | 1-27/64" |
| M | M24 mm | M24 |
| N | 14 mm | 9/16" |
VRS-F M27 Starpoint with Star Key (7994138)
| Attribute | Value | Value |
|---|
| Weight | 1.18 kg | 2.60 lbs |
| Nominal WLL | 3200 kg | 7050 lbs |
| B | 20 mm | 3/4" |
| T | 70 mm | 2-3/4" |
| C | 19 mm | 3/4" |
| D | 49 mm | 1-15/16" |
| E | 51 mm | 2" |
| G | 60 mm | 2-3/8" |
| I | 35 mm | 1-3/8" |
| K | 92 mm | 3-5/8" |
| L | 36 mm | 1-27/64" |
| M | M27 mm | M27 |
| N | 14 mm | 9/16" |
VRS-F M30 Starpoint with Star Key (7101317)
| Attribute | Value | Value |
|---|
| Weight | 2.08 kg | 4.59 lbs |
| Nominal WLL | 4500 kg | 9920 lbs |
| B | 26 mm | 1" |
| T | 87 mm | 3-7/16" |
| C | 24 mm | 15/16" |
| D | 60 mm | 2-3/8" |
| E | 66 mm | 2-5/8" |
| G | 75 mm | 2-15/16" |
| I | 44 mm | 1-3/4" |
| K | 114 mm | 4-1/2" |
| L | 45 mm | 1-25/32" |
| M | M30 mm | M30 |
| N | 17 mm | 43/64" |
VRS-F M33 Starpoint with Star Key (7993439)
| Attribute | Value | Value |
|---|
| Weight | 2.20 kg | 4.85 lbs |
| Nominal WLL | 4500 kg | 9920 lbs |
| B | 26 mm | 1" |
| T | 87 mm | 3-7/16" |
| C | 24 mm | 15/16" |
| D | 60 mm | 2-3/8" |
| E | 66 mm | 2-5/8" |
| G | 75 mm | 2-15/16" |
| I | 44 mm | 1-3/4" |
| K | 114 mm | 4-1/2" |
| L | 45 mm | 1-25/32" |
| M | M33 mm | M33 |
| N | 17 mm | 43/64" |
VRS-F M36 Starpoint with Star Key (7984201)
| Attribute | Value | Value |
|---|
| Weight | 3.49 kg | 7.69 lbs |
| Nominal WLL | 7000 kg | 15430 lbs |
| B | 32 mm | 1-1/4" |
| T | 103 mm | 4-1/16" |
| C | 29 mm | 1-5/32" |
| D | 72 mm | 2-27/32" |
| E | 76 mm | 3" |
| G | 97 mm | 3-13/16" |
| I | 53 mm | 2-3/32" |
| K | 135 mm | 5-5/16" |
| L | 54 mm | 2-1/8" |
| M | M36 mm | M36 |
| N | 22 mm | 7/8" |
VRS-F M42 Starpoint with Star Key (7984202)
| Attribute | Value | Value |
|---|
| Weight | 5.40 kg | 11.90 lbs |
| Nominal WLL | 9000 kg | 19480 lbs |
| B | 37 mm | 1-7/16" |
| T | 121 mm | 4-3/4" |
| C | 33 mm | 1-5/16" |
| D | 84 mm | 3-5/16" |
| E | 86 mm | 3-3/8" |
| G | 111 mm | 4-13/32" |
| I | 62 mm | 2-7/16" |
| K | 158 mm | 6-1/4" |
| L | 63 mm | 2-15/32" |
| M | M42 mm | M42 |
| N | 24 mm | 15/16" |
VRS-F M48 Starpoint with Star Key (7984203)
| Attribute | Value | Value |
|---|
| Weight | 8.17 kg | 18.01 lbs |
| Nominal WLL | 12000 kg | 24640 lbs |
| B | 42 mm | 1-21/32" |
| T | 138 mm | 5-7/16" |
| C | 42 mm | 1-21/32" |
| D | 94 mm | 3-11/16" |
| E | 100 mm | 3-15/16" |
| G | 128 mm | 5" |
| I | 70 mm | 2-3/4" |
| K | 180 mm | 7-1/16" |
| L | 72 mm | 2-27/32" |
| M | M48 mm | M48 |
| N | 27 mm | 1-1/16" |
VRS-F M56 Starpoint with Star Key (7910836)
| Attribute | Value | Value |
|---|
| Weight | 12.97 kg | 28.59 lbs |
| Nominal WLL | 16000 kg | 35270 lbs |
| B | 50 mm | 1-31/32" |
| T | 161 mm | 6-11/32" |
| C | 44 mm | 1-3/4" |
| D | 110 mm | 4-11/32" |
| E | 112 mm | 4-13/32" |
| G | 145 mm | 5-11/16" |
| I | 82 mm | 3-1/4" |
| K | 209 mm | 8-1/4" |
| L | 84 mm | 3-5/16" |
| M | M56 mm | M56 |
| N | 32 mm | 1-1/4" |
VRS-F M64 Starpoint with Star Key (7910837)
| Attribute | Value | Value |
|---|
| Weight | 17.79 kg | 39.22 lbs |
| Nominal WL | 20000 kg | 44090lbs |
| B | 55 mm | 2-5/32" |
| T | 176 mm | 6-15/16" |
| C | 48 mm | 1-7/8" |
| D | 120 mm | 4-3/4" |
| E | 122 mm | 4-13/16" |
| G | 157 mm | 6-3/16" |
| I | 90 mm | 3-17/32" |
| K | 228 mm | 9" |
| L | 96 mm | 3-25/32" |
| M | M64 mm | M64 |
| N | 36 mm | 1-27/64" |
