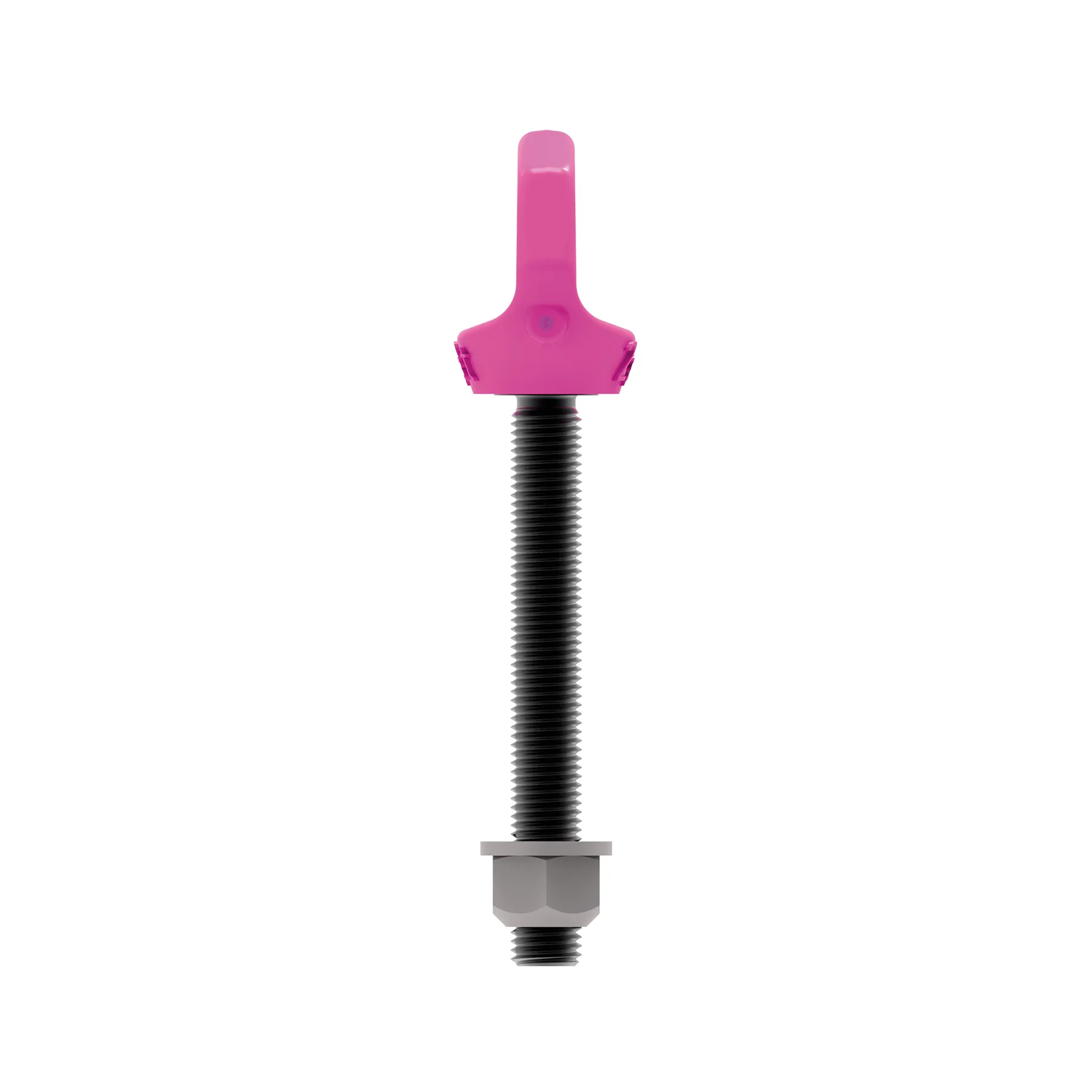

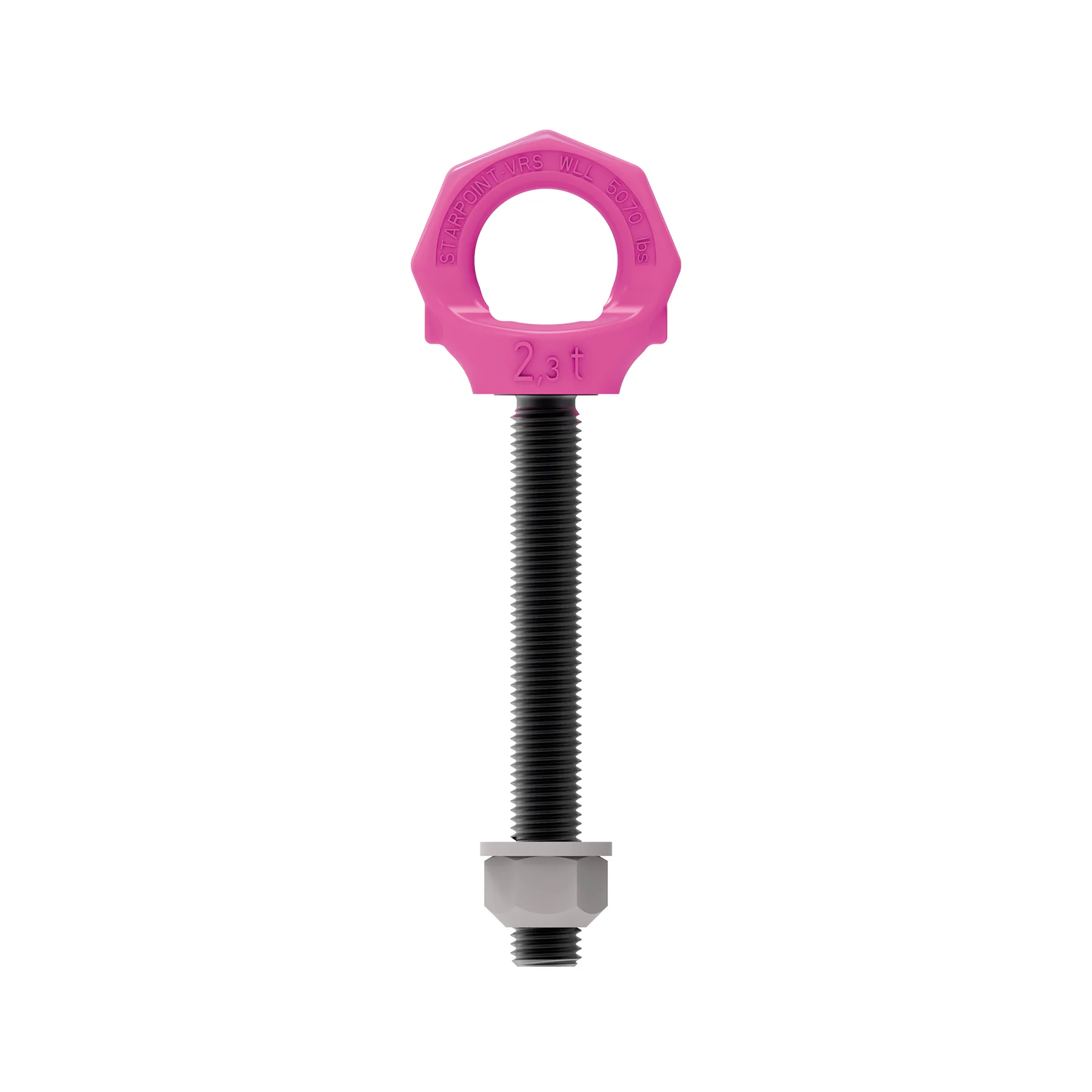

VRS-F STARPOINT, metric thread with variable length, comes with locknut and washer

Vario-Starpoint VRS-F-M10 with variable length (8600270)

Technical Information

Product number: 8600270

Technical Downloads

VRS-F Vario - Picture Download File

VRS-F Vario - Picture Download File

Vario-Starpoint VRS-F-M10 with variable length Download File

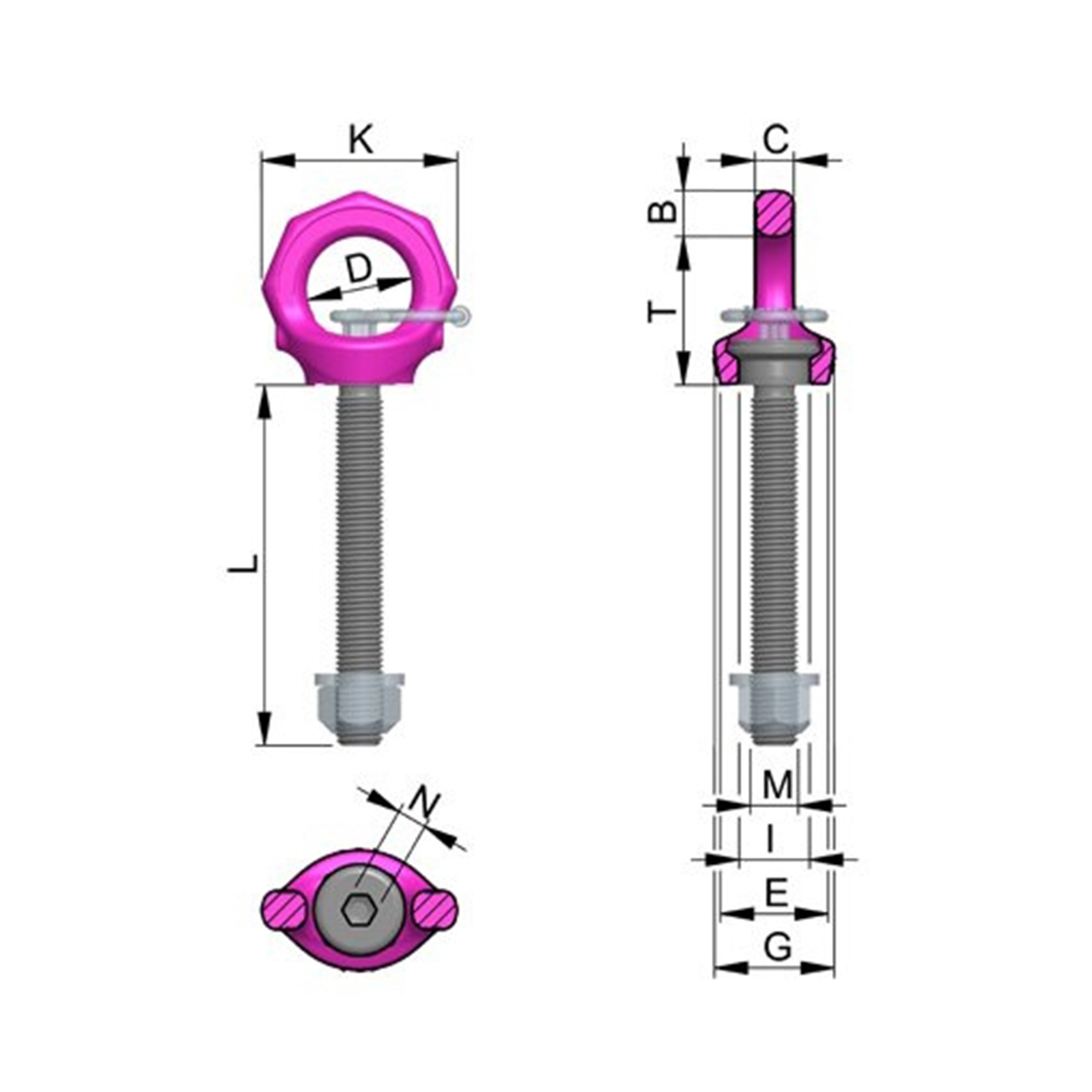

Attribute	Value	Value
Nominal WLL	400 kg	880 lbs
B	11 mm	7/16"
T	35 mm	1-3/8"
C	9 mm	11/32"
D	25 mm	63/64"
E	25 mm	63/64"
G	30 mm	1-3/16"
I	16.3 mm	41/64"
K	47 mm	1-7/8"
L	16-70 mm	16-70
M	M10 mm	M10
N	6 mm	15/64"

Vario-Starpoint VRS-F-M12 with variable length (8600271)

Technical Information

Product number: 8600271

Technical Downloads

VRS-F Vario - Picture Download File

VRS-F Vario - Picture Download File

Vario-Starpoint VRS-F-M12 with variable length Download File

Attribute	Value	Value
weight	0.28 kg	0.62 lbs
Nominal WLL	750 kg	1650 lbs
B	13 mm	1/2"
T	42 mm	1-21/32"
C	10 mm	3/8"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	34 mm	1-11/32"
I	19.8 mm	825/32"
K	56 mm	2-3/16"
L	18-150 mm	18-150
M	M12 mm	M12
N	8 mm	5/16"

Vario-Starpoint VRS-F-M20 with variable length (8600273)

Technical Information

Product number: 8600273

Technical Downloads

VRS-F Vario - Picture Download File

VRS-F Vario - Picture Download File

Vario-Starpoint VRS-F-M20 with variable length Download File

Attribute	Value	Value
Nominal WLL	2300 kg	5070 lbs
B	17 mm	43/64"
T	58 mm	2-9/32"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	41 mm	1-5/8"
G	50 mm	1-31/32"
I	29.3 mm	31-5/32"
K	76 mm	3"
L	30-160 mm	30-160
M	M20 mm	M20
N	12 mm	15/32"

Vario-Starpoint VRS-F-M16 with variable length (8600272)

Technical Information

Product number: 8600272

Technical Downloads

VRS-F Vario - Picture Download File

VRS-F Vario - Picture Download File

Vario-Starpoint VRS-F-M16 with variable length Download File

Attribute	Value	Value
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	49 mm	1-15/16"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	36 mm	1-27/64"
G	40 mm	1-9/16"
I	23.5 mm	559/64"
K	65 mm	2-9/16"
L	24-120 mm	24-120
M	M16 mm	M16
N	10 mm	3/8"

Vario-Starpoint VRS-F-M24 with variable length (8600274)

Technical Information

Product number: 8600274

Technical Downloads

VRS-F Vario - Picture Download File

VRS-F Vario - Picture Download File

Vario-Starpoint VRS-F-M24 with variable length Download File

Attribute	Value	Value
Nominal WLL	3200 kg	7050 lbs
B	20 mm	3/4"
T	70 mm	2-3/4"
C	19 mm	3/4"
D	49 mm	1-15/16"
E	51 mm	2"
G	60 mm	2-3/8"
I	35 mm	1-3/8"
K	92 mm	3-5/8"
L	36-140 mm	36-140
M	M24 mm	M24
N	14 mm	9/16"

Vario-Starpoint VRS-F-M30 with variable length (8600275)

Technical Information

Product number: 8600275

Technical Downloads

VRS-F Vario - Picture Download File

VRS-F Vario - Picture Download File

Vario-Starpoint VRS-F-M30 with variable length Download File

Attribute	Value	Value
Nominal WLL	4500 kg	9920 lbs
B	26 mm	1"
T	87 mm	3-7/16"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	66 mm	2-5/8"
G	75 mm	2-15/16"
I	44 mm	1-3/4"
K	114 mm	4-1/2"
L	45-190 mm	45-190
M	M30 mm	M30
N	17 mm	43/64"
