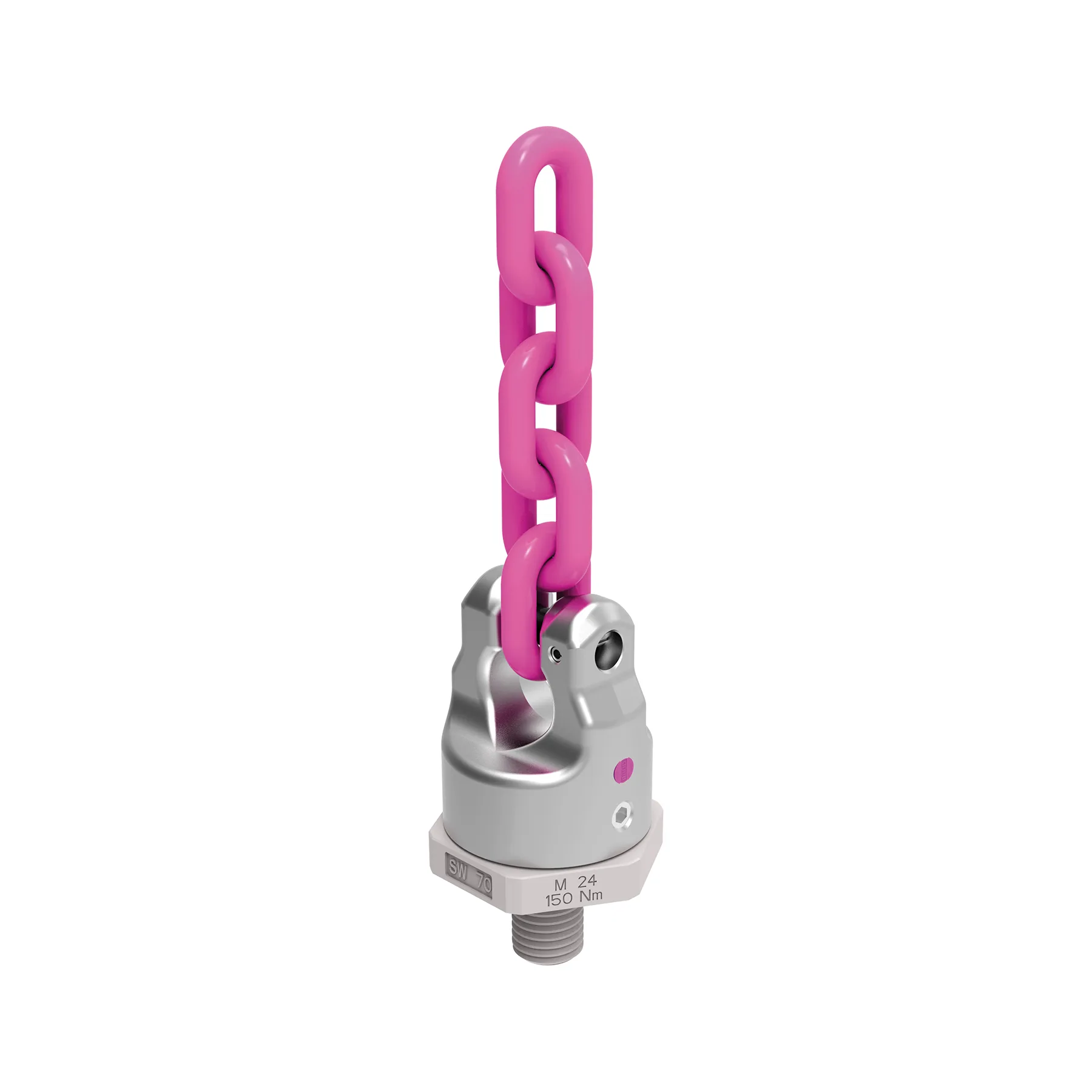

PP-VIP PowerPoint® - Direct VIP Chain Connection - Metric Thread
Easy to rotate with always the right connection
- Suitable for all loads which swivel and tilt
- Rotates 360° and pivots 230°
- Universal VIP connection for chain, hook and eye

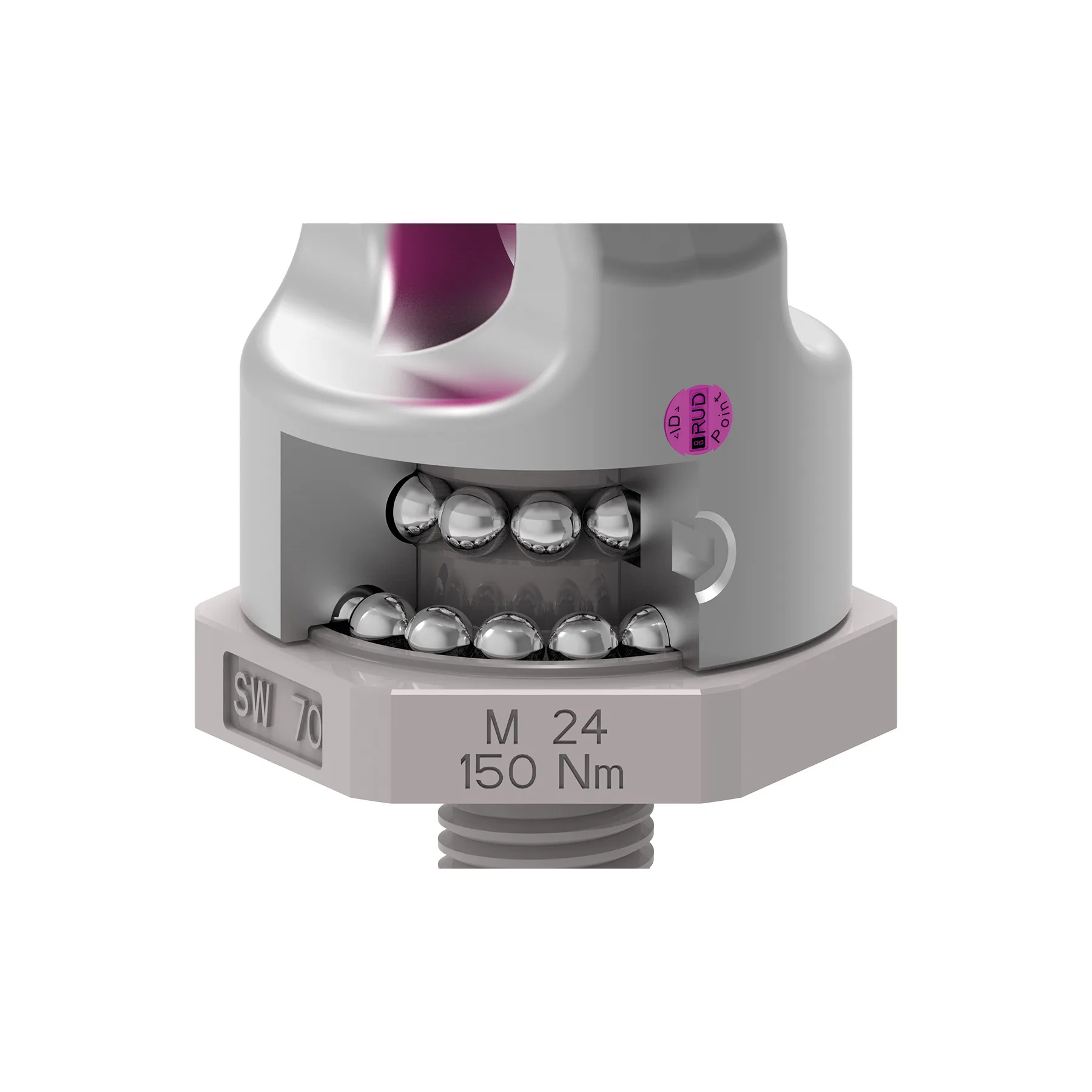

- Double ball bearing for turning/rotating operations
- RUD 4:1 safety factor
Product Variants (34)
PowerPoint PP-VIP-4 0.63t M12 (7989525)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.55 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 4 mm | 5/32" |
| T | 41 mm | 1-5/8" |
| D | 40 mm | 1-9/16" |
| E | 36 mm | 1-27/64" |
| F | 18 mm | 11/16" |
| M | M12 mm | M12 |
PowerPoint PP-VIP-6 1t M14 (8600326)
| Attribute | Value | Value |
|---|
| weight | 0.83 kg | 1.83 lbs |
| Nominal WLL | 1000 kg | 2200 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 21 mm | 13/16" |
| M | M14 mm | M14 |
PowerPoint PP-VIP-6 1.5t M16 (7989526)
| Attribute | Value | Value |
|---|
| weight | 0.42 kg | 0.99 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 6 mm | 15/64" |
| T | 50 mm | 1-31/32" |
| D | 46 mm | 1-13/16" |
| E | 41 mm | 1-5/8" |
| F | 25 mm | 63/64" |
| M | M16 mm | M16 |
PowerPoint PP-VIP-8 2.5t M20 (7989527)
| Attribute | Value | Value |
|---|
| weight | 0.94 kg | 2.09 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| M | M20 mm | M20 |
PowerPoint PP-VIP-8 2t M22 (8600322)
| Attribute | Value | Value |
|---|
| weight | 1.20 kg | 2.65 lbs |
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 8 mm | 5/16" |
| T | 73 mm | 2-7/8" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 33 mm | 1-5/16" |
| M | M22 mm | M22 |
PowerPoint PP-VIP-10 4t M24 (7989528)
| Attribute | Value | Value |
|---|
| weight | 1.82 kg | 4.85 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77 mm | 3"-1/32" |
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| M | M24 mm | M24 |
PowerPoint PP-VIP-10 3.5t M27 (8600323)
| Attribute | Value | Value |
|---|
| weight | 2.47 kg | 5.45 lbs |
| Nominal WLL | 3500 kg | 7700 lbs |
| A | 10 mm | 3/8" |
| T | 94 mm | 3-11/16" |
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 41 mm | 1-5/8" |
| M | M27 mm | M27 |
PowerPoint PP-VIP-13 5t M30 (7989529)
| Attribute | Value | Value |
|---|
| weight | 3.47 kg | 7.72 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 93 mm | 3-21/32" |
| D | 95 mm | 3-3/4" |
| E | 85 mm | 3-11/32" |
| F | 45 mm | 1-25/32" |
| M | M30 mm | M30 |
PowerPoint PP-VIP-16 8t M36 (7989530)
| Attribute | Value | Value |
|---|
| weight | 4.69 kg | 11.46 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 102 mm | 4" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 54 mm | 2-1/8" |
| M | M36 mm | M36 |

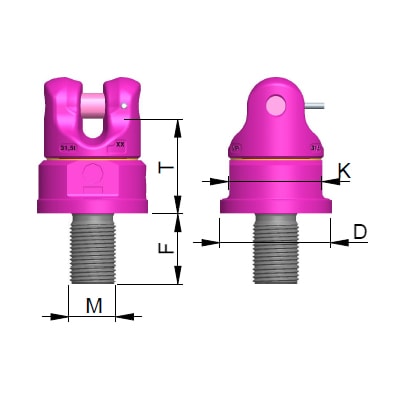

VWBG-KA-28 31.5t M72 (7903437)
| Attribute | Value | Value |
|---|
| weight | 26.40 kg | 58.20 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| T | 146 mm | 5-3/4" |
| D | 170 mm | 6-11/16" |
| F | 108 mm | 4-1/4" |
| K | 145 mm | 5-11/16" |
| M | M72 mm | M72 |

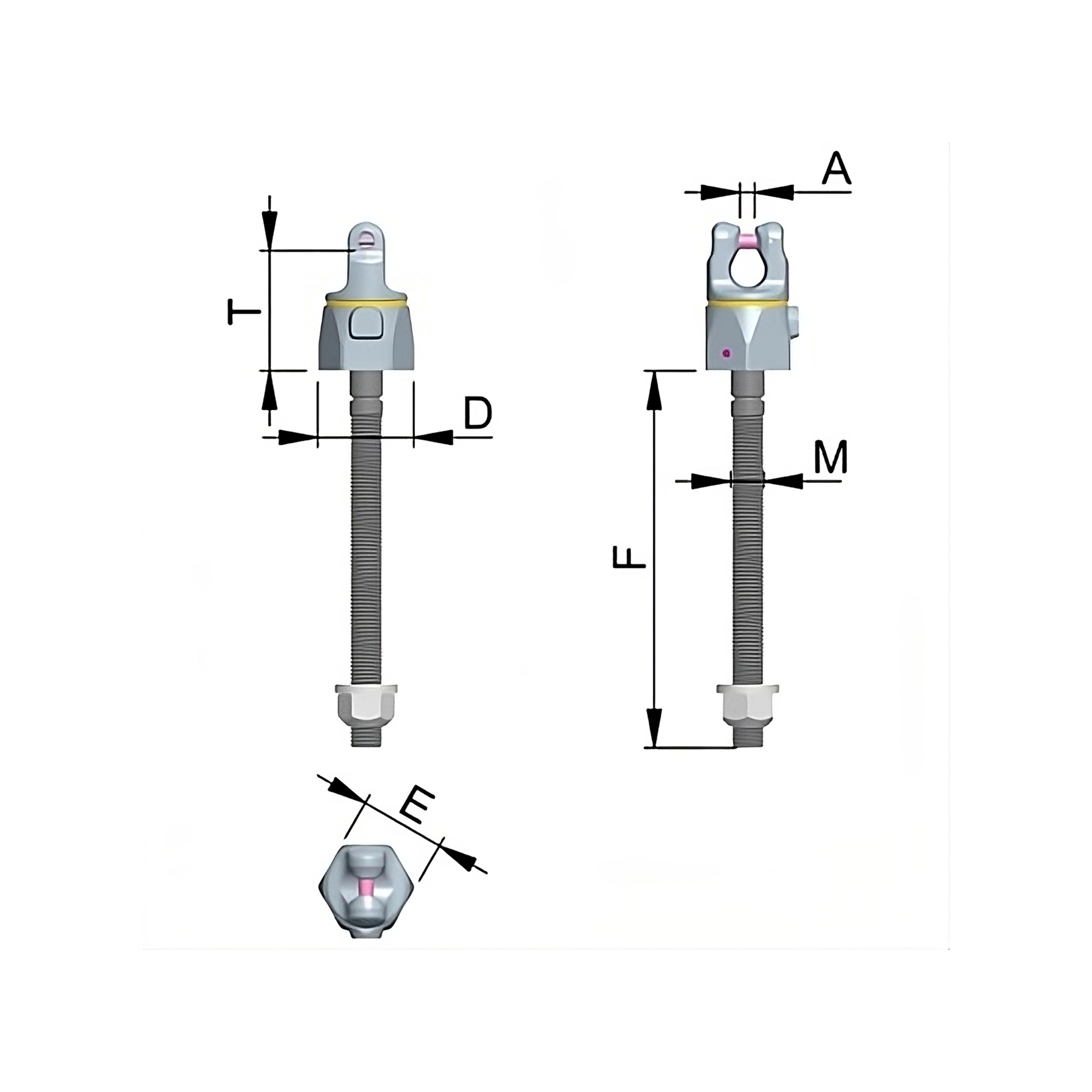

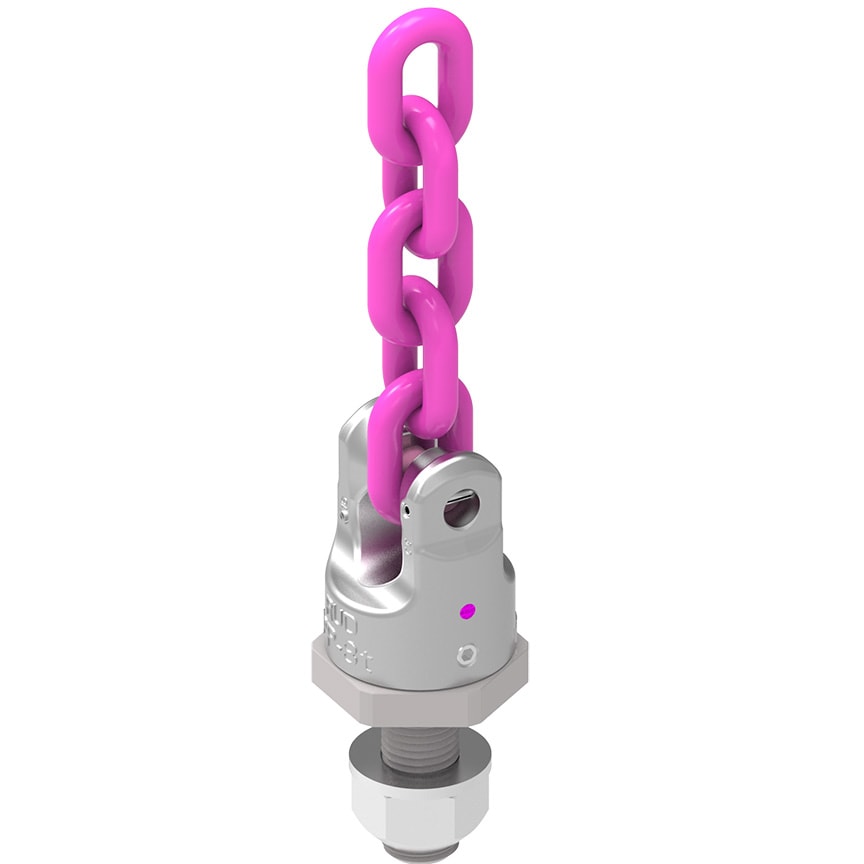

So-PowerPoint PP-VIP-4 0.6t M12 with variable length (8600320)
| Attribute | Value | Value |
|---|
| Nominal WLL | 600 kg | 1320 lbs |
| A | 4 mm | 5/32" |
| T | 47 mm | 1-7/8" |
| D | 42 mm | 1-21/32" |
| E | 36 mm | 1-27/64" |
| F | 12-140 mm | 12-140 |
| M | M12 mm | M12 |
So-PowerPoint PP-VIP-6 1t M14 with variable length (8600326)
| Attribute | Value | Value |
|---|
| Nominal WLL | 1000 kg | 2200 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 14-160 mm | 14-160 |
| M | M14 mm | M14 |
So-PowerPoint PP-VIP-6 1.3t M16 with variable length (8600321)
| Attribute | Value | Value |
|---|
| Nominal WLL | 1300 kg | 2860 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 16-180 mm | 16-180 |
| M | M16 mm | M16 |
So-PowerPoint PP-VIP-8 2t M20 with variable length (8600322)
| Attribute | Value | Value |
|---|
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 8 mm | 5/16" |
| T | 73 mm | 2-7/8" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 20-224 mm | 13/16" up to 8-13/16" |
| M | M20 mm | M20 |
So-PowerPoint PP-VIP-8 2t M22 with variable length (8600322)
| Attribute | Value | Value |
|---|
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 8 mm | 5/16" |
| T | 73 mm | 2-7/8" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 22-94 mm | 22-94 |
| M | M22 mm | M22 |
So-PowerPoint PP-VIP-10 3.5t M24 with variable length (8600323)
| Attribute | Value | Value |
|---|
| Nominal WLL | 3500 kg | 7700 lbs |
| A | 10 mm | 3/8" |
| T | 94 mm | 3-11/16" |
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 24-255 mm | 24-255 |
| M | M24 mm | M24 |
So-PowerPoint PP-VIP-10 3.5t M27 with variable length (8600323)
| Attribute | Value | Value |
|---|
| Nominal WLL | 3500 kg | 7700 lbs |
| A | 10 mm | 3/8" |
| T | 94 mm | 3-11/16" |
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 27-92 mm | 27-92 |
| M | M27 mm | M27 |
So-PowerPoint PP-VIP-13 5t M30 with variable length (8600324)
| Attribute | Value | Value |
|---|
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 108 mm | 4-1/4" |
| D | 99 mm | 3-7/8" |
| E | 85 mm | 3-11/32" |
| F | 30-330 mm | 30-330 |
| M | M30 mm | M30 |
So-PowerPoint PP-VIP-16 8t M36 with variable length ( 8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 36-300 mm | 36-300 |
| M | M36 mm | M36 |
So-PowerPoint PP-VIP-16 8t M39 with variable length (8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 39-300 mm | 1-17/32" up to 11-13/16" |
| M | M39 mm | M39 |
So-PowerPoint PP-VIP-16 8t M42 with variable length (8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 42-300 mm | 1-5/8" up to 11-13/16" |
| M | M42 mm | M42 |

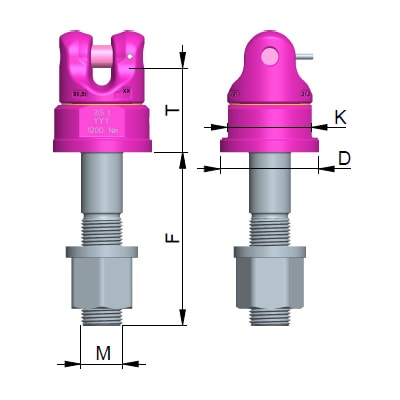

VWBG-KA-28 31.5t M72 with variable length (8600239)
| Attribute | Value | Value |
|---|
| Nominal WLL | 31500 kg | 69300 lbs |
| T | 146 mm | 5-3/4" |
| D | 170 mm | 6-11/16" |
| F | 72-300 mm | 72-300 |
| K | 145 mm | 5-11/16" |
| M | M72 mm | M72 |
So-PowerPoint PP-VIP-4 0.6t M12 with max-length F=140 (8600320)
| Attribute | Value | Value |
|---|
| weight | 0.41 kg | 0.90 lbs |
| Nominal WLL | 600 kg | 1320 lbs |
| A | 4 mm | 5/32" |
| T | 47 mm | 1-7/8" |
| D | 42 mm | 1-21/32" |
| E | 36 mm | 1-27/64" |
| F | 140 mm | 5-1/2" |
| M | M12 mm | M12 |
So-PowerPoint PP-VIP-6 1t M14 with max-length F=65 ( 8600326)
| Attribute | Value | Value |
|---|
| weight | 0.91 kg | 2.01 lbs |
| Nominal WLL | 1000 kg | 2200 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 65 mm | 2-9/16" |
| M | M14 mm | M14 |
So-PowerPoint PP-VIP-6 1t M14 with max-length F=160 ( 8600326)
| Attribute | Value | Value |
|---|
| weight | 0.69 kg | 1.52 lbs |
| Nominal WLL | 1000 kg | 2200 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 160 mm | 6-13/32" |
| M | M14 mm | M14 |
So-PowerPoint PP-VIP-6 1.3t M16 with max-length F=180 (8600321)
| Attribute | Value | Value |
|---|
| weight | 0.73 kg | 1.61 lbs |
| Nominal WLL | 1300 kg | 2860 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32" |
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 180 mm | 7-1/16" |
| M | M16 mm | M16 |
So-PowerPoint PP-VIP-8 2t M20 with max-length F=224 (8600322)
| Attribute | Value | Value |
|---|
| weight | 1.60 kg | 3.53 lbs |
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 8 mm | 5/16" |
| T | 73 mm | 2-7/8" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 224 mm | 8-13/16" |
| M | M20 mm | M20 |
So-PowerPoint PP-VIP-8 2t M22 with max-length F=94 (8600322)
| Attribute | Value | Value |
|---|
| weight | 1.33 kg | 2.93 lbs |
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 8 mm | 5/16" |
| T | 73 mm | 2-7/8" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 94 mm | 3-11/16" |
| M | M22 mm | M22 |
So-PowerPoint PP-VIP-10 3.5t M24 with max-length F=255 (8600323)
| Attribute | Value | Value |
|---|
| weight | 3.20 kg | 7.05 lbs |
| Nominal WLL | 3500 kg | 7700 lbs |
| A | 10 mm | 3/8" |
| T | 94 mm | 3-11/16" |
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 255 mm | 10-1/32" |
| M | M24 mm | M24 |
So-PowerPoint PP-VIP-10 3.5t M27 with max-length F=92 (8600323)
| Attribute | Value | Value |
|---|
| weight | 2.96 kg | 6.53 lbs |
| Nominal WLL | 3500 kg | 7700 lbs |
| A | 10 mm | 3/8" |
| T | 94 mm | 3-11/16" |
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 92 mm | 3-5/8" |
| M | M27 mm | M27 |
So-PowerPoint PP-VIP-13 5t M30 with max-length F=330 (8600324)
| Attribute | Value | Value |
|---|
| weight | 4.90 kg | 10.80 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 108 mm | 4-1/4" |
| D | 99 mm | 3-7/8" |
| E | 85 mm | 3-11/32" |
| F | 330 mm | 13" |
| M | M30 mm | M30 |
So-PowerPoint PP-VIP-16 8t M36 with max length F=300 (8600305)
| Attribute | Value | Value |
|---|
| weight | 6.90 kg | 15.21 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 300 mm | 11-13/16" |
| M | M36 mm | M36 |
So-PowerPoint PP-VIP-16 8t M39 with max length F=300 (8600305)
| Attribute | Value | Value |
|---|
| weight | 7.64 kg | 16.84 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 300 mm | 11-13/16" |
| M | M39 mm | M39 |
So-PowerPoint PP-VIP-16 8t M42 with max length F=300 (8600305)
| Attribute | Value | Value |
|---|
| weight | 8.02 kg | 17.68 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 300 mm | 11-13/16" |
| M | M42 mm | M42 |
